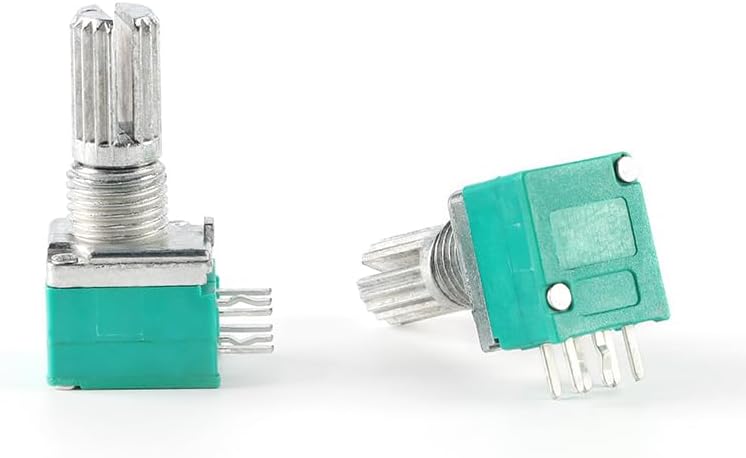

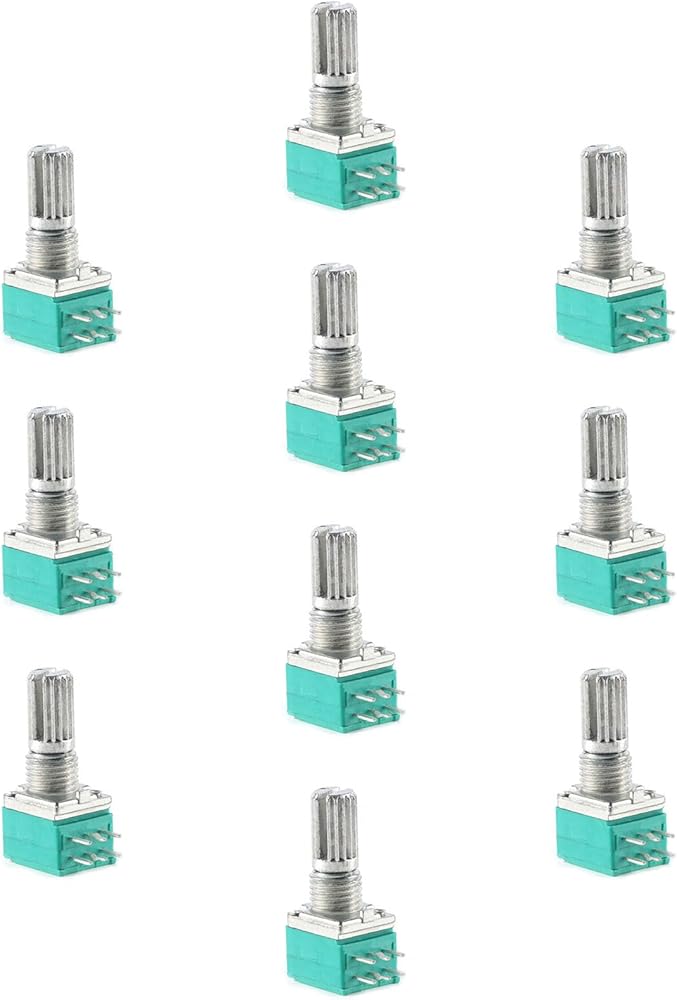

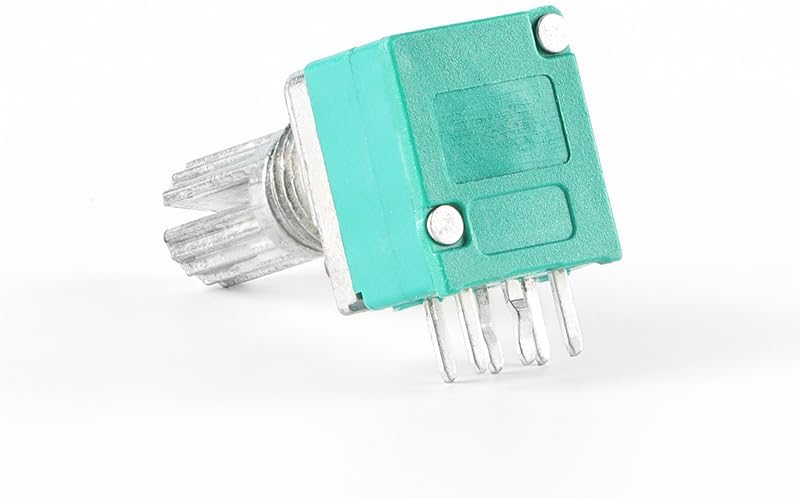

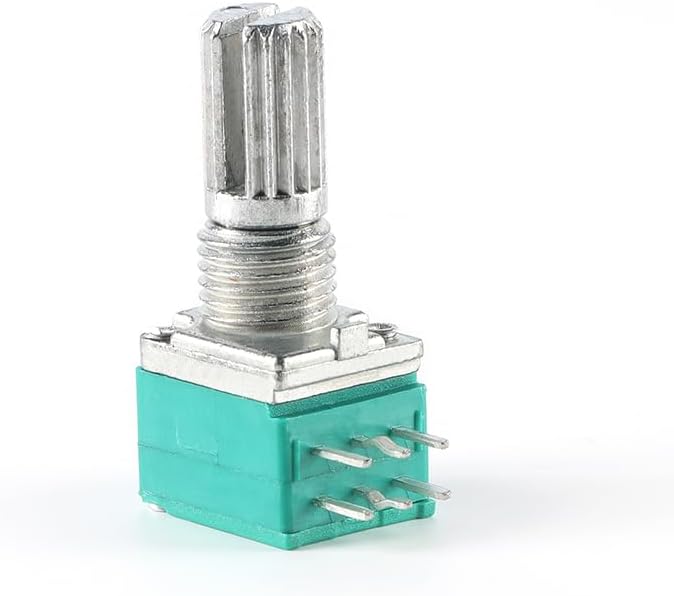

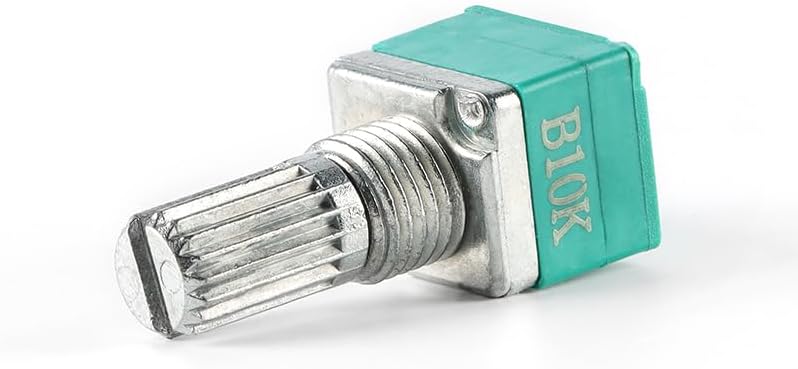

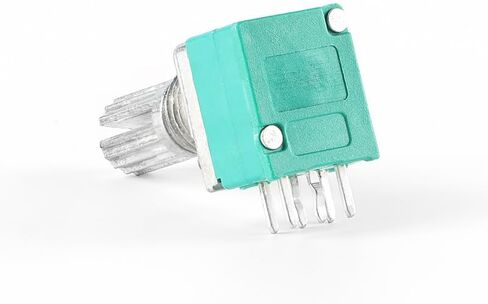

10Pcs B10K Potentiometer RK097G Dual Speaker Amplifier Potentiometer 15mm 6 Pin 09 B10K Potentiometer for Audio AMP

SAR 50
Brand
EC Buying
– 1 +

Special Features

  • Total rotational angle: 300°±10°
  • Rotational torque: 1~20mN.m (10~200 gf-cm)
  • Rotation stopper strength: 0.4 N.m (4 kgf-cm)
  • Click position: center; Click torque: 2- 20mN.m (20~200 gf-cm)
  • Push pull strength: push 60N (6kgf/ pull 40N (4kgf)

Description

Total resistance: 10KΩ ~ 500KΩ
Total resistance tolerance: ±20%
Rated power: curve B : 0.05W; other curve B : 0.025W
Max, operating voltage: curveB = 50V AC; other curve B = 25V AC
Resistance taper:A,B,C
Residual resistance:
R≥250KN 0.1% max. of total resistance
250KΩ > R> 10KΩ, 202 max.
10KΩ≥R, 10Ω max.
Slide noise: less than 100mV
Insulation resistance:more than 100MΩ at DC 250V
Gang error: -40~0dB dB≤3dB
Rotational life: 10,000 cycles
