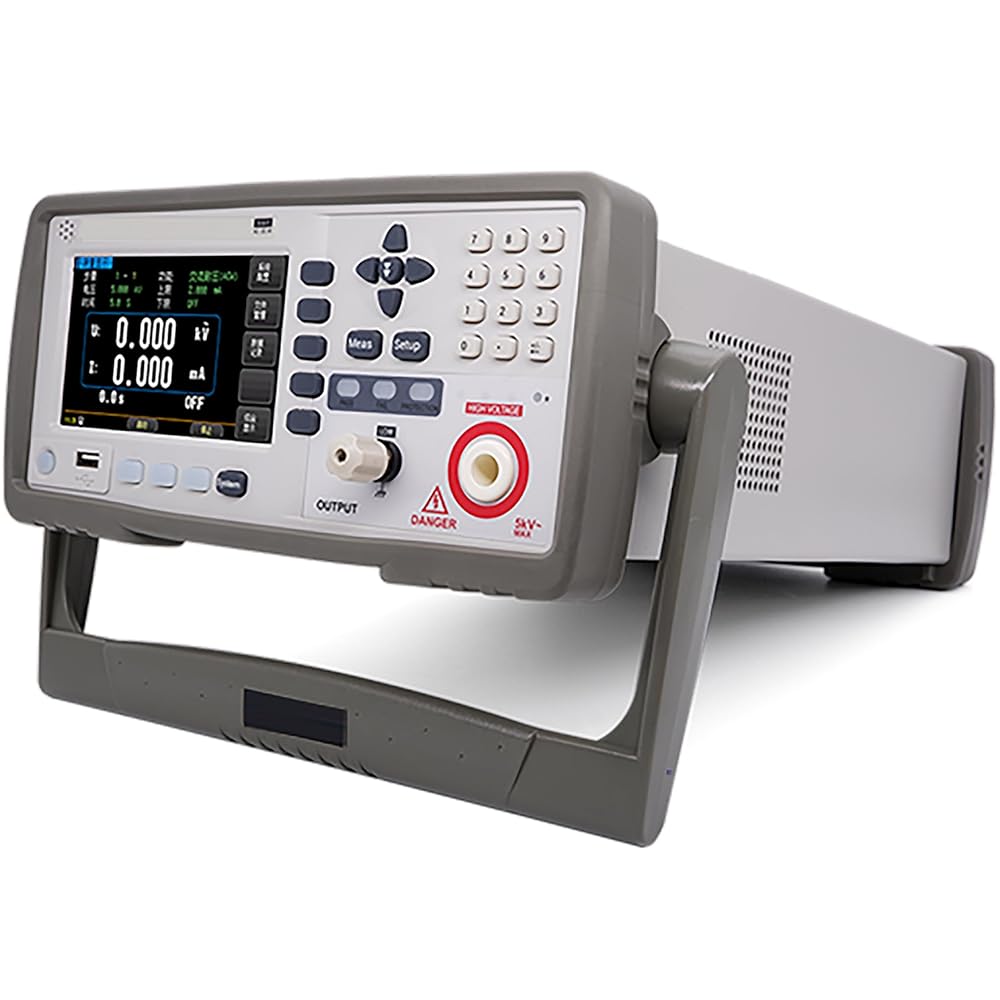

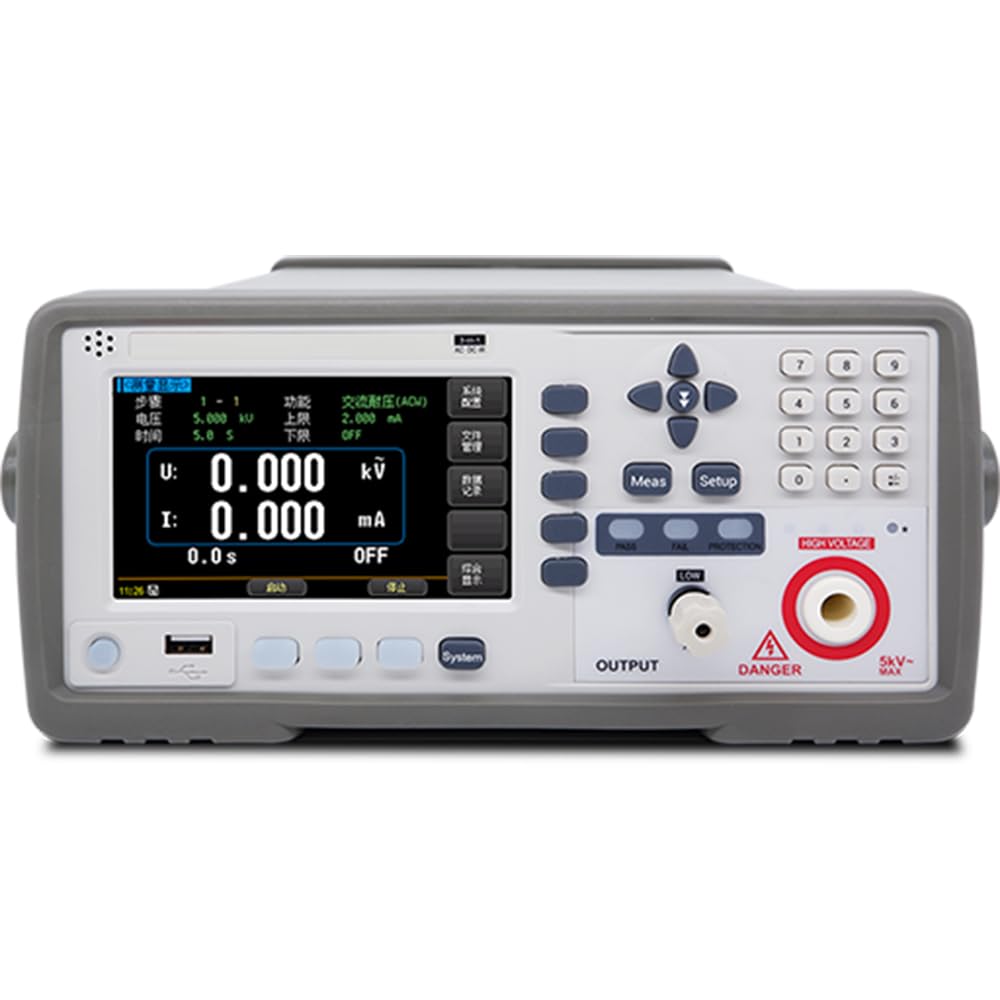

Digital AC DC Hipot Tester AC/DC Withstanding Voltage with AC 5.000kV/10mA DC 6kV/5mA RS232 Communication Resolution 1V USB Interface Fast Testing Time 0.2s-999.9s
AC/DC hipot tester adopts 5 inches TFT true color LCD display ( touch screen) and with high performance 32 bits processor. It is small sizes, light weight 8kg ,super cost-effective, easy to operate. The high-voltage module of the instrument uses a DA as base, a controllable sine generator, a class AB power amplifier, a 40-600Hz high-voltage transformer for boosting, and the output voltage is closed-loop controlled

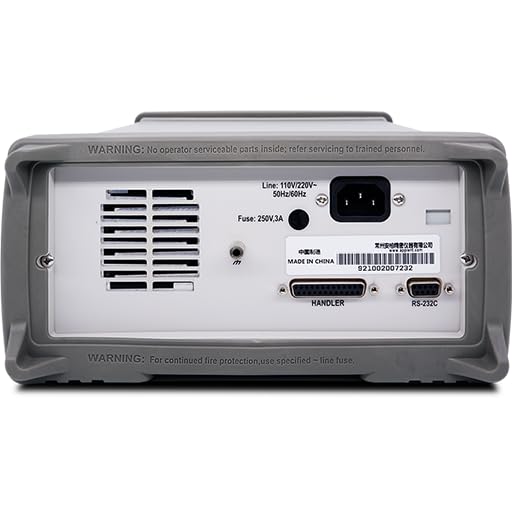

series equiped with Handler (PLC), The RS232C interface can easily carry out data communication and remote control with the PC, which can meet the requirements of automated testing and improve production efficiency.
can provide 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage test. Controllable sine generator: It can be set to work at 50 or 60Hz when AC output, no longer limited by line voltage
Withstand Hi-Pot Tester Insulation Resistance Tester AC/DC Linear power amplifier: the distortion of the voltage waveform is small, the control is simple and the reliability is high.
Output voltage closed loop control Single-machine AC withstand voltage test, DC withstand voltage test, and project settings that can pass the test plan, perform multi-item sequential testing.
