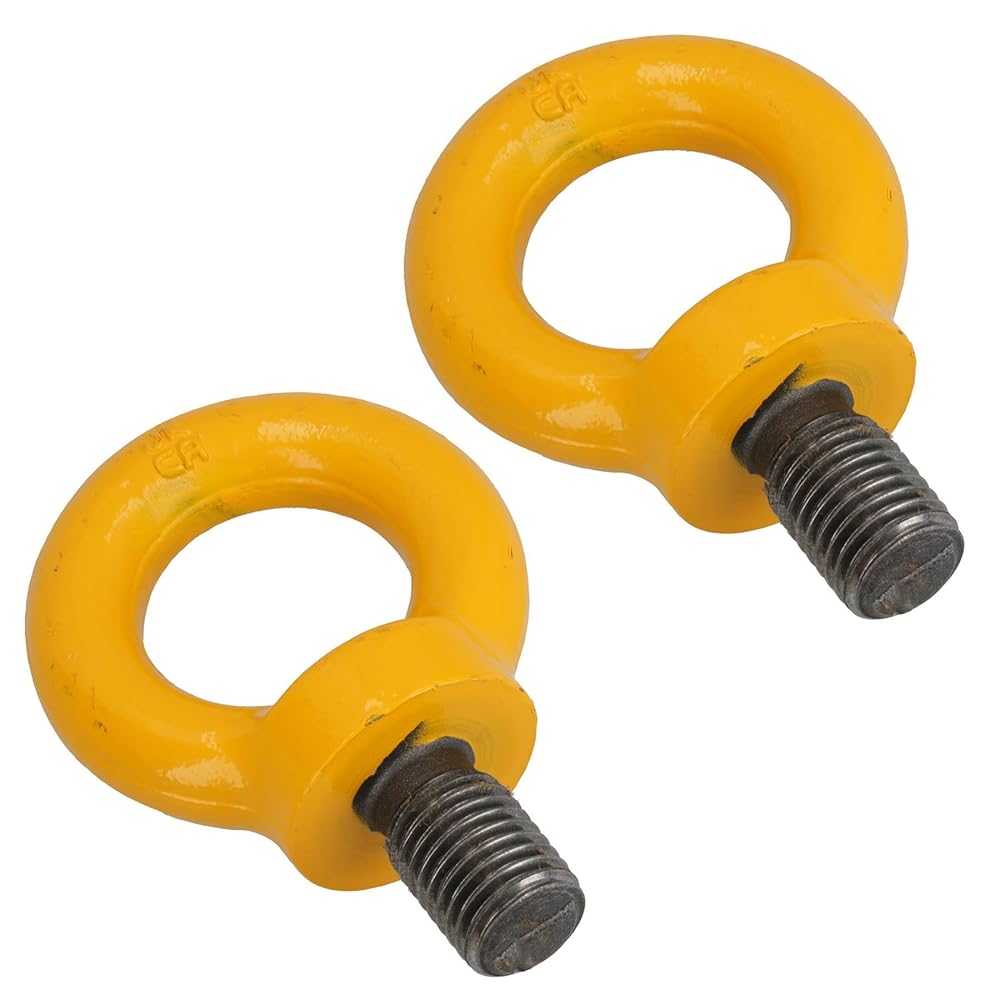

Professional high tensile lifting eye bolt for commercial or own individual use

24mm high tensile lifting eyebolt / lifting eyes

Perfect for lifting machinery and securing loads where necessary

Often used in construction, marine and many automotive industries

Manufactured from Grade 80 High tensile steel for maximum strength and durability

Male 24mm screw thread allows for quick and convenient installation to compatible surfaces

8.0 ton WLL (working load limit) – please note that this is for vertical lift only

If the load is applied at 45 degrees the rating must be reduced to 30% of the WLL

Allows you to securely attach ropes and cables to larger structures

Used with safety harnesses to anchor for height and safety

Also used as a part of a pulley system when moving and lifting heavy loads

SPECIFICATIONS

Eye bolt
Thread size – 24mm
Thread length – 38mm
Hole diameter – 50mm
Suitable for – lifting heavy loads
Material – Grade 80 High Tensile Steel
Finish – powder coated
Colour – yellow
WLL (working load limit) – 8.0 Ton / 8000 KG
Factor of safety 4:1

This is a multi variation listing for 3 different pack sizes, simply click on the tab above to select the correct pack size required
