Handheld Surface Roughness Tester Meter,Industrial High Precision Roughness Gauge,Curve Display,Parameters (um) Ra/RZ/Rq/Rt/RP/RV/RC,Stroke Length 5.6mm

SAR 2,770
– 1 +

Special Features

  • Portable and Lightweight: Weighing just 220g and measuring 732862mm, this device fits easily in your pocket, perfect for mobile and field measurement tasks. The built-in lithium-ion rechargeable battery ensures long-lasting power, reducing the need for frequent replacements.

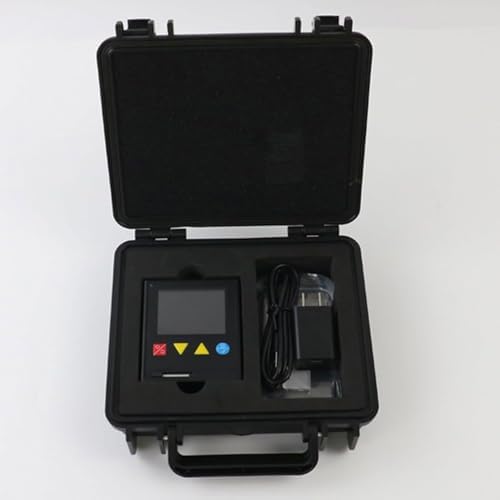

  • Ready to Use: Our complete standard kit includes a surface roughness meter main unit, allowing you to conduct professional surface roughness testing immediately upon receipt.
  • Multi-Functional Parameters: This instrument measures various key roughness parameters, including Ra, Rz, Rq, and Rt, with multiple sampling lengths (0.25/0.80/2.50mm) to accommodate different surface conditions, from fine to rough.

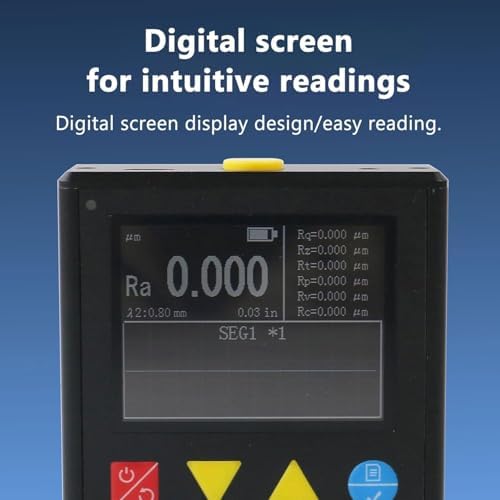

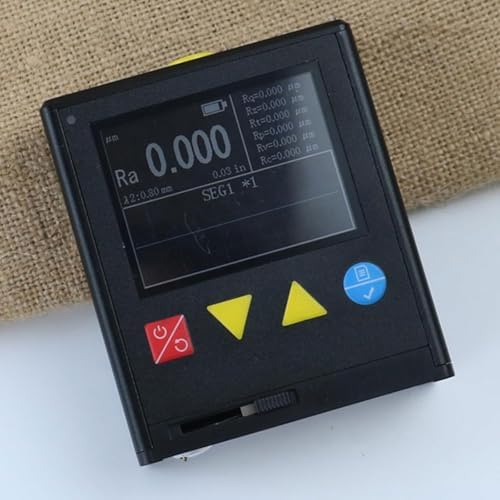

  • High-Definition Digital Display: The clear digital screen allows for quick reading of multiple parameters like Ra and Rz with a single click, enhancing detection efficiency and reading accuracy without the hassle of analog scales.

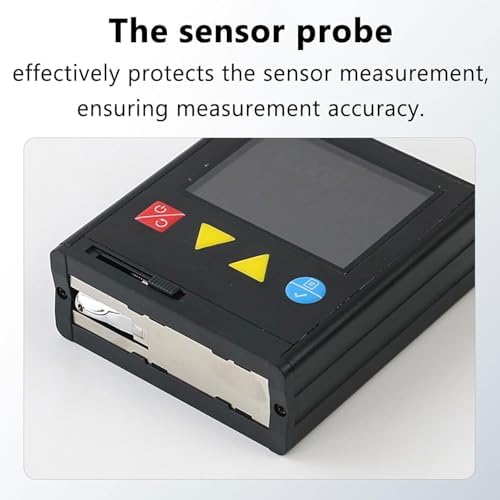

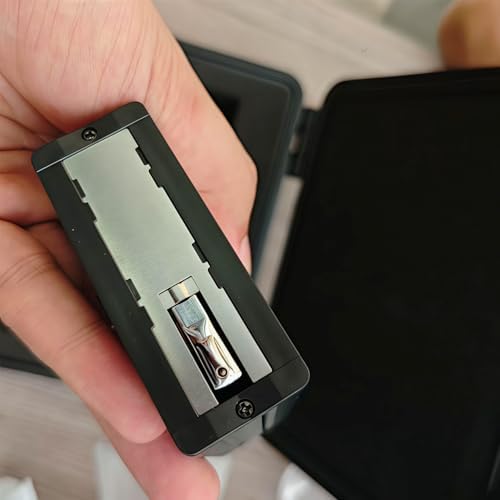

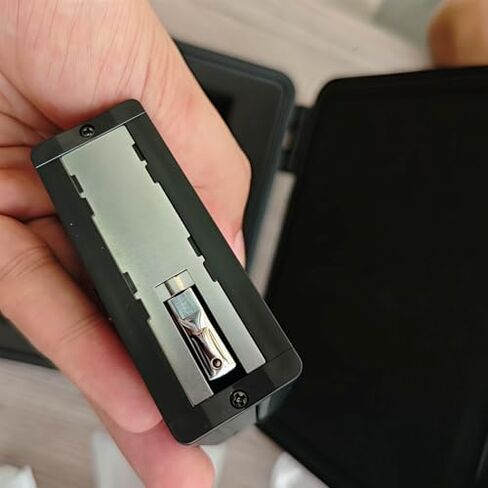

  • High-Precision Measurement: The sensor probe features a protective structure to prevent impact damage, ensuring stable measurement accuracy. It includes an ultra-fine diamond stylus (10μm radius) and a light measuring force (<0.016N).

Description

Specifications:
Product Name: Surface Roughness Tester
Measurement Parameters (µm): Ra/RZ/Rq/RtRP/RV/RC
Stroke Length (mm): 5.6
Sampling Length (mm): 0.25/0.80/2.50
Evaluation Length (mm): 1.25, 4.0
Measurement Range (µm): Ra, Rq: 0.05-10.0; Rz, Rt, Rp, Rv, Rc: 0.1~50
Indication Error: ±10%
Indication Repeatability: Sensor Stylus Tip Radius and Angle: Tip Radius: 10 µm ± 1 µm; Angle: 90°
Sensor Stylus Static Force and its Rate of Change: Stylus Static Force: Sensor Guide Head Pressure: 0.5N
Battery: Lithium-ion rechargeable battery
Dimensions: 73 mm * 28 mm * 62 mm mm
Weight: 220g

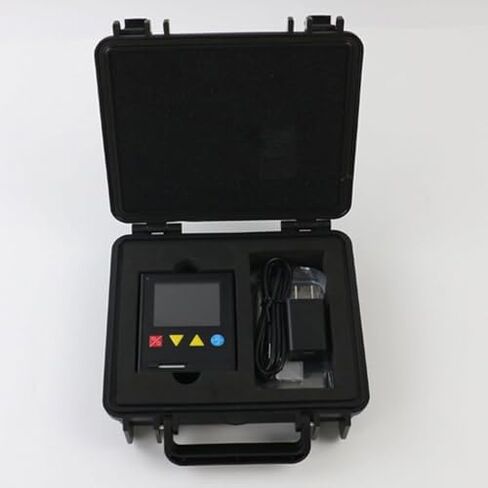

Package includes:
Surface roughness tester x1
