Surface Roughness Tester, Handheld Digital Profilometer w/Display, 160μm Measurement Range, 0.001μm High Accuracy, 100 Data Storage Slots, for Inspection

SAR 4,464
– 1 +

Special Features

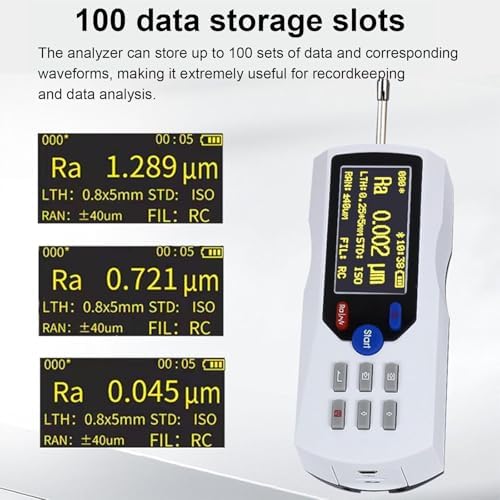

  • Data Storage: The analyzer can store up to 100 sets of data and waveforms, ideal for recordkeeping and analysis. USB interface enables easy data transfer and connection.

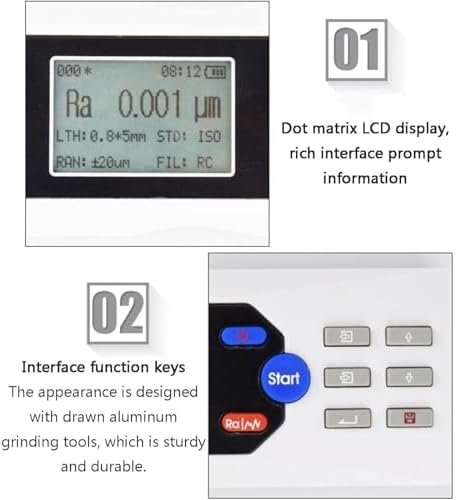

  • Intuitive Display: High-definition LCD shows measurement results numerically and graphically, with options to print for easy data statistics.
  • Applications: Perfect for roughness measurement in machining, manufacturing, testing, and inspection of various workpieces, including flat, curved surfaces, grooves, and small holes.
  • Surface Roughness Tester: Measures surface roughness of machined parts, calculating parameters based on selected conditions. Measuring range: 160μm, accuracy: 0.001μm.

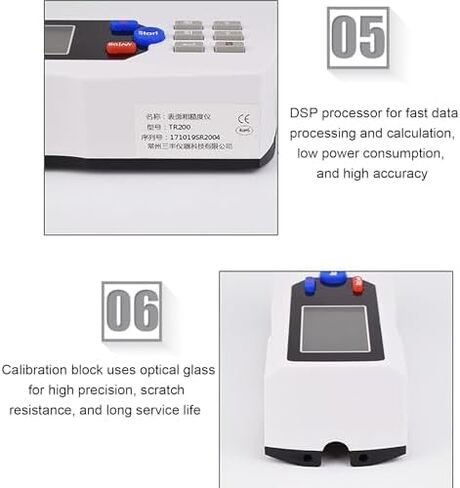

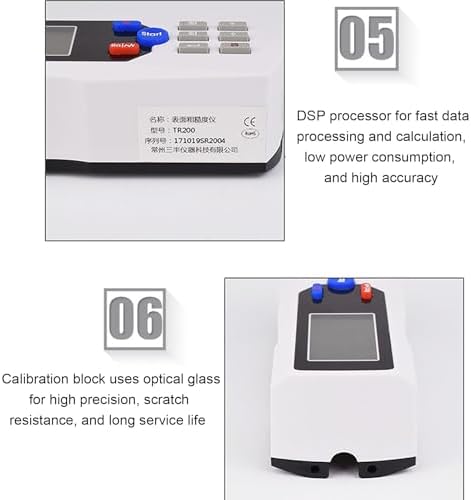

  • Multifunctional Parameters: Measures various surface roughness parameters like Ra, Rz, and Rmax, using a high-speed DSP processor for efficient data processing.

Description

Specifications:
Name: Surface Roughness Tester
Measurement Parameters: Ra, Rz, Ry, Rq, Rp, Rm, Rt, R3z, Rmax, Sk, S, Sm, tp

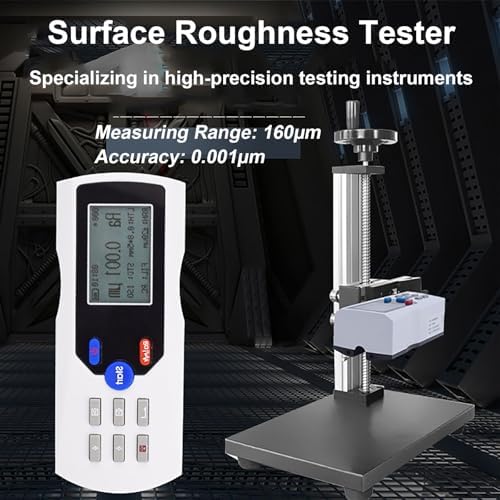

Measuring Range: 160µm
Accuracy: 0.001µm
Sensor Type: Inductive
Tip Radius: 5µm
Tip Material: Diamond
Measuring Force: 0.4mN
Sampling Length: 0.25/0.8/2.5mm
Evaluation Length: 1 to 5mm
Sensor Movement Speed: 0.5mm/s, 1mm/s
Data Storage Capacity: Over 100 Measurement Results

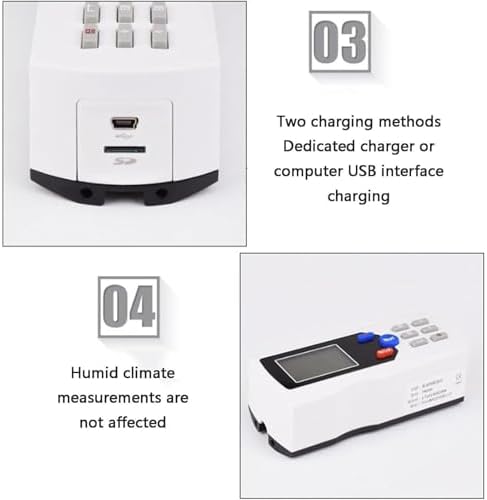

External I/O: USB
Power Supply: Built-in rechargeable lithium battery
Dimensions: 140*52*48mm
Weight: 440g

Packing List:
Surface Roughness Tester*1
