Surface Roughness Tester,Surface Roughness Testing Device, 0.01um High Accuracy, Measuring Range Ra/Rq 0.05~15.0μm, Rz/Rt 0.1~50.0μm in Saudi Arabia Surface Roughness Tester,Surface Roughness Testing Device, 0.01um High Accuracy, Measuring Range Ra/Rq 0.05~15.0μm, Rz/Rt 0.1~50.0μm in Saudi Arabia Surface Roughness Tester,Surface Roughness Testing Device, 0.01um High Accuracy, Measuring Range Ra/Rq 0.05~15.0μm, Rz/Rt 0.1~50.0μm in Saudi Arabia Surface Roughness Tester,Surface Roughness Testing Device, 0.01um High Accuracy, Measuring Range Ra/Rq 0.05~15.0μm, Rz/Rt 0.1~50.0μm in Saudi Arabia Surface Roughness Tester,Surface Roughness Testing Device, 0.01um High Accuracy, Measuring Range Ra/Rq 0.05~15.0μm, Rz/Rt 0.1~50.0μm in Saudi Arabia Surface Roughness Tester,Surface Roughness Testing Device, 0.01um High Accuracy, Measuring Range Ra/Rq 0.05~15.0μm, Rz/Rt 0.1~50.0μm in Saudi Arabia Surface Roughness Tester,Surface Roughness Testing Device, 0.01um High Accuracy, Measuring Range Ra/Rq 0.05~15.0μm, Rz/Rt 0.1~50.0μm in Saudi Arabia Surface Roughness Tester,Surface Roughness Testing Device, 0.01um High Accuracy, Measuring Range Ra/Rq 0.05~15.0μm, Rz/Rt 0.1~50.0μm in Saudi Arabia

Surface Roughness Tester,Surface Roughness Testing Device, 0.01um High Accuracy, Measuring Range Ra/Rq 0.05~15.0μm, Rz/Rt 0.1~50.0μm

SAR 2,125
– 1 +

Special Features

  • 【Extended Battery Life】: The built-in lithium-ion rechargeable battery offers long work time with no memory effect, allowing for simultaneous charging and usage, ensuring quick recharges and durable battery performance.
  • 【Robust Durability】: Designed with a sturdy aluminum mold, this Surface Roughness Tester enhances resistance to electromagnetic interference, making it an excellent choice for precise surface roughness evaluation.

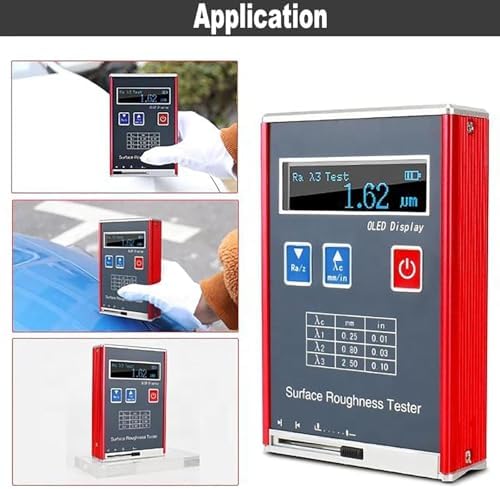

  • 【Versatile Testing】: The Surface Roughness Gauge accommodates various surface types, including circular, flat, conical, and grooved surfaces, even those larger than 80 x 30mm, ideal for professional applications.
  • 【Accurate Measurement】: With an indication accuracy of 0.01um, this Surface Roughness Gauge measures within a range of 0.05 to 15.0um for Ra and Rq, and 0.1 to 50.0um for Rz and Rt, ensuring precision.
  • 【Multiple Parameters】: Capable of measuring Ra, Rz, Rq, and Rt, this tool provides reliable data for a wide array of surface roughness applications, catering to diverse industry needs.

Description

Specification
Name： Surface Roughness Tester
Measurement parameters: Ra, Rz, Rq, Rt
Stroke length (mm): 6
Sampling length (mm): 0.25, 0.80, 2.50
Evaluation length (mm): 1.25, 4.0
Measuring range: Ra, Rq: 0.05~15.0, Rz, Rt: 0.1~50
Indication error: ±10%
Indication variability: Sensor stylus needle tip arc radius
Arc radius and angle: 10um±1um; Angle: 90°
Sensor stylus static force and its change rate: Stylus static force: 0.016N; Force change rate: 800N/m
Power supply: 3.7V lithium-ion battery

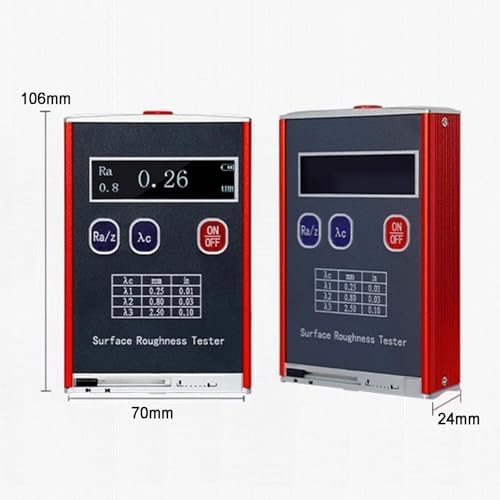

Dimensions: 106*70*24 mm

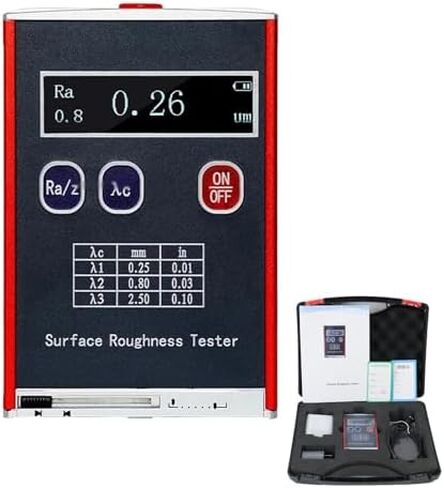

Product includes
1 * Surface Roughness Tester
1 * Standard calibration block
1 * Storage box
