Overall Dimensions: 1" W x 2" H x 1 1/2" D ; Cutout: 7/8" W x 1 5/8" H x 1" D
وصف

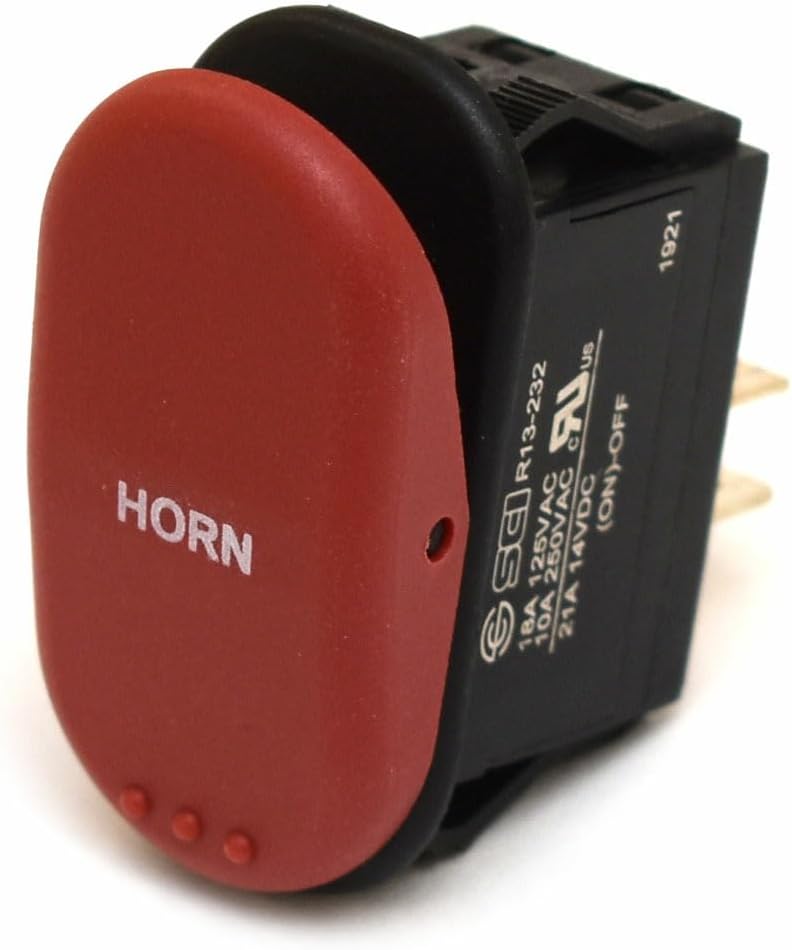

Boat part number 1113508 is a new Momentary On/Off "Horn" rocker switch from SCI, part number R13-232 .

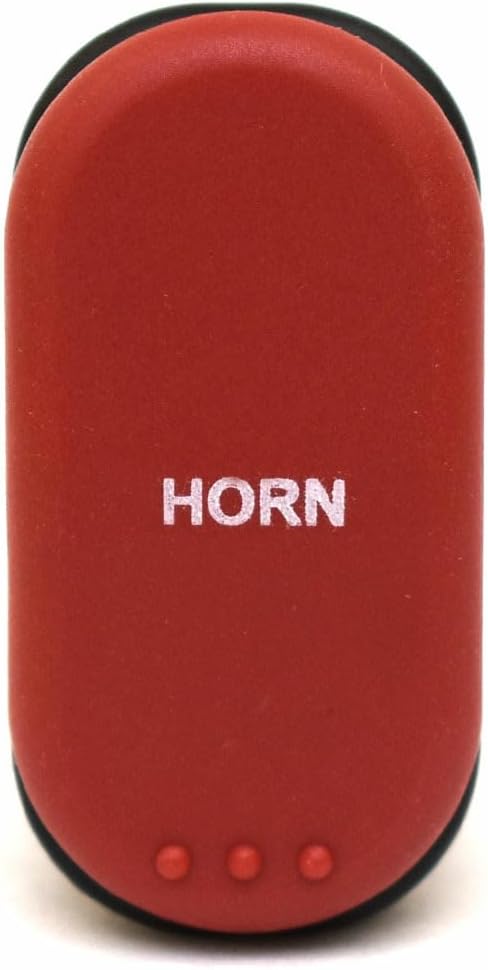

This switch features a red actuator with white lettering and a matte finish.
Constructed out of black marine plastic, this switch measures approximately 1" W x 2" H x 1 1/2" D overall. Requires an approximate 7/8" W x 1 5/8" H x 1" D cutout. Rated for 18 amps/125 VAC; 10 amps/250VAC; and 21 amps/ 14 VDC. Uses (2) spade male connections.
Specifications:
Part Manufacturer: SCI
Part Number: R13-232
Function: Momentary On/Off
Material: Marine Plastic
Color: Red (Actuator) | Black
Finish: Matte
Electrical: 18 Amps/125 VAC | 10 Amps/250 VAC | 21 Amps/ 14 VDC
Overall Dimensions: 1" W x 2" H x 1 1/2" D
Cutout: 7/8" W x 1 5/8" H x 1" D

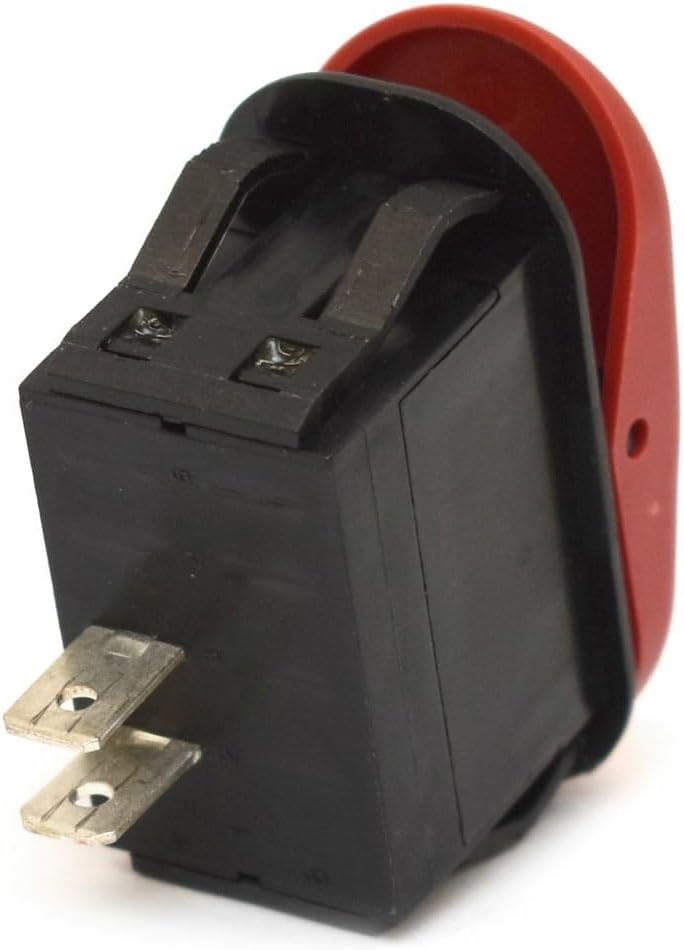

Connections: (2) Spade Male
Sold as seen in pictures. Customers please note every computer shows colors differently.
All measurements are approximate.
Hardware and instruction / installation manual not included.
