Rotary Shafts

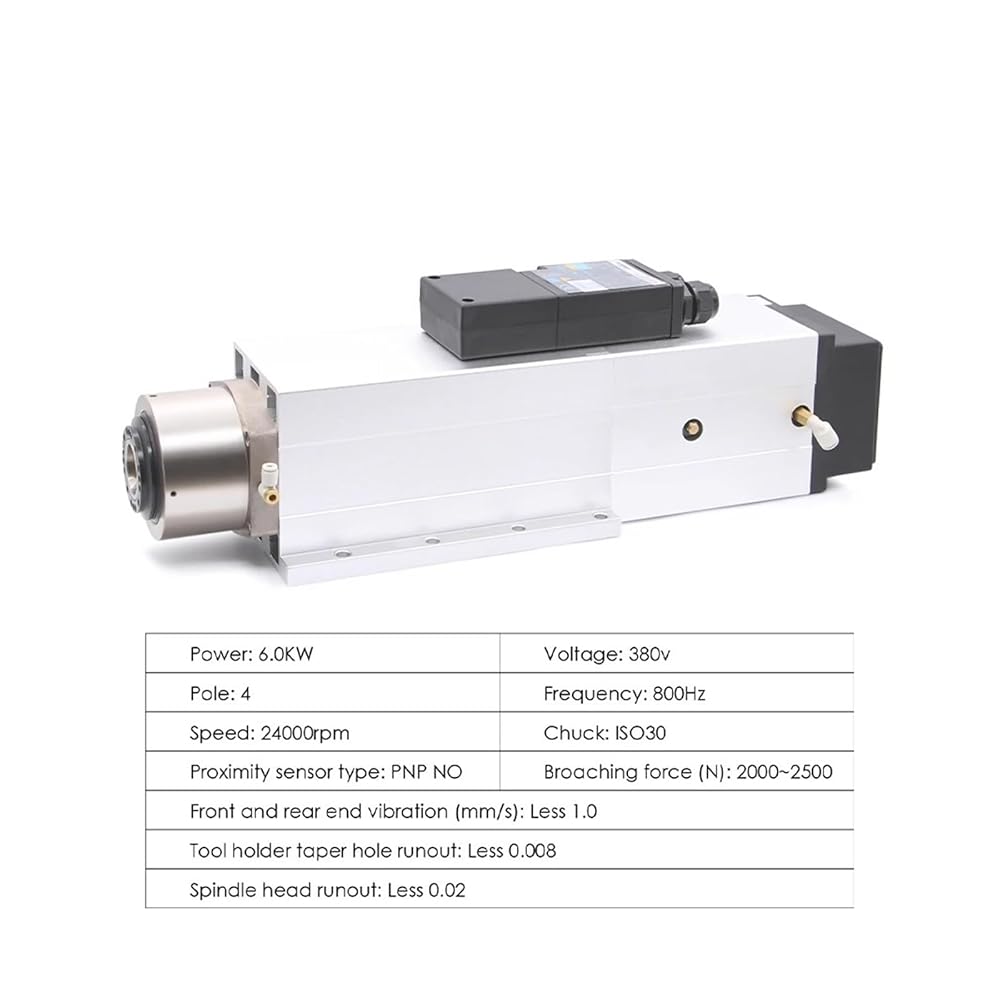

Basic parameters
Power 6.0KW
Voltage: 220V/380V
- Poles: 4
Frequency: 800Hz
Speed: 24000rpm
Chuck: ISO30
Proximity sensor type: PNP NO
Broaching force (N): 2000~2500
Bearing type: 2x7008C DB and 2x7006C DB 4 ceramic ball bearings
Front and rear vibration mms: less than 1.0
Tool holder taper hole runout: ≤0.008
Spindle head runout: ≤0.02
Maximum torque: 2.38Nm
Operating speed: 0-24000rpm
Model: GDL60-30-24Z
