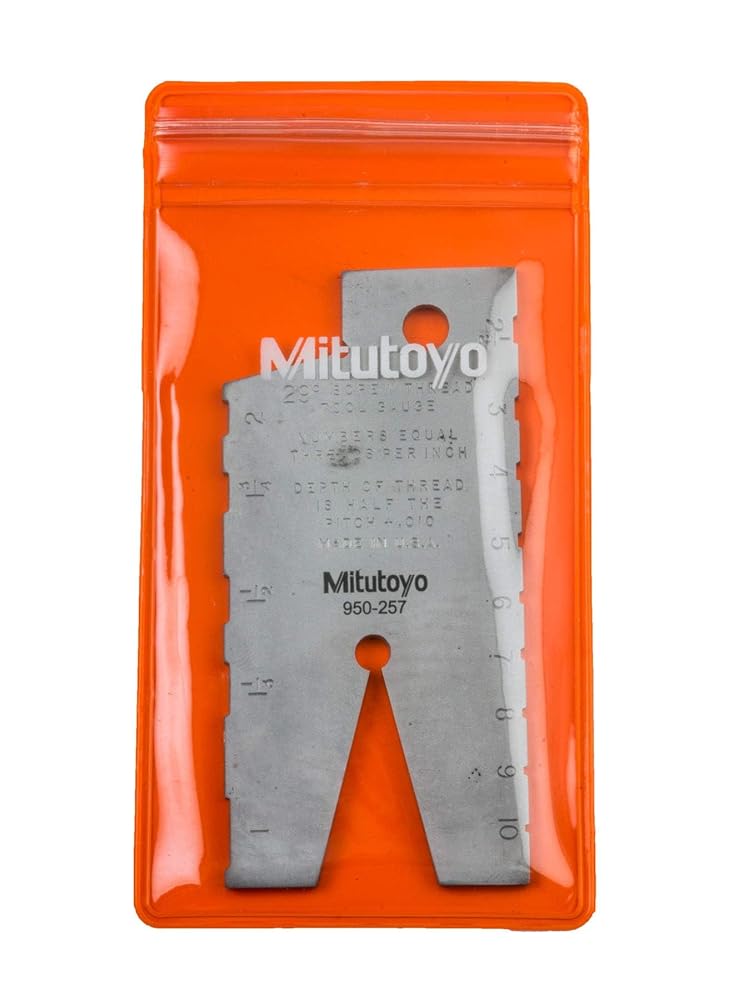

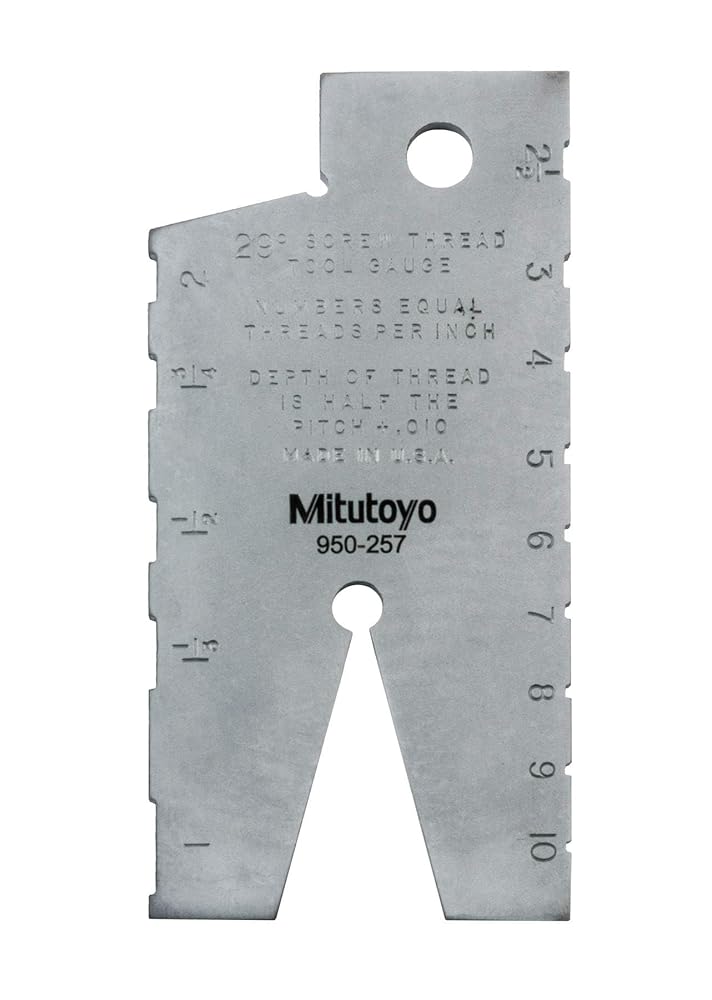

Mitutoyo 950-257 Acme Screw Thread Gage, Included 29 Degrees Angle, for Checking and Grinding ANSI Setting Tools, for Cutting Acme Threads with 12-1/2" Inclination
FOR ACME THREAD TOOL SETTING: Built for checking and grinding ANSI setting tools used to cut Acme screw threads, ensuring proper tool geometry and accurate thread production in machining applications.
SUPPORTS 12-1/2 INCH INCLINATION: Helps verify tools used to cut Acme threads whose flanks have a 12-1/2" inclination on each side, maintaining correct form and ensuring consistent thread quality.
INCLUDED ANGLE STANDARD: Manufactured to the Acme thread standard with a precise 29° included angle, providing reliable reference geometry for setup, inspection, and tool grinding.
DURABLE, SHOP-READY CONSTRUCTION: Made to withstand regular use in machine shops and toolrooms, offering stable, repeatable reference surfaces for accurate tool alignment and thread-cutting preparation.
A LEGACY OF QUALITY: Our ultra-precise measurement solutions bring improved performance to countless industries, including aerospace, medical, automotive and energy. With more than 5,500 products the largest product portfolio of any commercial metrology provider we have the solutions you need to meet today's metrological challenges and customer expectations.
