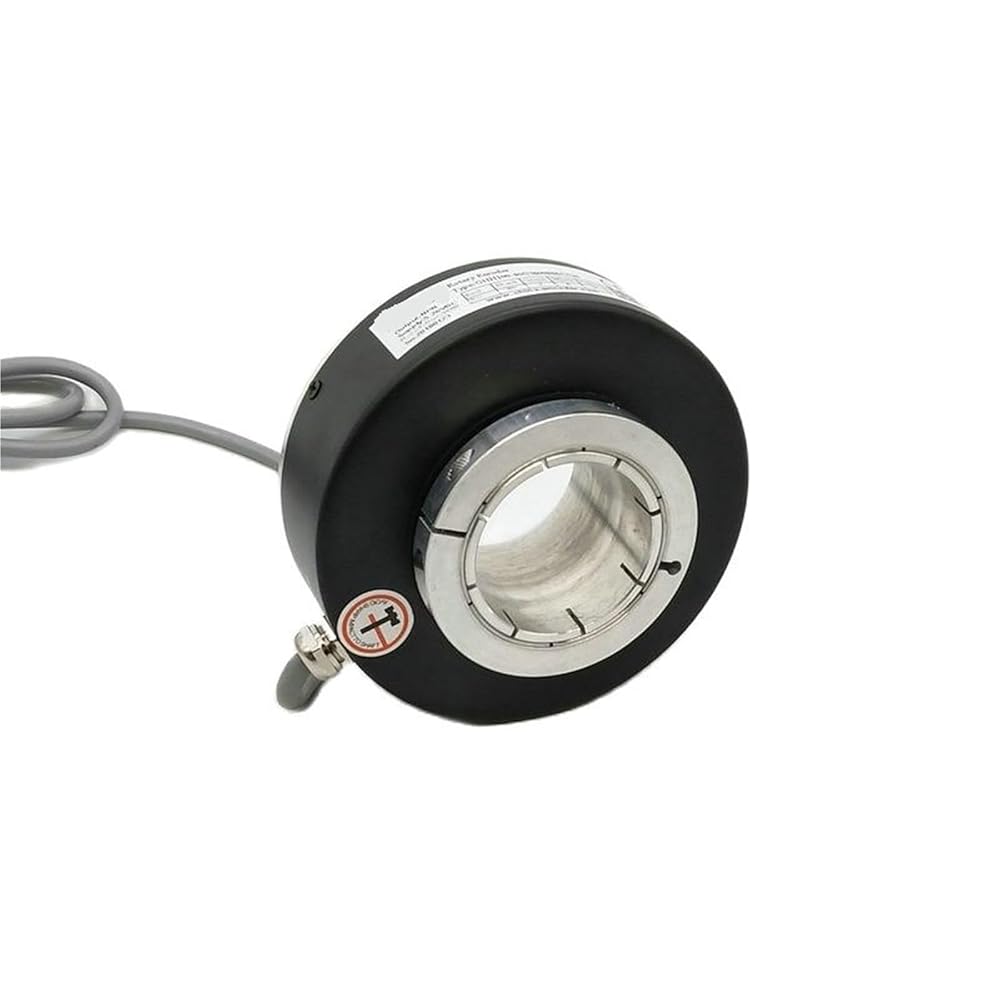

100mm outer size 40mm bore hollow shaft encoder line driver output A A- B B- Z Z- signal optic encoder GHH100 encoder
Default cable side and line driveroutput, other can be . please let me know if you want socket /connector side.
Application & Features
Used in automatic control measurement, robot X-Y working platform, printing and packaging.
Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.
Model
Electrical spec
Output circuit
Open-collector output
Voltage output
Push-pull complementary outputs
driver
Supply voltage
5~30V
5~30V
5±0.25 5~30V
5±0.25 5~30V
Current consumption
80mA
80mA
80mA
150mA
Load current
40mA
40mA
40mA
60mA
Output high
Min Vcc*70%
Min Vcc-2.5V
Min Vcc-1.5V
Min 3.4V
Output low
MAX 0.4V
MAX 0.4V
MAX 0.8V
MAX 0.4V
Rise time Tr
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Fall time Tf
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Highest frequency response
300kHz
300kHz
300kHz
300kHz
Mechanical spec
Max speed r/min
Starting
Axis maximum load
Impact
Anti-vibration
6000
Radial 25 N Axial 15N
50G/11ms
10G 10-2000Hz
Moment inertia
Work Temperature
Storage Temperature
Protection Degree
Weight
4 x 10.-8kgm2;
-40~85ºC
-40~85ºC
IP50
650g
Dimensions
==========
Hign-concerned Chemical : None
Model Number : GHH100-40GxxBML5
voltage : 5v
hollow shaft : 40, other can be
resolution : 1000/1024/2000/2500/3600/5000ppr
standard : default cable side, other can be
output from : line driver, other can be
outer dia : 100mm
Have Z signal : Yes
