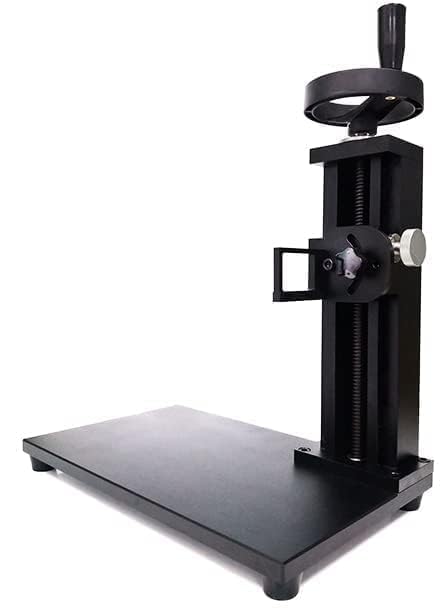

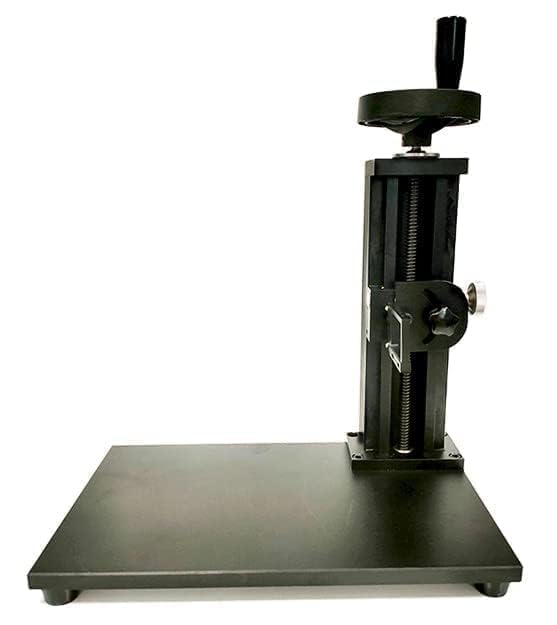

◆HFBTE Metal Platform Stand Rotating Measurement Platform Test Stand For KR210/KR220 Surface Roughness Tester Surface Roughness Gauge Surface Roughness Meter◆

Overview:

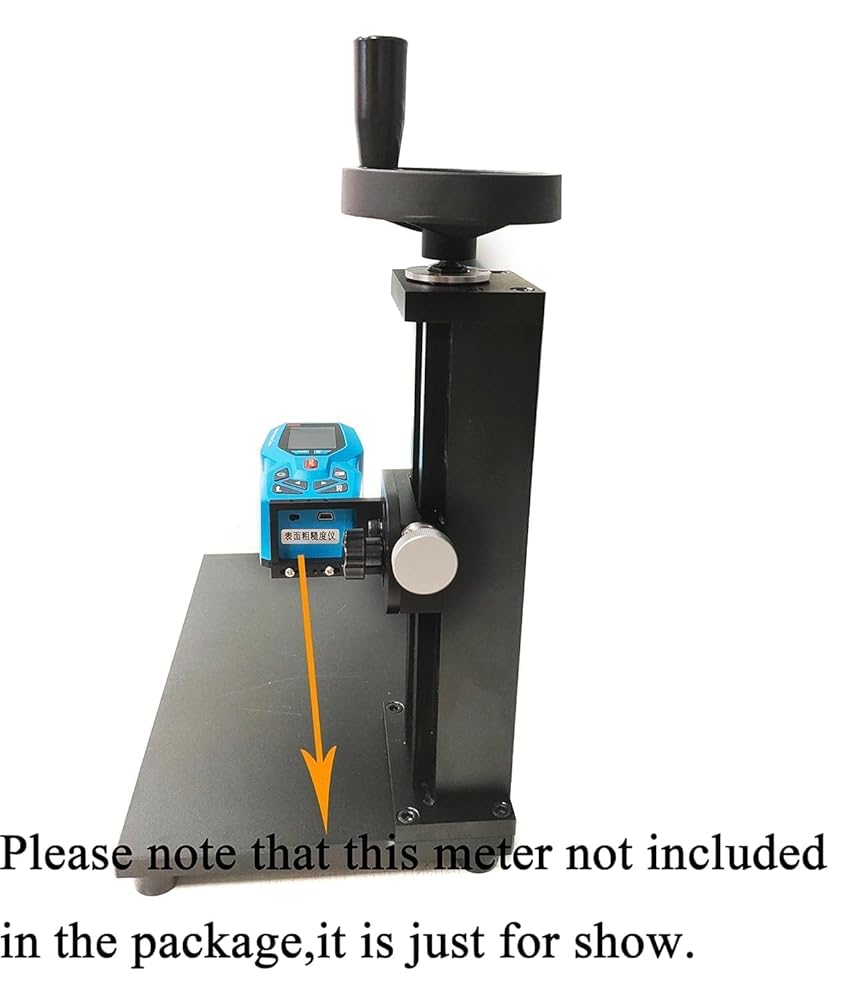

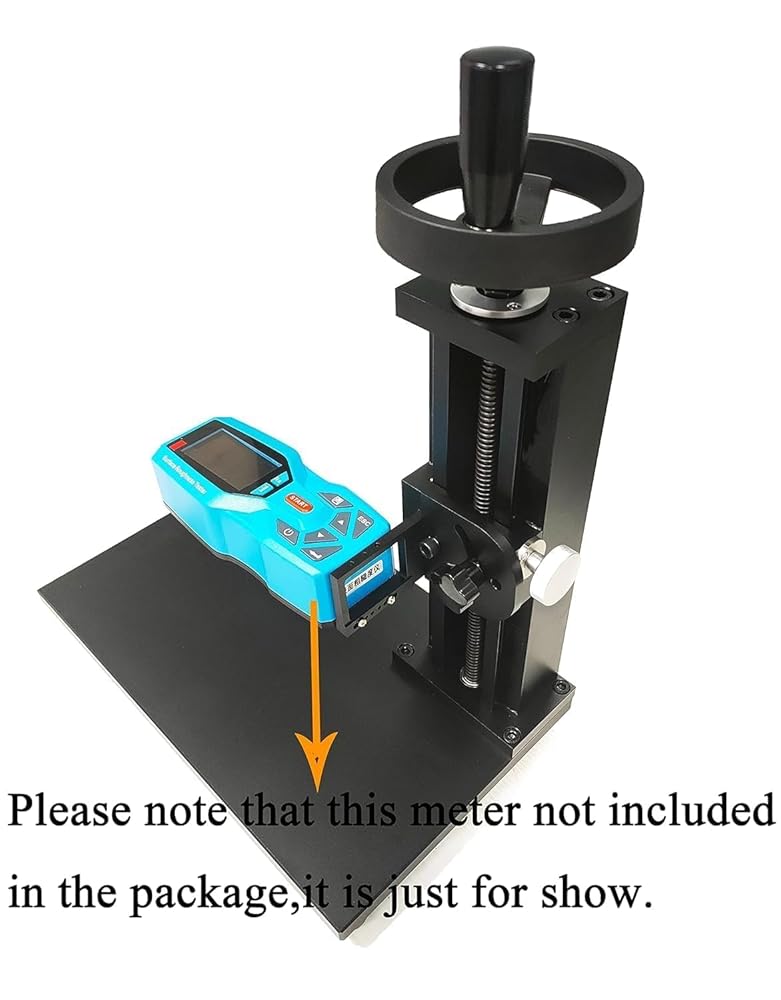

◆The metal platform is one of the major attachment of portable surface roughness tester, applicable to surface roughness tester KR210 / KR220.

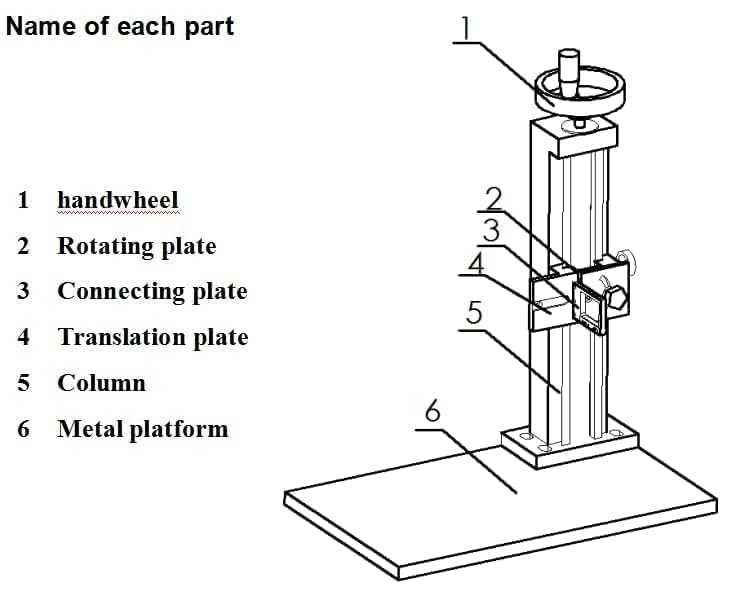

◆It provide high-precision measurement platform and column lifting system that can easily adjust the instrument, it can greatly reduce the difficulty of operation.
◆Especially when measuring high-precision parts, the effect will be more obvious.

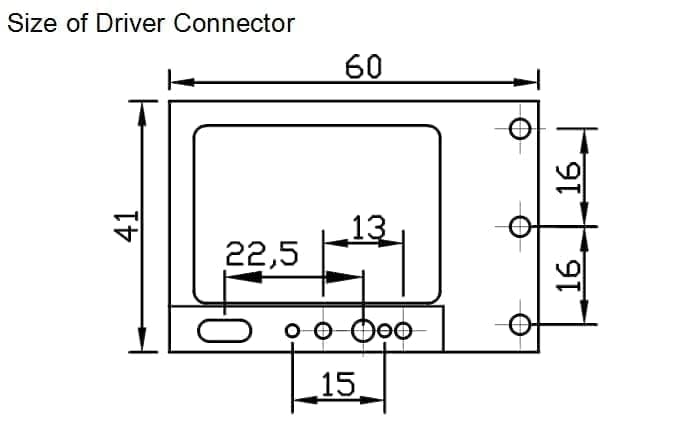

◆The product is also suitable for roughness tester by other manufacturers, but need to customize a dedicated connection part.
◆For special sensors, this accessory must be used to do complex precise measurement adjustment.

Features:
◆Tiny return stoke

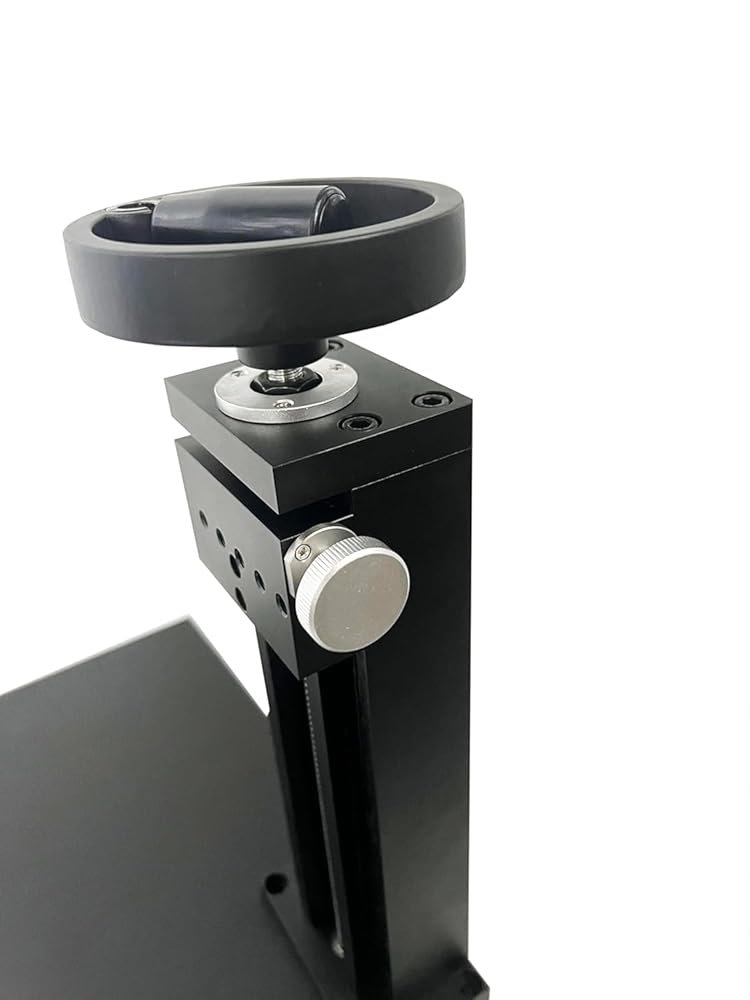

◆Lightweight and flexible lifting along the crutch.
◆High positioning accuracy

Maintenance:
◆Periodic cleaning, and preventing rust
◆do not force the lateral move of the carriage
◆Hold the marble base when want to move the platform, do not directly move the crutch, may cause loose and positioning error.

Technical parameters:
◆Height Adjustable: >200mm
◆Return error: ≤1/6 round of lifting wheel
◆Size: 330mm×295mm×12mm
◆Rotation angle：80degrees
