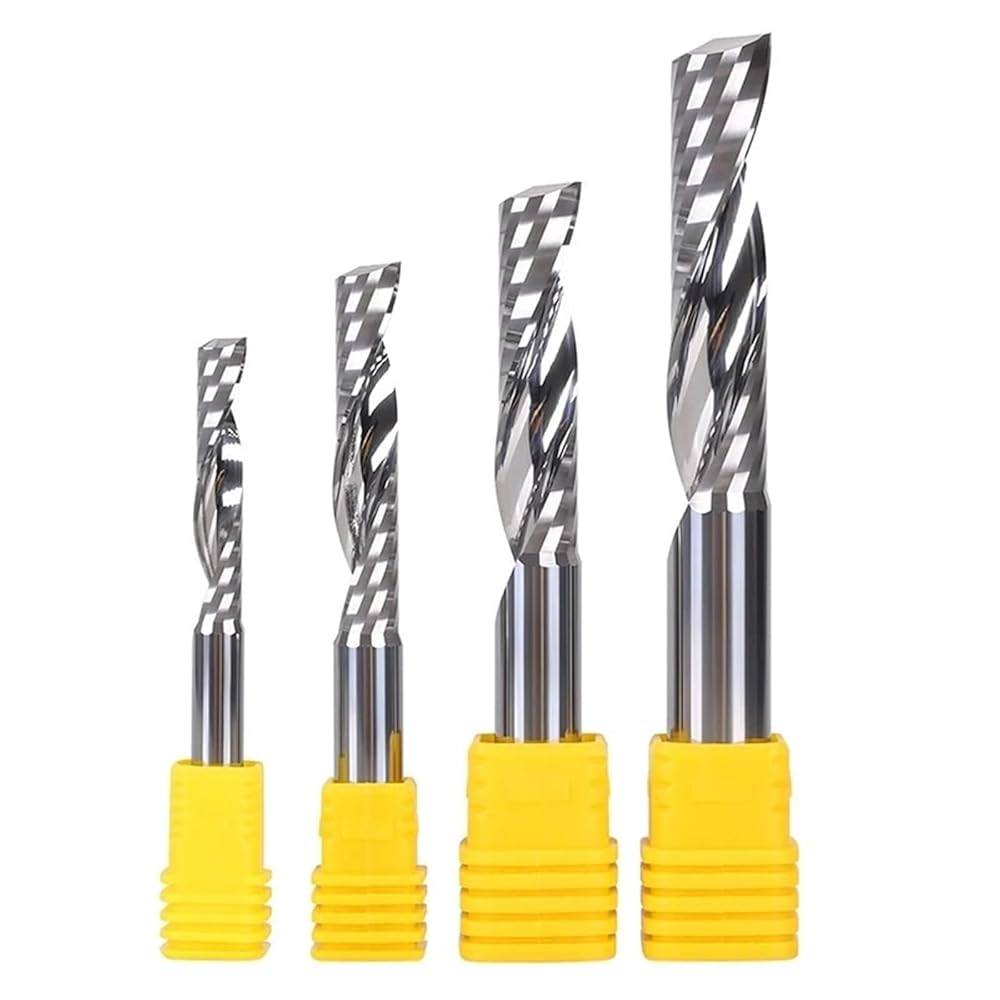

10 قطعة 3.175 مللي متر 8 مللي متر عرقوب جودة عالية فلوت واحد حتى قاطعة المطحنة الحلزونية CNC كربيد راوتر بت لخشب الأكريليك PVC MDF (8X52mm) in Saudi Arabia

8 × 42 ملم

SAR 1,572
ماركة
Pangyoo
وزن
60 g
مقاس8x42 ملم
– 1 +

مميزات خاصة

  • Shank diameter:3.175/4/5/6mm
  • Cutting edge diameter:3.175/4/5/6mm
  • Cutting edge length: 12/15/17/22/25mm
  • Applicable Materials: Widely used in various materials including plastics, aluminum, circuit board, as well as other precision parts processing.
  • Wide Compatibility: End mills are compatible with most desktop CNC machines, as well as other industrial CNC machines. Just make sure you select the correct-sized collet for your device

وصف

Recommend Cutting Parameters For Acrylic
Cutting Dimeter 1mm RPM(mim) 14000-18000 Feed Speed(mm/mim) 800-1200
Cutting Dimeter 1.5mm RPM(mim) 14000-18000 Feed Speed(mm/mim) 1000-1200
Cutting Dimeter 2mm RPM(mim) 14000-18000 Feed Speed(mm/mim) 1600-1700
Cutting Diameter 2.5mm RPM(mim) 14000-18000 Feed Speed(mm/min) 1700-2100
Cutting Diameter 3mm RPM(min) 14000-18000 Feed Speed(mm/min) 2100-2400
Cutting Diameter 4mm RPM(min) 14000-18000 Feed Speed(mm/min) 2000-3000
Cutting Diameter 5mm RPM(min) 12000-16000 Feed Speed(mm/min) 3400-4200
Cutting Diameter 6mm RPM(min) 12000-14000 Feed Speed(mm/min) 4000-6000
Cutting Diameter 8mm RPM(min) 10000-12000 Feed Speed(mm/min) 6000-8000
Cutting Diameter 10mm RPM(min) 10000-12000 Feed Speed(mm/min) 8000-10000
Cutting Diameter 12mm RPM(min) 8000-10000 Feed Speed(mm/min) 12000-14000
Specification:
Shank diameter:3.175/4/5/6mm
Cutting edge diameter:3.175/4/5/6mm
Cutting edge length: 12/15/17/22/25mm
Total length: 38-50mm
Material: Tungsten steel

Application:
Cutting acrylic, PVC, density board, wood board and other boards
