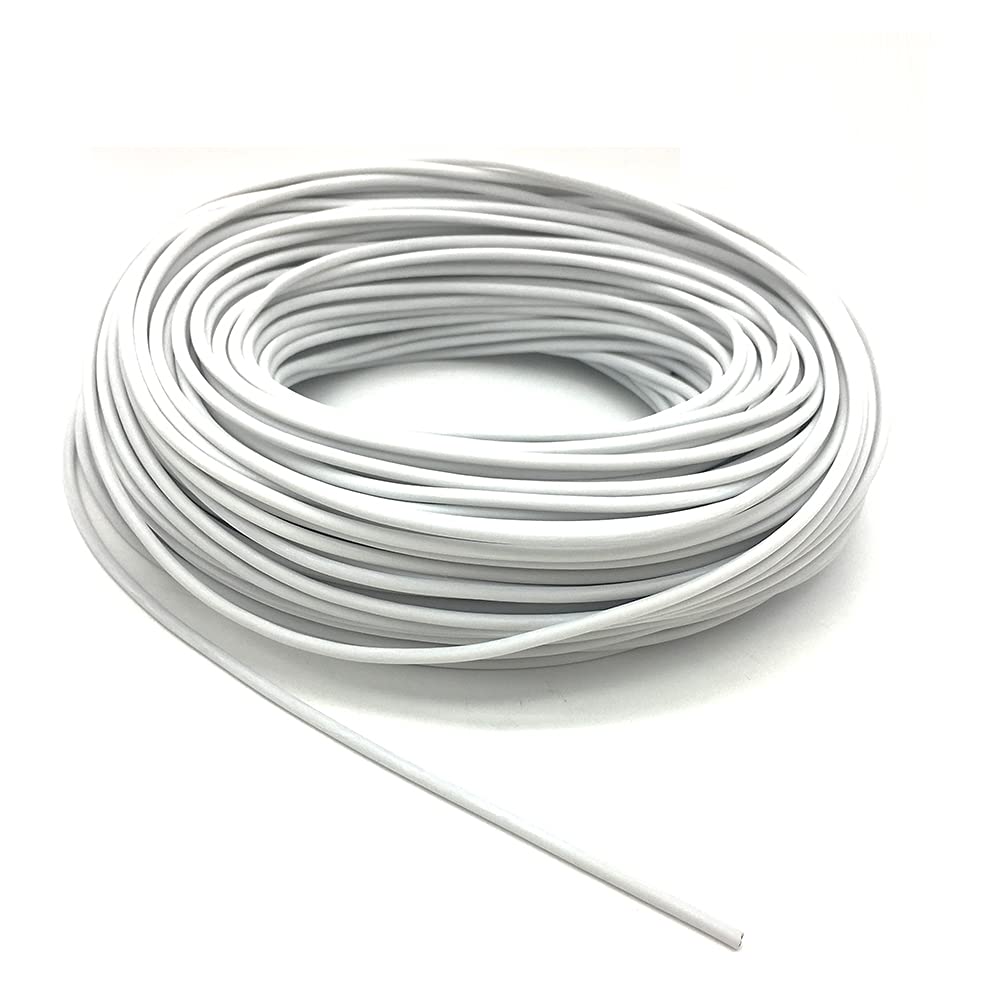

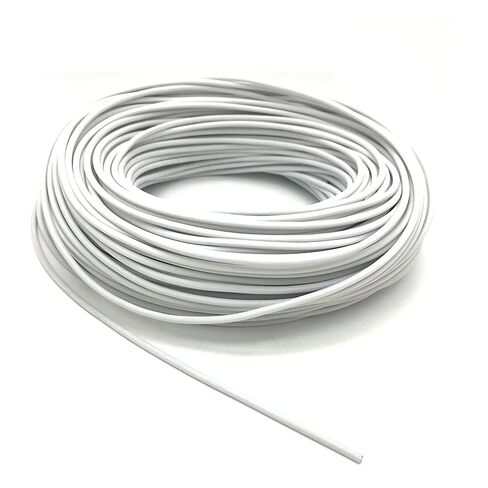

Infrared Carbon Underfloor Heating Cable, 10/12.5/15/20/30/50/100m Warm Floor Heating Wire 24K 17ohm/m Thick 3/4mm
Product Details:
Product Name: Carbon fiber heating wire
Insulating materials: Silicone rubber
Temperature: 200 degrees ℃ limit
Heating conductor: 24K
High voltage test: 3000V
Leakage current: 0.05mA/m
The product can withstand the power of power: 25W/M
Diameter:3±0.2 MM/4±0.2 MM
Optional colors: White
Infrared wavelength: 8UM-18UM
Conductor resistance:17±10% / M
The cable is suitable for underfloor heating system, 12.5 meters per piece can cover 1.5 square meter area, you can connect many pieces of 12.5m length in parallel connection to creat a warm floor system for your house.
Product Power Calculation:
Voltage * voltage / total resistance = power
For example: 24K carbon fiber, length of 12.5 meters
220V × 220V / (12.5 m x 17Ohm) =228 watts
Product Applications:
1. Floor heating forHome and office: Homes, villas, hotels, office buildings, shopping malls
2. Floor heating forpublic areas: Swimming pool, soccer field, gymnasium, museum, memorial hall
3. Floor heating for large public facilities: Bus terminal, parking lot, airport, highways
4. Floor heating forprofessional field: Botanical garden, greenhouse, laboratory
The cable is suitable for refrigerators, air conditioners, freezers defrost, rice cooker insulation, pool bath, heated towel rail, pipeline tank antifreeze, window heating, equipment.
Comfort and Health Benefits: The carbon fibre heating wire provides uniform temperature distribution, which enhances blood circulation, promoting comfort and well-being.
Key Features: This electric floor heating cable provides resistance to alkalis, and oils, along with exceptional electrical insulation and stability, ensuring durability and reliability.
Packing list: 1pc of carbon fibre heating wire
