1. [EFFICIENT TESTING MODULE] Quickly test single, double, or quad op amps to determine amplification suitability and chip conversion rates.
2. [OUTPUT MODE INDICATORS] Easily identify high-speed op amps with synchronized red and green LEDs displaying square signal frequencies of 200KHZ or 10HZ.
3. [OUTPUT DISPLAY] Detect low-speed op amps that fail to produce complete waveforms with corresponding LED indicators, ensuring accurate testing results.
4. [DIVERSE APPLICATIONS] Suitable for a variety of single OP AMP like LF356, TL071, and double OP AMP such as MC1458,
5. [EASY INSTALLATION] Simply install the test board to begin testing op amps efficiently and effectively.

Spec:

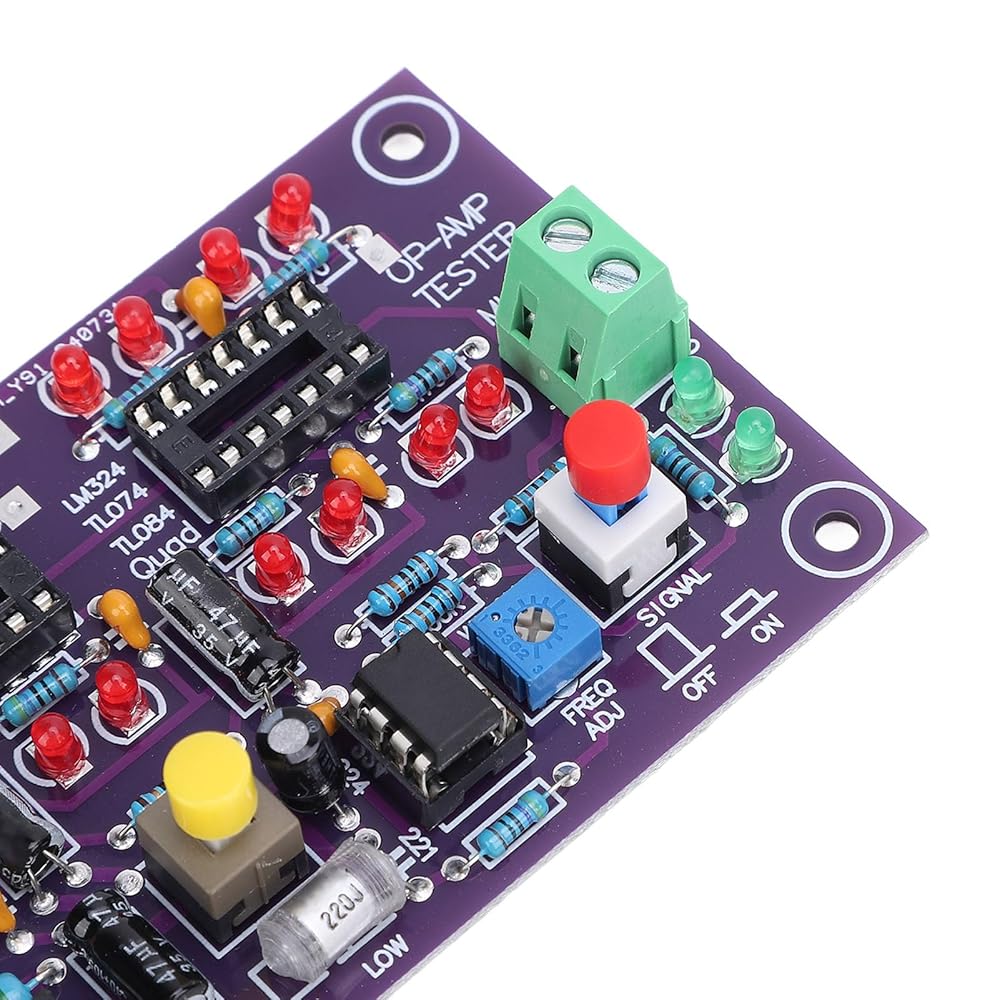

Item Type: Operational Amplifier Test Board

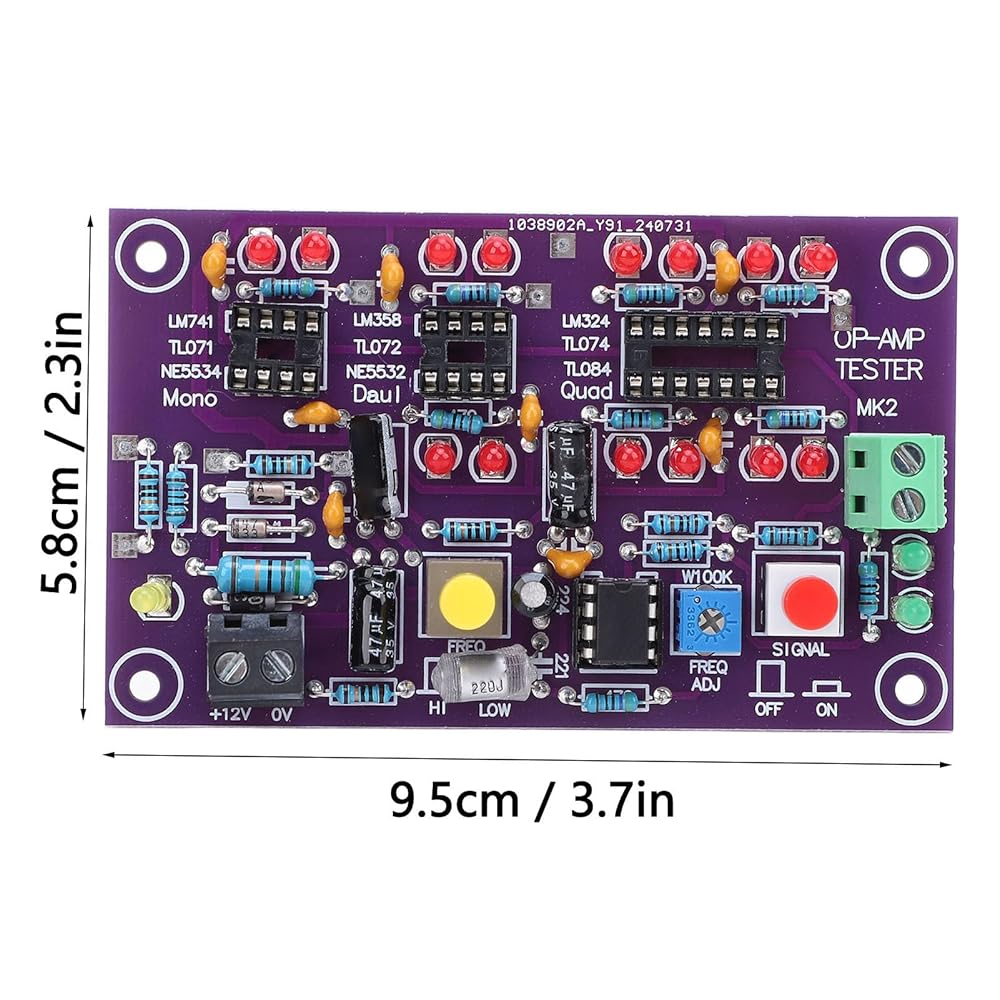

Size: Approx. 9.5x5.8cm / 3.74x2.28in
Power Requirement: Voltage: DC12V, Current: 100mA
Application:
For Single OP AMP : LM741, LF356, NE5534, TL071, TL081, 0P07 and other standard single OP AMP packages
For Double OP AMP : LM358, NE5532, TL072, TL082, MC1458, RC4558, 0P275, AD827 and other standard double OP AMP packages
For Quad OP AMP : LM324, TL074, TL084, LF347, AD713

How to Use:
Direct installation and use

packing list:
1 x Test Board

Notice:

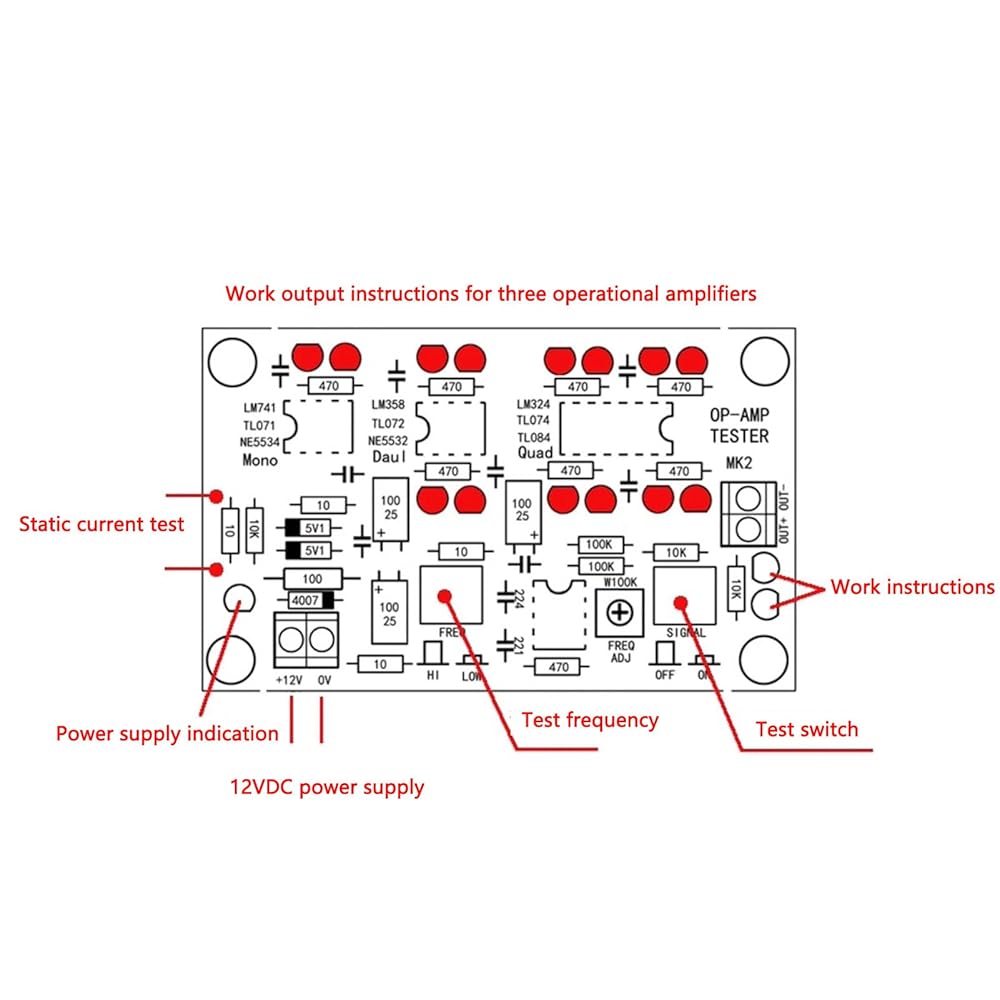

Testing Instructions: 1. Only test one chip at a time. Use one of the three test sockets.
2. For static current testing, use the DC voltage meter of the digital multimeter. Test the voltage across 10 ohms, 1=V/10 (ma). For example, V=15MV, static current 1=1.5 ma. (At this time, do not press the red switch on the right side of the diagram).
3. The test end can be connected to an oscilloscope or frequency counter. Adjust the potentiometer to change the test frequency.
