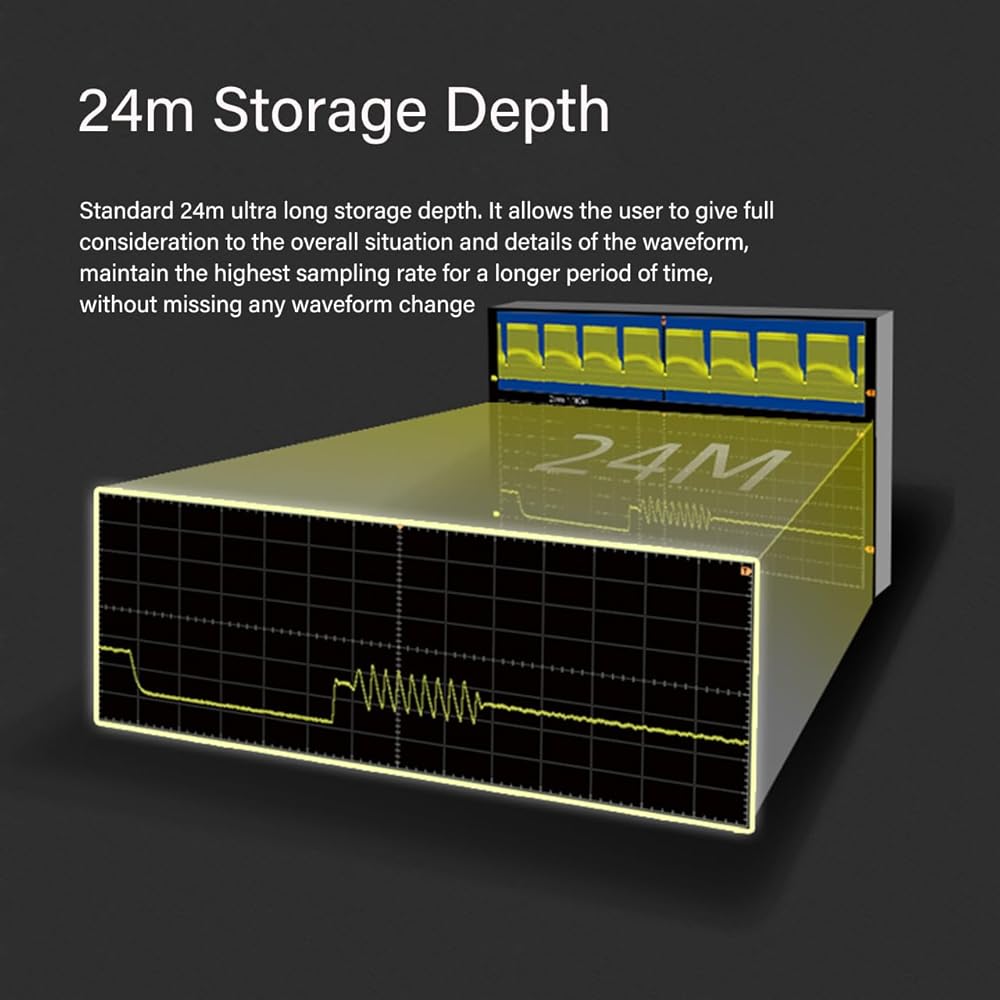

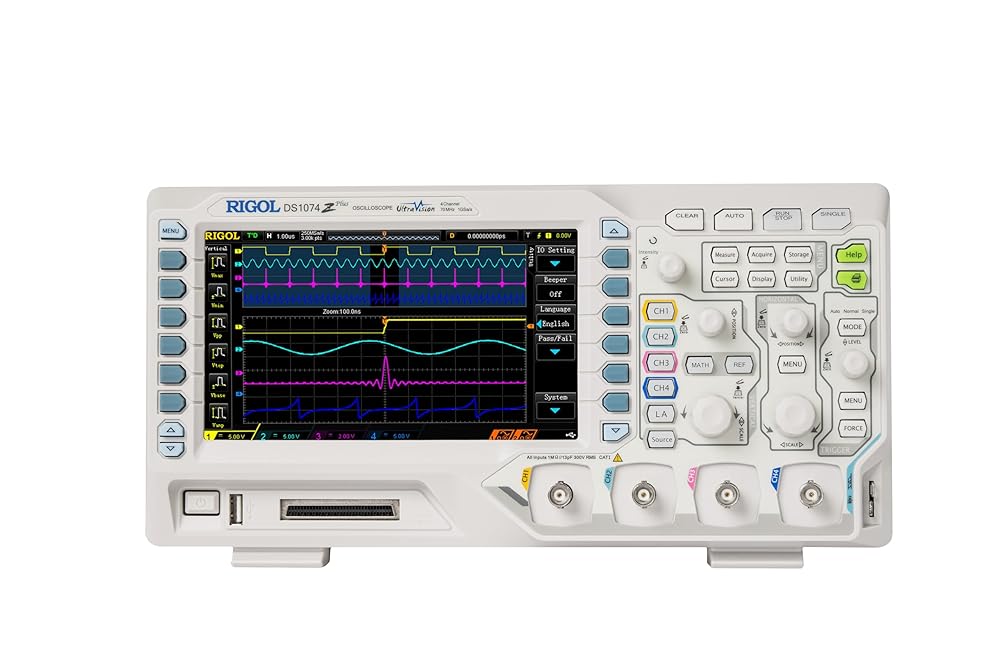

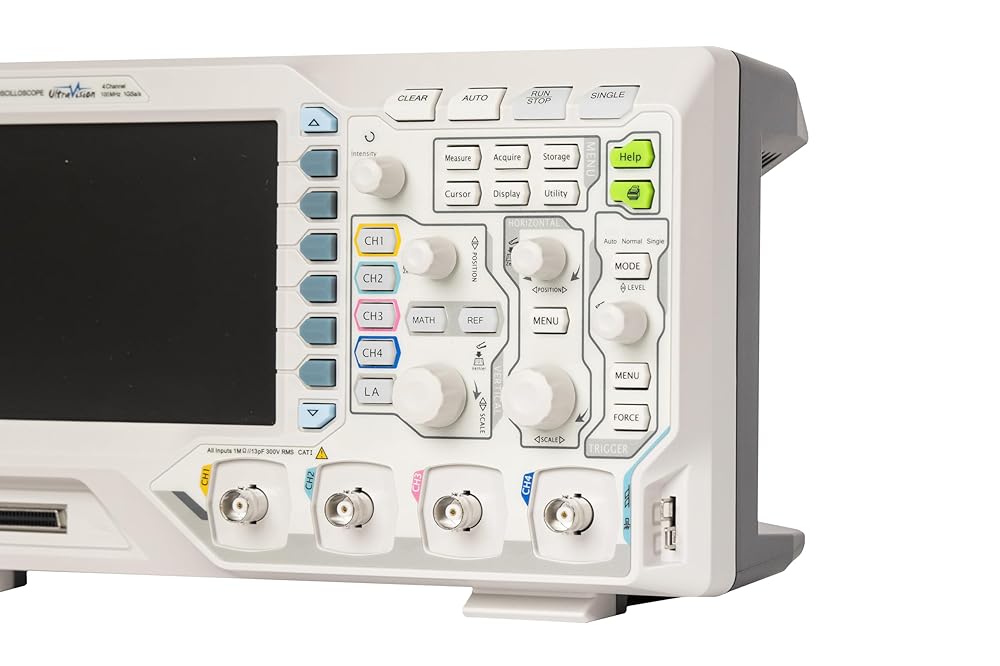

【Core Specs】70 MHz digital oscilloscope with 4 analog channels, up to 1 GSa/s sample rate (single-channel) and standard memory depth up to 24 Mpts (12 Mpts dual-channel, 6 Mpts 3/4-ch) for long captures and timing correlation.

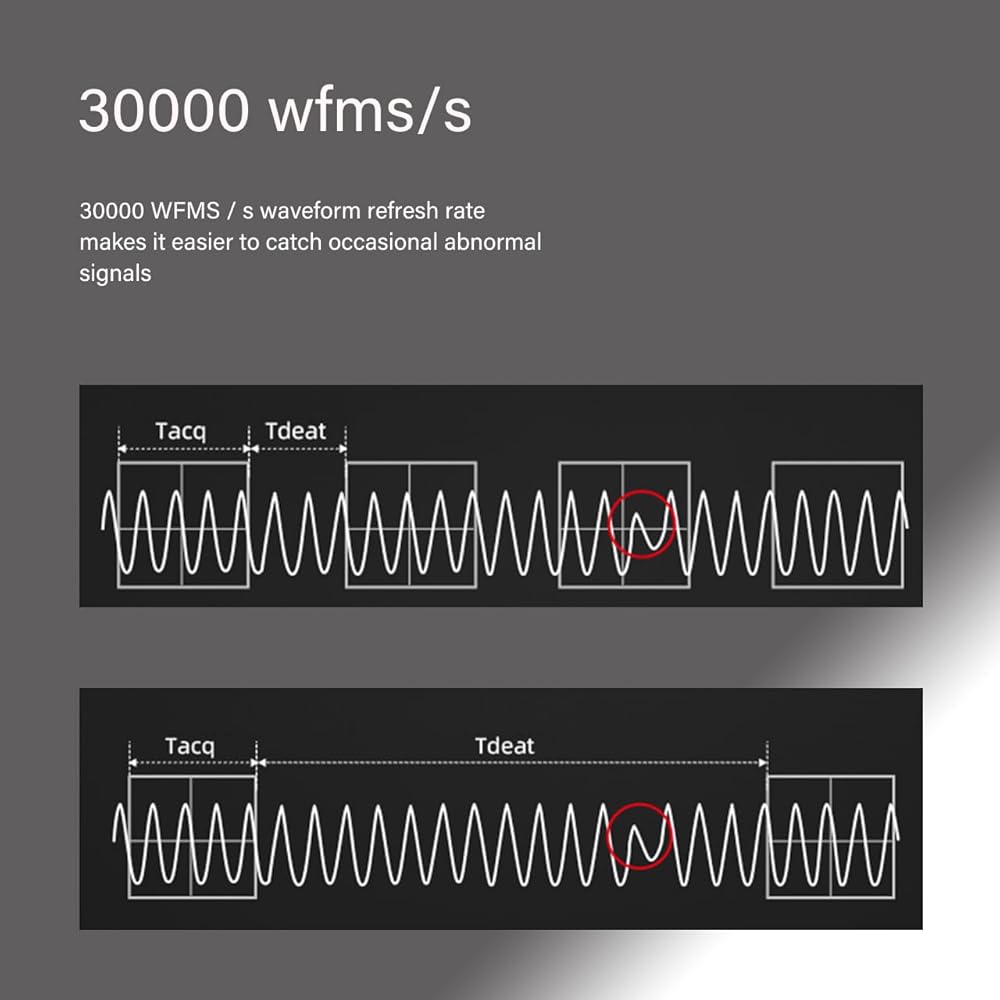

【UltraVision Capture】Up to 30,000 wfms/s capture rate, intensity graded display, and hardware recording/playback up to 60,000 frames help capture and review intermittent faults more efficiently.
【MSO Upgrade Option】DS1000Z Plus models support 16 digital channels after upgrade; optional RPL1116 logic analyzer probe enables mixed analog/digital triggering and time-correlated analysis. Serial trigger/decoding supports RS232/UART, I2C and SPI.

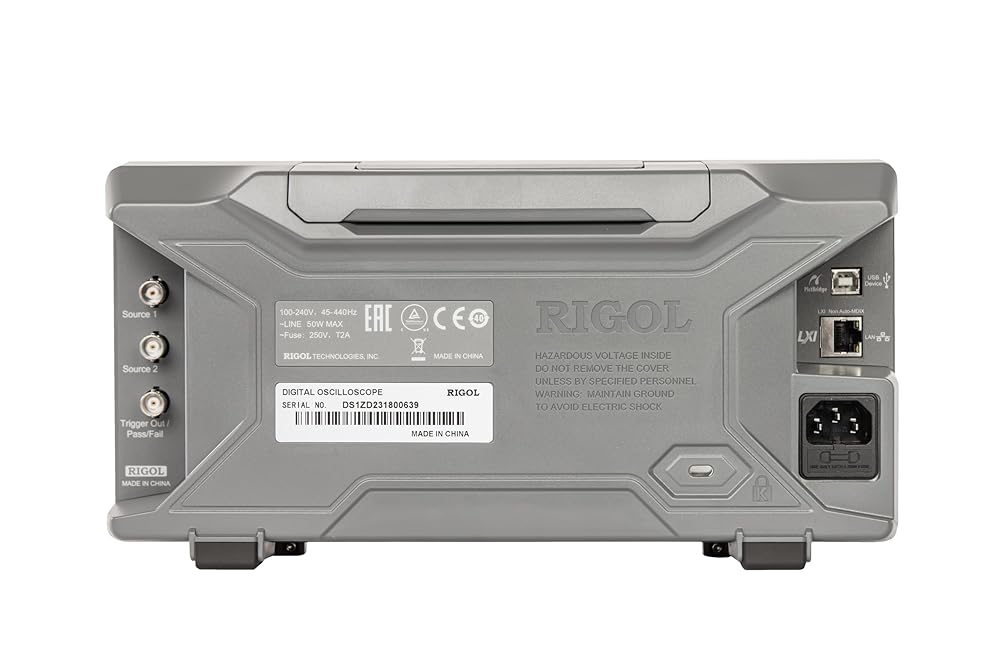

【Connectivity & Remote】USB Host/Device, LAN (LXI) and AUX (TrigOut/PassFail) are standard for remote control workflows and bench integration; supports SCPI tool via PC software per datasheet.
【Applications】Ideal for embedded bring-up, multi-rail power checks and serial-bus troubleshooting; 4 analog channels plus optional digital upgrade helps validate GPIO timing alongside analog behavior.
