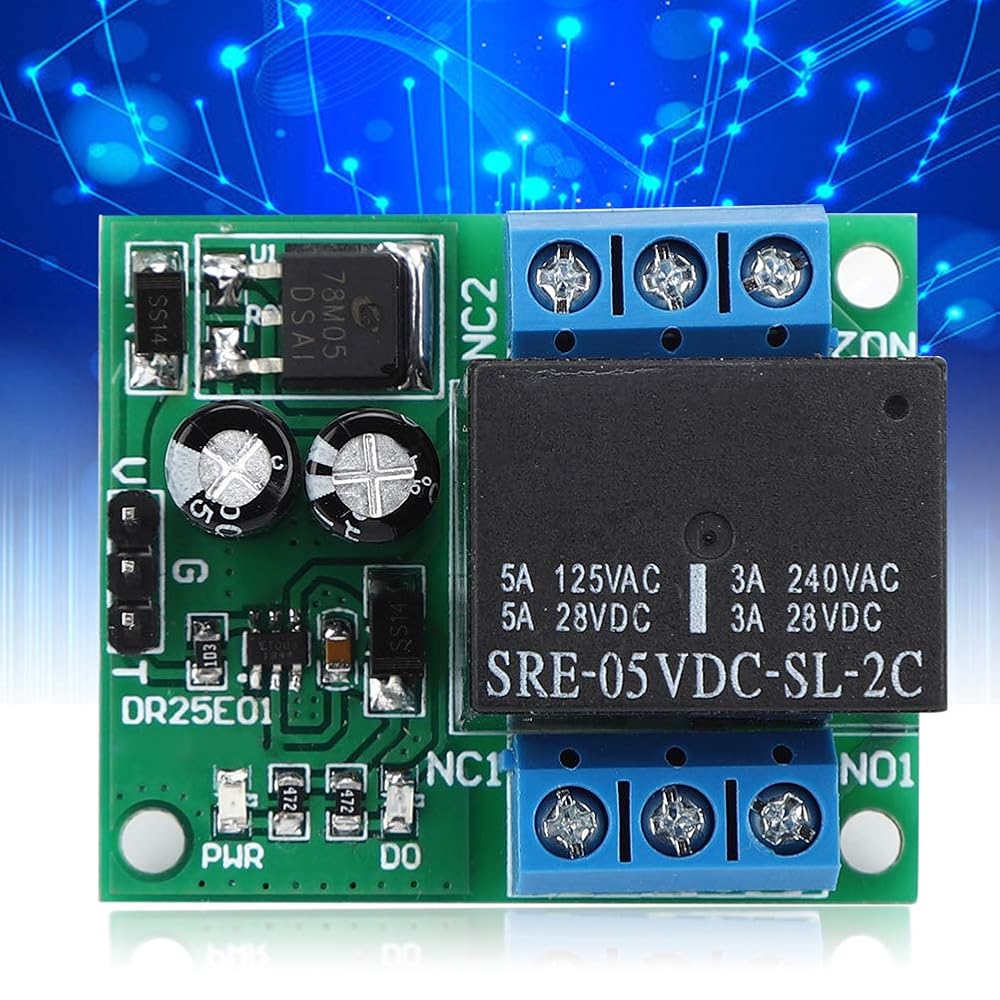

DPDT Self-Locking Relay Module 2 Pack with Power Indicator, 6-24V DC Relay for 5A Load Current, Double Pole Double Throw Switch Control

SAR 87
– 1 +

Special Features

  • [Safe Control] Operates in low pulse control mode, providing a safer environment for motor control applications.

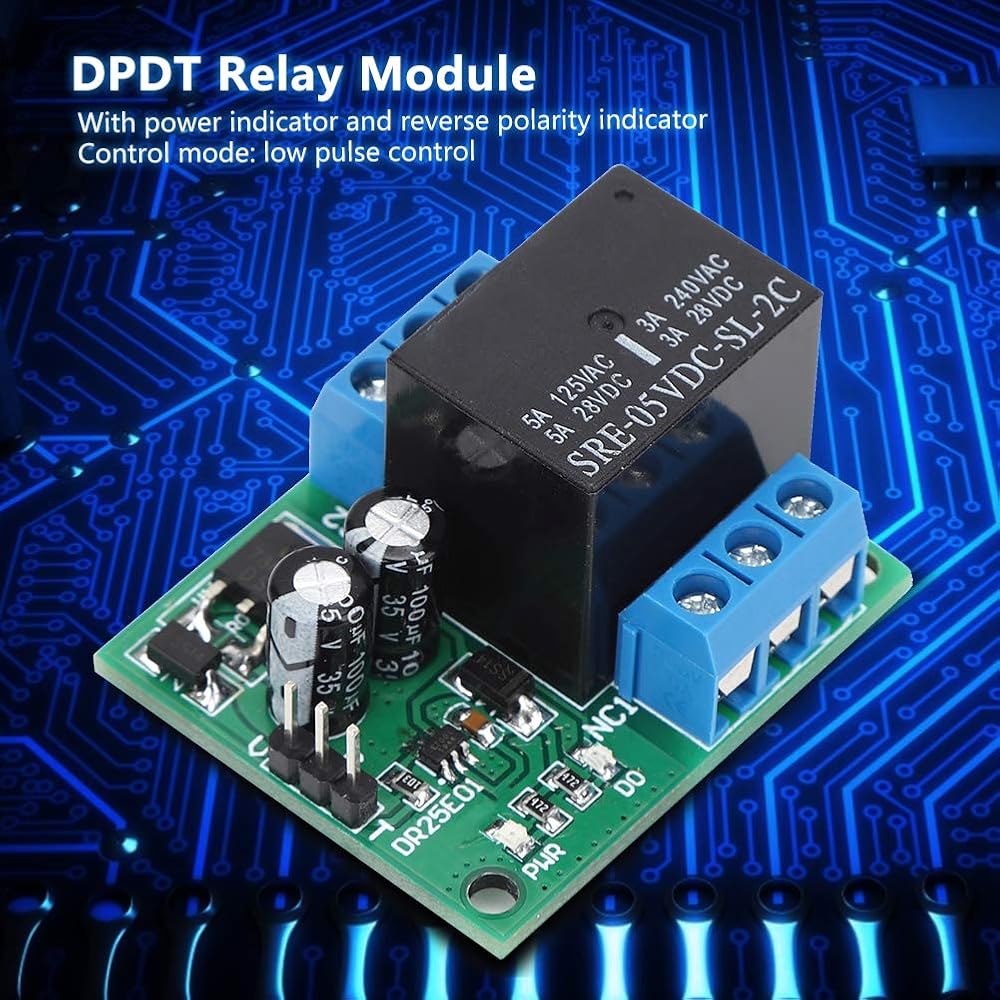

  • [Indicator Lights] Equipped with a power indicator and reverse polarity indicator for easy monitoring and troubleshooting.
  • [Easy Installation] Simple to install and user-friendly design makes this relay board convenient for various applications.
  • [Self-locking Design] This dpdt relay features a bistable mechanism that pulls in when triggered and disconnects on the next trigger.
  • [ Materials] Constructed with top-grade electronic components, ensuring stable and performance.

Description

Spec:
Item Type: DPDT Relay Module
Input Voltage: DC 5V (5V version), DC 6-24V (12V version) (optional)
Module Working Current: Forward 2MA, reverse 60-70MA
Load Current: 5A maximum (motor Control Mode: Low pulse control

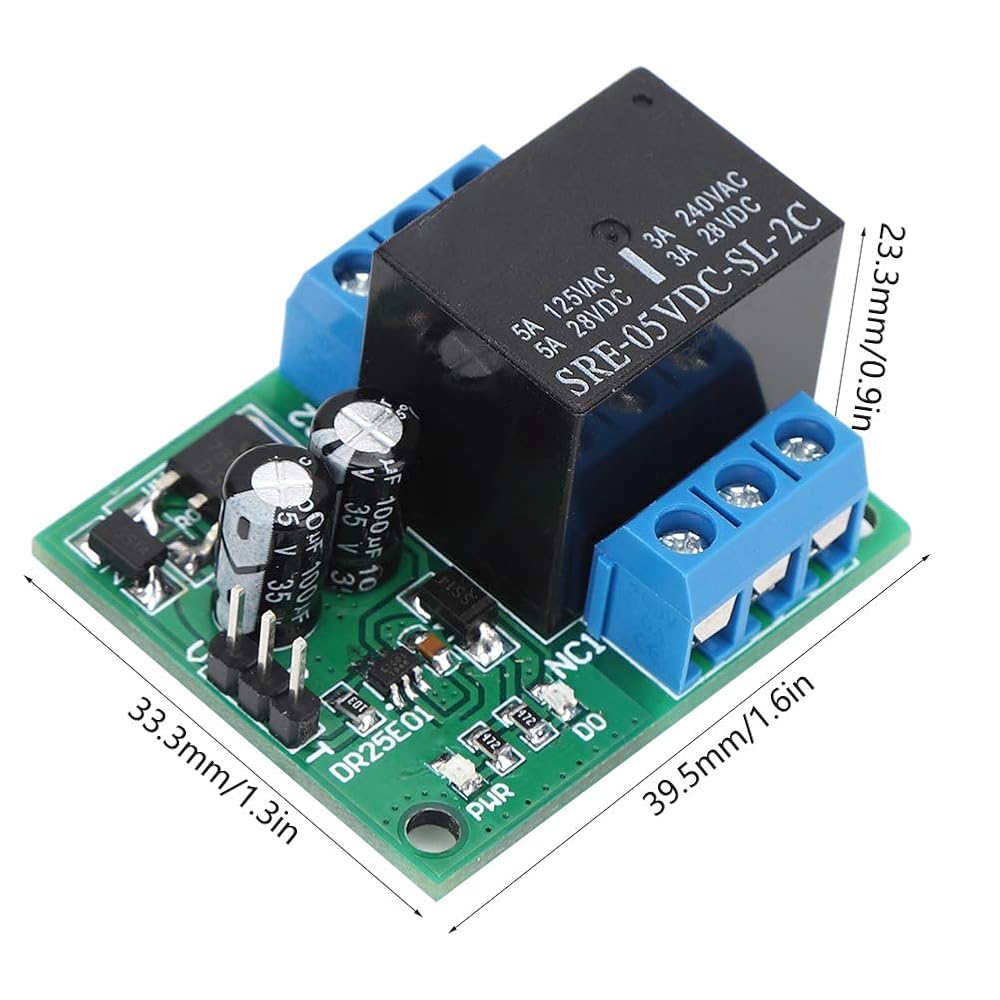

Size: Approx. 39.5 x 33.3 x 23.3mm / 1.6 x 1.3 x 0.9in
Pin Description:
V: Power positive
G: Power negative terminal and trigger ground terminal;
T: Trigger input (0.2-2 seconds low pulse).
NO1: Relay normally open port
COM1: Relay common port
NC1: Relay normally closed port
NO2: Relay normally open port
COM2: Relay common port
NC2: Relay normally closed port

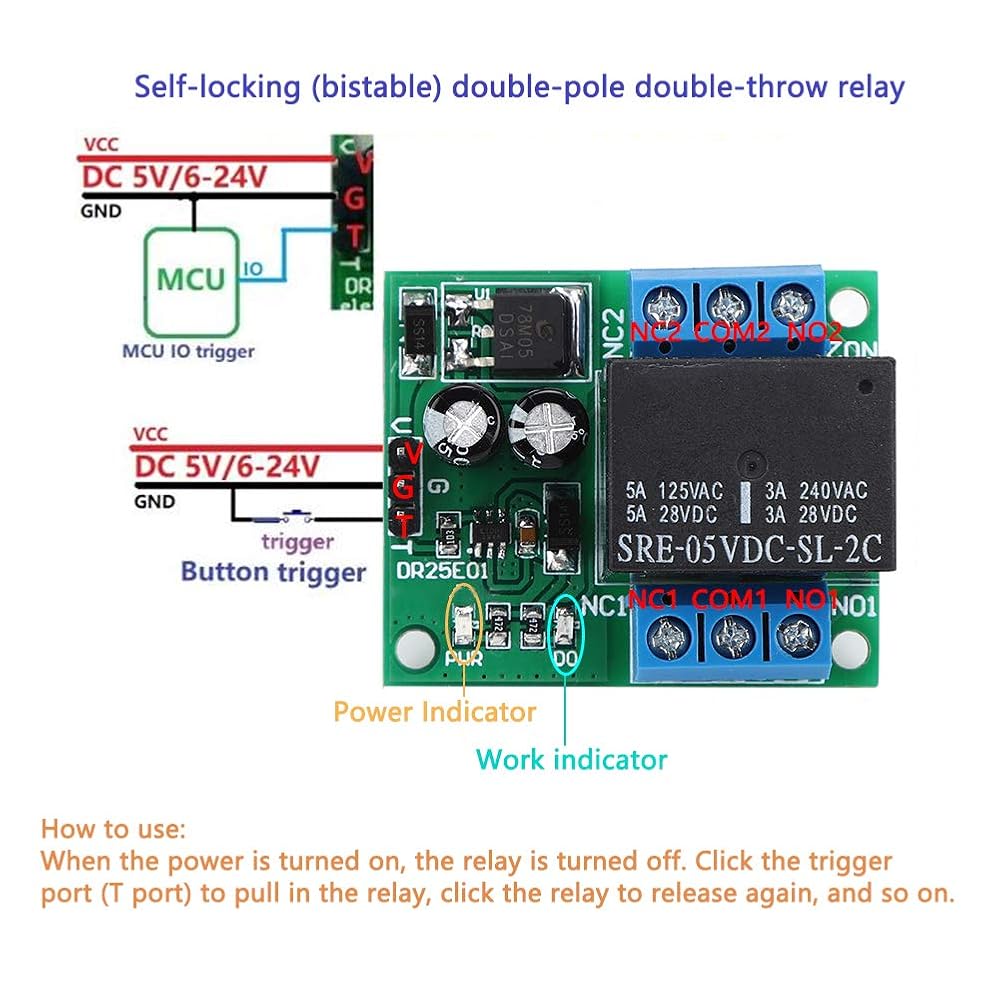

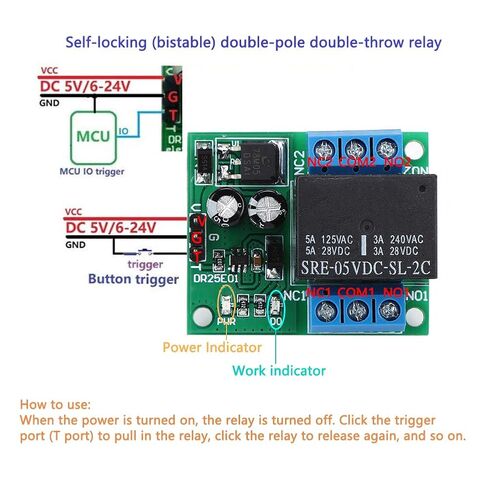

How to use: When the power is turned on, the relay is turned off. Click the trigger port (T port) to pull in the relay, click the relay to release again, and so on.

packing list:

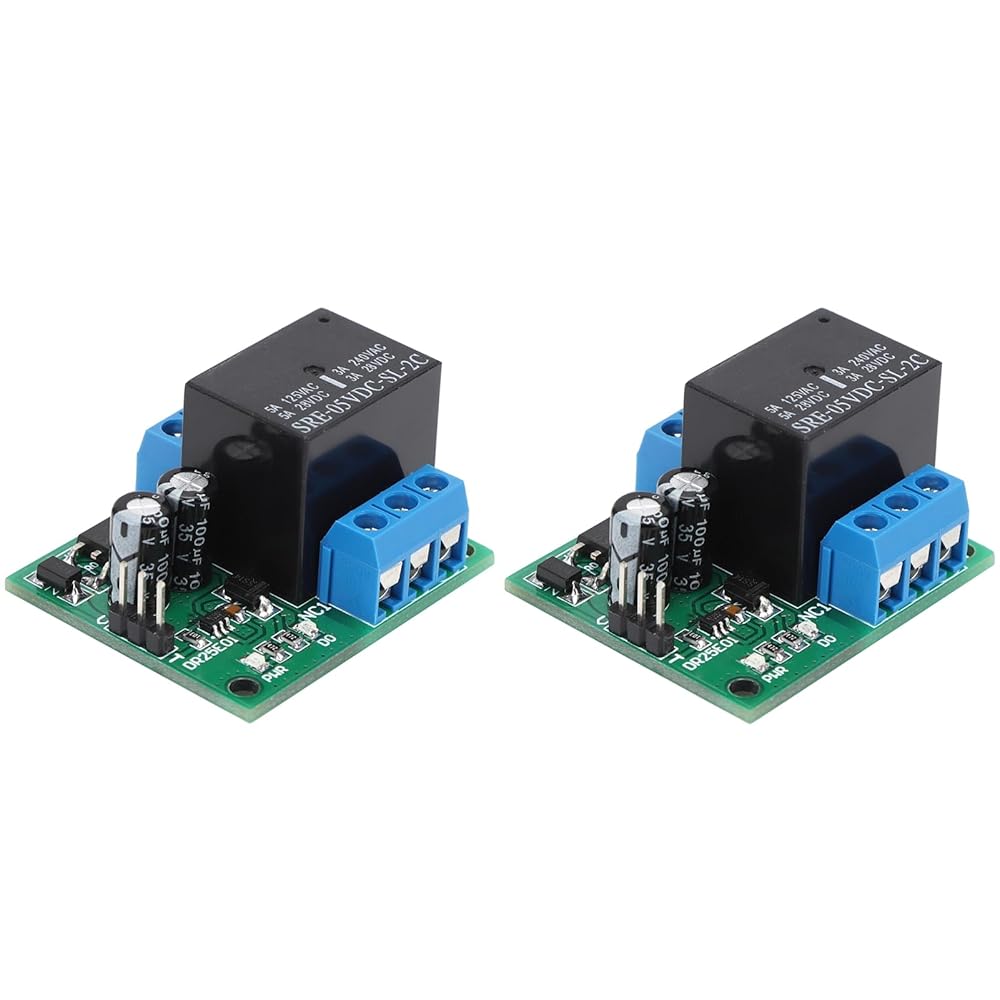

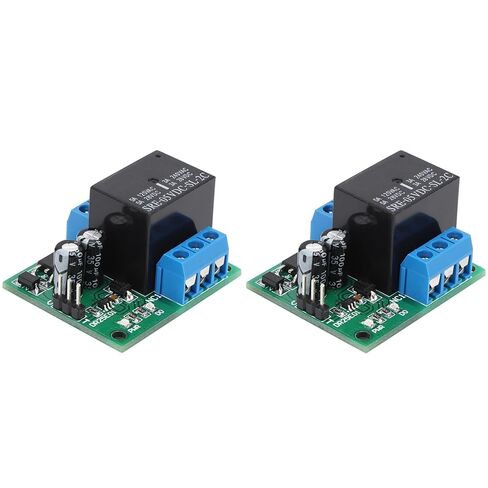

2 x DPDT Relay Module
