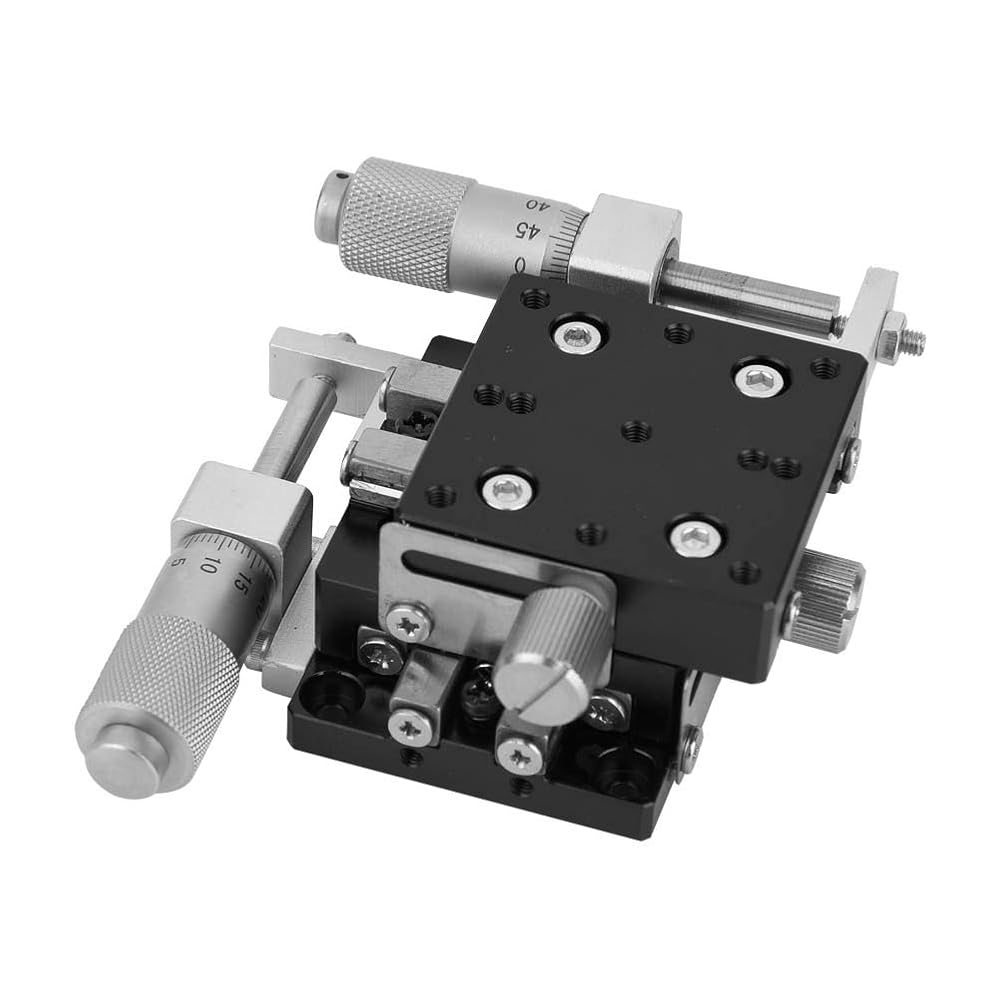

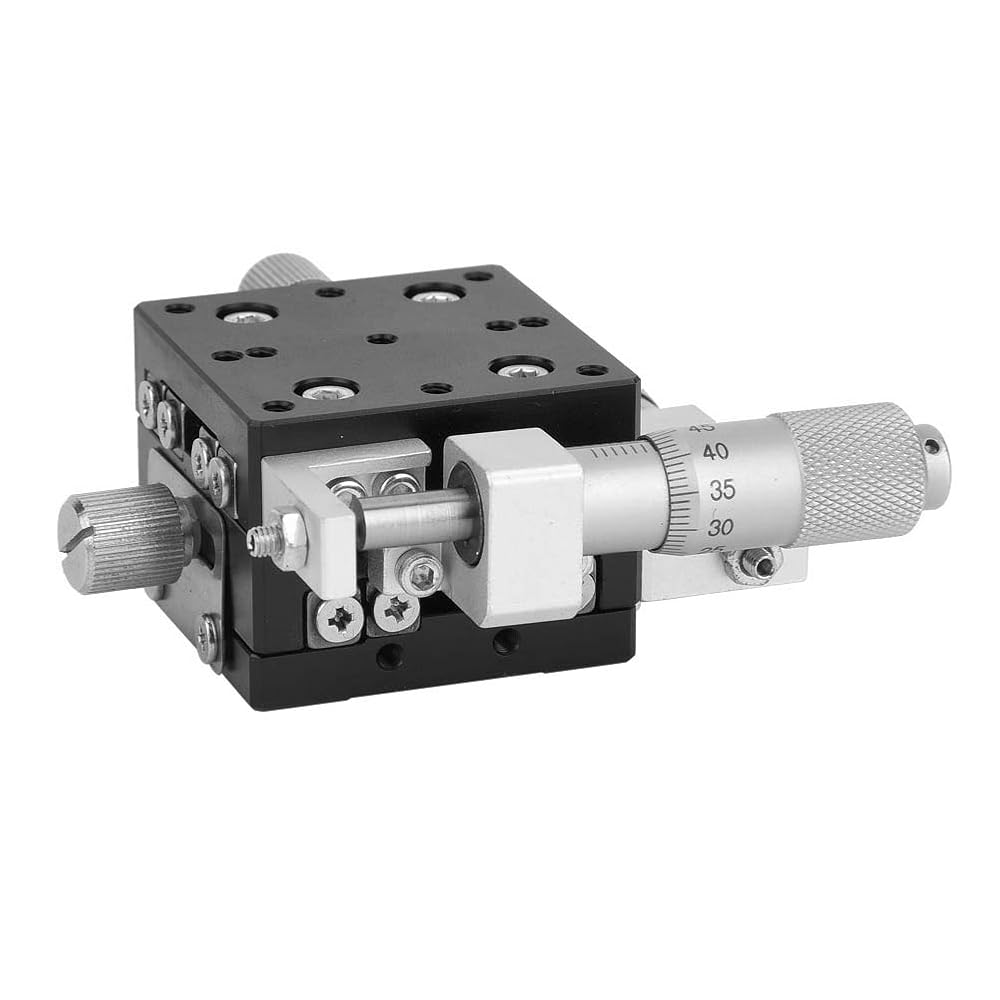

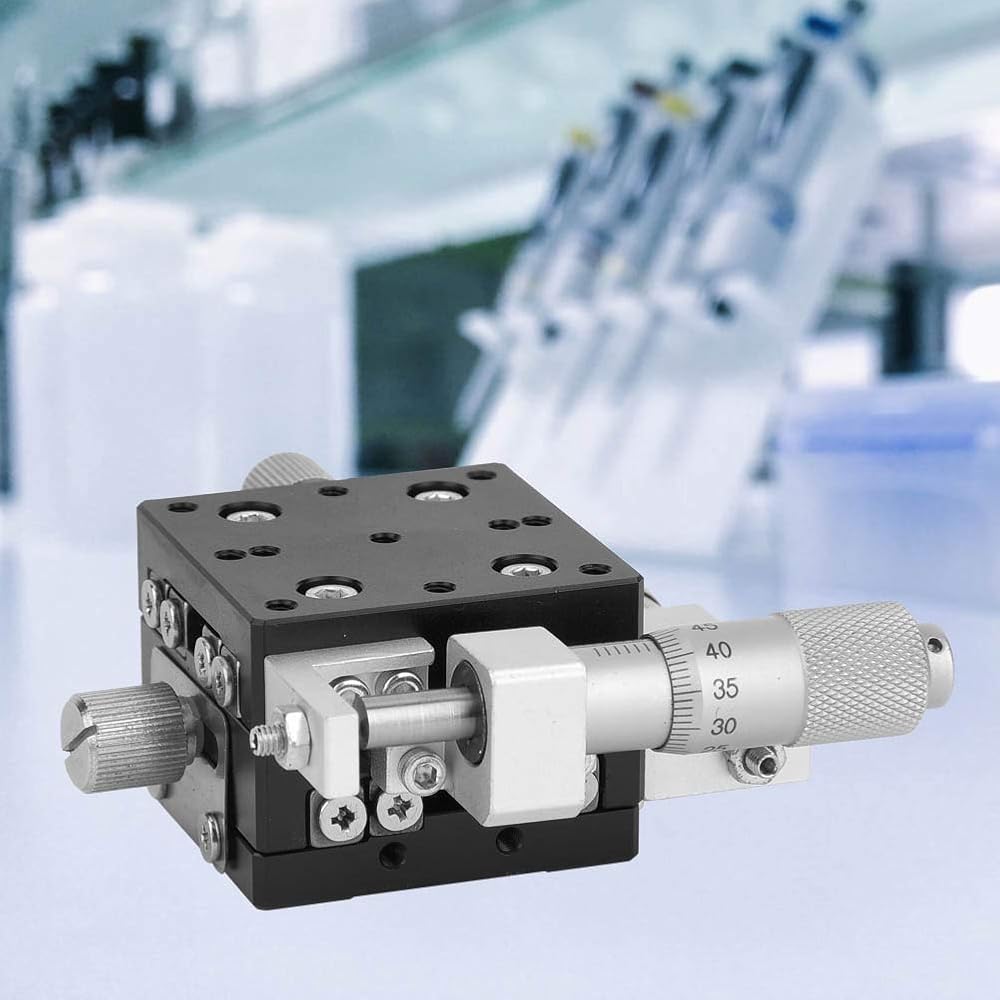

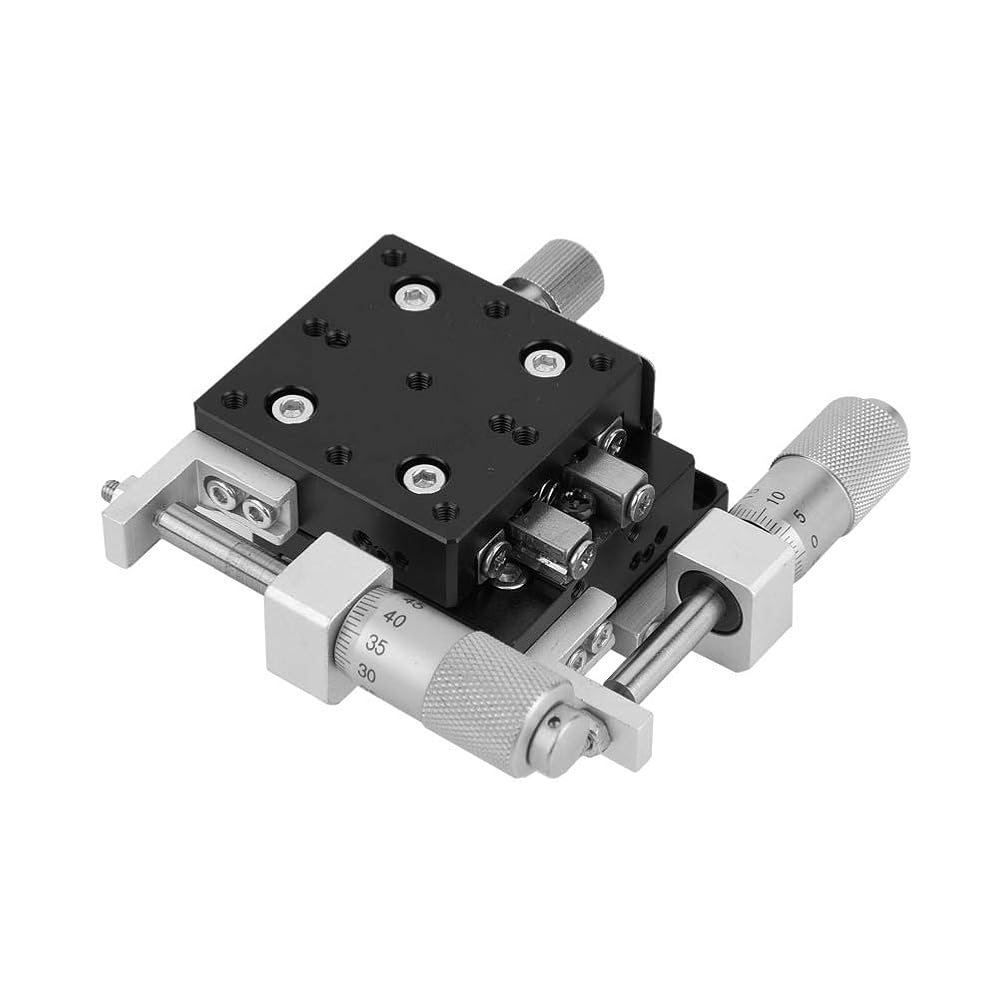

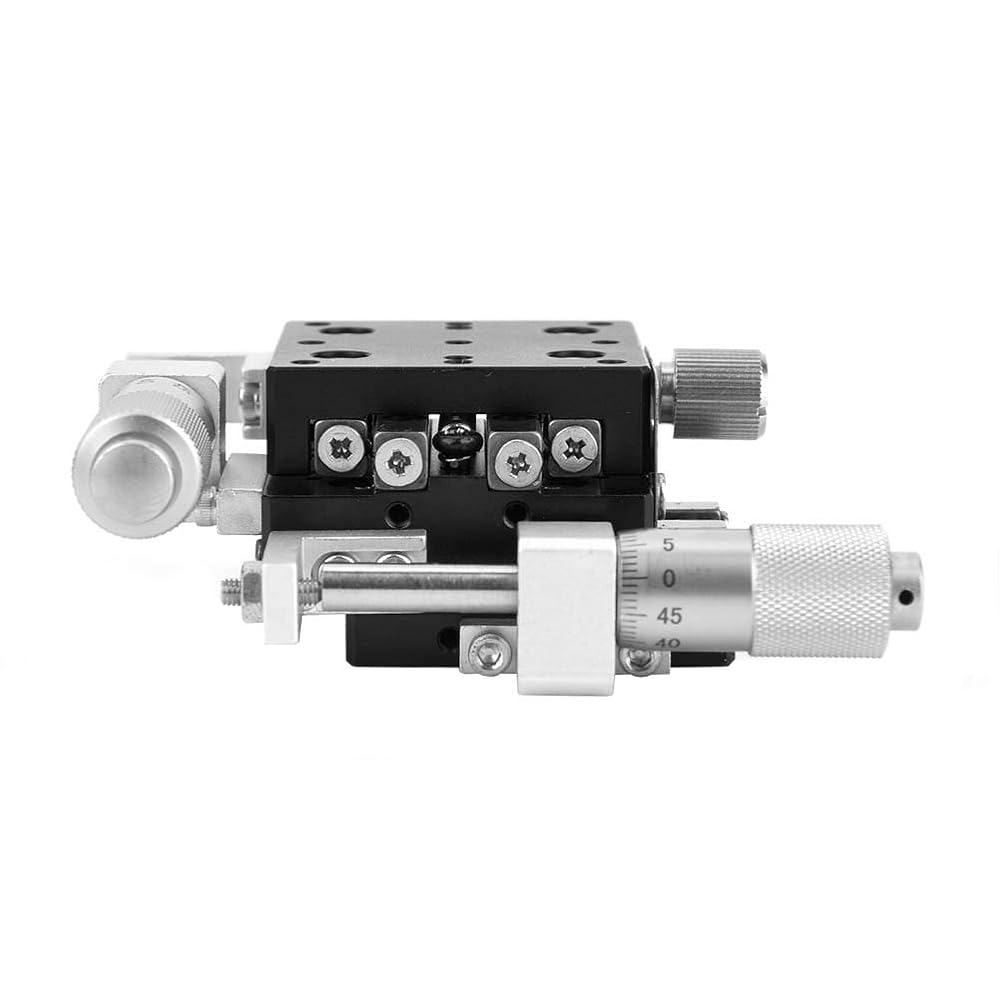

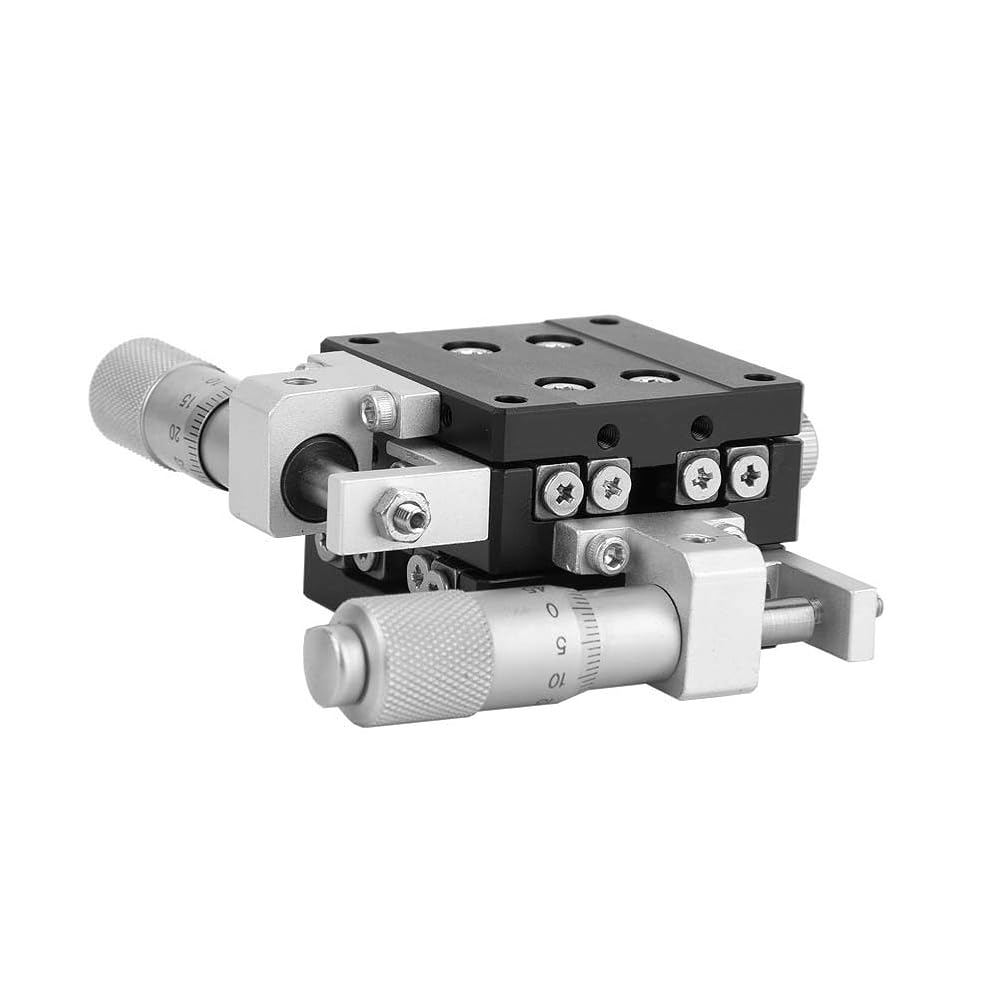

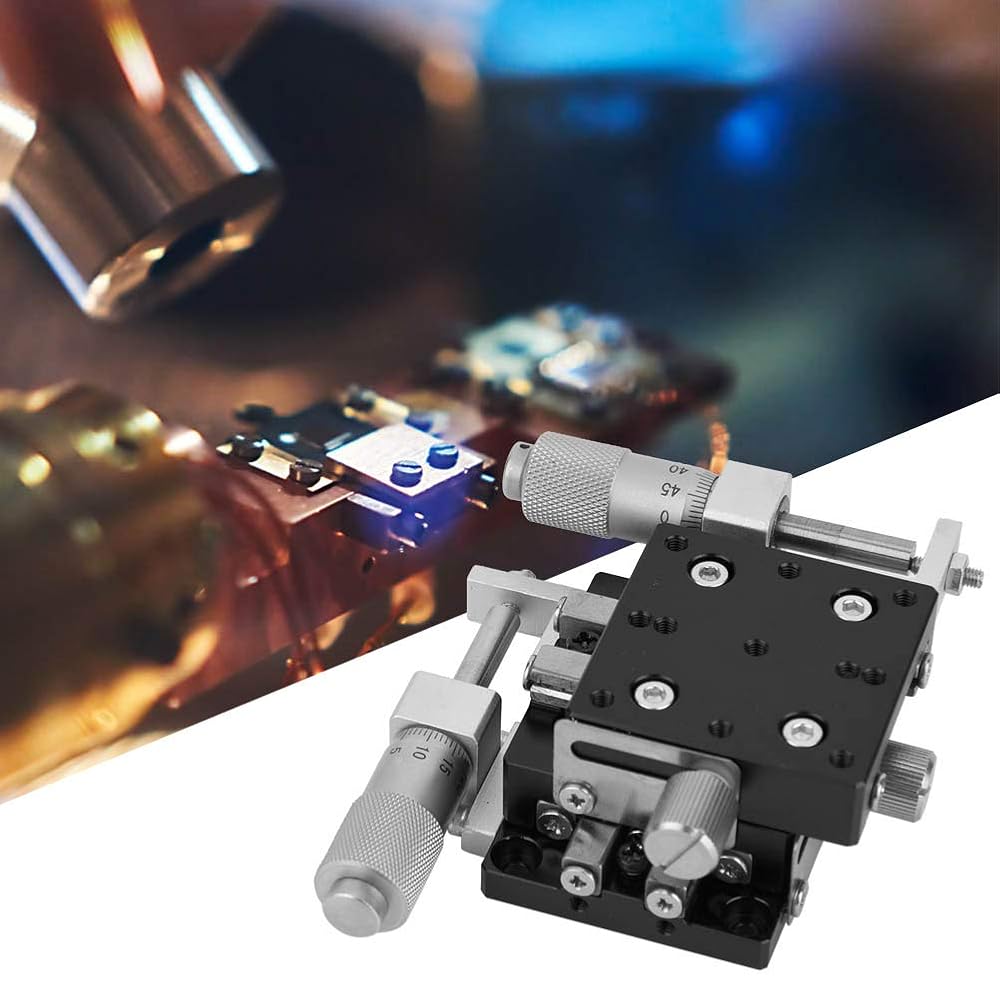

[PRECISION MEASUREMENT] XY Axes Stages LY40-CM manual displacement platform for optical instruments and semiconductor equipment.
[WIDE APPLICATION] Suitable for microscopes, medical devices, and processing machines.
[HIGH PRECISION] Precision linear guide with steel bars for smooth movement and low cost.
[LIGHTWEIGHT DESIGN] Made of aluminum alloy, weighing only 0.06 kg, ideal for various devices.
[SMOOTH MOVEMENT] Intersection-ball guides ensure high precision and accuracy of +/- 0.01mm.

Spec:
Features:
XY Axes Stages LY40-CM linear stage trimming frame /precision measurement manual displacement platform.
Applicable optical instruments apparatus measuring, checking means.
Semiconductor manufacturing equipment, test machine, microscopes, handling machines, processing machines, medical equipment, printing presses, etc.
Precision linear guide for the grinding balls with steel bars, high precision, low cost, light load hinge.
Intersection-ball guides for high precision and smooth movement.
The main material for aluminum alloy, light weight, suitable for built in other devices.

Specifications:
Condition:100% Brand New
Material: Aluminum alloy
Color: As shown in the picture
Model: LY40-CM
Table size: Approx.40*40mm / 1.6*1.6in
Stroke: +/- 6.5mm
Load: 29.4N (3kgf)
Minimum scale: 0.01mm
Accuracy: 0.01 mm
Parallel: 0.01 mm
Weight: 0.06 kg

Package List: 1*Manual Displacement Platform

Note：
