Electronic Line Receivers

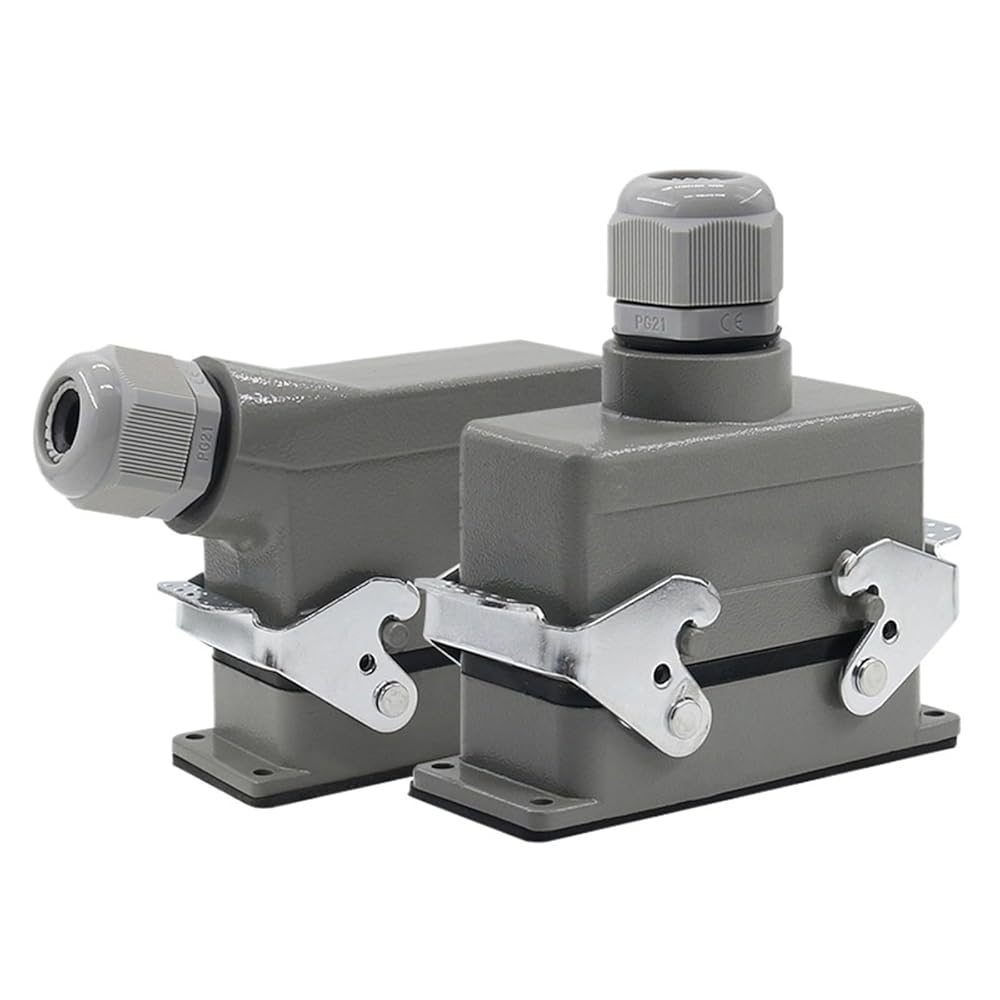

Product name: heavy duty connectors
Model: H16B - HE - 016-1
Characteristic:Top line and side outlet.
Current: 16 a
Voltage: 500 v
Connector pin number: 16
Connect a pin material: copper
Surface treatment: silver plating
Contact resistance: 1 m or less
Wiring forms: screw link
Wire specifications: 0.5 4 cubic millimeter
Screw : 0.5 NM
Wire stripping length: 7-9 mm
number: 500 or higher
Working temperature: - 40 to + 125
Shell materials; Die casting aluminum alloy
Color: grey
mode: metal roller, double buckle
The shell surface: high temperature powder coating
The seal: nitrile rubber
Protection grade: IP65
6 pinsat the top of the outlet
==========
High-concerned chemical : None
Model Number : HDC-HE-016
Voltage : 380 V
