Garosa Digital DC مقاومة منخفضة متر Micro Ohm Milliohm Microhmmeter 0.001m-300 499 تخزين البيانات USB نوع C اتصال مع شاشة LED بإضاءة خلفية لاختبار محرك الأسلاك (قابس الولايات المتحدة 100-240 فولت)

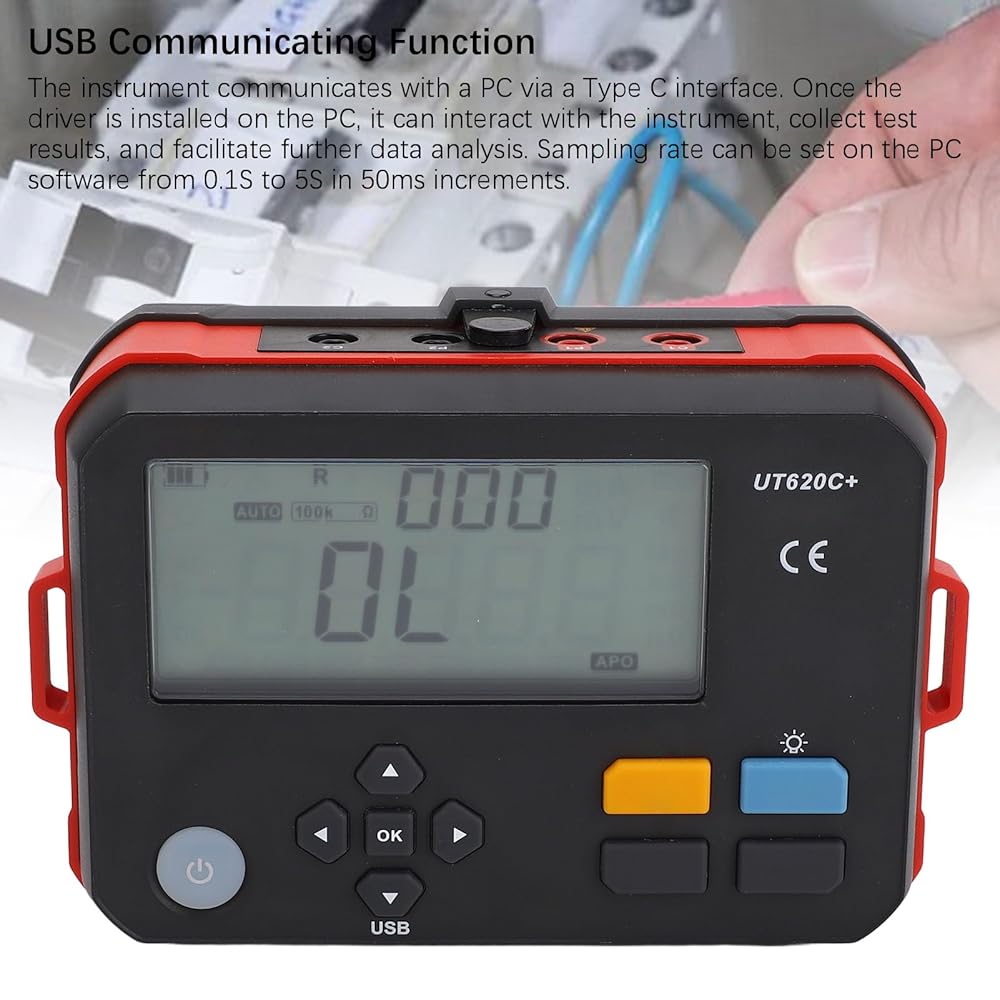

[Seamless Pc Integration] Equipped with a type c interface, this meter allows for easy communication with your pc. once the driver is installed, you can collect test results, set sampling rates from 0.1s to 5s in 50ms increments, and perform detailed data analysis. this feature transforms your meter into a powerful tool for comprehensive resistance testing and reporting.
[User Friendly Interface] Featuring a clear led display with gray white screen backlit, this meter offers easy readability in any lighting condition. the auto power off function conserves battery life by shutting down after 15 minutes of inactivity. combined with a battery level display, it ensures you are always aware of the power status during measurements.

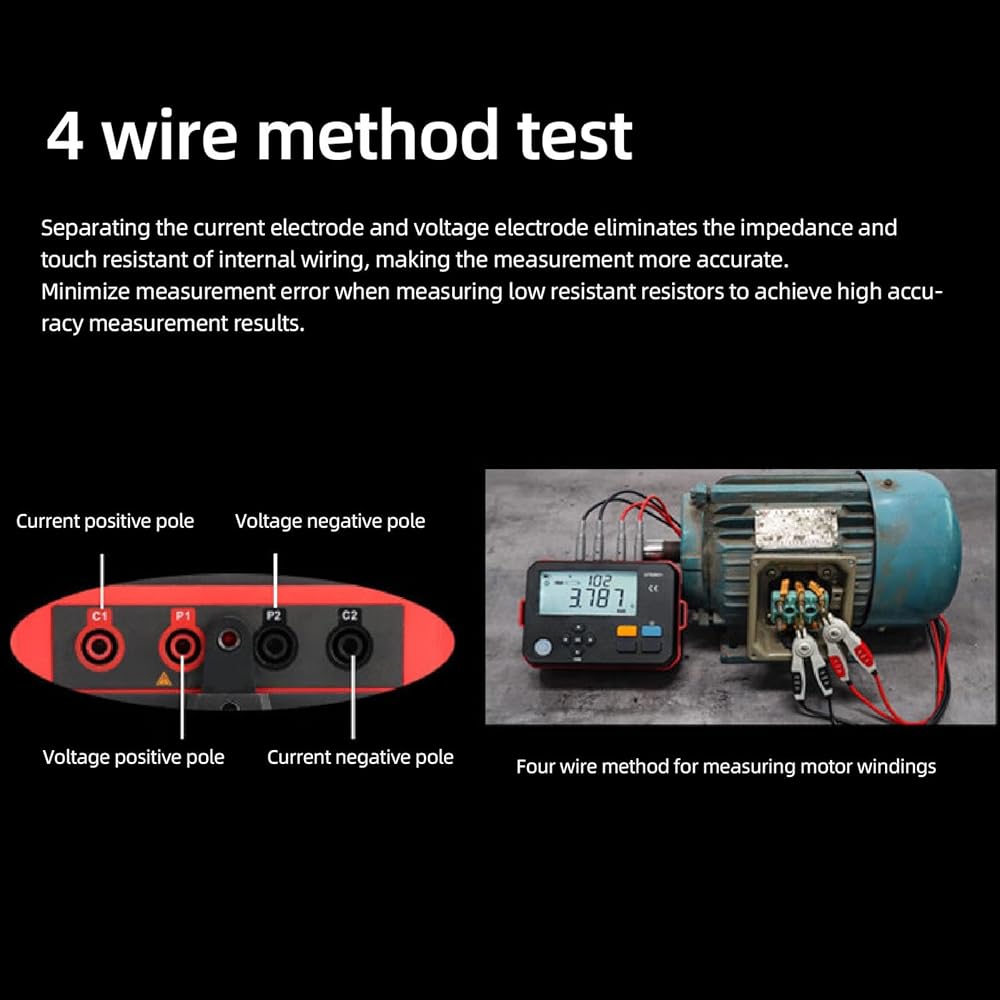

[Superior Electrode Design] The innovative separation of current and voltage electrodes removes internal wiring impedance and touch resistance, providing more accurate measurements. this design is for demanding environments where precision is paramount, making it a top choice for engineers and technicians working with sensitive equipment.

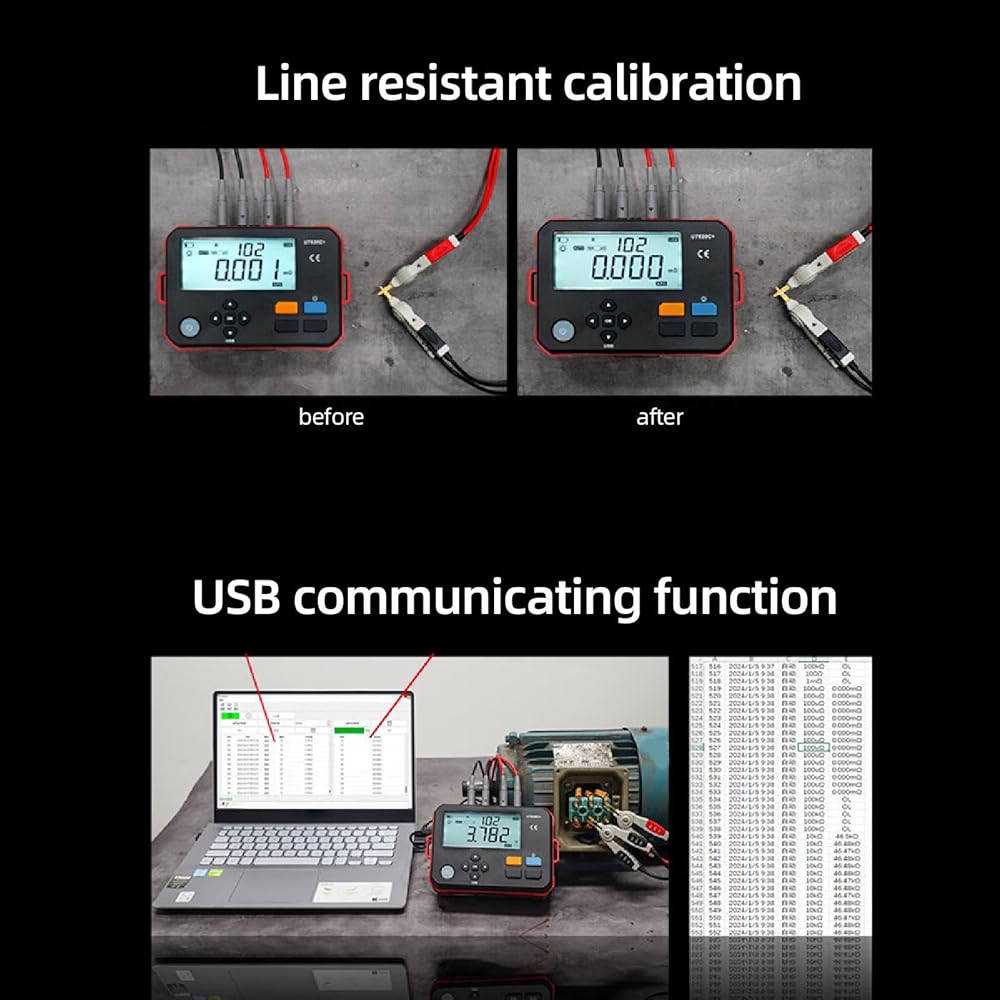

[High Precision Measurement] The digital dc low meter ensures unparalleled accuracy with its advanced line calibration feature. by eliminating the impact of test cable resistance, it delivers precise measurements every time. ideal who demand reliability in small tests, this meter minimizes errors and guarantees accurate results across a wide range of applications.
[Efficient Data Management] With a capacity to store up to 499 sets of data, this meter intelligently displays null when no data is stored and full when storage is maxed. this intuitive feature prompts users to manage stored data efficiently, ensuring seamless operation during extended testing sessions. never worry about losing test results again.
وصف
Spec:
Item Type: Digital DC Low Meter
Material: ABS, PC
Power Adapter Output: DC 5V 2A

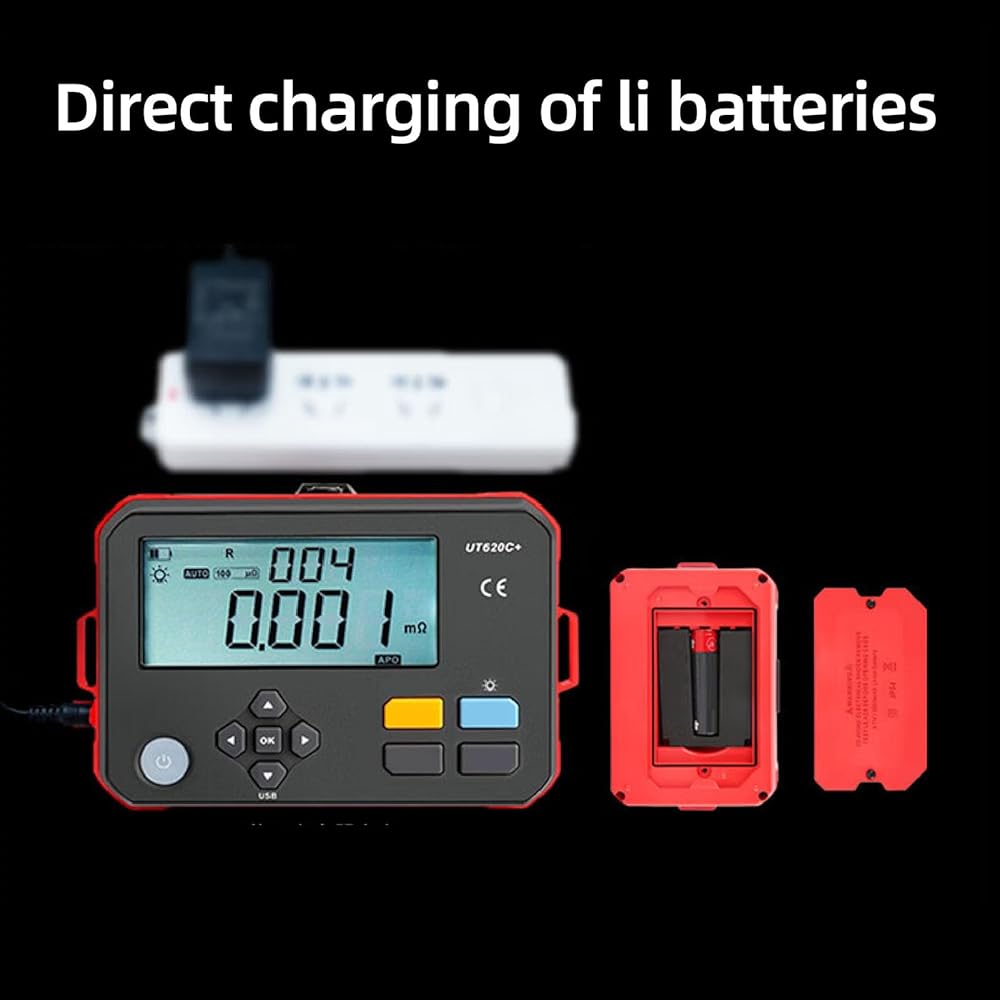

Power Supply: 1 x Li ion Battery 3200mAh (Built in)
Battery Model: UT M20

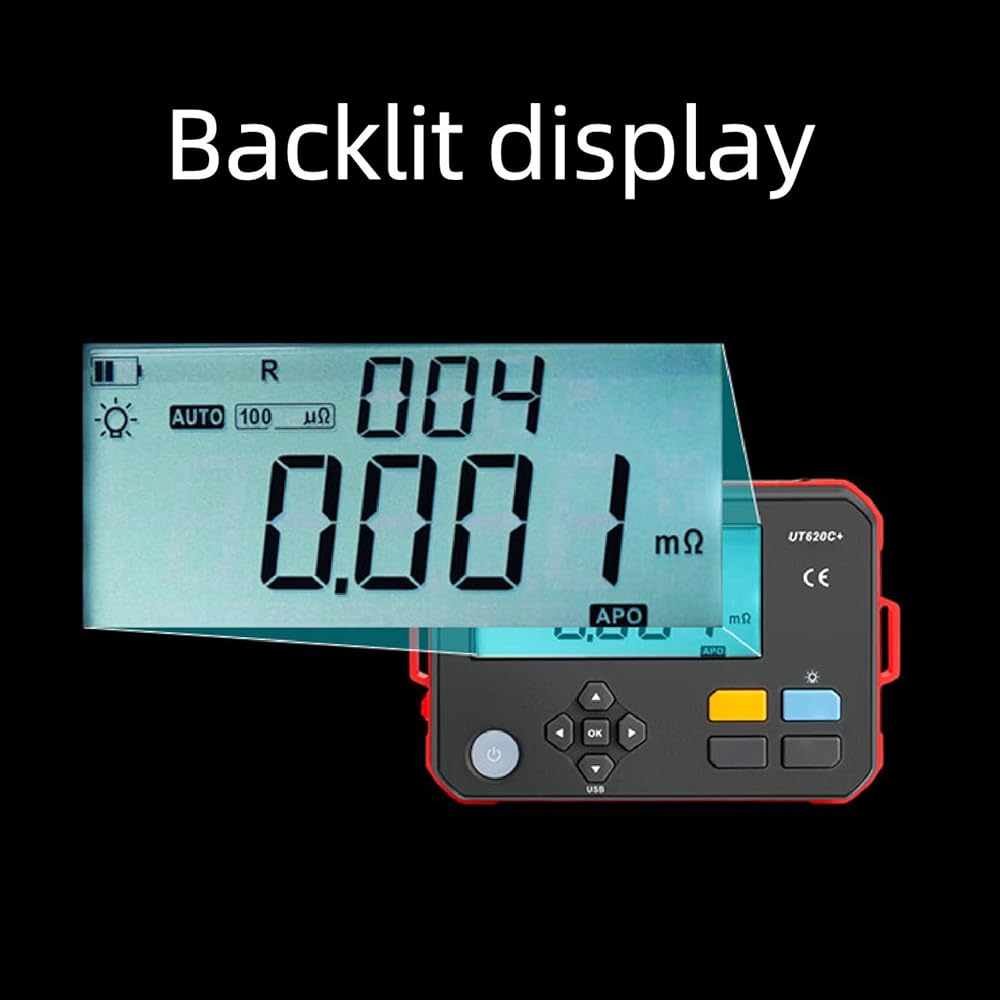

Display Mode: LED display, gray white screen backlit
LED Size: Approx. 102 x 49.5mm / 4.02 x 1.95in
Measurement Speed: Approx. 2 seconds/time
Communicating Cable: Type C communicating cable
Data Storage: 499 sets
Data Reviewing: Supported
Over Range Display: Supported
Battery Level Display: Supported
Auto Power Off: Automatically off after 15 minutes of inactivity
Range and Accuracy:
Range: 0.001mΩ-10.000mΩ
Resolution: 0.001mΩ
Maximum Test Current: 1A
Range: 10.01mΩ-100.00mΩ
Resolution: 0.01mΩ
Maximum Test Current: 1A
Range: 100.1mΩ-1000.0mΩ
Resolution: 0.1mΩ
Maximum Test Current: 100mA
Range: 1.001Ω-10.000Ω
Resolution: 0.001Ω
Maximum Test Current: 10mA
Range: 10.01Ω-100.00Ω
Resolution: 0.01Ω
Maximum Test Current: 1mA
Range: 100.1Ω-1000.00Ω
Resolution: 0.1Ω
Maximum Test Current: 100uA
Range: 1.001KΩ-10.000kΩ
Resolution: 0.001kΩ
Maximum Test Current: 10uA
Range: 10.01KΩ-100.00kΩ
Resolution: 0.01kΩ
Maximum Test Current: 10uA
Range: 100.1KΩ-300.0Ω
Resolution: 0.1kΩ
Maximum Test Current: 3uA
Accuracy: ± (0.1FS+20dgt), Within 18 ℃ to 28 ℃ and below 75RH

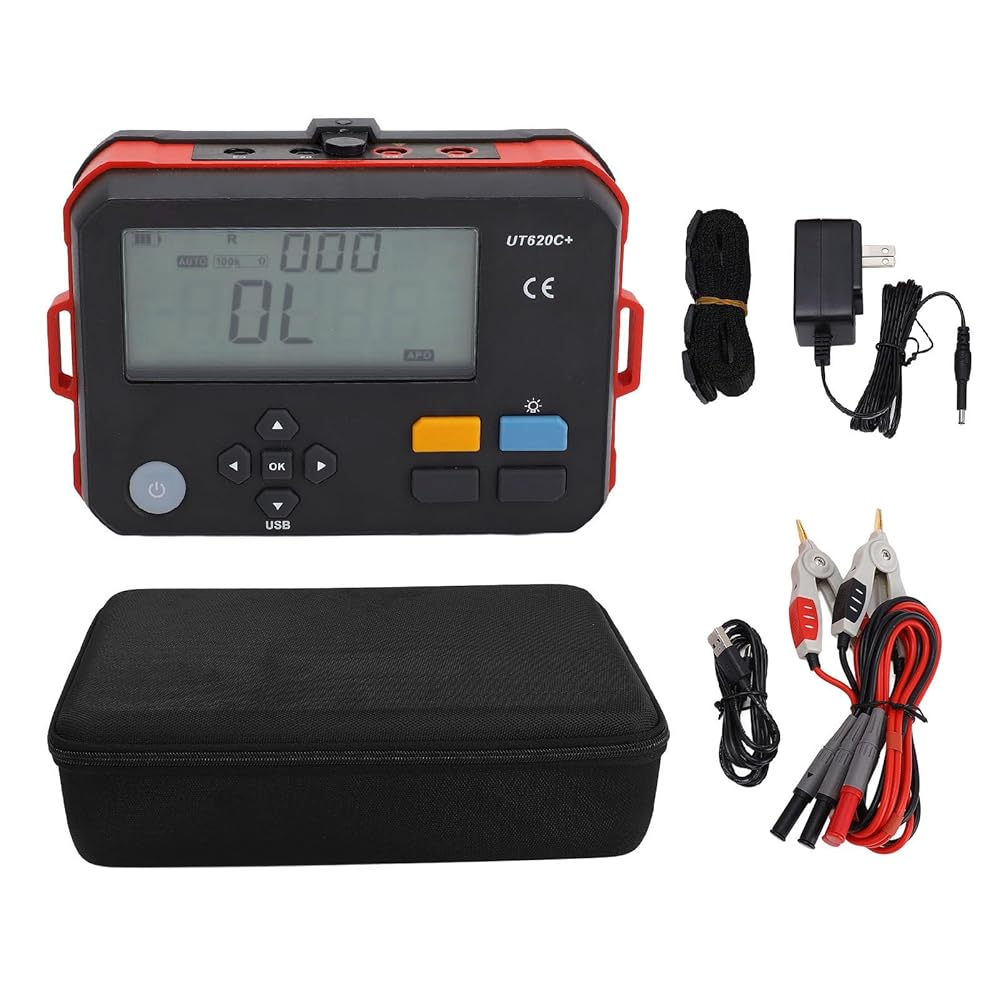

Package List:
1 x Microohmmeter
1 x Supply Adapter
1 x Shoulder Strap
1 x Communicating Cable
2 x Test Clamp/Holder
1 x User Manual
1 x Carrying Box/Cover
How To Use:
Follow the instructions manual after taking out the product.
