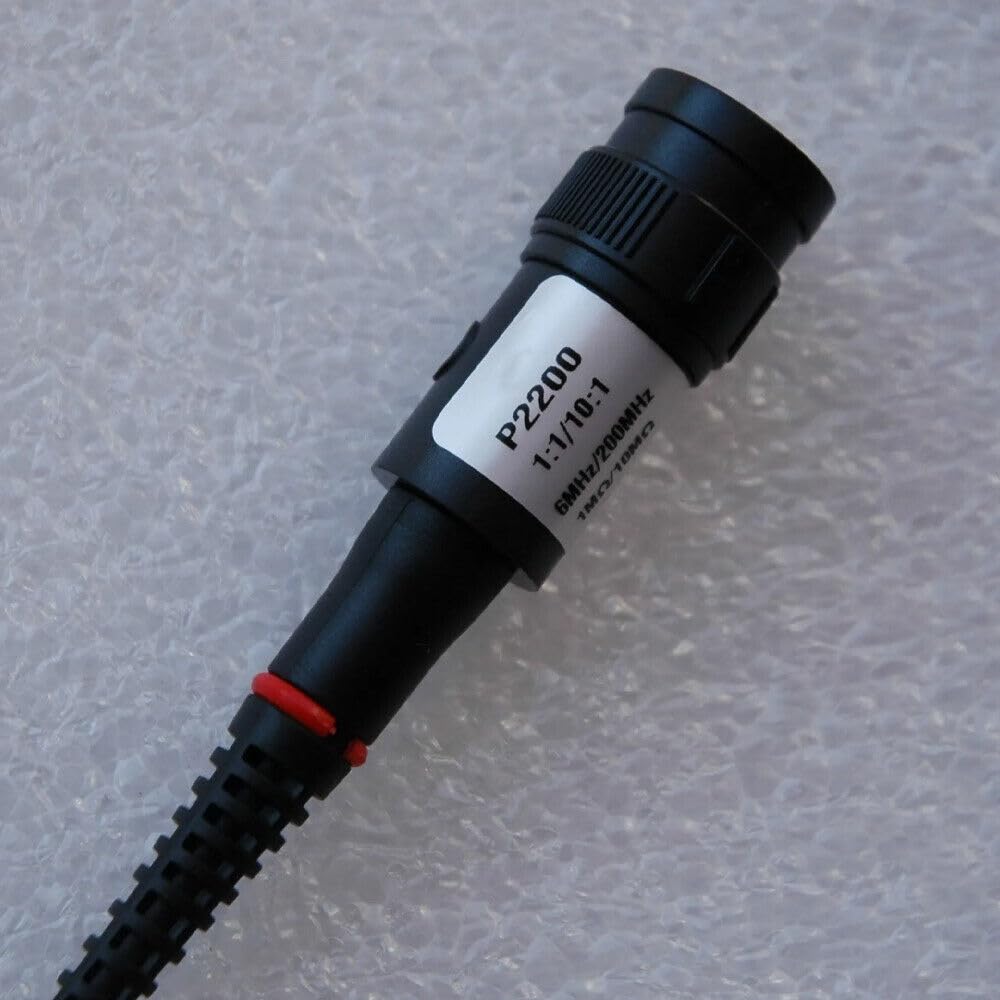

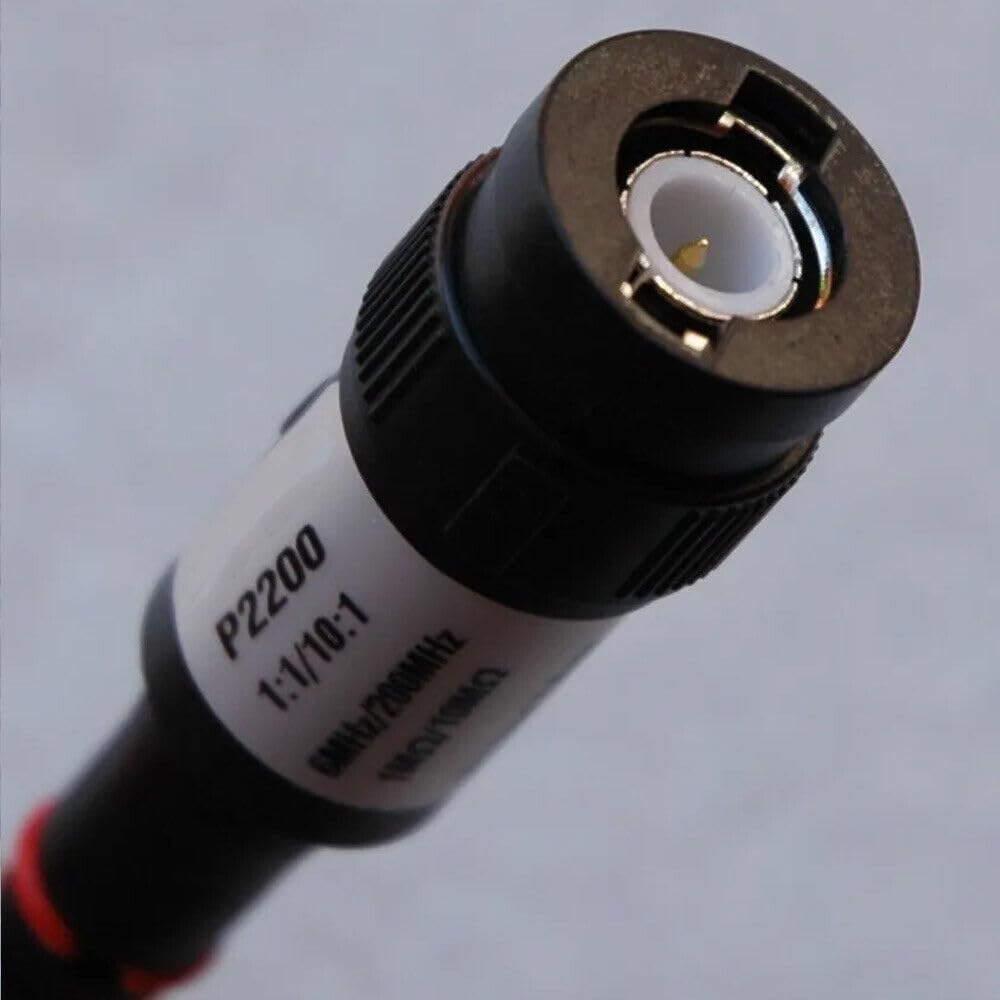

P2200 Series Probes
General Purpose, Bench or Field
Economical, Yet High Quality
High Input Impedance (X10 range)
Compensation (X10 range)
Features: Usable with scopes having Bandwidth up to 200 MHz

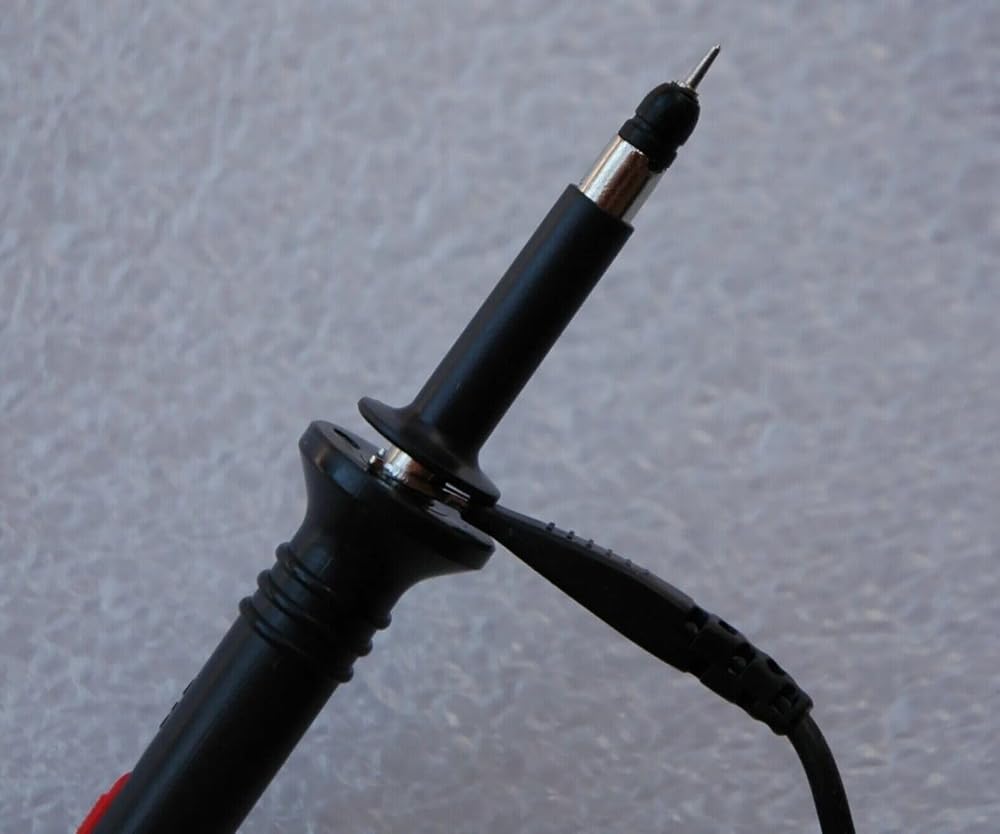

Interchangeable Probe Tip

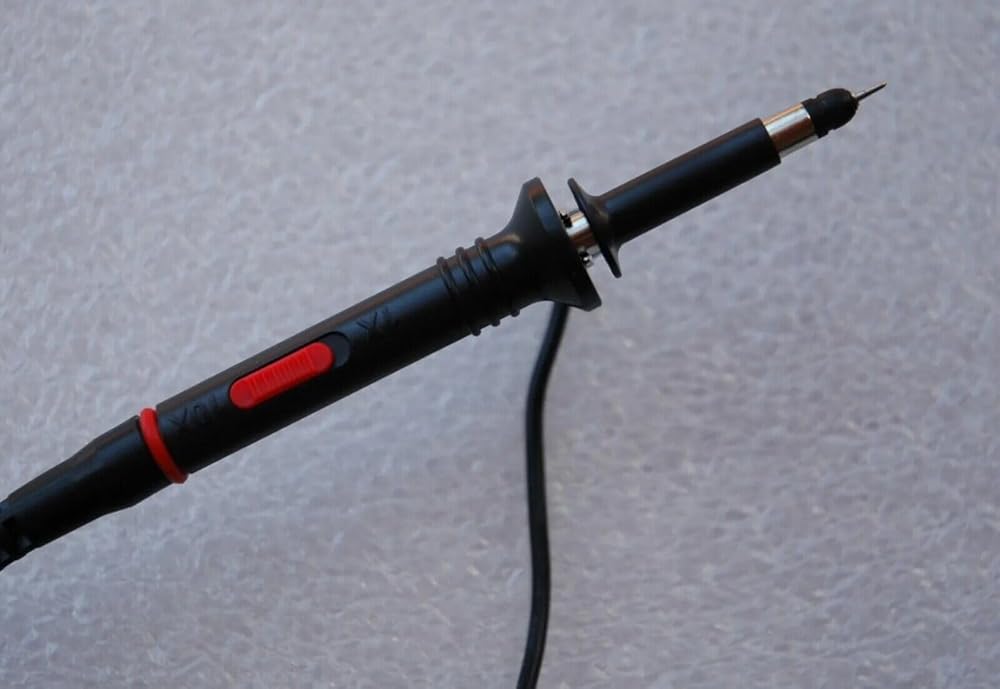

Coaxial Reed Switch
Modular Construction
Compensation range: 10 to 35 pF
Input Capacitance: 1X: 70pF-120pF; 10X: 13pF-17pF
Input Resistance: 1X: 1Mohm; 10X: 10Mohm;
Bandwidth: 1X: DC-6MHZ, 10X: 200MHz
Attenuation Ration: 1:10
Net Weight: 55g
Cable Length: 110cm
Operating Temp: -10C-+50C
Operating Humidity:
Maximum Input Voltage: 1X: 300 VDC+Peak AC, 10X: 600 VDC+Peak AC

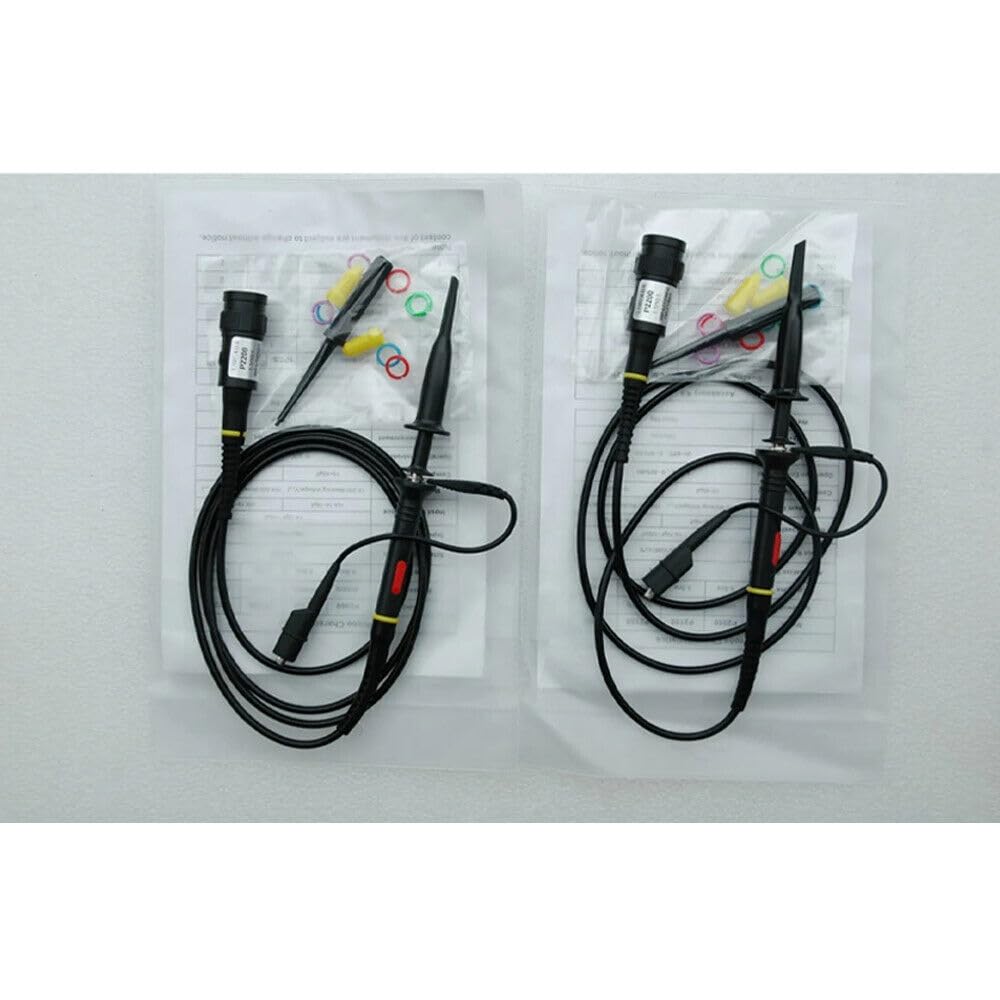

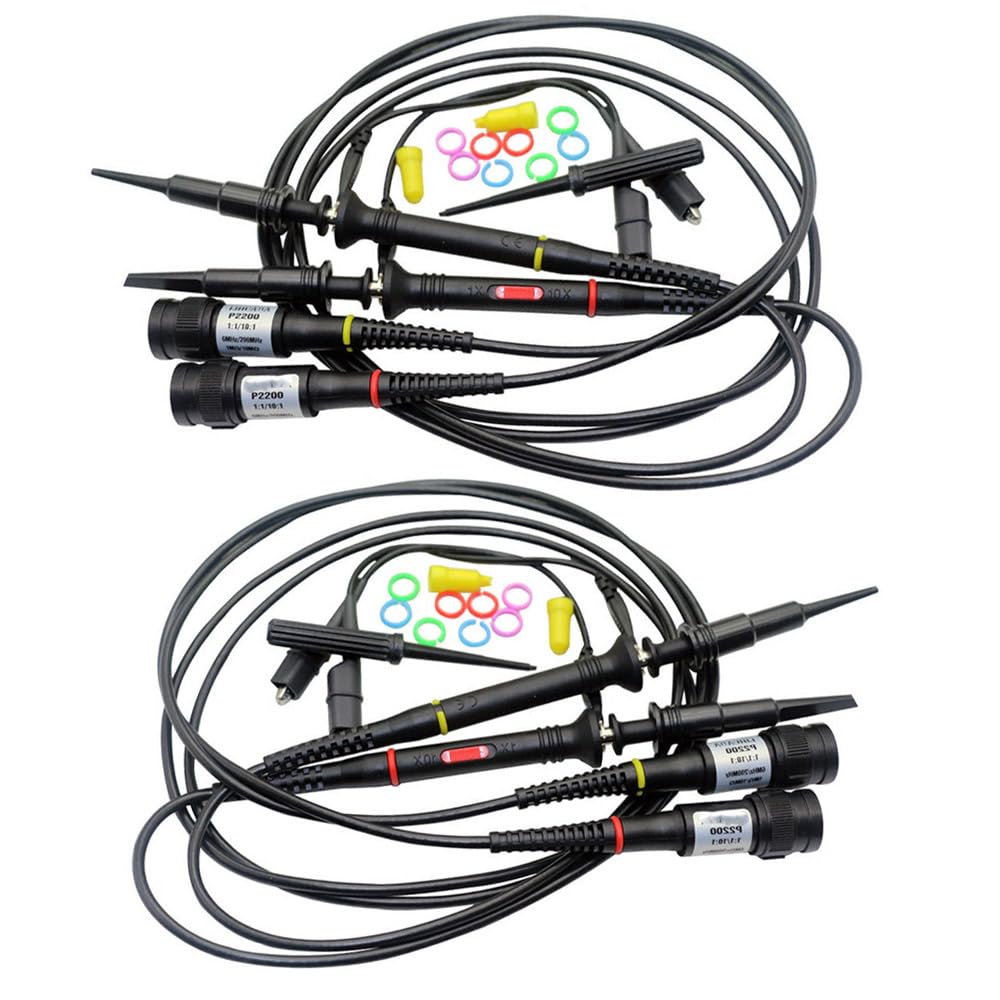

The retail package includes:
1) 2/4Pcs 200MHZ Oscilloscope probes with Mini Alligator Clip and ground lead;

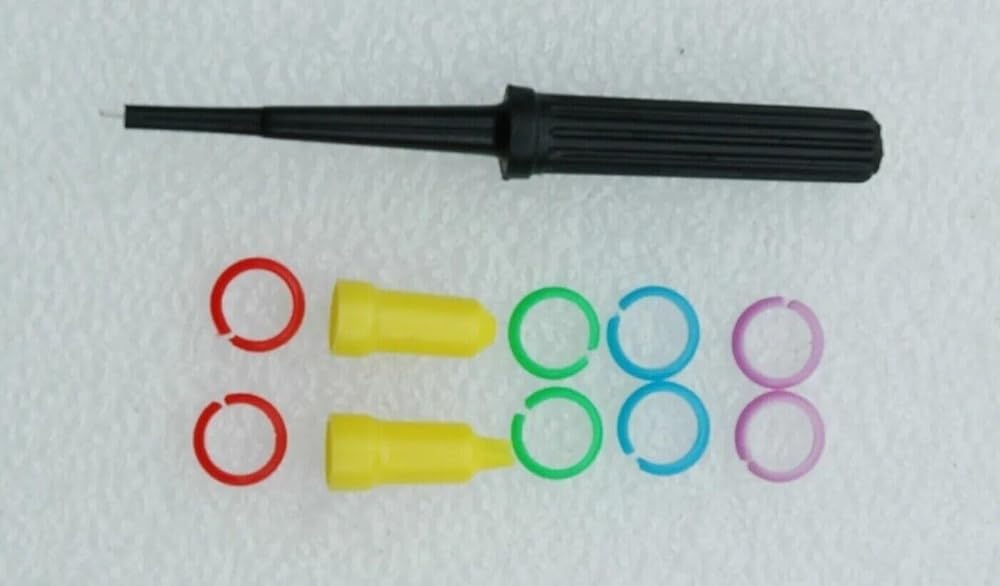

2) 1/2Pcs Screwdrivers;
3) 8/16Pcs marker bands;
4) 2/4 tip locating sleeves.
5) Manual
