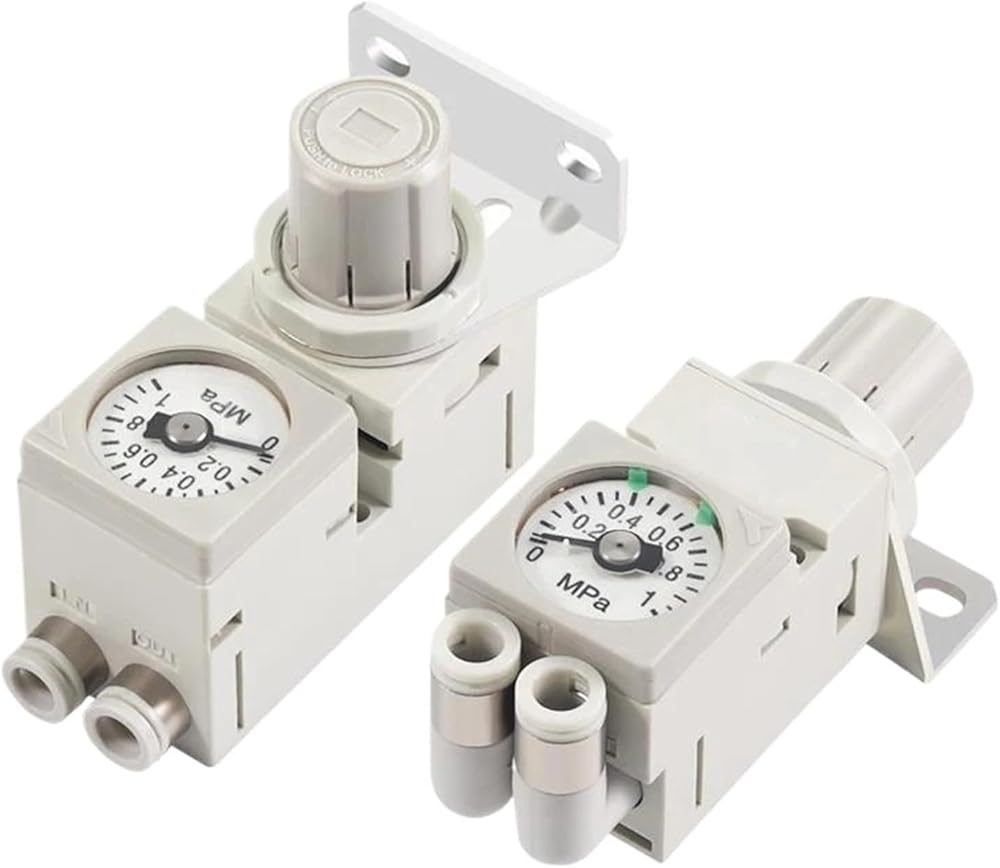

Filter Valve
Type : Source Treatment Unit
Model Number : ARM10 Series Regulator
Regulator construction: : Direct acting
Working principal: : Diaphragm regulator
Backflow function: : Within (unbalance type)
IN side tubing O.D. : : 4, 6, 5/32, 1/4
OUT side tubing O.D. : : 4, 6, 5/32, 1/4
Proof pressure: : 1.5 MPa
Maximum operating pressure: : 1.0 MPa
Set pressure range: : Standard:0.05 to 0.7 MPa,Optional:0.05 to 0.35 MPa
Fluid: : Air
Ambient and operating fluid temperature: : 5 to 60 Celsius
Relief mechanism: : Standard:Relief type,Optional:Non-relieving type
