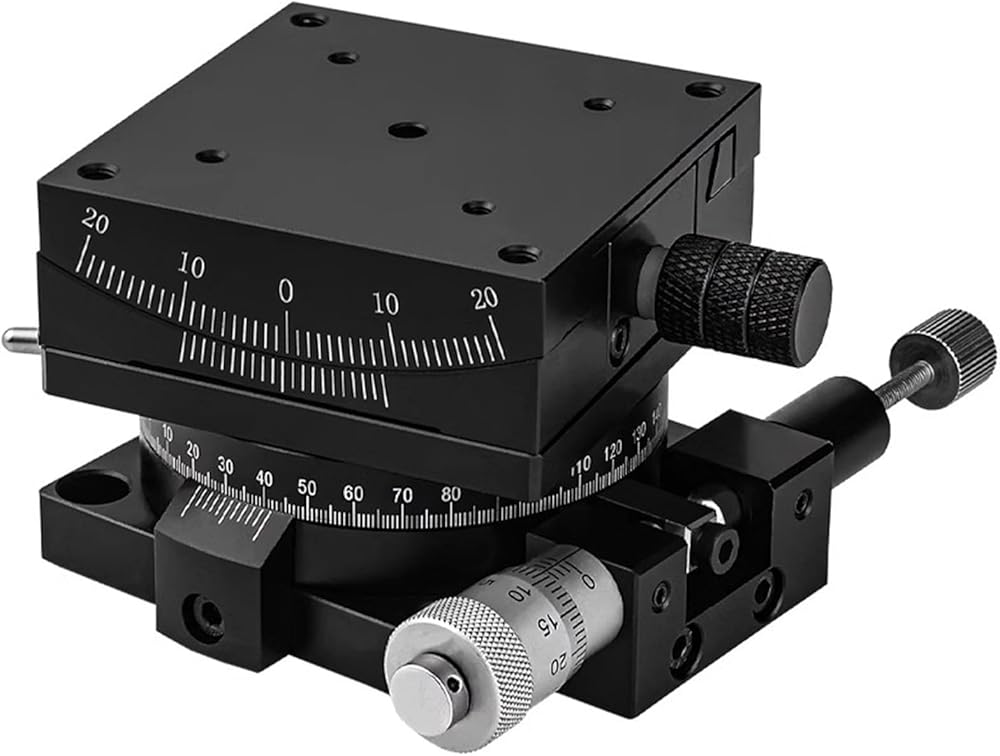

Manual Linear Stage, Precise Goniometer Stage Optical Positioning Sliding Table, ±20° Tilt Angle Adjustment for Optical Equipment, 60x60mm with Scale Ruler

SAR 1,458
– 1 +

Special Features

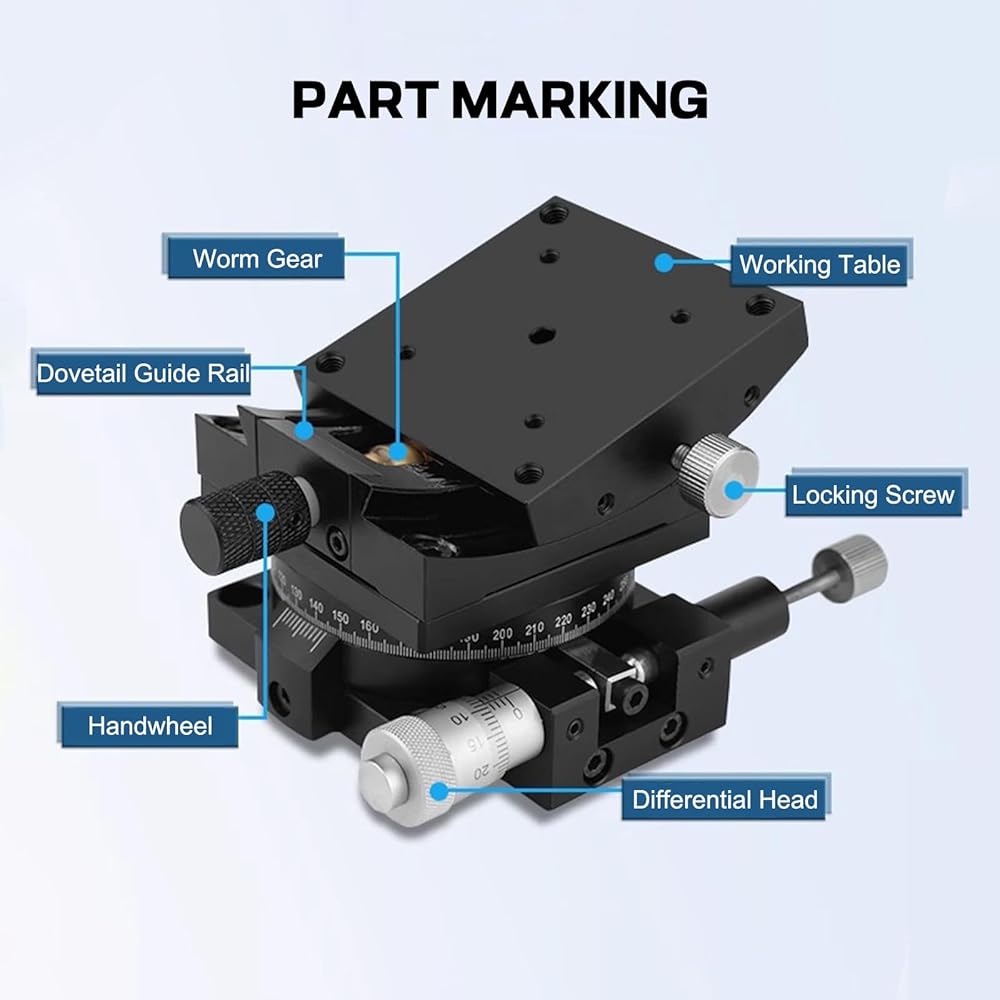

  • High Precision Engineering: Offers exceptional accuracy and reliability with a central worm gear drive and precision adjustable dovetail guide rail. Features smooth movement with minimal deflection and tilt. Stroke angle of 20° and minimum reading scale of 1°. Table dimensions are 60×60mm.

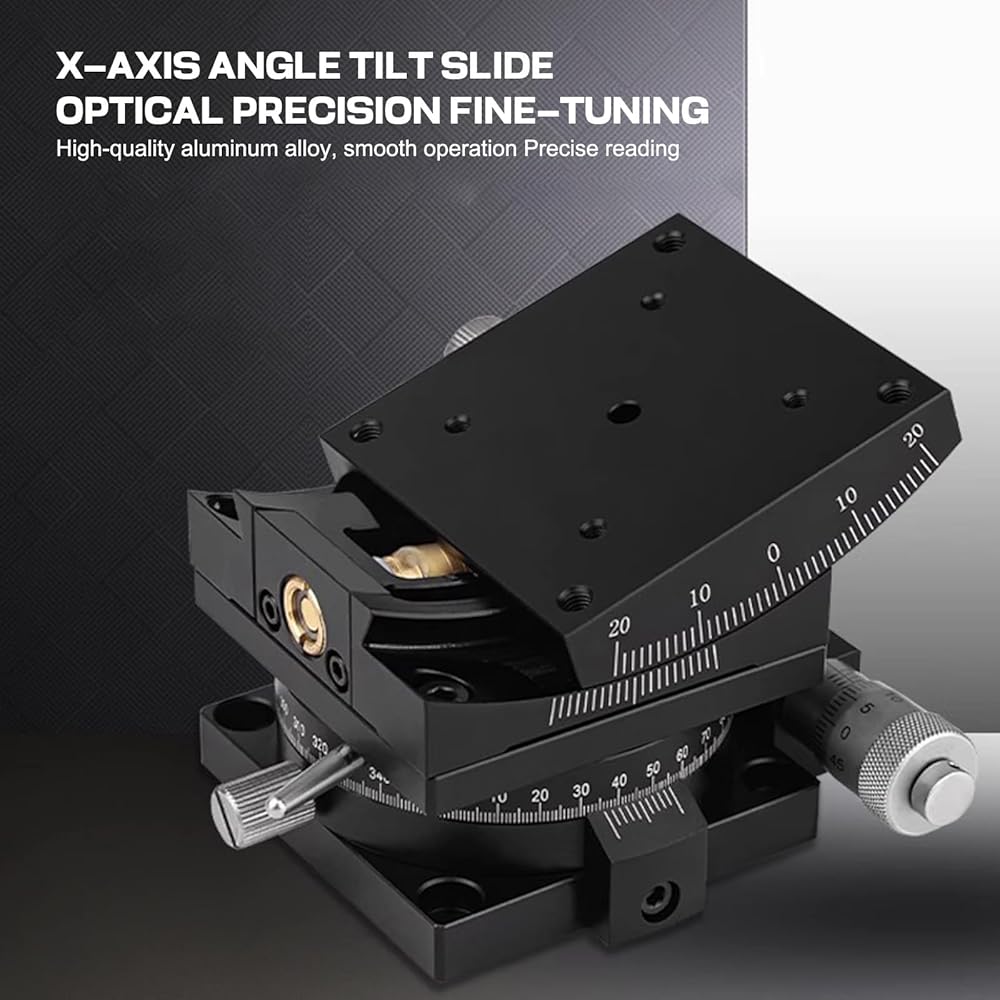

  • Robust Aluminum Construction: Made from high-grade aluminum alloy with an anodized black finish. This design enhances durability and effectively minimizes light reflection, making it ideal for precision optical applications.
  • User Safety Features: The 60x60mm fine-tuning platform includes R-corner protection, ensuring all edges are smooth and burr-free. This thoughtful design reduces the risk of bumps and potential injuries, prioritizing user safety.
  • Versatile Multi-Dimensional Setup: Designed for ease of use with an extended handwheel for straightforward adjustment. The porous design allows strong compatibility with various stage types through standard hole spacing, facilitating a customizable multi-dimensional stage.
  • Broad Application Scope: The dovetail groove stage is suitable for a wide variety of applications including optical equipment, measuring devices, semiconductor manufacturing, testing machines, microscopes, photographic tools, and much more.

Description

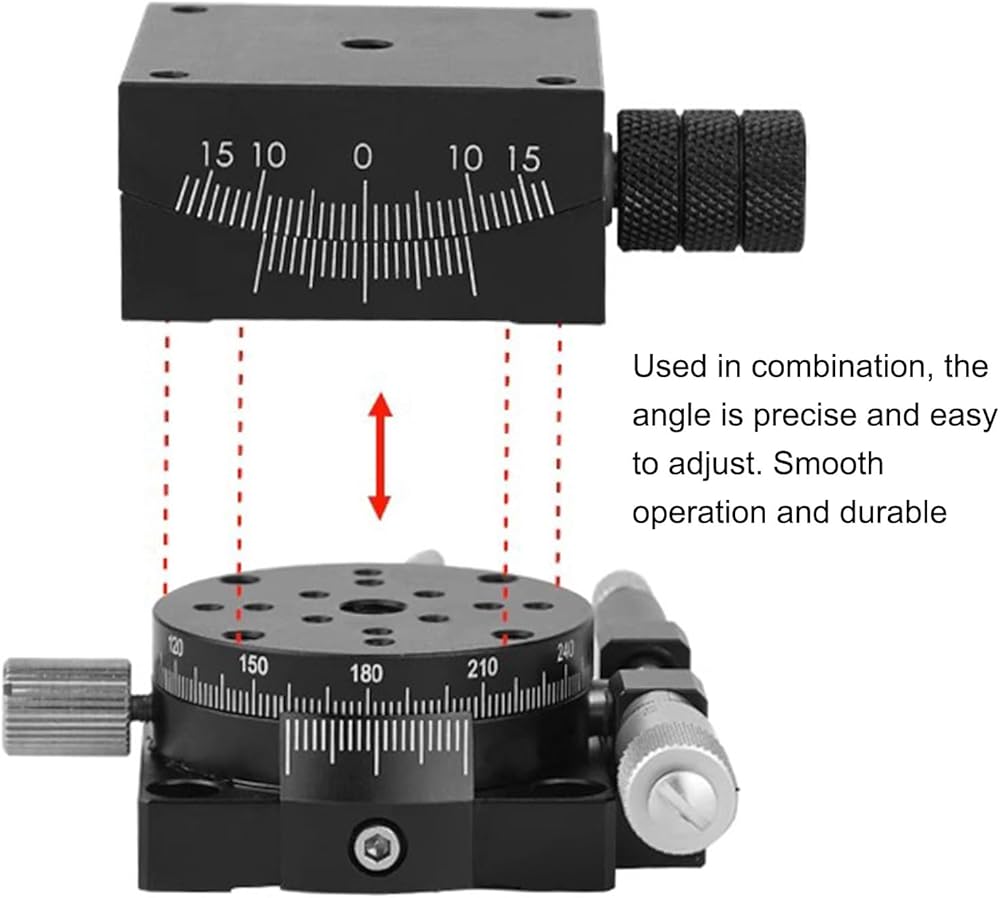

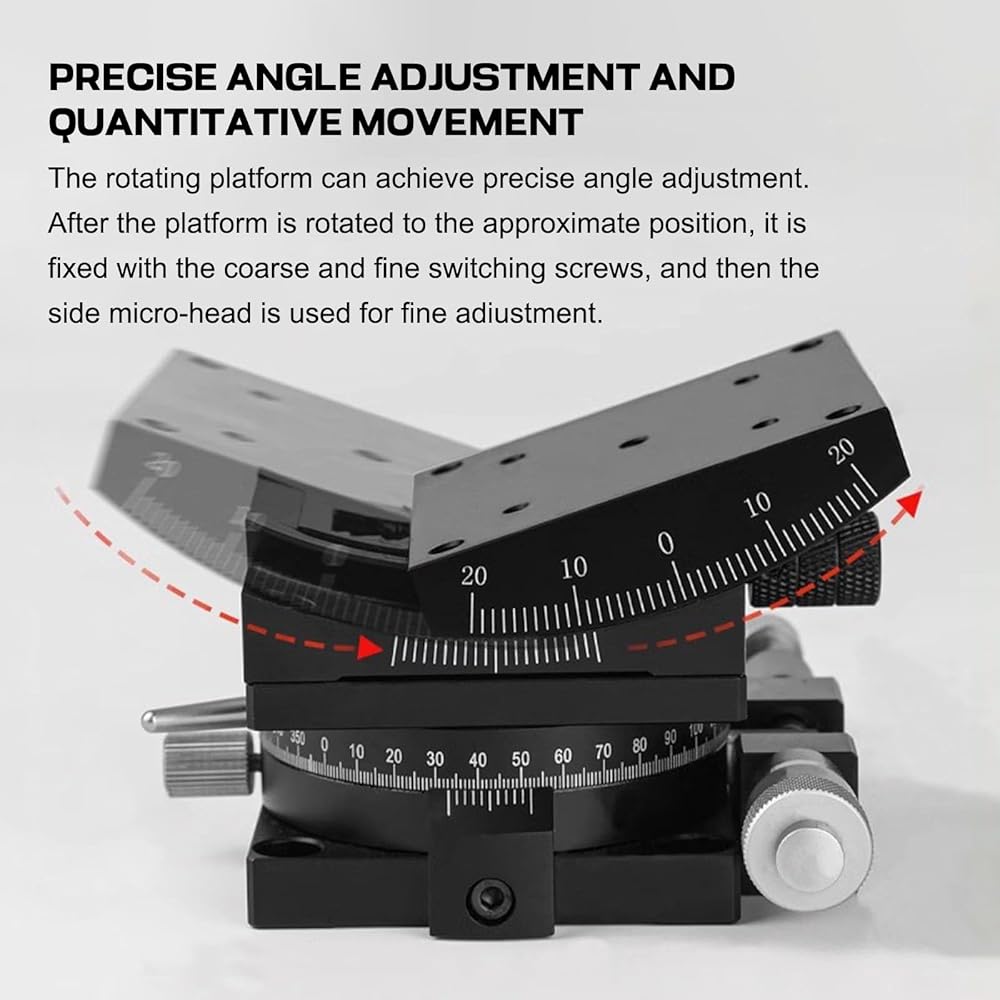

The Linear Platform is designed for precise angle adjustment and accurate quantitative movement. Featuring a dovetail guide, it ensures high precision, smooth operation, and excellent load resistance for stable movement.

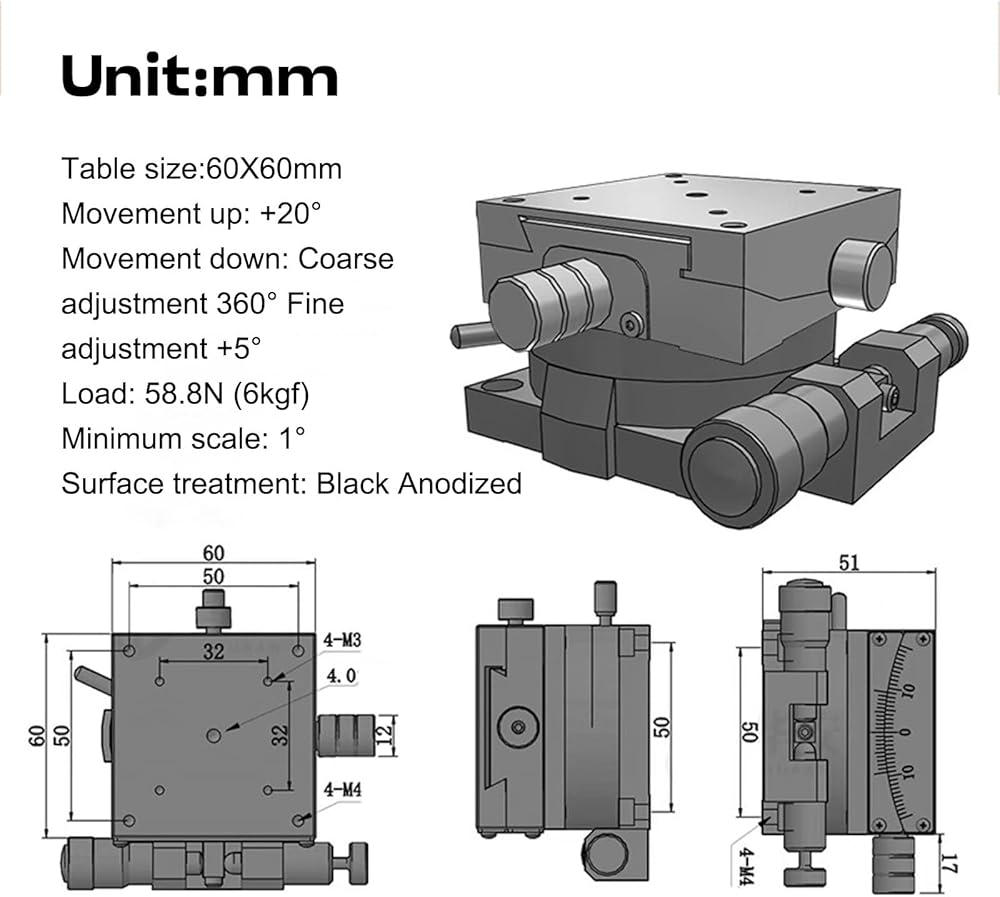

Specifications:
- Material: Aluminum alloy
- Surface Treatment: Black anodized
- Dimensions: 60X60mm
- Movement Range: Up ±20°, Down with coarse adjustment of 360° and fine adjustment of ±5°
- Maximum Load: 58.8N (6kgf)
- Minimum Scale Division: 1°

Included in the package: 1 Manual Linear Stage
