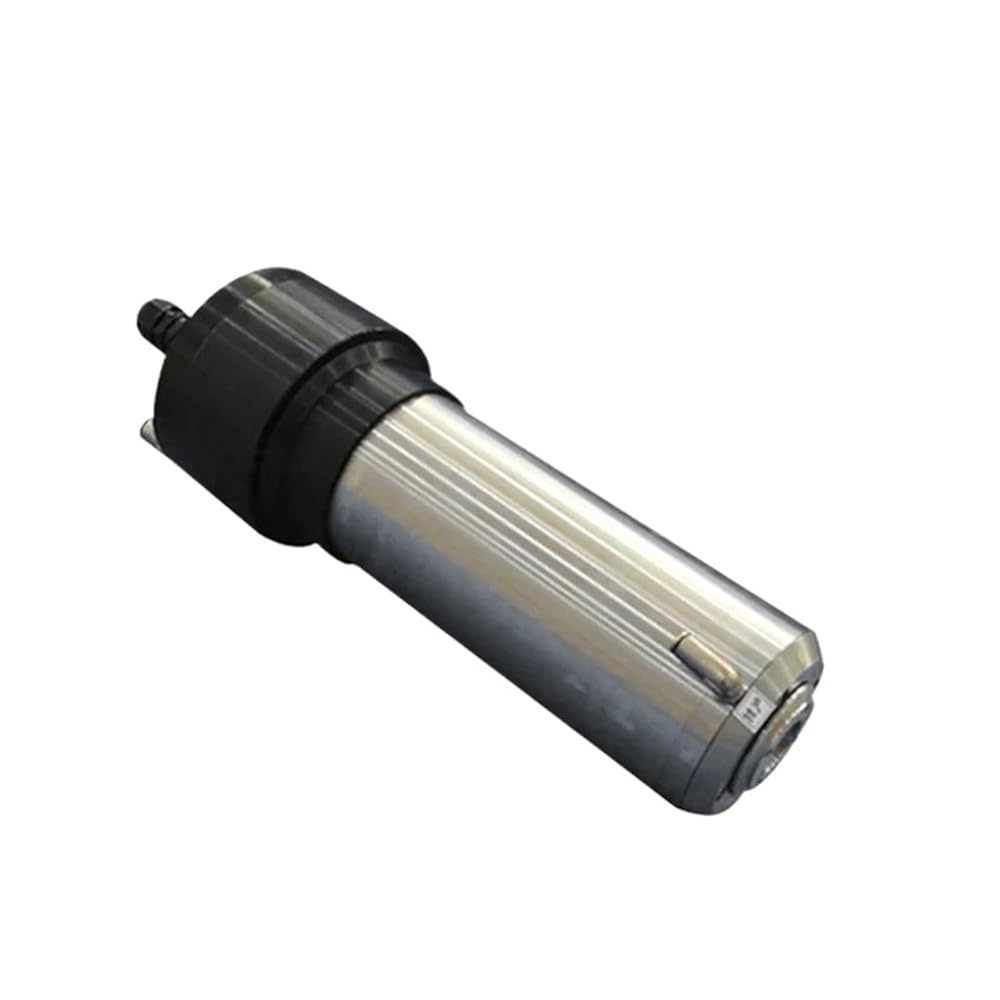

Rotary Shafts
Model: GDL80-20-30Z/1.5
Size: 80x268.5mm (body diameter 80mm x length 268.5mm)
Speed regulation mode: three-phase output frequency converter, the spindle speed can be changed by changing the frequency of the frequency converter.
Cooling method: water cooling
Power: 1.5kw
Voltage: 220V
Current: 5.8A
Frequency: 1000Hz
Speed: 30000rpm
Diameter(mm): 80
Number of poles: 4P
Stage: 3
Direction of rotation: Counterclockwise from the end of the shaft
Tool handle: IS020
Pull nail: 1S020-15°
