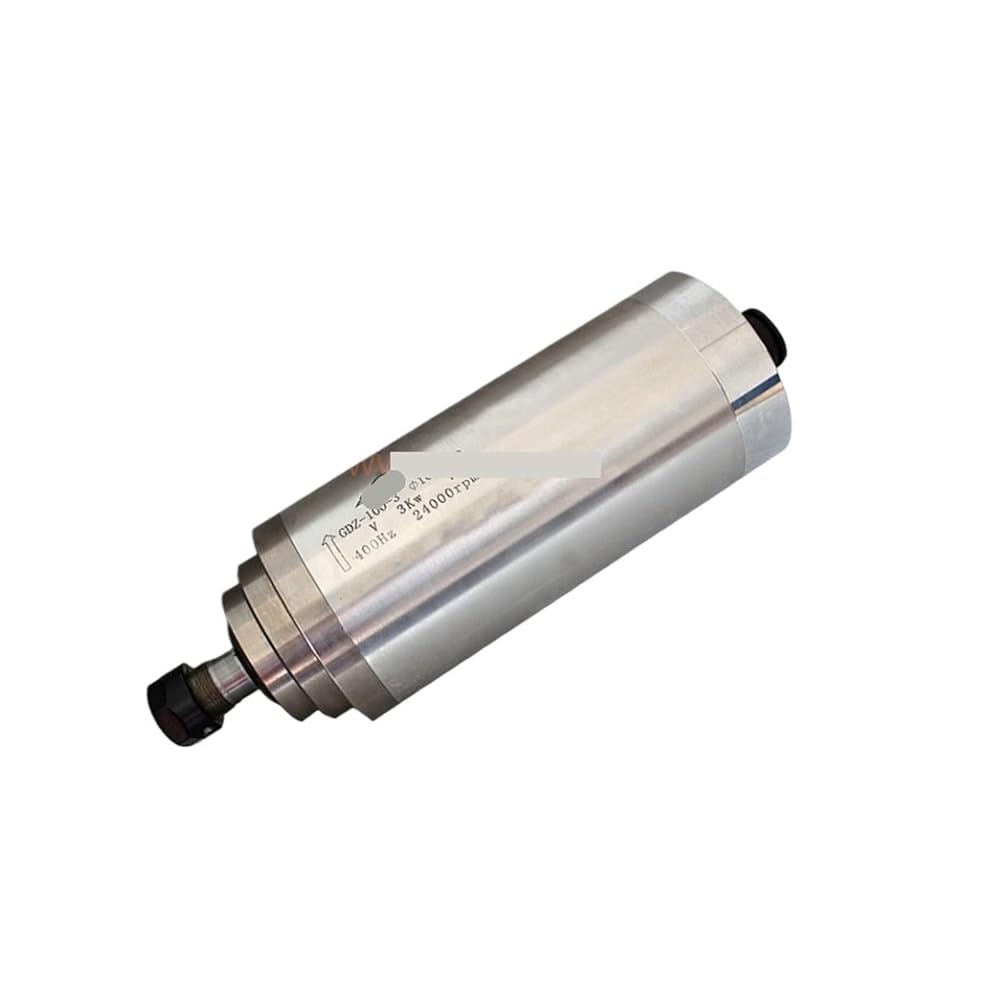

3KW water-cooled spindle motor 380V GDZ-100-3.0
Material: Spindle cover is 304 stainless steel, water jet is high pressure cast aluminum tube, copper coil
Power Connection
GX16 waterproof aviation plug, (1/2/3) are connected to the inverter (U/V/W) in sequence, 4 is connected to the inverter ground wire
Packing list: Spindle*1 set Aviation plug*1 set ER chuck*1 piece

Maximum torque: 230mN.m
Operating speed: 24000rpm
Model: GDZ-100-3
Power: 3KW
Voltage: 380V (220V optional)
Working speed: 0-24000RPM
Current: 12A
Diameter: 100 mm
Size: 100*220MM long
Bearing: 7005C P4*2 7003C P4*2
Chuck: ER20
