Product Paramenters
Installation
Standard rail+Plane screw fixation
side rated current
1mA;5mA;100mA;0.5A;1A;2A;5A;10A;customization
measurement range
1A~10A
Rated output
5V;10V;DC4-20mA;0-20mA
Auxiliary power supply
DC12V,DC24V
Load capacity
5mA
Linearity
0.5%
Overload capacity
Double nominal input, sustainable
Temperature drift
500PPM/
Band width
~20KHz
Consumption of current
25mA
Working temperature
-10~+70
Storage temperature
-25~+85
Response time
Isolation pressure resistance
2.5kV/50Hz,1Min
Offset Voltage
20Mv
Product Description
==========
Hign-concerned Chemical : None
Operating Temperature : -20~55C
Supply Voltage : DC24V
Accuracy Class : 0.5%
Model Number : jxk-21
Display Type : Analog Only
DIY Supplies : ELECTRICAL

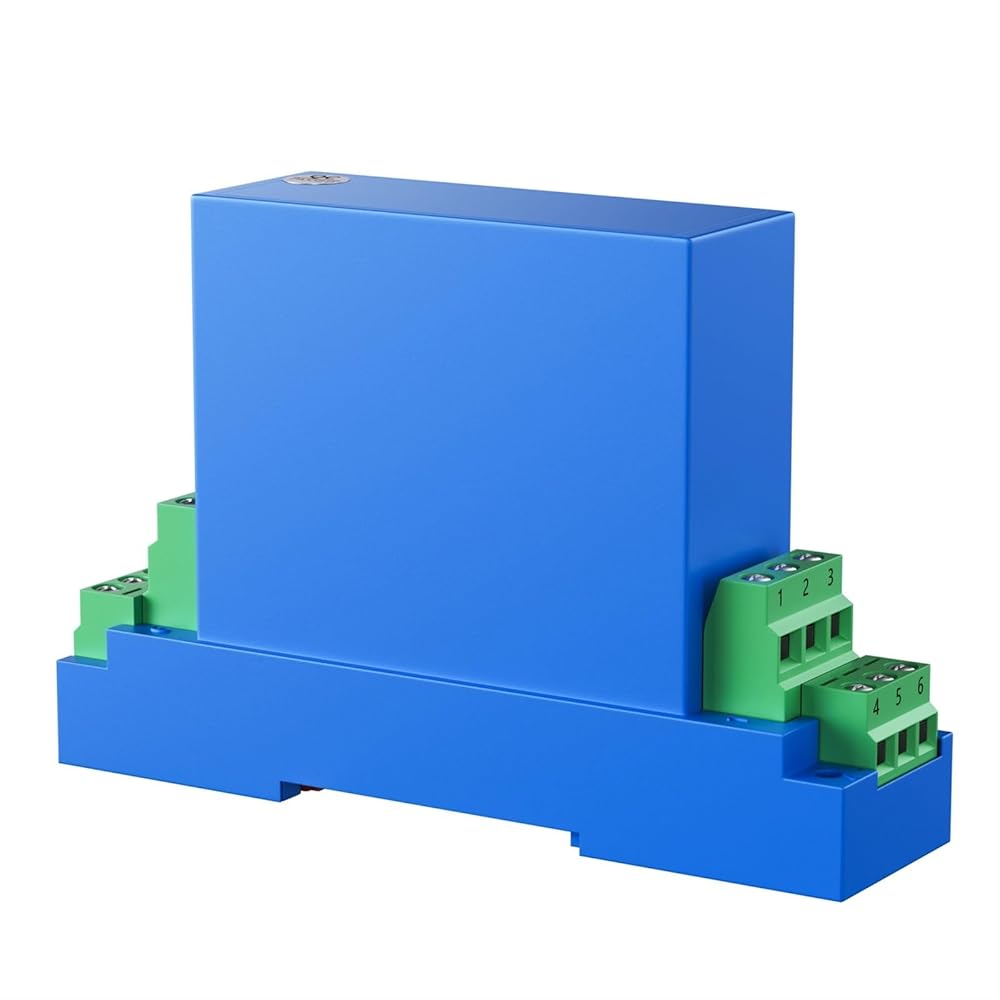

Product name : /AC current sensor
Input : AC or 0-10A
Output : 4-20mA,0-10V,0-5V,RS485
