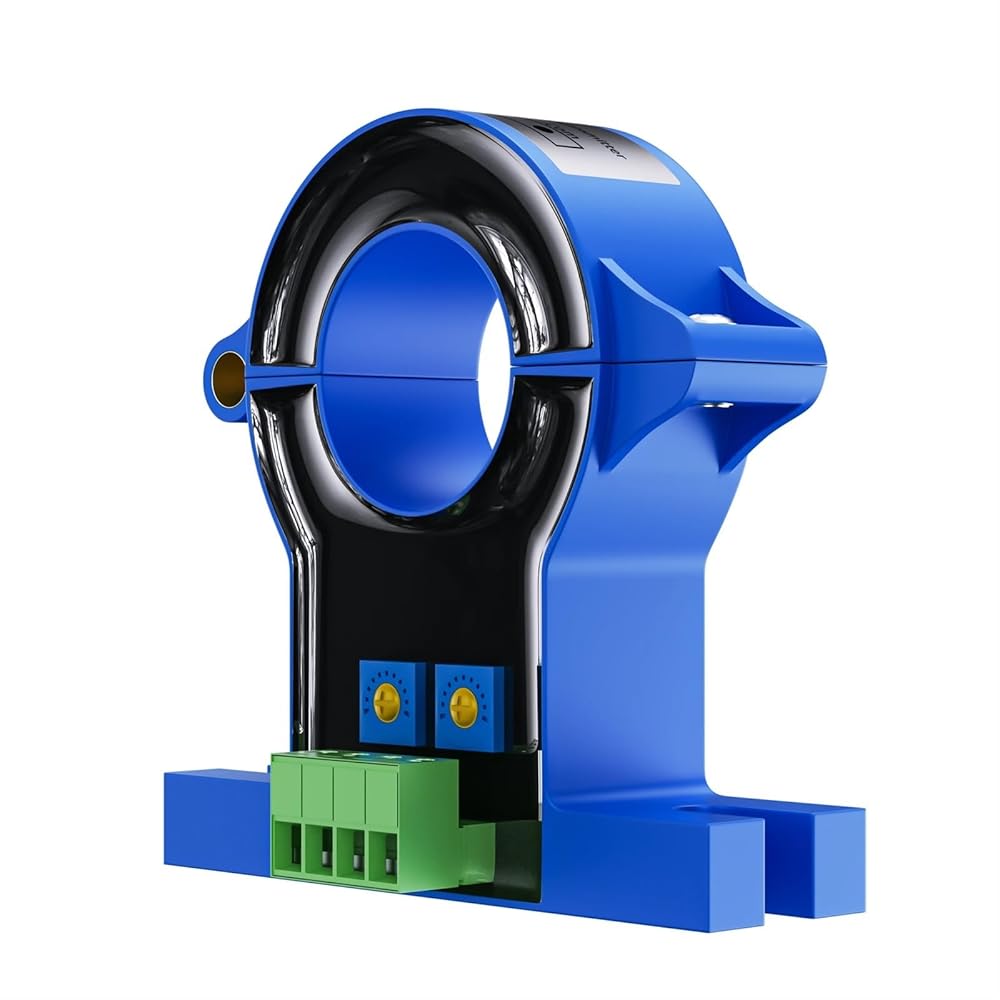

JXK-7 AC/DCCurrent Transmitter
NOTE:
AC or 0-1500A can be .
Product Description
. Working Principle:Open loop direct measurement.
. Product Usage: Used for measuring , AC, pulse current and other arbitrary waveform current.
. Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation,
perforation input and no insertion loss.
. Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
*Full channel configuration,Parameter customizable
==========
Hign-concerned Chemical : None
Dimensions : 20mm,38mm,50mm,75mm,80mm
Operating Temperature : -20-70C
Supply Voltage : DC12V DC24V
Accuracy Class : 0.2%fs
Model Number : JXK-7
Display Type : Analog Only
DIY Supplies : ELECTRICAL
product name : AC Current transmitter
Input : AC or DC0-1500A
Output : 4-20mA;0-10v;0-5v etc
Hole Diameter : 20mm 25mm ,38mm,50mm,75mm,80mm
