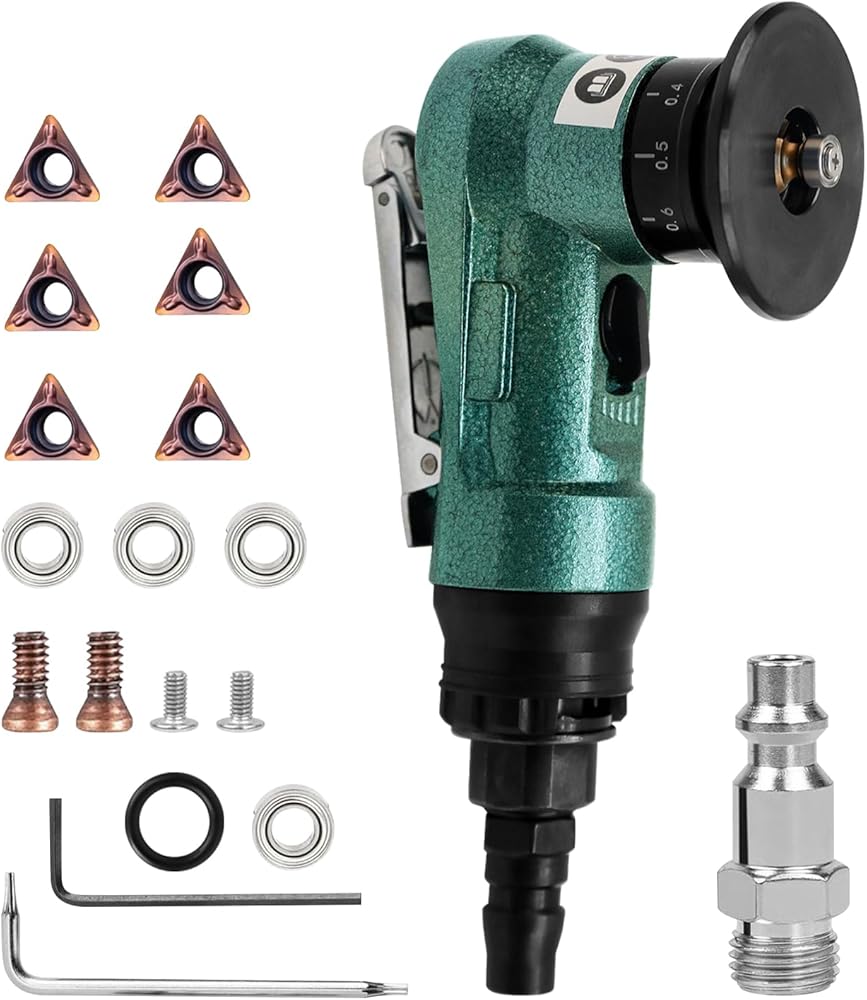

Aluminium Alloy Mini Pneumatic Chamfering Tool : This silver mini pneumatic chamfer is made of aluminum alloy (most of the market is plastic), which is more durable and has a proper weight (about 1lb).Our pneumatic angle grinder can work continuously won't become heat,it keeps accuracy assembly with stable performance for long life. Small and exquisite, Also equipped with high-precision heat-treated blades for better use and smoother deburring and chamfering.
Specification: Free Speed 30000 RPM, Air consumption 0.4/min, Air inlet port: 1/4 inch PT. Trimming Capacity: Chamfering: C0.1-C1.5, ARC cornor:R0.1-R1.5, Adjustable depth:0.1mm-0.9mm.
Adjustable Speed & Angle: The mini green deburring trimming chamfering tool air grinder 1-5 block valve adjustment thickened knob, freely adjust the gear speed you need. The chamfer size can be adjusted at will. The safety switch is used to prevent accidental touch to protect the user's safety at all times. 1/4 inch metal filter, free speed: 30000 RPM, air consumption 0.4/min.
2-in-1 Pneumatic Chamfer Tool: This pneumatic chamfering machine can chamfer R/C angles, round holes, irregular edges, arcs, and straight edges on a variety of materials including steel, aluminum, copper, acrylic, and wood.
The difference between C Angle and R Angle :C corner edge is angular, mostly used for metal chamfering, R corner edge is rounded chamfering, mostly used for woodworking.

وصف

Aluminium Alloy Pneumatic Chamfering Tool Handheld, min Pneumatic Deburring Tool,Air Chamfering Machine Trimming Tool for Metal Wood Beveling

Parameter:Chamfering Hole Diameter≥8mm
Chamfering Ability: C0.1-C2
Rotational Speed: 30000RPM
Working Pressure:0.4-0.6MPA
Adjustable Depth: 0.1-0.9mm
Chamfer Plate Thickness: >3mm
Chamfer range: ≤1.5mm
Air consumption: 0.4m³/minute
Angle C goes up to C0.1-2
Available range:：Minimum aperture≥8mm,minimum aperture≥8mm
Minimum radius≥4mm. Minimum radius≥4mm
Minimum depth≥5mm. Minimum depth≥5mm
Thinnest thickness≥3mm, and the thinnest thickness is equal to or greater than 3mm

How to Replace blade?
Use a hexagon wrench to loosen the plum screw,remove the baffle plate, remove the blade screw with a ring wrench,remove the old blade,and replace it with a new one.

The chamfer size can be adjusted at will
Loosen the 2 screws of the black gear plate with a thinner wrench, twist the black gear plate left and right, adjust the chamfer size, and fix the 2 screws back to the original position.

Maintenance Tips
1. Before using the new machine, please inject pneumatic tool oil and inject about 4C.C into the air inlet. After continuous use for about 3 hours, about 4C.C is also injected into the air inlet.

2. After injecting pneumatic tool oil, let the machine idling for about ten seconds (do not operate), and let the internal parts of the grinder be lubricated as a whole before proceeding.
