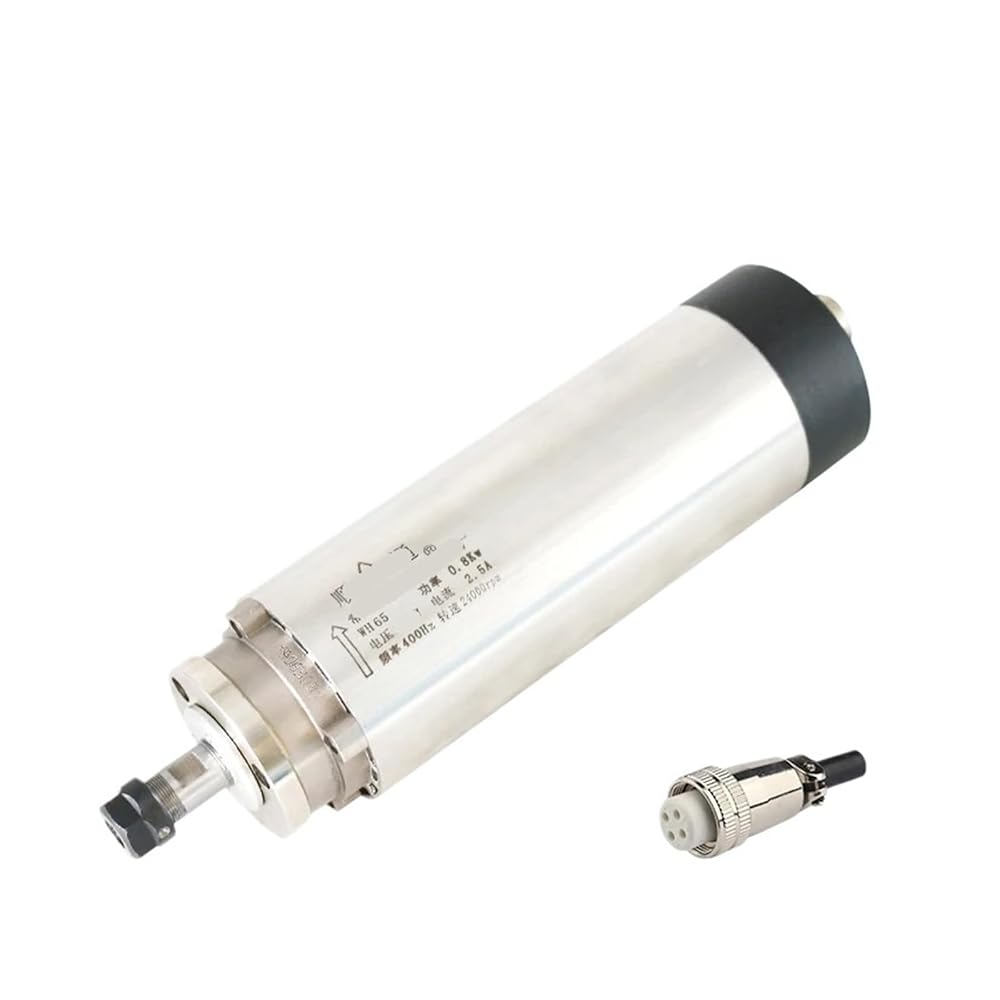

Rotary Shafts
Size: 65mm round air-cooled
Speed regulation mode: The spindle speed can be changed by a three-phase output inverter and the frequency of the inverter can be adjusted.
Cooling method: air cooling
Power interface: optional 4-pin waterproof aviation plug.
The air plugs are labeled "1", "2", "3", and "4". "1", "2", and "3" are connected to the inverter (U, V, W), and 4 is connected to the inverter.
Equipment grounding.
Power: 0.8kW
Voltage: 220V
Current: 2.5A
Frequency: 0-400 Hz
Speed: 0-24000 RPM
Runout: less than 0.01mm
Diameter(mm):65mm
Chuck: ER11
