Rotary Shafts
Size 80x220mm (midbody diameter 80mm; length: 220mm)
Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: water cooling
Power: 1.5kw (1HP=725w)
Voltage: 220vAC 110v / 380v spindle
Current: 7A
Frequency: 0-400Hz
Speed: 0-24000rpm
Jump off: 0.01m
Diameter(mm):80mm
Bearing type: 2×7004C P4 DT&27002C P4 DT
4 fully sealed angular contact bearings
Chuck ER16
The diameter of the knife clamp is 1mm2mm3mm3175mm4mm5mm, 6mm, 6.35mm, 7mm, 8mm, 9mm, 10mm.

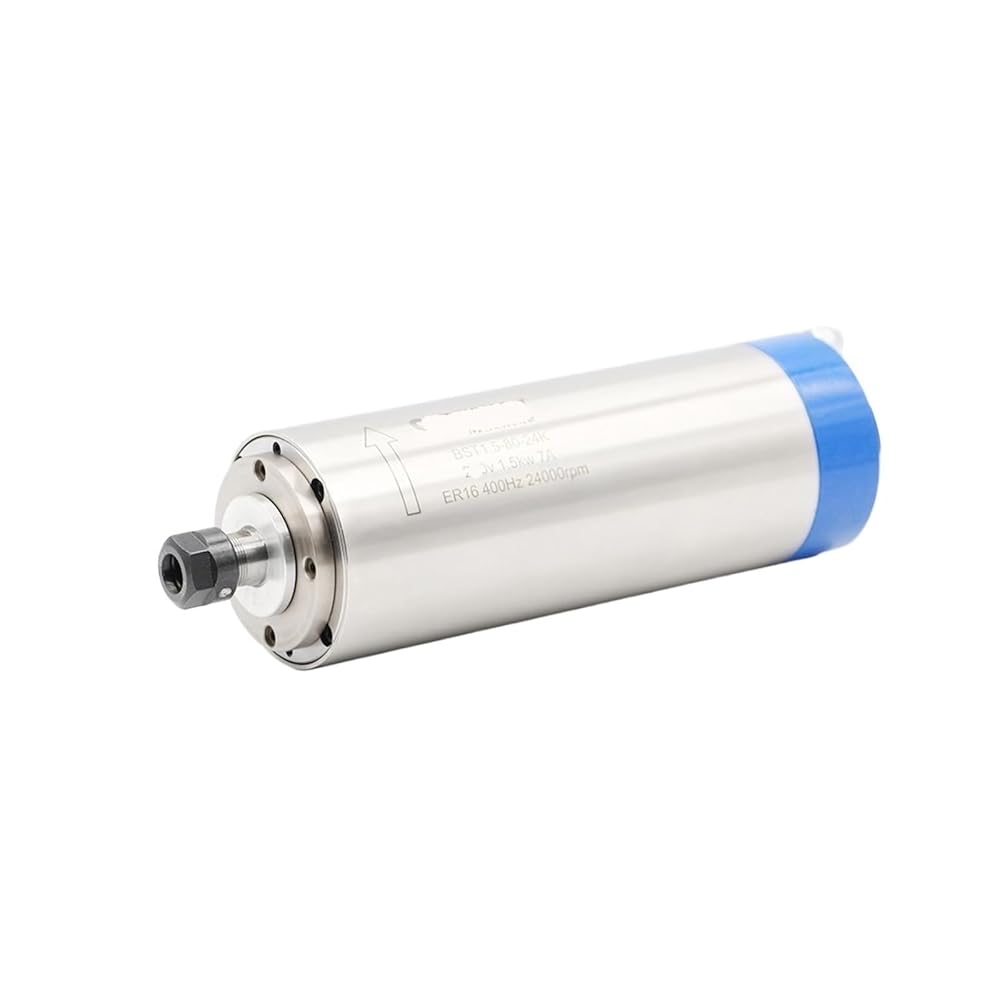

Water-cooled ER16 chuck block
