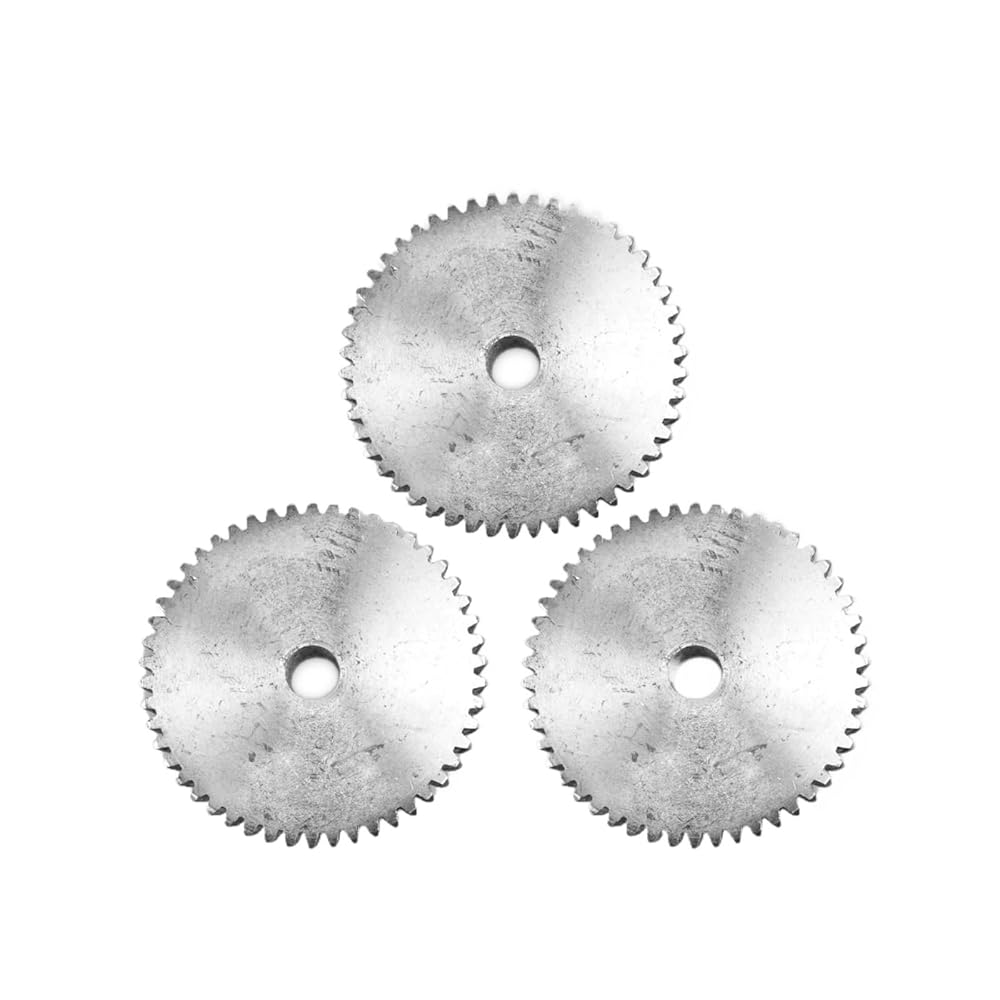

1PC Spur Gear 1M 50/51/52/53/54/55/56/57/58/59T With Craft Hole Wheel 45# Steel Material Motor Gear Total Height 10mm
1MOD SPUR GEAR
Accurate Tooth Pitch
Long Life
Running Smoothly
Strong Wear Resistance
PRODUCT INFORMATION
Product Name: Spur Gear
Product Material: No. 45 steel
Product Model: 1M
Pressure Angle:20°
Note:The following dimensions are for reference only, please refer to the actual size.
(Unit: length/mm, weight/kg)
Material: No. 45 Steel 8 Teeth Thickness (11.8)
The 8 teeth of mold 1 are made of iron, the others are all 45 steel, teeth 12 to 160, the tooth
surfaces are not quenched, only 150 teeth, 180 teeth, and 200 teeth are quenched.
1M Spur Gear Data Parameter Table
The 8 teeth of mold 1 are made of iron, the others are all 45 steel, teeth 12 to 160, the tooth
surfaces are not quenched, only 150 teeth, 180 teeth, and 200 teeth are quenched.
01.STRONG AND STURDY
45 gauage steel material,High strength,high torque,
Long life,good lubricity,eay to form,noise reduction and shock absorption.
02 SMOOOTH TRANSMISSION
Compact size,high efficiency,durable and not easy to jump.
Flat Tooth Gear (please click the number of teeth to buy what you need)
1MOD Flat Tooth Gear
Direction : Right Hand
Pressure Angle : 20°
Standard or Nonstandard : Standard
Processing : Die Casting
Model Number : 1 Mod
Tooth Profile : Spur Gear
Material : Carbon Steel
Shape : Spur
1M 50/51/52/53/54/55/56/57/58/59/60T Material : 45# Steel
teeth pitch : 3.14mm
