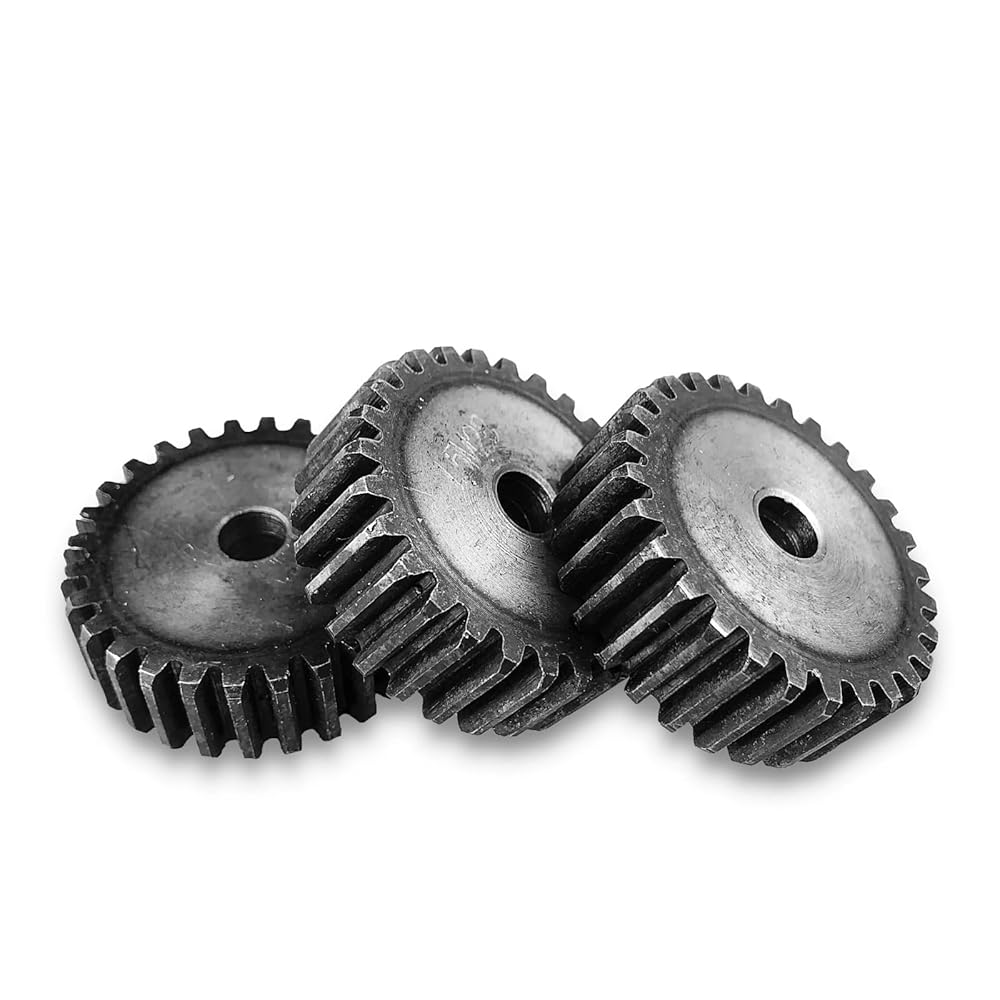

1PCS Flat Gear 1.5M-20T 21T 22T 23T 24T 25T 45# Steel Cylindrical Gear Height 15mm High Frequency Quenching Teeth
1.5 MOD SPUR GEAR
Accurate Tooth Pitch
Long Life
Running Smoothly
Strong Wear Resistance
PRODUCT INFORMATION
Product Name: Spur Gear
Product Material: No. 45 steel
Product Model: 1.5M
Pressure Angle:20°
Quenching Treatment: Tooth surface high frequency
Note: The following dimensions are for reference only, please refer to the actual size.
1.5M Spur Gear Data Parameter Table
Because the data of the process holes are different from batch to batch, the size of the
inner hole will be different. If you require the inner hole to be the same as the one in the table,
please consult customer service and measure the actual inner hole.
1.5M Spur Gear Data Parameter Table
Because the data of the process holes are different from batch to batch, the size of the
inner hole will be different. If you require the inner hole to be the same as the one in the table,
please consult customer service and measure the actual inner hole.
01 STRONG AND STURDY
45 gague steel material,High strength,high torque.
Long life,good lubricity,eay to form,noise redution and dhovk
02 SMOTTH TRANSIMMION
Compace size, high efficiendy,duable and easy to jump.
03 TOOTH SURFACE HIGH FREQUENCY QUENCHIG
Hardned by heat treatment ,reinforced strength,good wear resistance.
Flat Tooth Gear (please click the number of teeth to buy what you need)
1MOD Flat Tooth Gear
Direction : Right Hand
Pressure Angle : 20°
Processing : Die Casting
Model Number : 1.5 Mod
Tooth Profile : Spur Gear
Material : Carbon Steel
Shape : Rack Gear
Material : 45# Steel
teeth pitch : 4.71mm
