SCHNEIDER ELECTRIC LUB32 MOTOR STARTER in Saudi Arabia

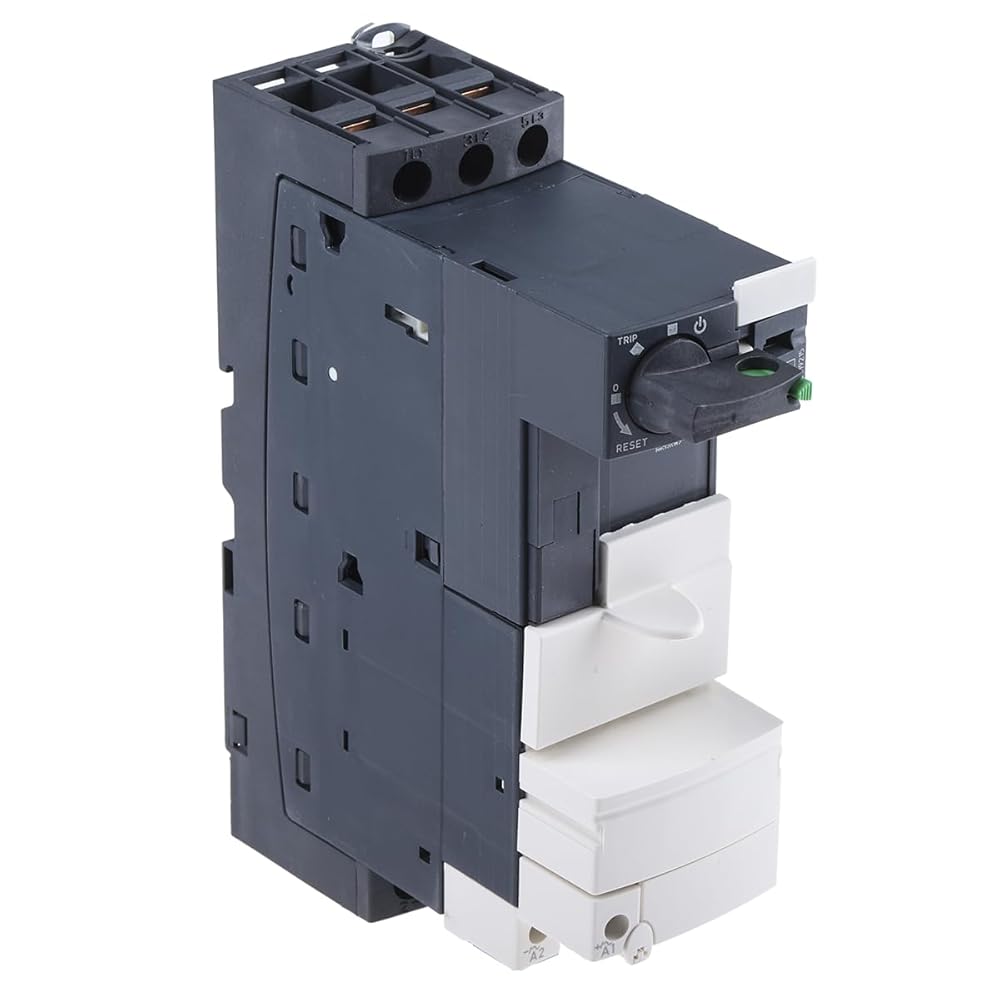

SCHNEIDER ELECTRIC LUB32 MOTOR STARTER

SAR 804

Weight
0.9 kg
1 +

Special Features

  • Mechanical endurance: 15000000 cycle
  • Maximum control speed: 60 cyc/min
  • Rated isolation voltage: 600 V comply with UL 508
  • 2 functions power 45 mm, optional: limiter-disconnector and inverter block

Description

Standard TeSys U power base, 3 poles (3NO), 32A/690V, to be completed with a LUC control unit to form a TeSys U starter controller, for three-phase motor applications up to 15kW to 400V. Base composed of power contacts, control coil, rotating handle, with a modular design for additional modules to form an "all in one" starter with basic or advanced protection and control functions. It is equipped with a control terminal block and shutter flaps covering the empty cavities. It offers a high cutting power Icu 50kA at 400V, guaranteed on-off control 3600 cycles/hour. Very compact (width 45 mm), DIN rail mounting and screw fixing, with a lockable rotating handle. Certified when used with LUC control unit (IEC,UL,CSA, CCC, EAC, Marine), Green Premium compliant (RoHS / REACh).
