Specification:

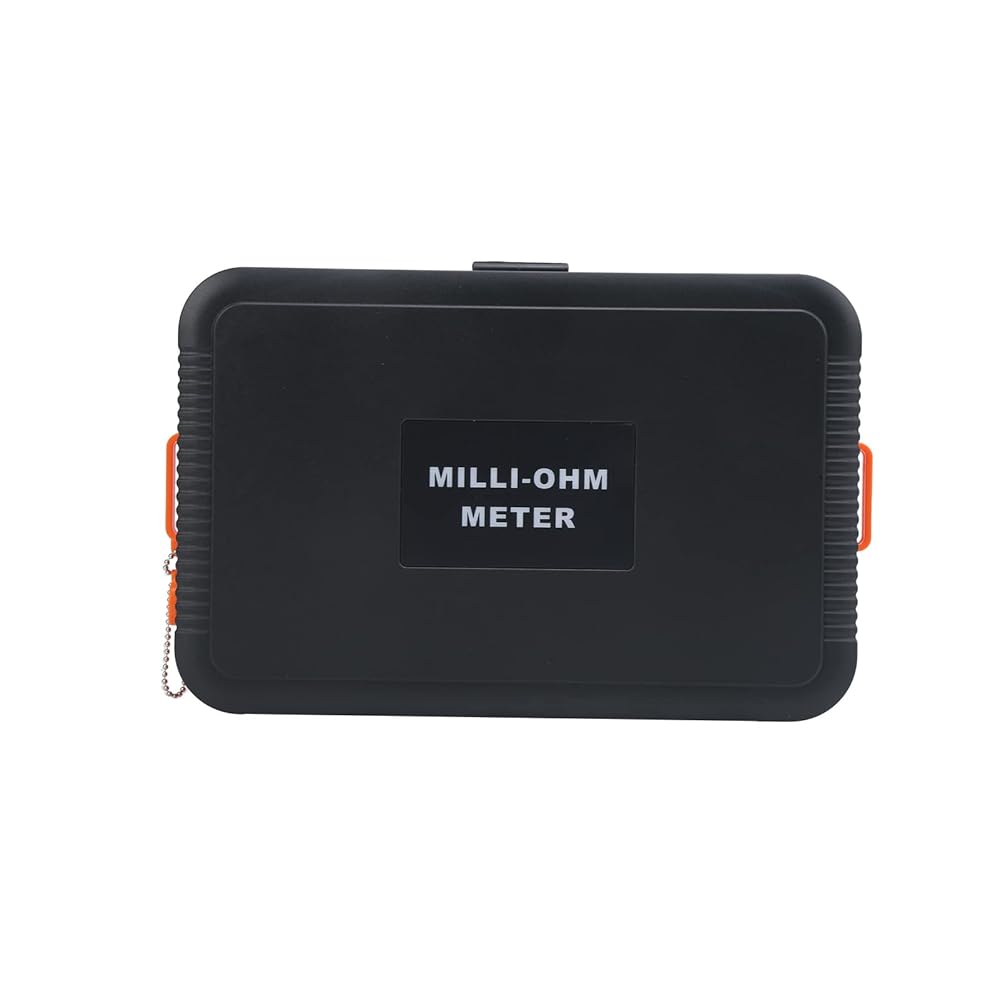

Item Type: Resistance Tester

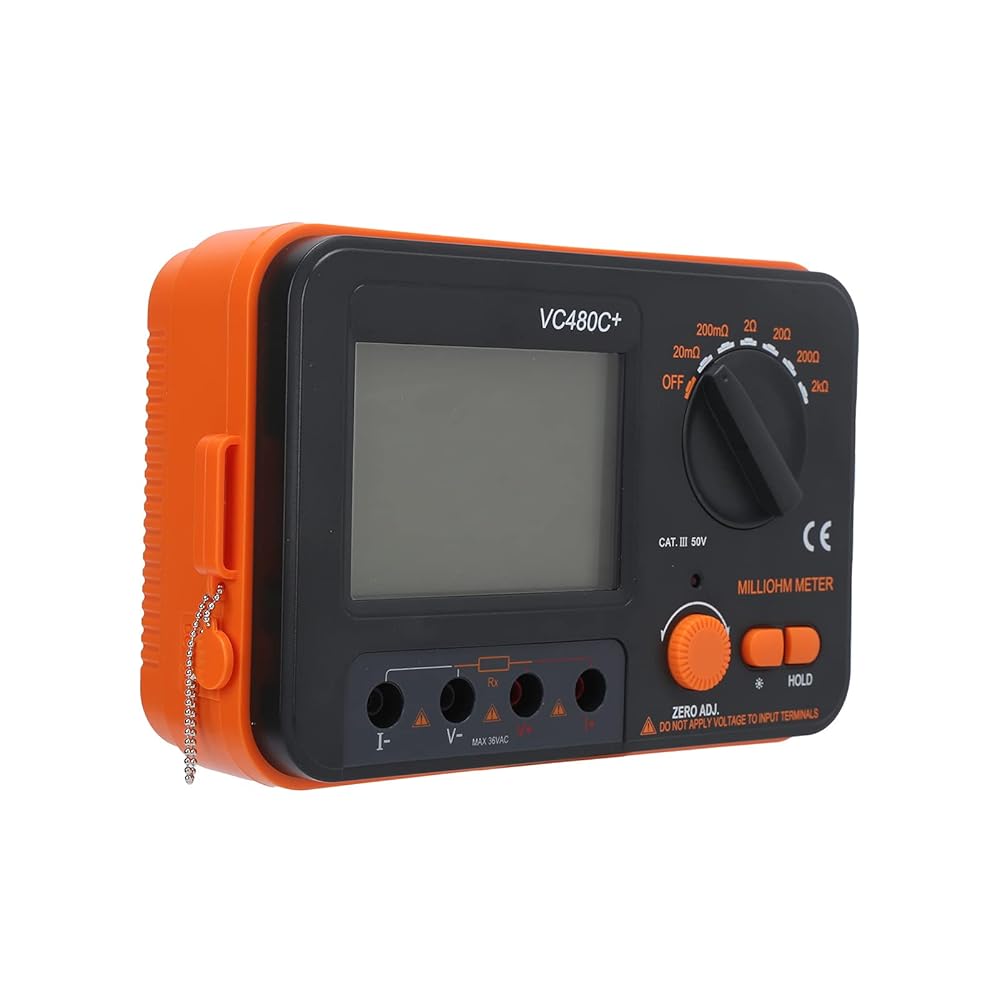

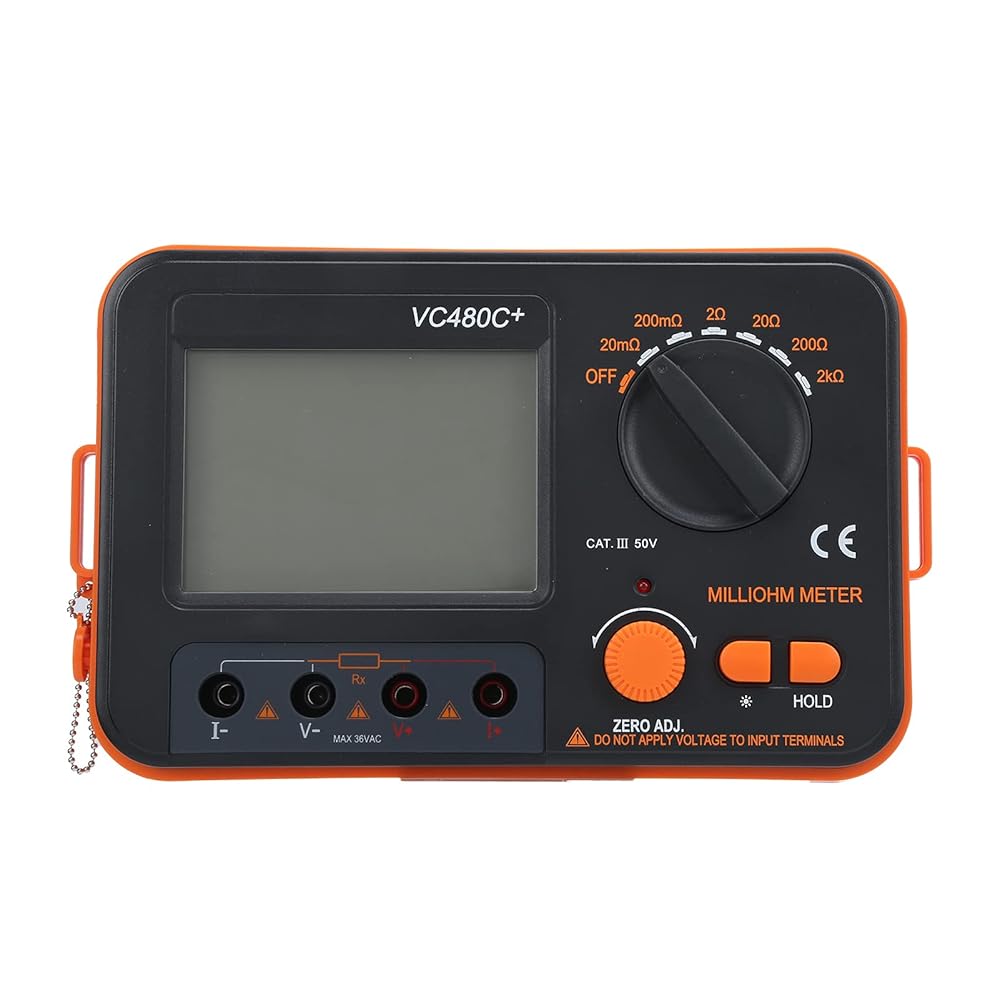

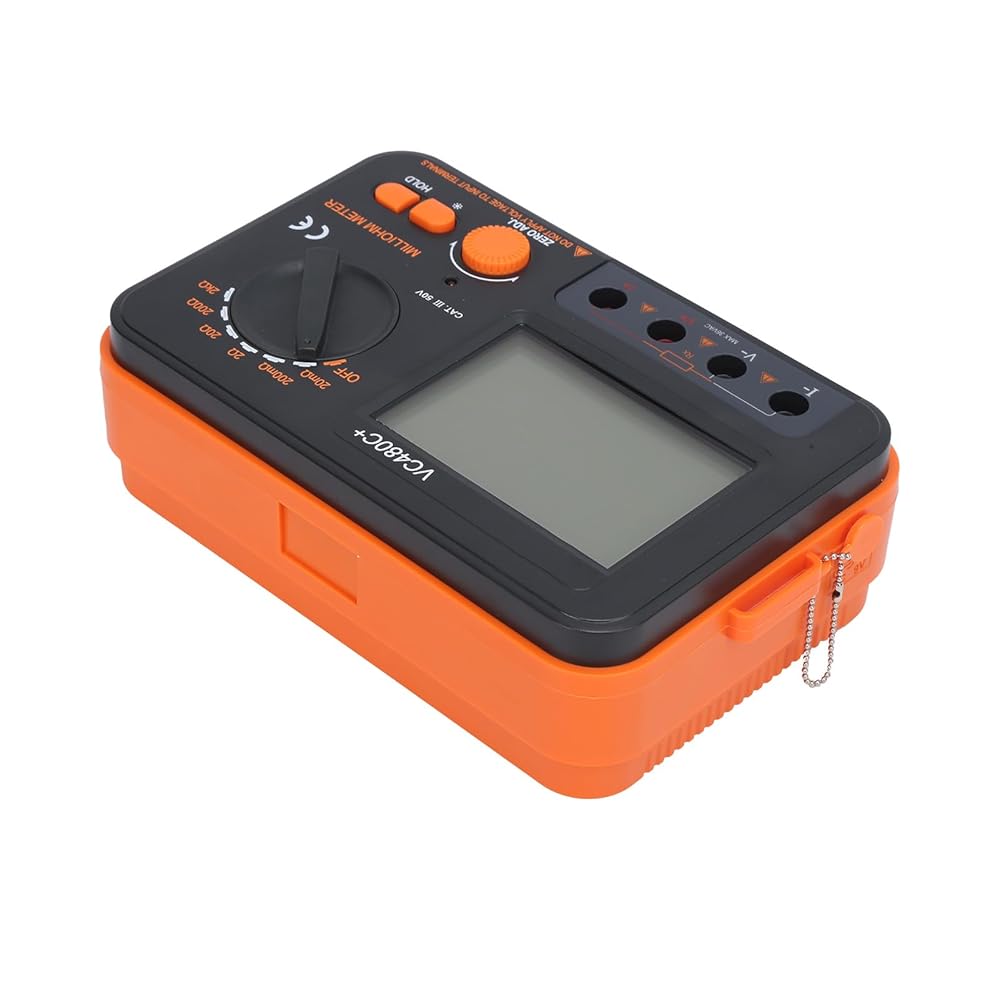

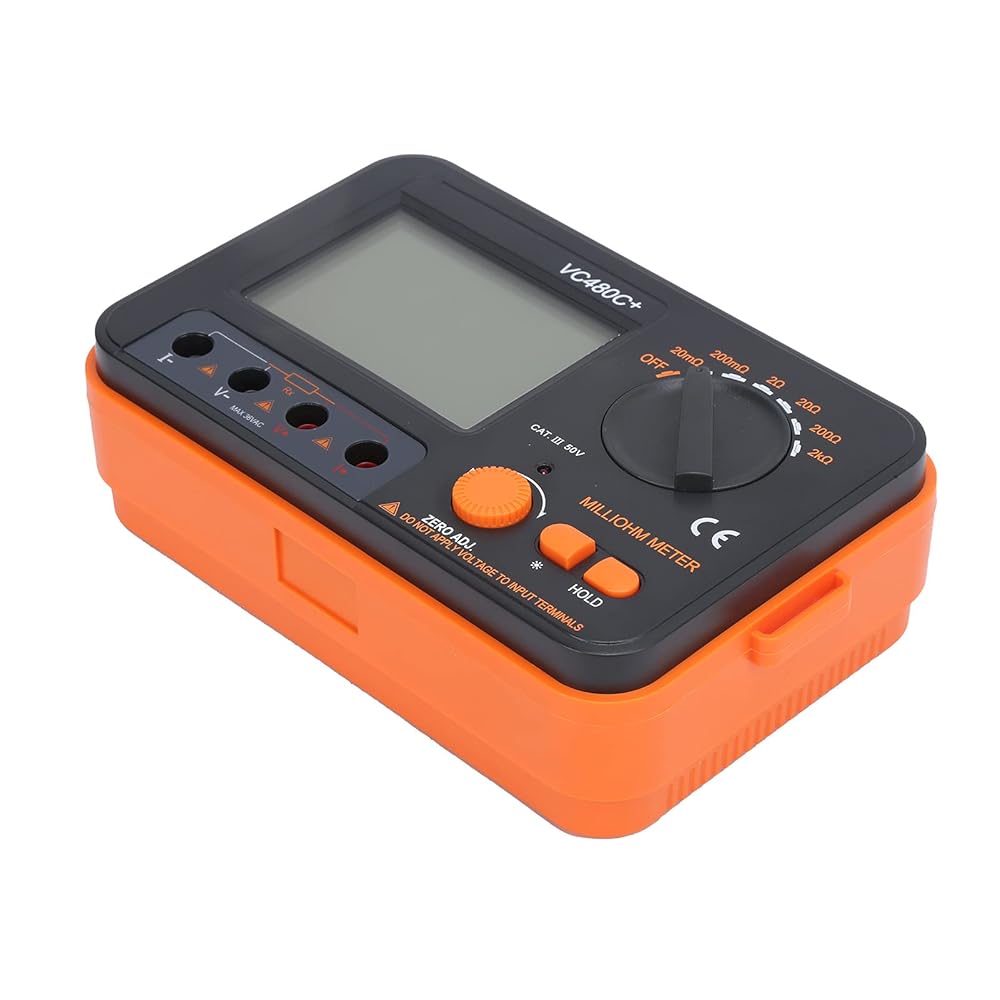

Model: VC480C+
Material: ABS
Power Supply: 6xAA 1.5V Battery / External DC 9V Adapter Power Supply (Battery and power Supply Not Included)
Purpose: It can be used for low resistance test.
Range Accuracy Resolution Test Current
20 mΩ ±(0.5% Reading±3) 0.01 mΩ About 100mA
200 mΩ ±(0.5% Reading±3) 0.1 mΩ About 50mA
2 Ω 1 mΩ
20Ω 1 0mΩ
200Ω 1 00mΩ
2kΩ 1Ω
Special Function VC480C+
Low Voltage Display Approximately Lower than 7.5V Display
Data Retention √
Backlight Display/Function Protection √
Sampling Rate 3 Times/Sec
Operation Method Manual Range
Maximum Displaybr/>LCD Size 75x52mm
Power Supply 6 x 1.5VAA Batteries / External DC 9V Adapter Power Supply
Power Consumption Quiescent Current about 6mA

How to Use:
1. The power‑on screen displays 1. Insert the two plugs of the red test ​​ into the two red jacks on the right and the two plugs of the black test ​​ into the two black jacks on the left.

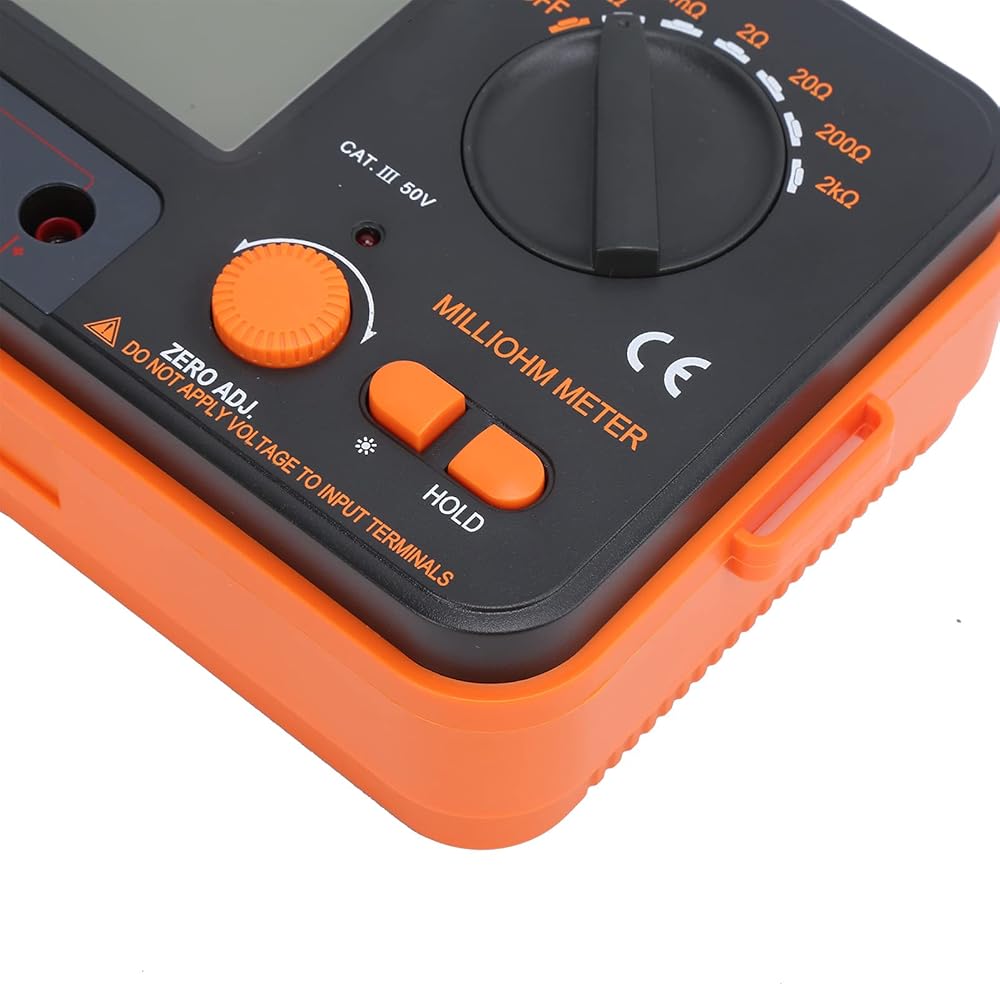

2. Turn the knob switch to the desired position, first clamp the top with two test clamps, and then adjust the zero adjustment button until the screen displays zero (Note: each range should be adjusted first and then zero Test, so that the measured value is more accurate).

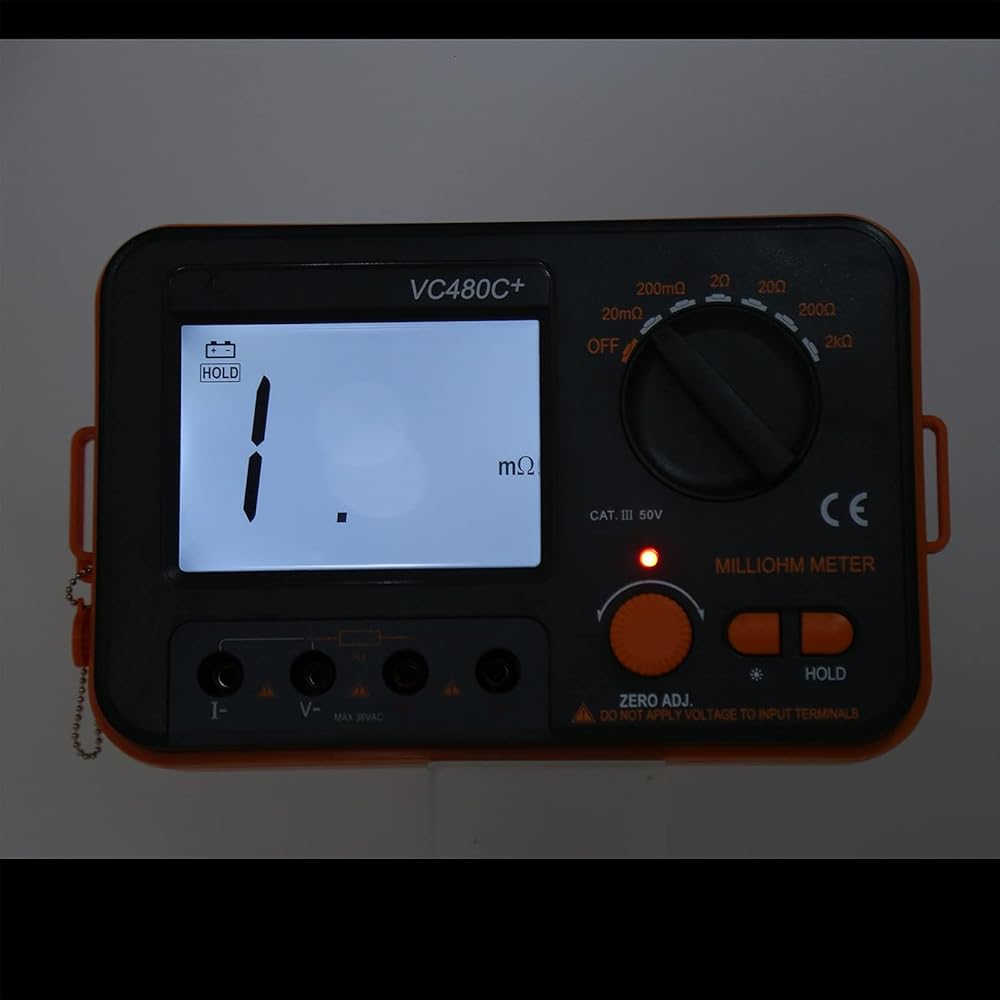

3. Take the measurement of a resistance with an RB of 190 as an example, turn the revolving switch to the range of 200mΩ close to it, and clamp the two ends of the resistance with two test clamps. The measured value displayed on the screen is 19mΩ. At this time, if you press the hold switch, the current value will remain on the display, and press the hold switch again to cancel the hold function.

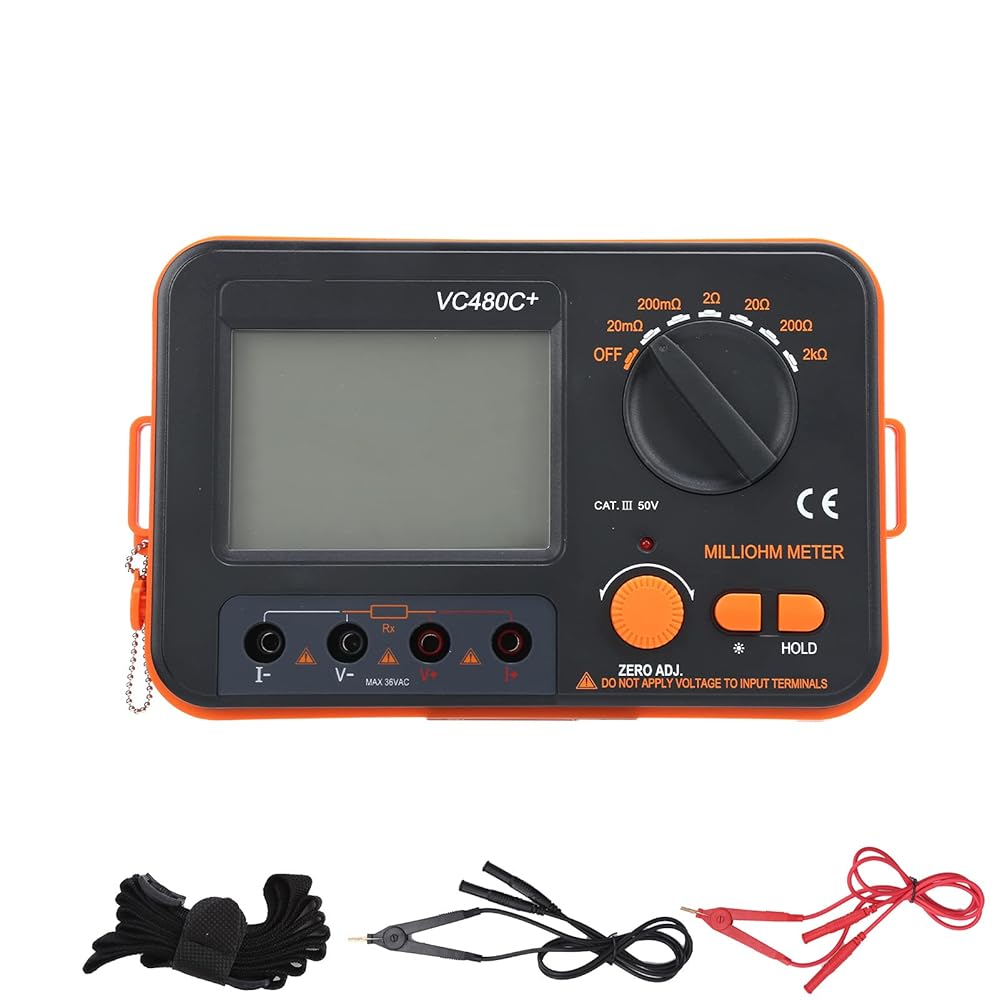

Package List:
1 x Resistance Tester (Battery Not Included)

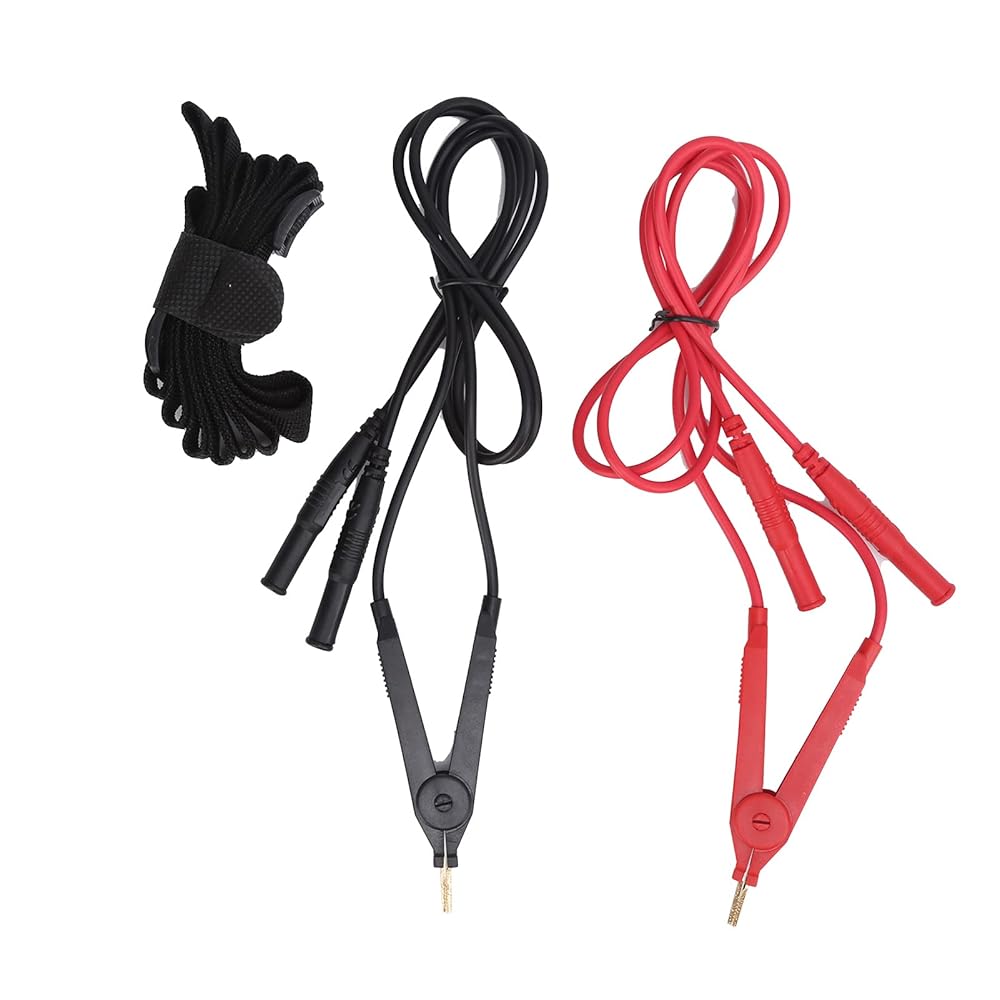

2 x Four-Wire Test ​​
1 x Strap
1 x Manual

Note:
When using the resistance tester, do not touch the metal part of the test ​​ with your hands to ensure
