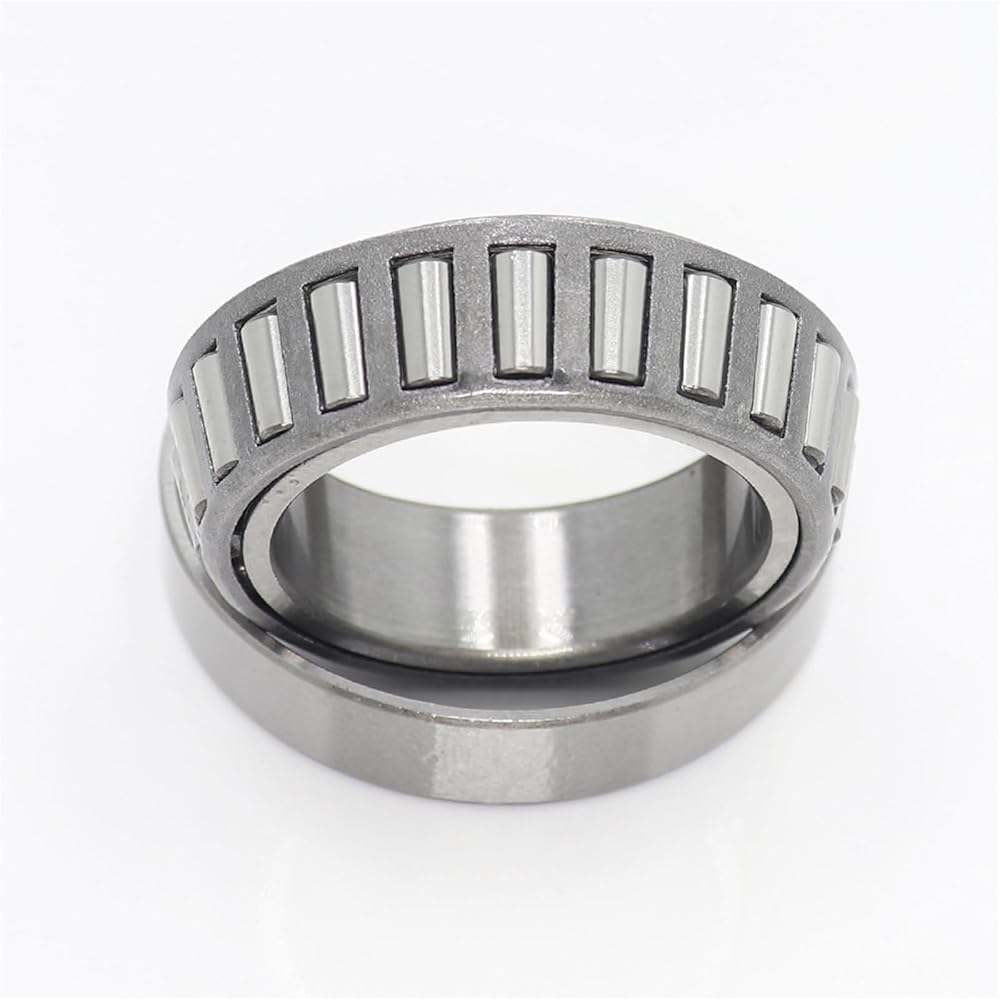

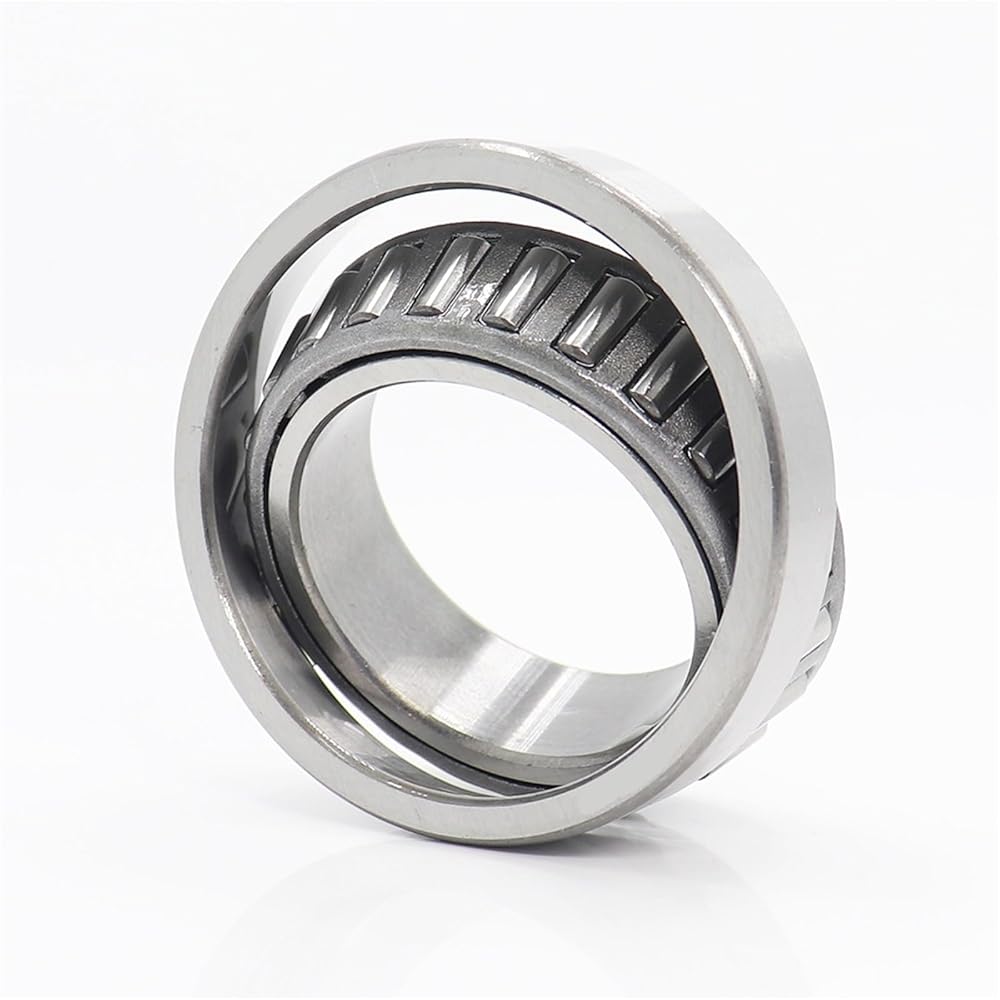

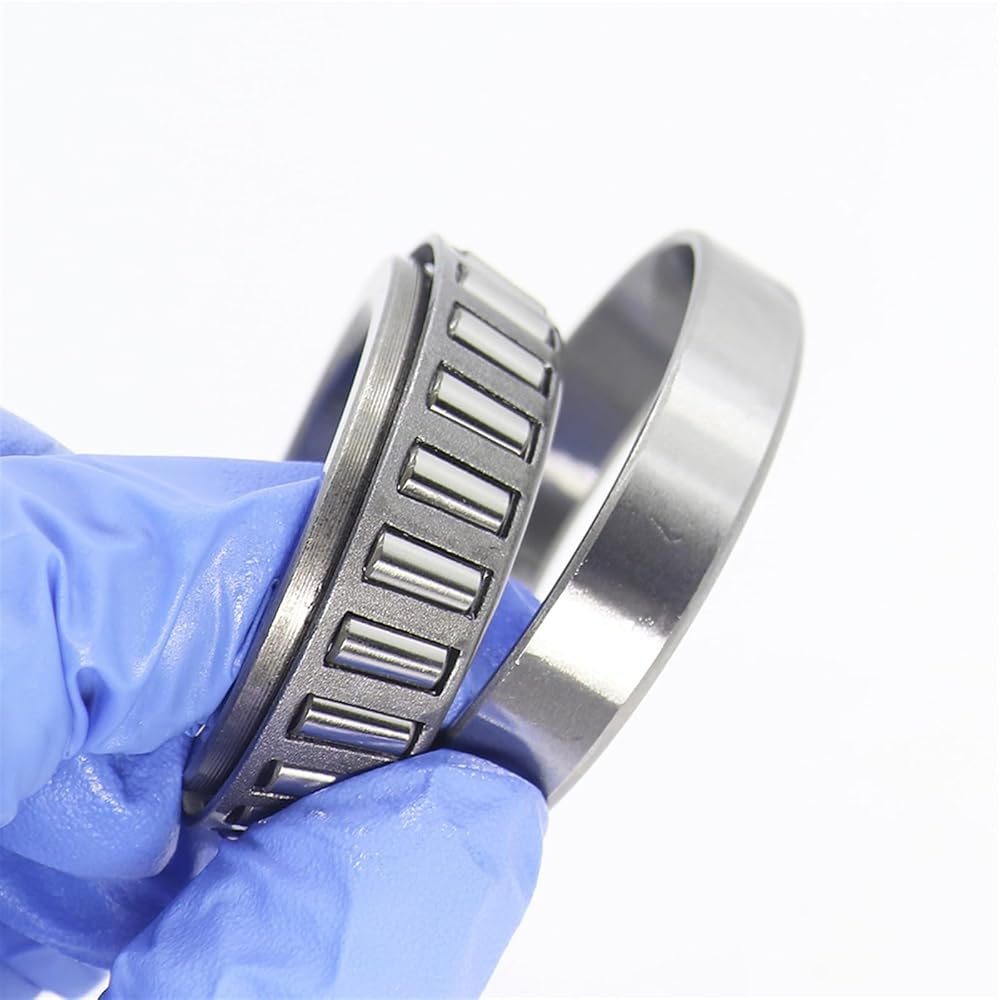

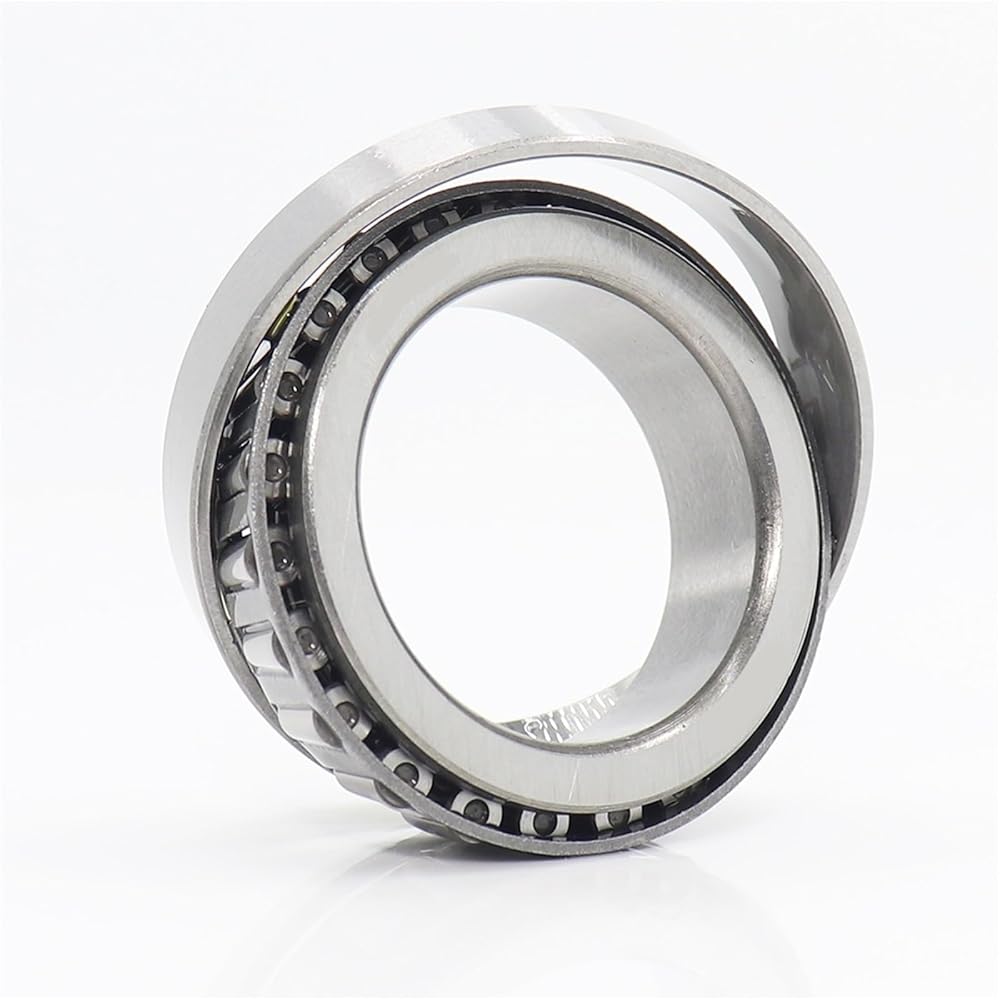

26*45*12 mm 1PC Steering Head Bearing 264512 Tapered Roller Motorcycle Bearings

1.Structure of tapered roller bearings
Tapered roller bearings consist of outer ring, inner ring,rollers and a cage. This bearing contains tapered rollers for its rolling element which are guided by the inner ring backface rib on the roller large end face.The raceway surfaces of inner ring and outer ring and the rolling contact surface of rollers are designed so that the respective apexes converge at a point on the bearing center line.Bearings are classified into standard, intermediate and steep types, in accordance with their contact angle .The larger the contact angle is, the greater the bearing resistance to axial load.
2.Tapered Roller Bearing Advantages
Long Life Even In Contaminated Lubricant
Durable Steel CageDimensionally Interchangeable With Other Bearing Manufacturers
Typical Applications for Tapered Roller Bearings
Tapered roller bearings are used for heavy-duty, moderate speed applications.
3.Bearing Designation & Dimensions
Item 264512
Type: Taper Roller Bearing
Size: 26mm x 45 mm x 12 mm
Inner Diameter: 26 mm
Outer Diameter: 45 mm
Width: 12 mm
Quantity: 1PC
4.Tapered roller bearings Application
Typical applications that will benefit from these durable bearings include:
Agriculture, Construction and Mining Equipment
Various Axle Systems
Conveyance Vehicles
Gear Box, Engine Motors, Reducers
