High-Efficiency Three-Axis Testing for Realistic Simulation: The system performs simultaneous X, Y, and Z axis vibration testing in a single setup, eliminating repeated re-fixturing, improving efficiency, and more accurately simulating real-world multi-directional vibrations during transportation or use

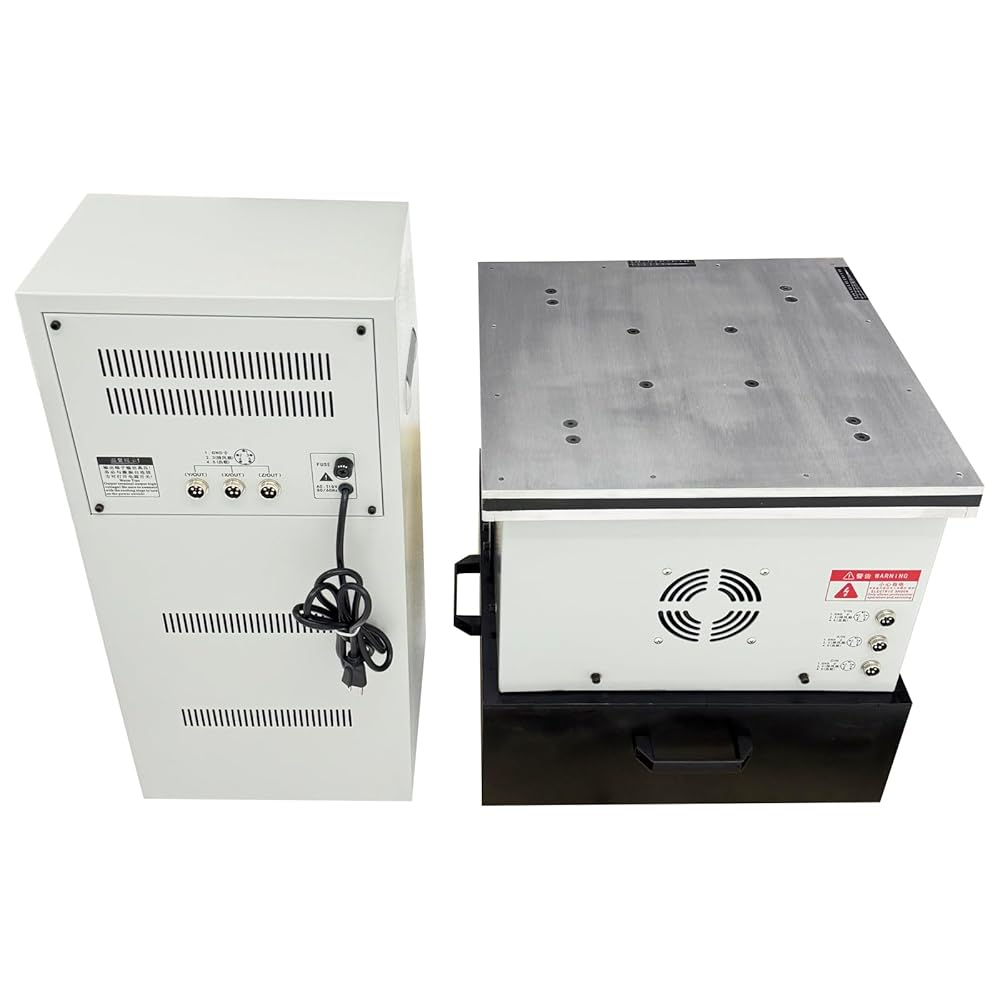

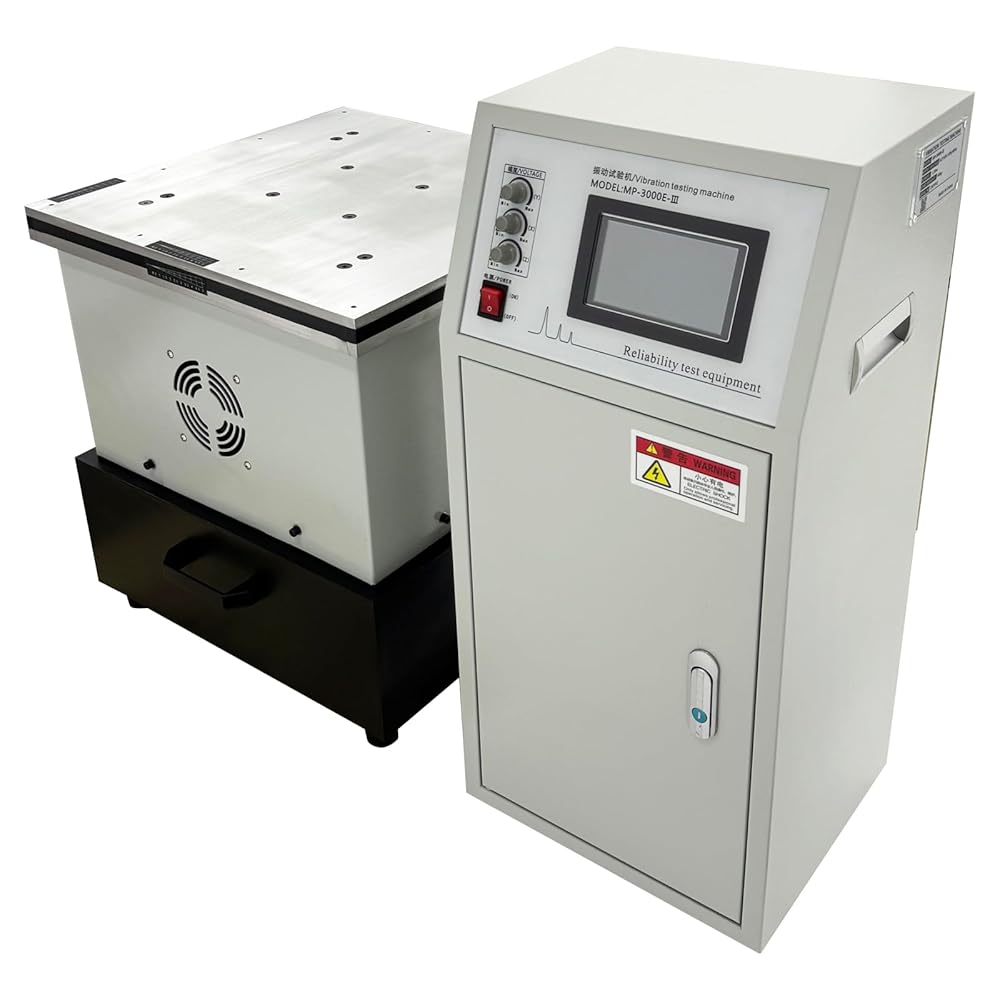

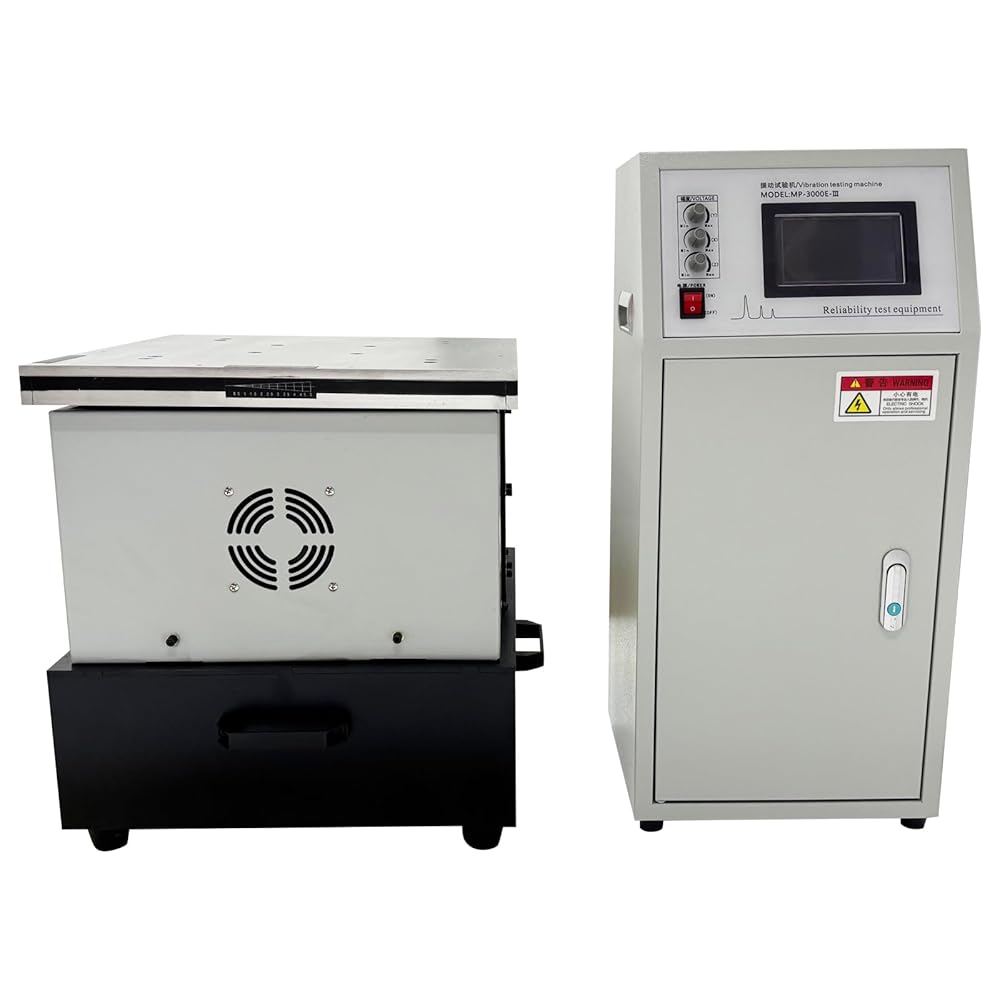

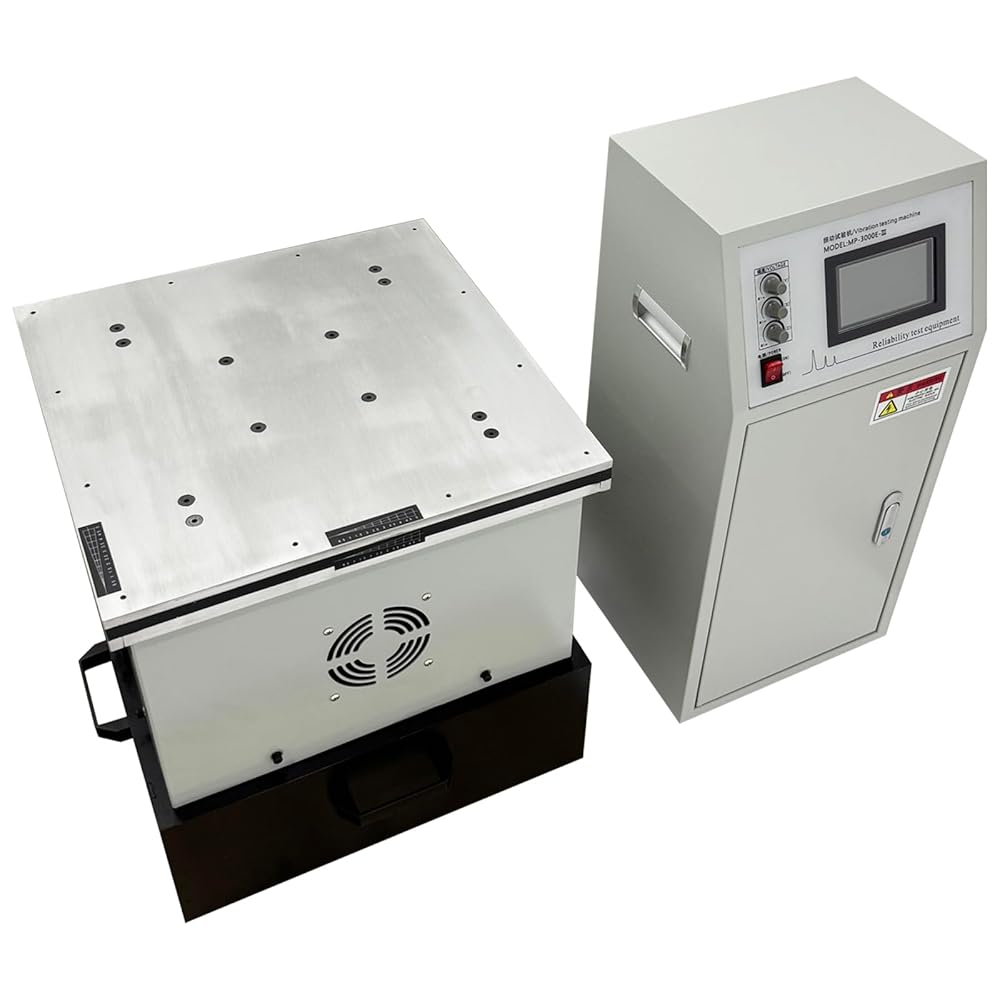

Split-Type Design for Stable Performance and Flexible Layout: The segregated table and controller cabinet design isolates vibration-sensitive electronics, ensuring long-term stability and control system longevity while providing enhanced lab space planning flexibility
Multiple Test Modes for Diverse Requirements: Supports multiple vibration modes, including fixed-frequency and sine sweep testing, and allows programming of up to 20 test steps. The system efficiently performs a wide range of tests, from basic robust assessments to complex, multi-stage profile simulations

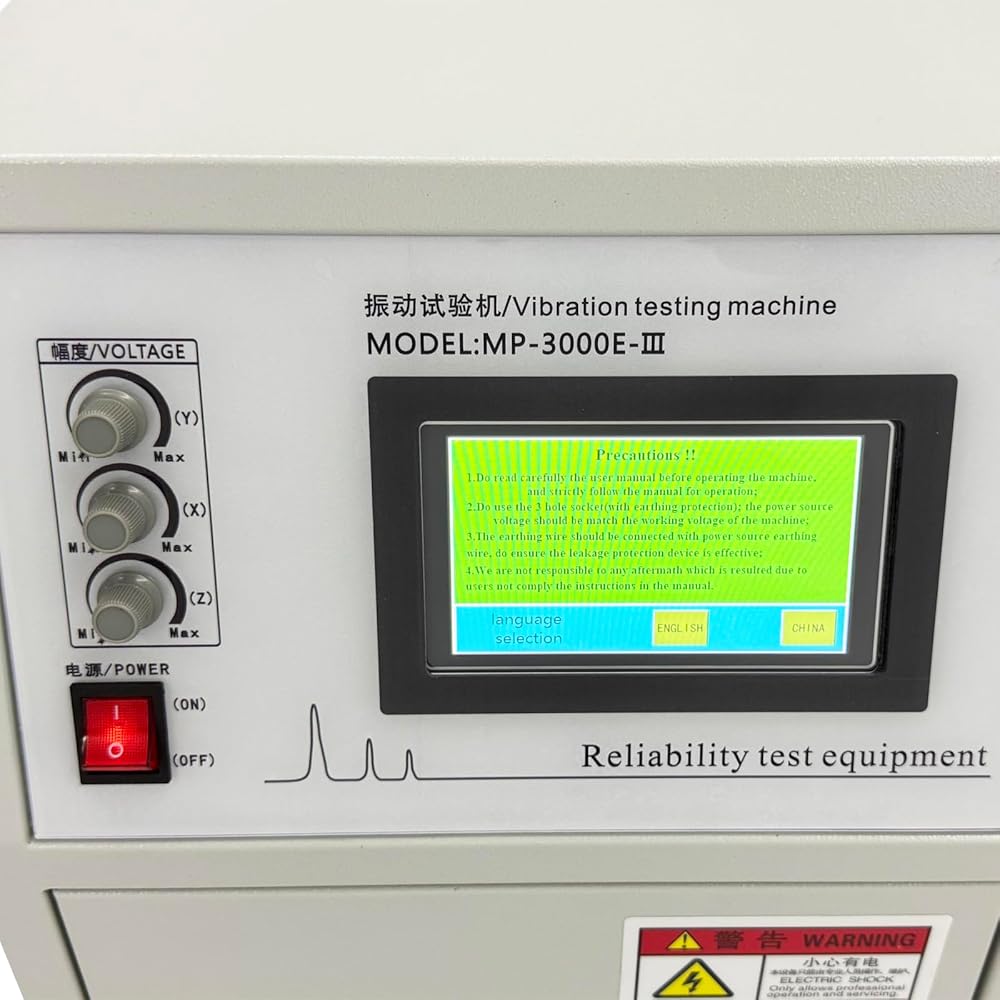

Precise Control and Safe Operation Ensure Test Reliability: The system is equipped with high-precision sensors and an intuitive touchscreen interface, enabling precise control of vibration parameters such as frequency, amplitude, and duration. It incorporates comprehensive safety features, including overload protection and safety interlocks, to ensure dual-layer assurance for both test integrity and operator safety
User-Friendly Design Enhances Operational Convenience: Featuring an intuitive touchscreen control, straightforward parameter setup, and multiple operation modes (Timed/Manual), the system significantly reduces the learning curve, enabling users to get started quickly and perform tests efficiently
وصف
Product Parameters:
Model: MP-3000E+
Voltage: AC110V±10%/50-60Hz
Power: 1.5kW
Rated test load weight: 132lbs(60kg)
Vibration frequency range: 1~400hz
(Fixed frequency or sweep frequency can be set arbitrarily)
No-load maximum displacement (amplitude): P～P/5mm

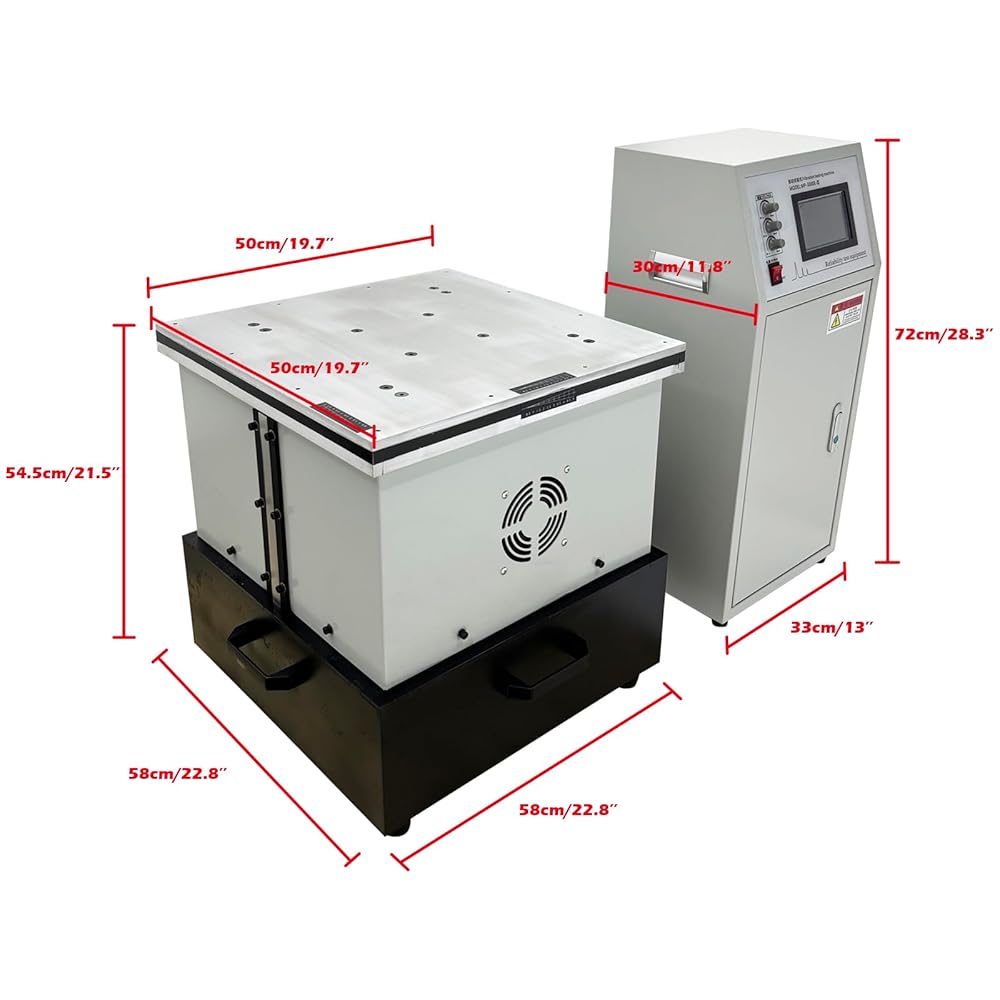

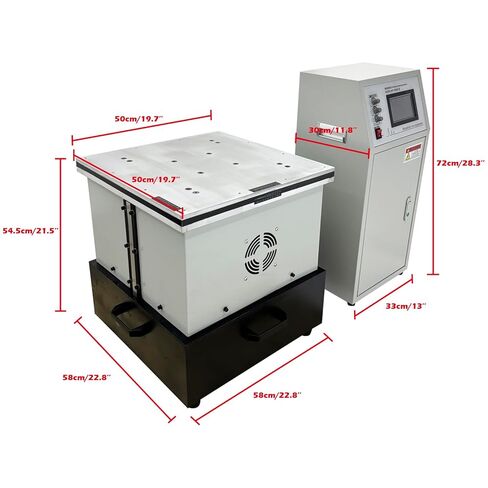

Working surface size:19.7"*19.7"(50cm*50cm)
Vibration direction: Vertical(Y), Horizontal(X), Longitudinal(Z)
Operating conditions: 0～40℃, RH Net weight/Gross weight: 393.5lbs(178.5kg) / 451.9lbs(205kg)
Different vibration parameters can be set in 20 segments, the maximum test time of each period is 999 minutes (i. e. 16 hours), and the number of cycles of 0～200 times can be set arbitrarily
Item Included:
Variable Frequency Vibration Test Bench *1
Accessory Kit *11
