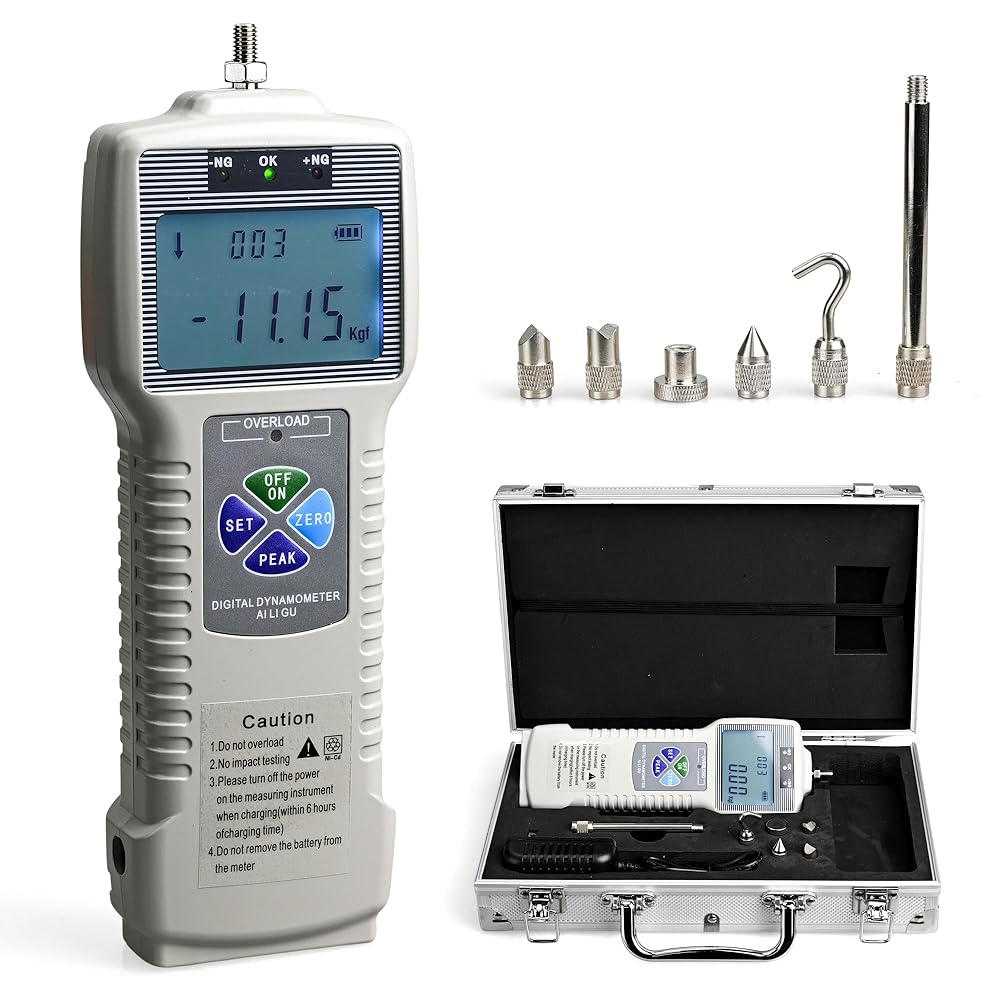

The ZP 500N Digital Force Gauge is a high-precision tool designed for tension, compression, and destructive tests. With a backlit LCD display and a data output function, it offers accurate and convenient force measurement.
Accurate Results
This push pull force gauge features a high precision of ±0.2%. It can measure forces up to 500N/110lbf/50kgf, with a division of 0.1N/0.1lbf/0.01kgf. The Baud rate is 2400sps, and the sampling speed is 1000 times/sec. Regular calibration is recommended for optimal performance.
Data Storage and Output
Extensive Data Storage: Force gauge can store up to 999 measurement data. You can directly view historical data on the backlit LCD display.
Data Analysis
Connect the force gauge to a computer via an RS-232 cable for in-depth analysis. USB output can be achieved through an RS232 to USB conversion output line, which is included in each package.
Versatile Attachments

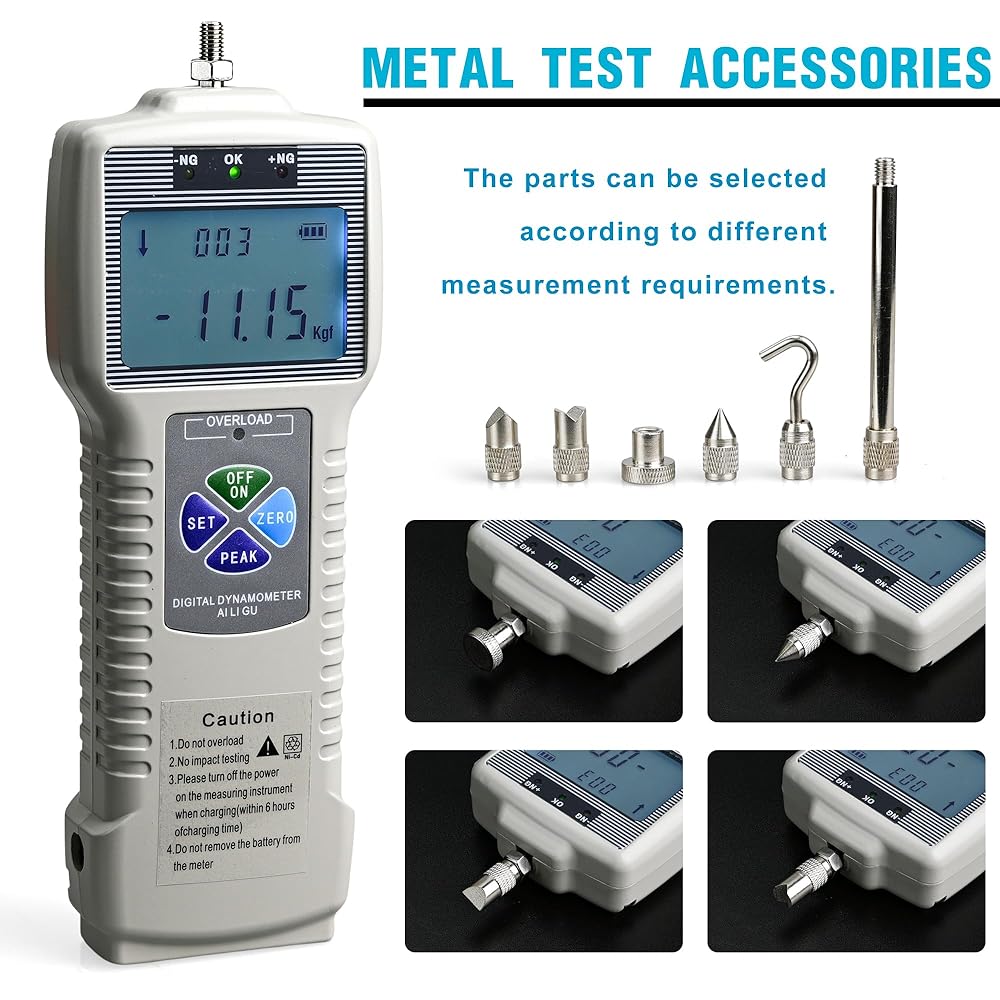

Digital force gauge comes with 6 premium interchangeable attachments, making it suitable for measuring compression, tension, push, and pull forces in various applications.
Durable Design

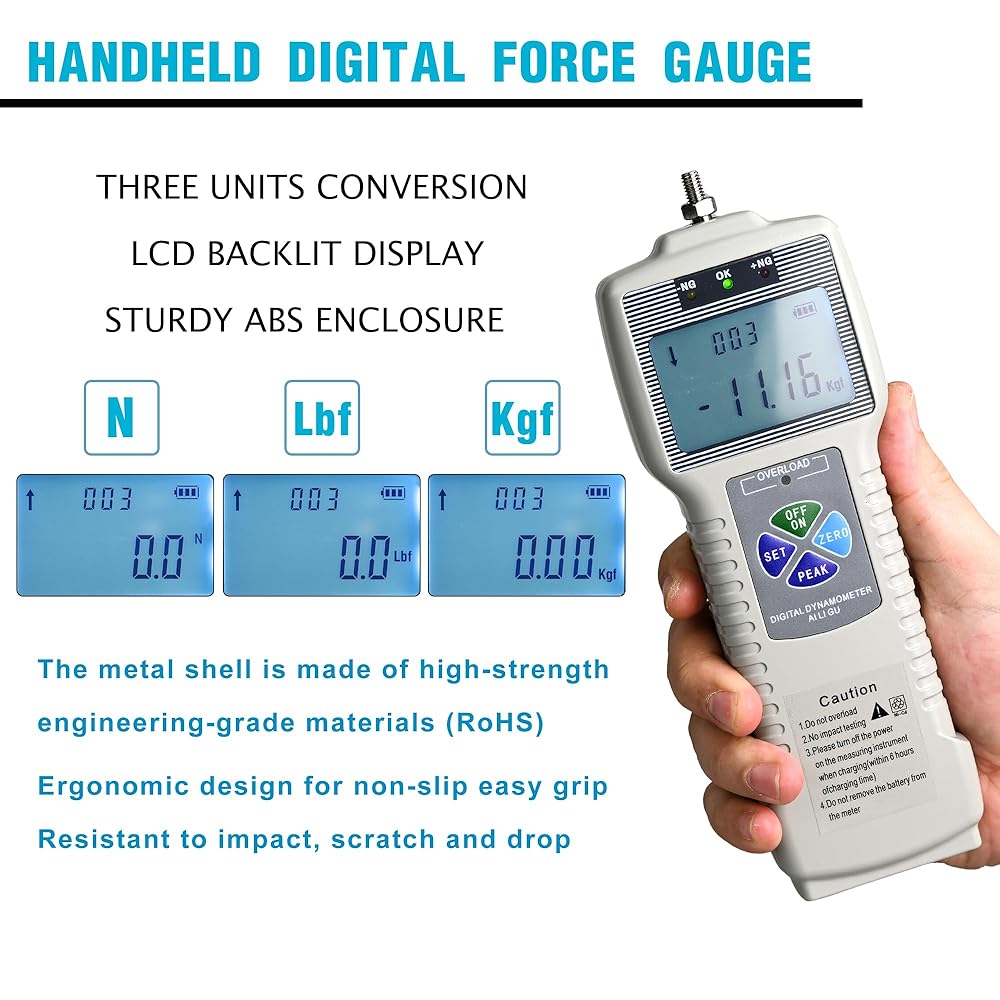

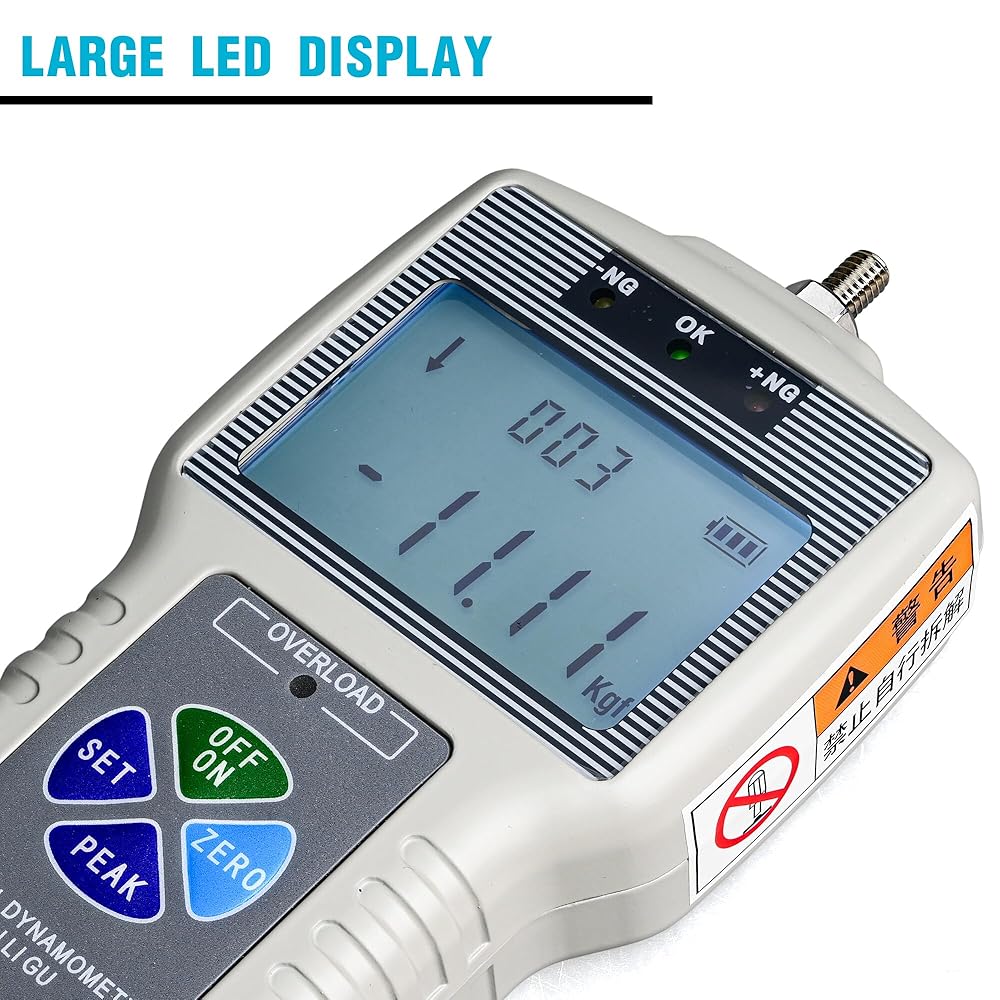

Backlit LCD: The LCD display has a backlight, ensuring clear visibility even in low-light conditions.
Sturdy Metal Shell: The force gauge is housed in a sturdy metal shell. It has M4 holes on the back for mounting on a test stand (test stand not included).
Rechargeable Battery
Equipped with a built-in NIMI rechargeable battery and an AC adapter. When fully charged, it can be used continuously for about 6 hours, and each charge should not exceed 8 hours.
Usage Notes
Correct Force Direction: Always use the force in the correct direction to avoid damaging the sensor.
Avoid Overloading: Do not overload the gauge. The LED will flash to alert you if overloading occurs.
SPECIFICATION
-Max. Load: 500N / 50kgf / 110 lbf
-Resolution: 0.1N / 0.1kgf / 0.01lbf
-Accuracy: ±0.2%
-Baud Rate: 2400sps
-Sampling Speed: 1000times/sec
-Power Supply: 1000mAh 5V Ni-MH rechargeable battery
-Voltage: AC 100-240V 50-60Hz
-Peak Hold: Yes
-Data Storage: 999 values
-Working Condition: 0-40℃ (for higher accuracy), 20-80%RH

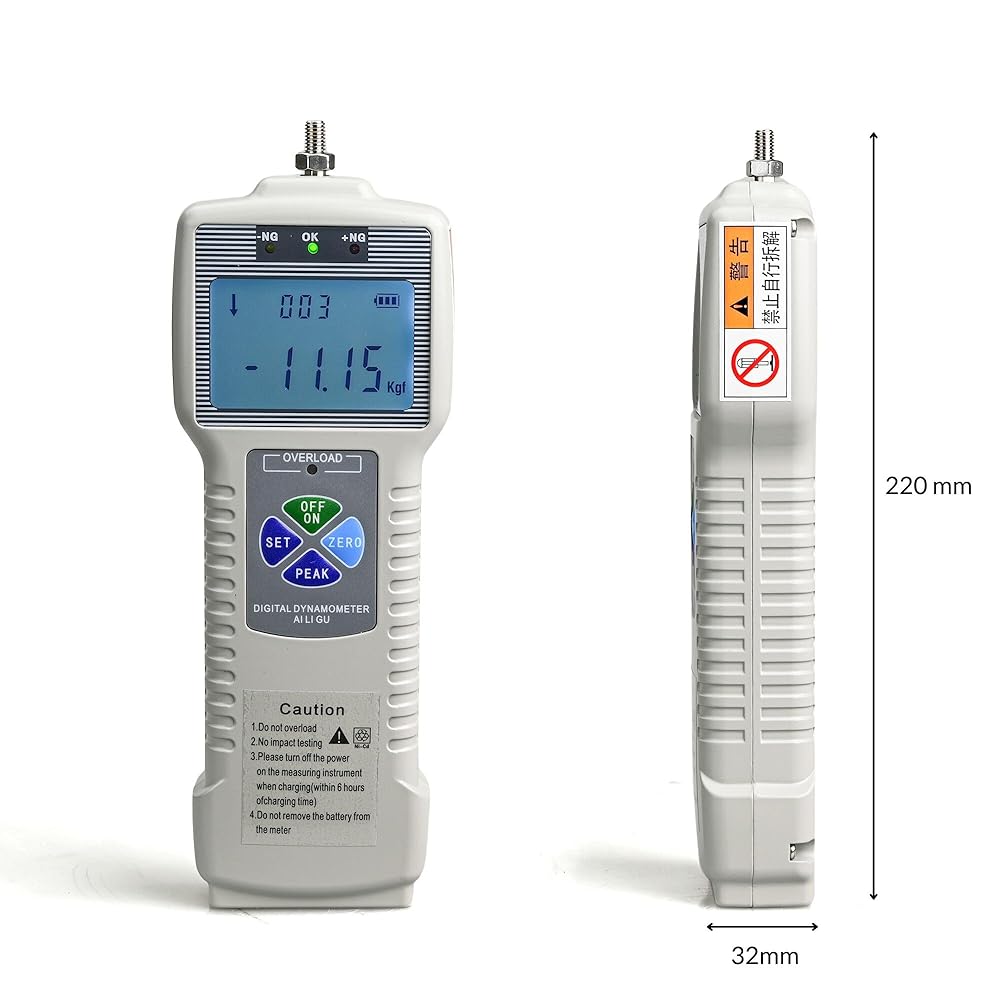

-Size: 8.7*3.1*1.3in
-N.W.: 1.15lbs

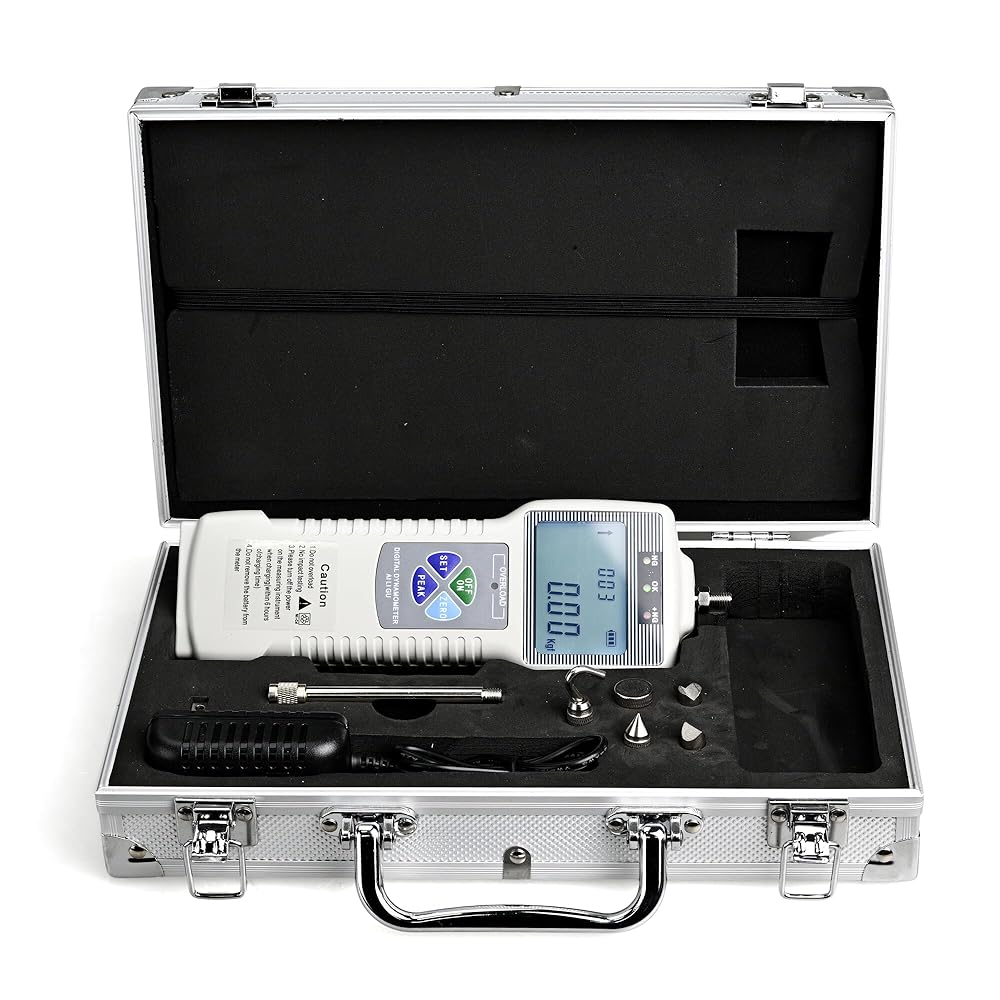

PACKAGE
-1 x Digital Forge Gauge
-6 x Force Gauge Attachment
-1 x Charging Adapter
-1 x Carry Case
-1 x User Manual
