1. It has a soft shock absorbing effect because the self-pressure-regulation function
2. It can reduce shock and noise in automated mechanical operations, enhance working efficiency
3. Shell is made of material, good damping, high hardness and strong heat
4. Greatly reduce the shock and improve the stability
5. The spring inside can reset the piston rod fast cause the movement of the check valve

Specification:
Features:
It has a soft shock absorbing effect because the self-pressure-regulation function.
It can reduce shock and noise in automated mechanical operations, enhance working efficiency.

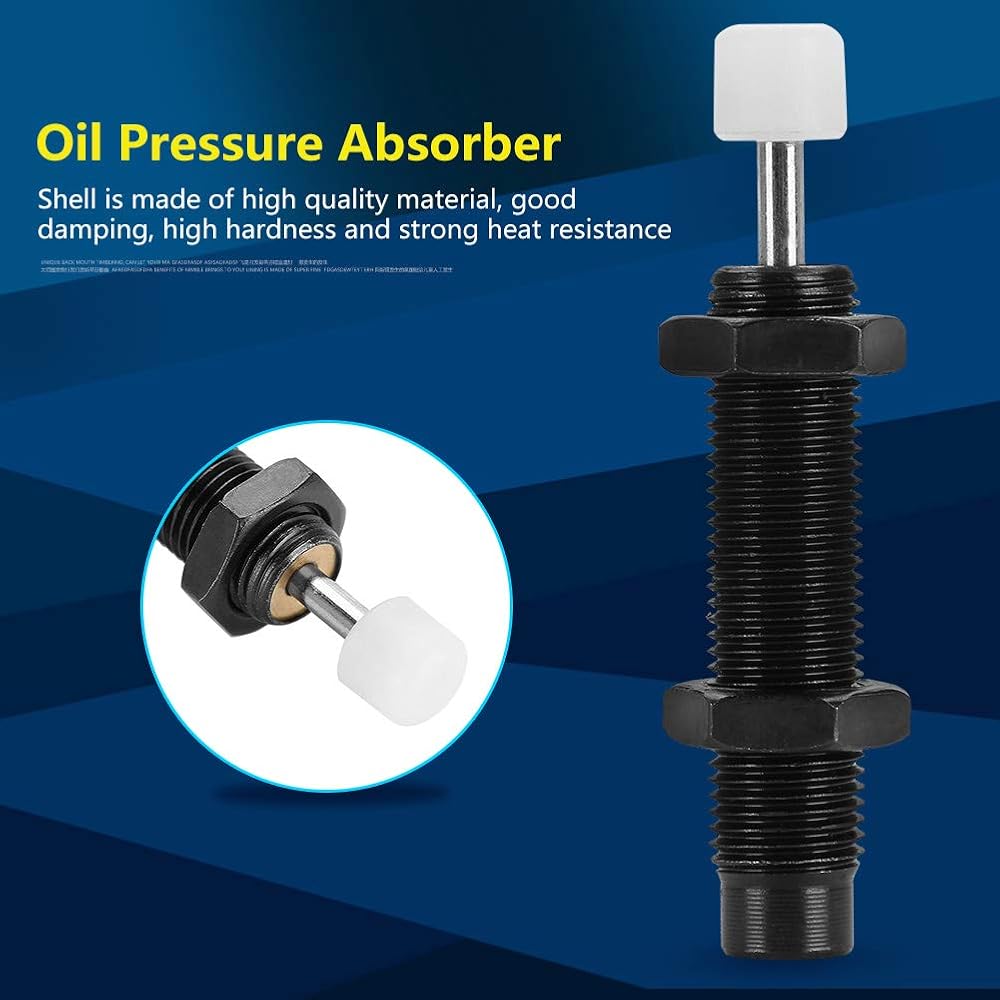

Shell is made of material, good damping, high hardness and strong heat .
Greatly reduce the shock and improve the stability.
The spring inside can reset the piston rod fast cause the movement of the check valve.
Specifications:
Material: Alloy + Stainless steel
Color: Black
Stroke: 8mm
absorbed energy: 2Nm
Energy absorb: 15200Nm/h
Effective weight: 0.5-6WE(KG)
Allowable speed: 0.8-/s
Working temperature: -10~80℃
Thread: M10

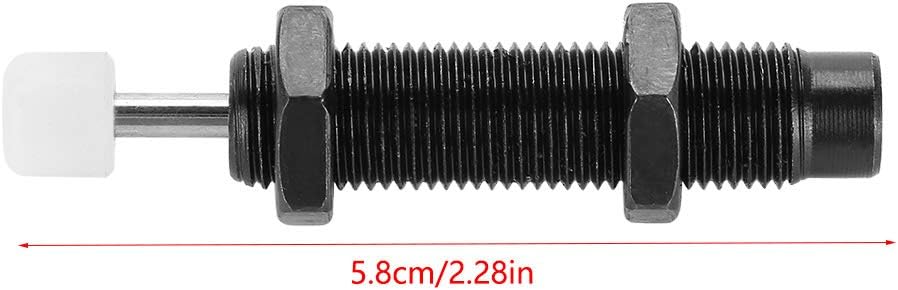

Length: Approx. 5.8cm / 2.28inch
Weight: Approx. 23g
Package Included:
1 x Oil Pressure
Note:
Please aim the impactor at the center of the shaft.
Do not remove the front cap to use, because remove the cap will lengthen the piston rod and make it hit to the bottom, this may break the bottom.
It is strictly prohibited to spray paint on the tube teeth and shaft hub, otherwise it will affect the heat dissipation effect and leak oil.
Do not make the piston rod and other foreign matter.
If there are two or more vibration absorbers are installed on the same side, Please confirm the synchronization.
For safety, do not break it up to use.
