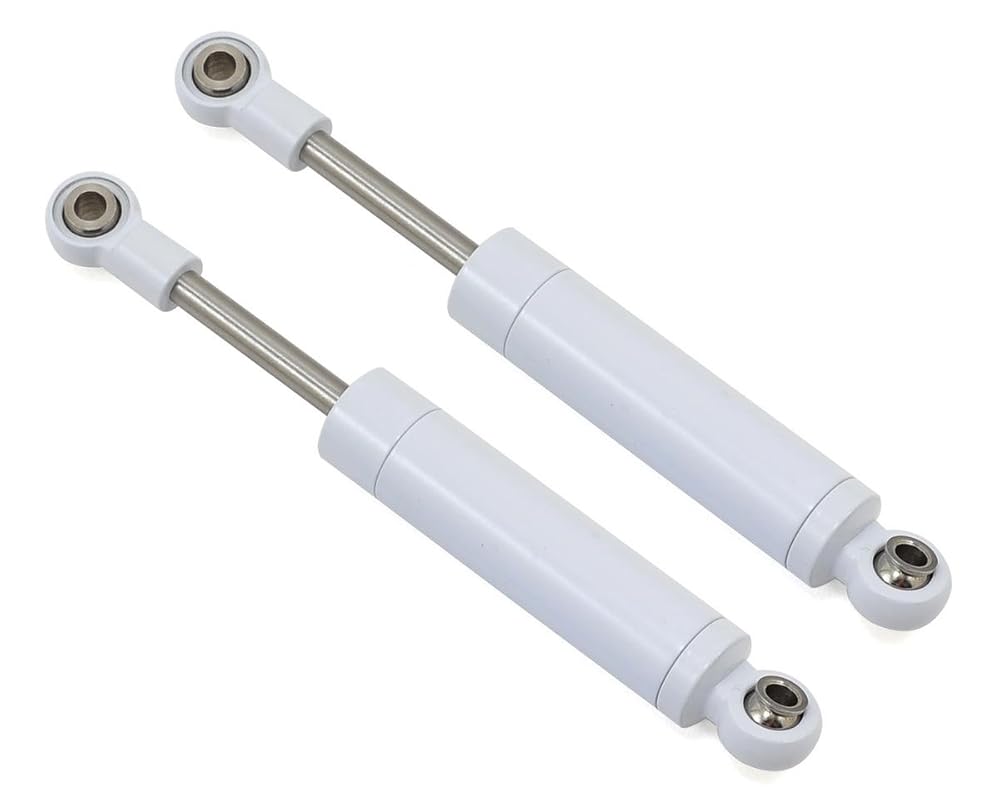

Superlift Superide 80mm Scale Shock Absorbers
This is the all new Licensed Scale Shock to hit the market. Licensed from Superlift Suspension Systems. These new shocks feature a complete new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks. Available only from RC4WD and our Dealers.
SPECIFICATIONS:
CNC Machined
Billet Aluminum
Smooth White Painted Finish
Internal Spring Design
New Internal Design
Included Superlift Decal
Uses Shock Boots (details below)
Hole to hole (Compressed): 2.38in / 60.5mm
Hole to hole (Uncompressed): 3.14in / 80mm
Overall length: 3.5in / 89mm
Travel length: 0.76in / 19.5mm
Shock body: 0.39in / 10mm
Shaft diameter: 0.137in / 3.48mm
Decal Size (Length): 0.98in / 25mm
Decal Size (Width): 0.31in / 8mm
Each Weight: 0.38oz / 11g
YOU WILL RECEIVE:

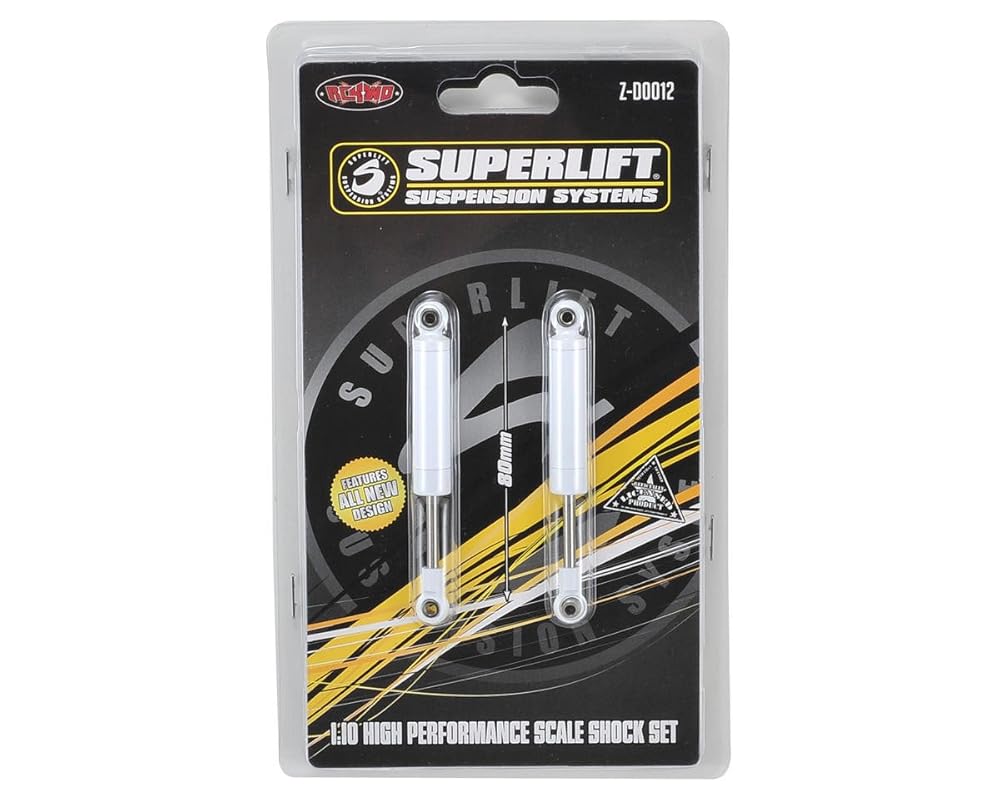

2x RC4WD Superlift Superide 80mm Scale Shock Absorbers
2x Superlift Superide SS Decal 9.3mm x 28mm (Blue)
2x Superlift Superide Decal 9.3mm x 28mm (Yellow)
2x Superlift Superide Decal 5.6mm x 19mm (Blue)
2x Superlift Superide Decal 5.6mm x 19mm (Yellow)
1x Superlift Decal Sheet
Optional Parts:
Internal Springs for ARB and Superlift 80mm Shocks (RC4Z-S1179)
Replacement Parts:
Rebuild Kit for Scale King, ARB & Superlift Shocks (RC4Z-S0788)
NOTES:
For Black Rubber Boot RC4Z-S0891
For Red Rubber Boot RC4Z-S0948
For Yellow Rubber Boot RC4Z-S0962
For Blue Rubber Boot RC4Z-S0961
Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
Fits TRA TRX-4, but will require both 2mm (RC4Z-S0600) and
