2.2kw automatic tool change spindle upgrade
1: Power line: three-color wire connected to U, V, W phase/yellow wire and green wire grounded temperature control line 110℃ thermistor two phases connected to temperature control protector
2: Cooling water supply: water pump head 8m
3: Dust removal pressure for changing poles: 0.2-0,pa (6/4 hose)
4: Number of proximity switches: pole-mounted and pole-release NPN (normally open)
Proximity switch wiring method: brown wire connected to +24VDC, blue wire connected to 0VDC
Signal load terminal connected to +24VDC/the other end connected to black wire
5: Gas sealing pressure: 0.1-0.2Mpa (4/2 hose)
6: Produce cooling water: (ends 2 and 6 are equipped with 8/6 hoses)
7: Cylinder air intake pressure: 0.65Mpa (6/4 hose)

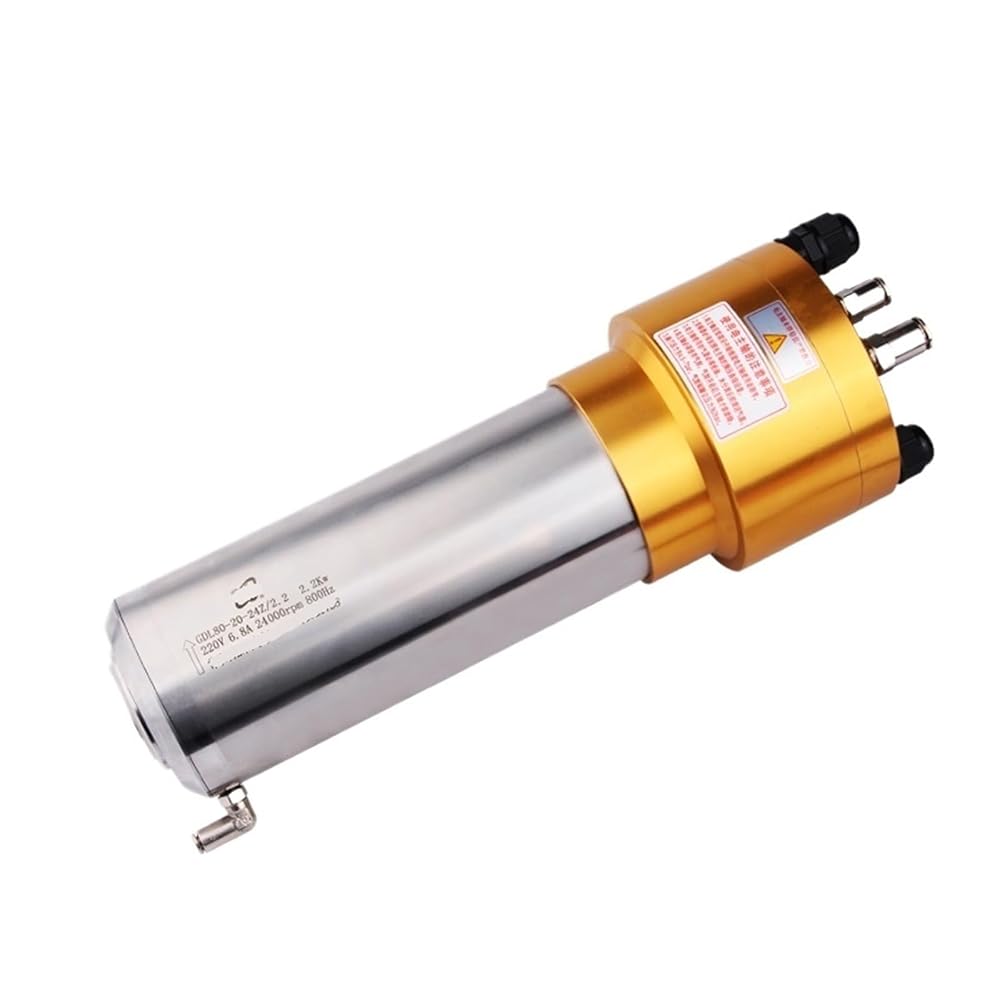

Model: GDL80-20-24Z/2.2
Speed: 24000rpm
Material: Stainless steel outer jacket, copper coil
Frequency: 800Hz
Power: 2.2Kw
Torque: 0.72 Nm
Shaft end connection: S020 bracket
Diameter: 80 mm
Cone hole runout: 2um
Voltage: 220V
Cooling method: water cooling
Lubrication method: Grease
Bearing number: 2*HY6005C/P4, 1*SM6004C/P4
Number of poles: 4P
Number of phases: 3
Rotation direction: Counterclockwise from the shaft end
Tool holder: IS020 (imitation crystal is recommended)
Blind rivets: IS020-15° (imitation crystal is recommended)
Weight: 8 kg
Equipped with standard ISO20 taper hole
