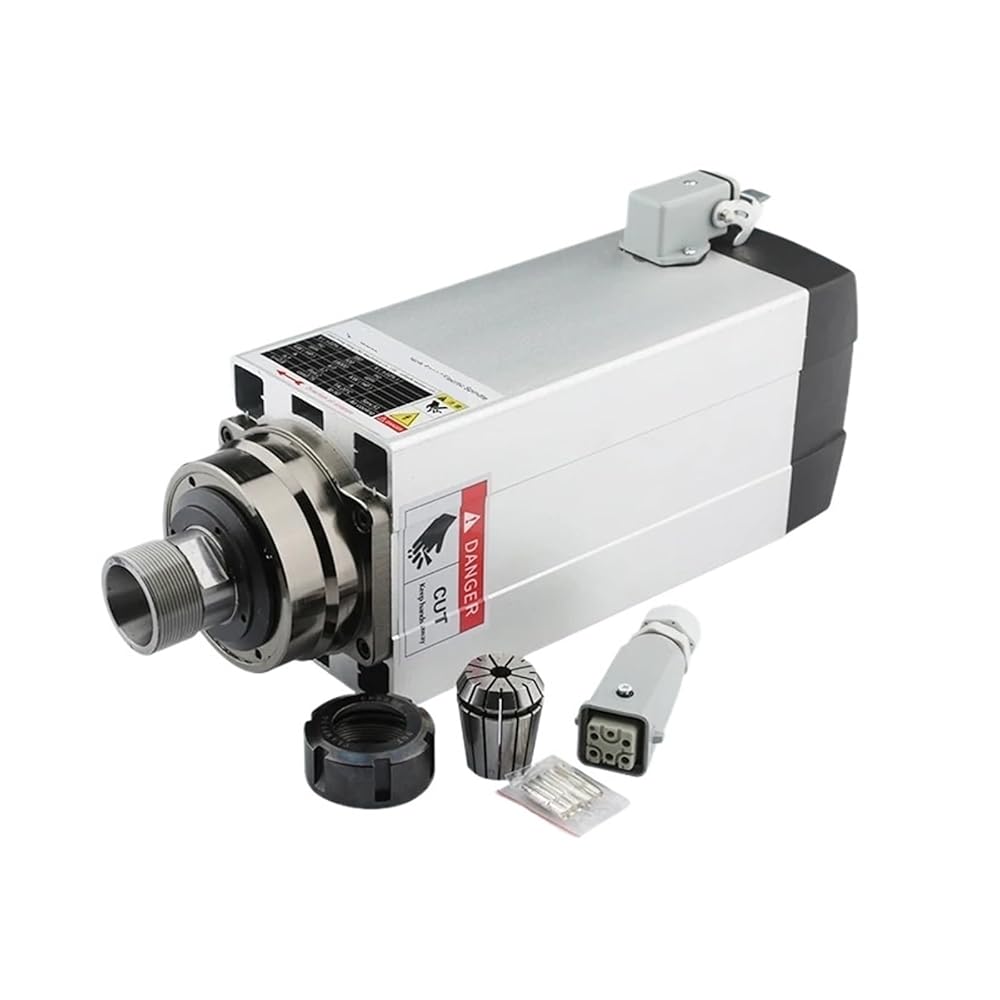

Rotary Shafts
Speed regulation method: Change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
Cooling method: air cooling
Power interface: Waterproof aviation plug is optional. Aviation plugs marked with "1", "2", "3", and "4". "1", "2", and "3" are connected to the power interface of the inverter (U, V, W) respectively, and 4 is connected to the ground terminal of the inverter. (Note! Our spindle "4" is connected to GND to ensure personal safety!!)
Power: 6.0kw (1HP=0.735w)
Voltage: 220V/380V
Current: 12A
Frequency: 300Hz
Speed: 18000rpm
Runout: less than 0.01mm
Chuck: ER25
Clamping tool diameter: 1mm, 2mm, 3mm, 3.175mm (1/8), 4mm, 5mm, 6mm, 6.35mm (1/4), 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 12.7mm (1/2), 13mm, 14mm, 15mm, 16mm
