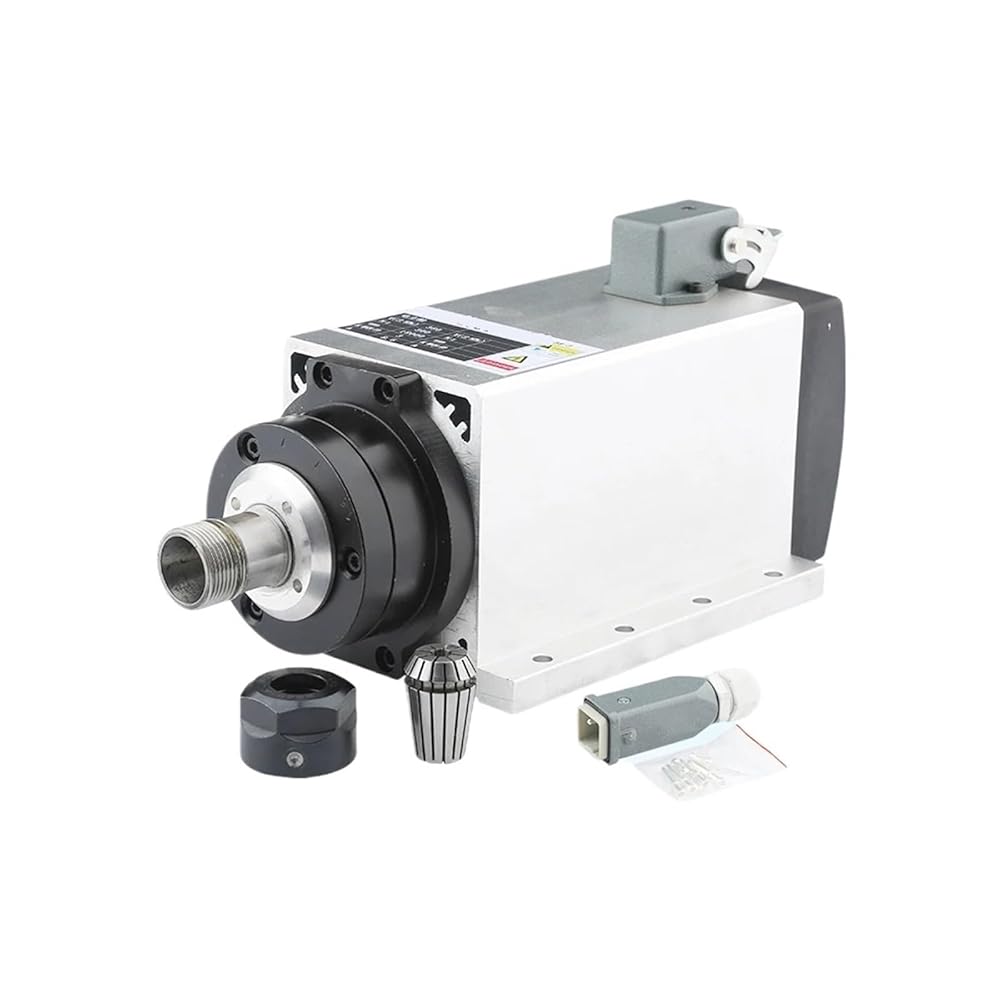

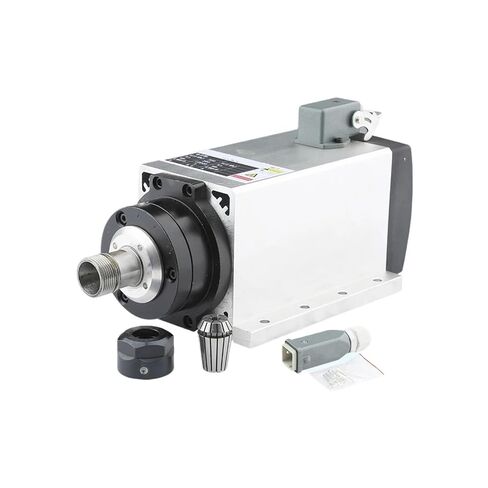

Rotary Shafts
Dimensions: 281x118x98mm (including flange)
Speed regulation mode: three-phase output frequency converter, the spindle speed can be changed by changing the frequency of the frequency converter.
Cooling method: air cooling
Power interface: 6-pin square aviation plug is optional. The aviation plug is marked with "1", "2", "3", "4", "5" and "GND". "1", "2", "3" are connected to the inverter (U, V, W), and "GND" is connected to the inverter ground.
Power: 3.0kw
Voltage: 380V
Current: 8.6A
Frequency: 0-300Hz
Speed: 0-18000rpm
Runout: less than 0.01mm
4 fully sealed angular contact bearings
Chuck: ER20
