مميزات خاصة

TY20 3-pin electrical power connector, waterproof, screw-wring, screw terminal connection, free-solder, bulkhead, easy for assembly cable. No Soldering. Feed the wires all the way into the screw terminals and tighten securely
Rated Voltage/Current AC 380V/25A, Contact resistance 1mΩ, Insulation resistance 2000mΩ. Suitable wire outer diameter range 6-12mm, Wire gauge 4mm² or 12AWG-18AWG, Contact Diameter Φ2.8mm

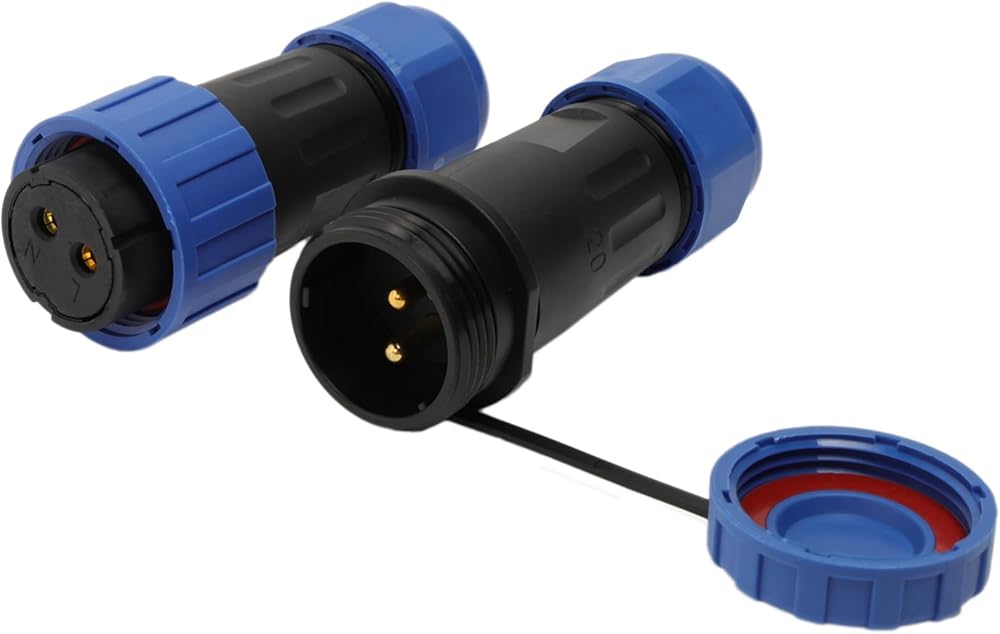

Female cable plug and in-line mount male receptacle socket with watertight cap. Panel cutout 20.5mm, thread size M20 x 1.5
Features Waterproof IP68 protection, threaded coupling and solid locking, quick disconnect and easy to remove. The contact pins are made of pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance
Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment. Recommended wire stripping length: 9mm

وصف

Package Includes:
1 x Plug with female contact
1 x Socket with male contact
1 x Waterproof / Dustproof Cap

Features:
The connector can provide a safe and reliable connection in the harsh environment .
TY20 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box.

Specifications:
TY20:
Model: 2-7 Pin
IP Rating: IP68
Panel Cutout Diameter: 19.4-20.5mm
Cable Outer Diameter Range:6-11.5mm
Coupling Type: Threaded Coupling
Shell material: Thermoplastic Nylon66, Fire Resistance: V-0
Insert Material: Thermoplastic PA66, max temperature 200℃
Contact Material: Pure copper plated gold
Wiring way: Free-Solder / Screw Crimp
Mating Cycle: >500 times
Temperature Range: -25~+85℃
