Hantek 500MHz Oscilloscope Probe, Passive Probe High Impedance Probes for Oscilloscopes with 1 Mohm BNC Input, HT500B… in Saudi Arabia

Hantek 300MHz Oscilloscope Probe, Passive Probe High Impedance Probes for Oscilloscopes with 1 Mohm BNC Input, HT300B…

SAR 337
Brand
Hantek
StyleHT300B
– 1 +

Special Features

  • The 500MHz HT500B are high impedance probes with switchable attenuation ratio (1:1 and 10:1).
  • This oscilloscope probes are compatible with hantek digital storage oscilloscopes or similar oscilloscopes with 1 M ohm BNC input.
  • These passive probes have been designed and calibrated for use with instruments having an input impedance of 1M Ω paralleled by 20pF. However, these may be recalibrated for use with instruments having an input capacitance of 15 to 40pF.
  • NOTE: The BNC connector of these probes has a pin hole without a pin. This is as per the design and does not indicate any damage or fault in the probe.

Description

Electrical Characteristics :
Motel: HT300B
Attenuation Ratio: 1:1 / 10:1
Input Capacitance: 1:1 - 100pf; 10:1 - 15pf
Compensation range(when terminated into 1 Mohm): 15pf - 40pf
Input Resistance: 1:1 - 1MΩ, 10:1 - 10MΩ
Maximum Input Voltage: 1:1 - 150V rms CAT II; 10:1 - 300V rms CAT II
Bandwidth: 1:1 - 6 MHz; 10:1 - 500 MHz
Probe Body: 95mm
Cable Length: 1200mm
Weight: 55g
Temperature: -10 °C to +55 °C (Operating); -40 °C to +70 °C (Non-operating)
Altitude: 3000 m (9,842 ft) (Operating); 12200 m (40,026 ft) (Non-operating)
Humidity: 5% to 95% RH up to 30 °C (Operating); 5% to 65% RH above 30 °C up to 55 °C

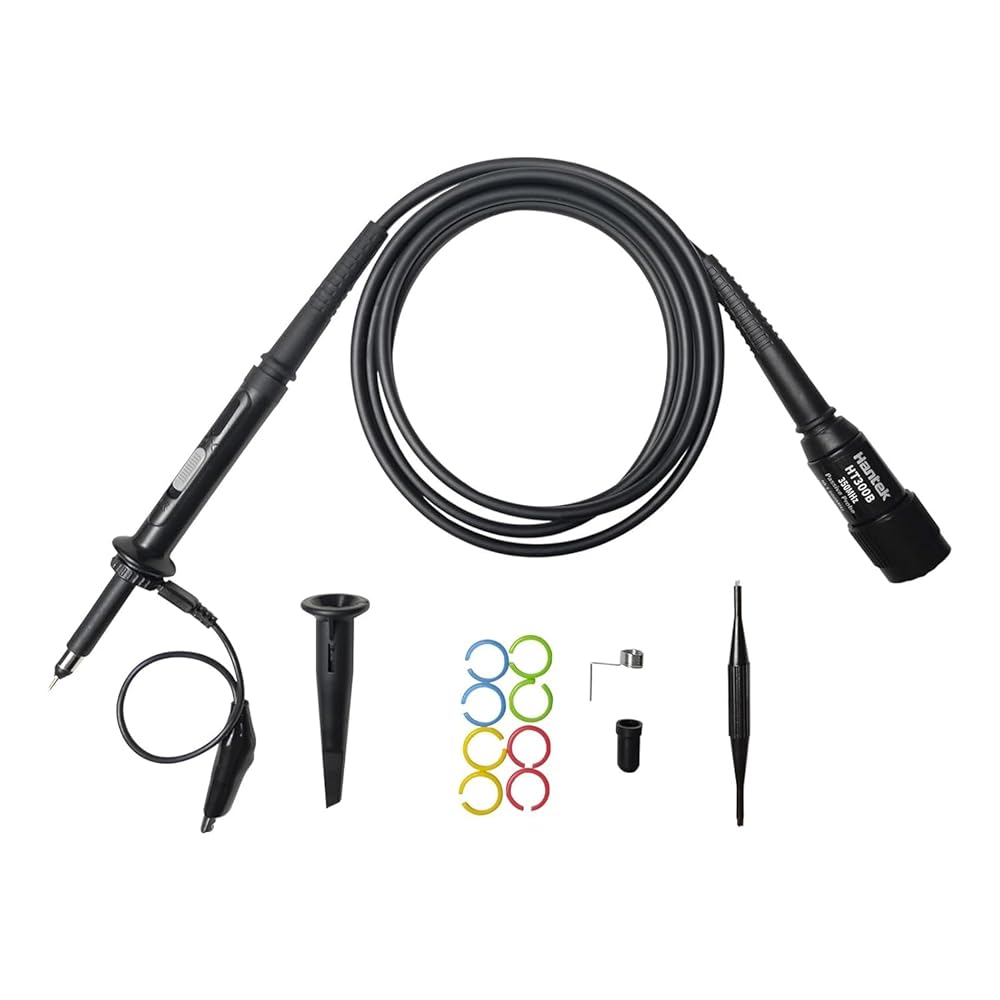

Probe and its Supplied Accessories:
Passive probe × 1
Ground Spring × 1
Ground Lead × 1
Adjustment Tool × 1
Hook Tip × 1
Protective Cap × 1
Channel Identification rings: each color with two rings
