Electronic Line Receivers

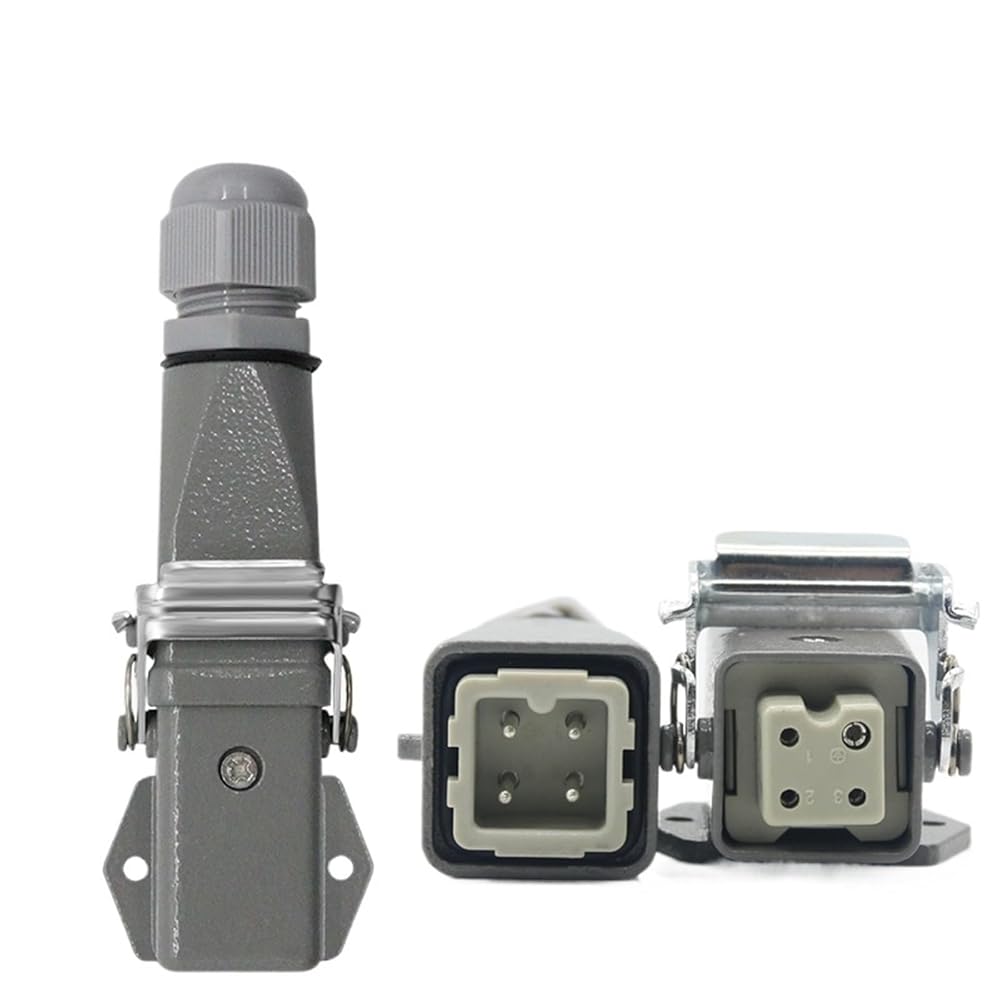

Product name:horizontal heavy duty connector
Model: HE - 004-3
Current: 10 A
Voltage: 250 v
Pin number: 4(3 + 1) 1 is ground
Pin material: copper
Surface treatment: silver plated
Contact resistance: 1 m or less
Connection form: screw link

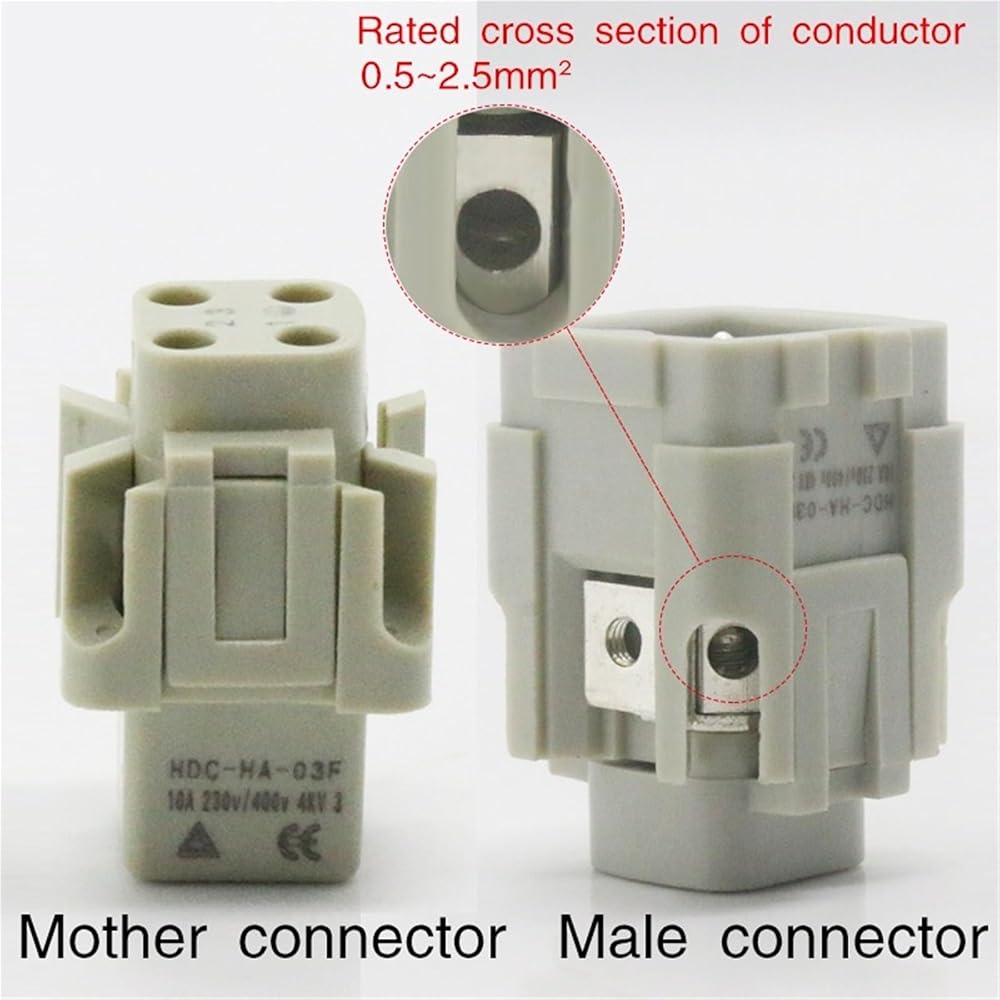

Wire specification: 0.5 to 2.5 cubic mm
Screw tightening : 0.5 NM
Strip length: 7-9mm
Interpolation: greater than or equal to 500
Working temperature: - 40 to + 125
Shell materials; Die casting aluminum alloy
Color: grey
: metal and roller
Outer surface: high temperature powder coating
Sealed : nitrile rubber
Protection grade: IP65
==========
High-concerned chemical : None
Model Number : HA-004-3
Voltage : 220 V
