Rotary Shafts

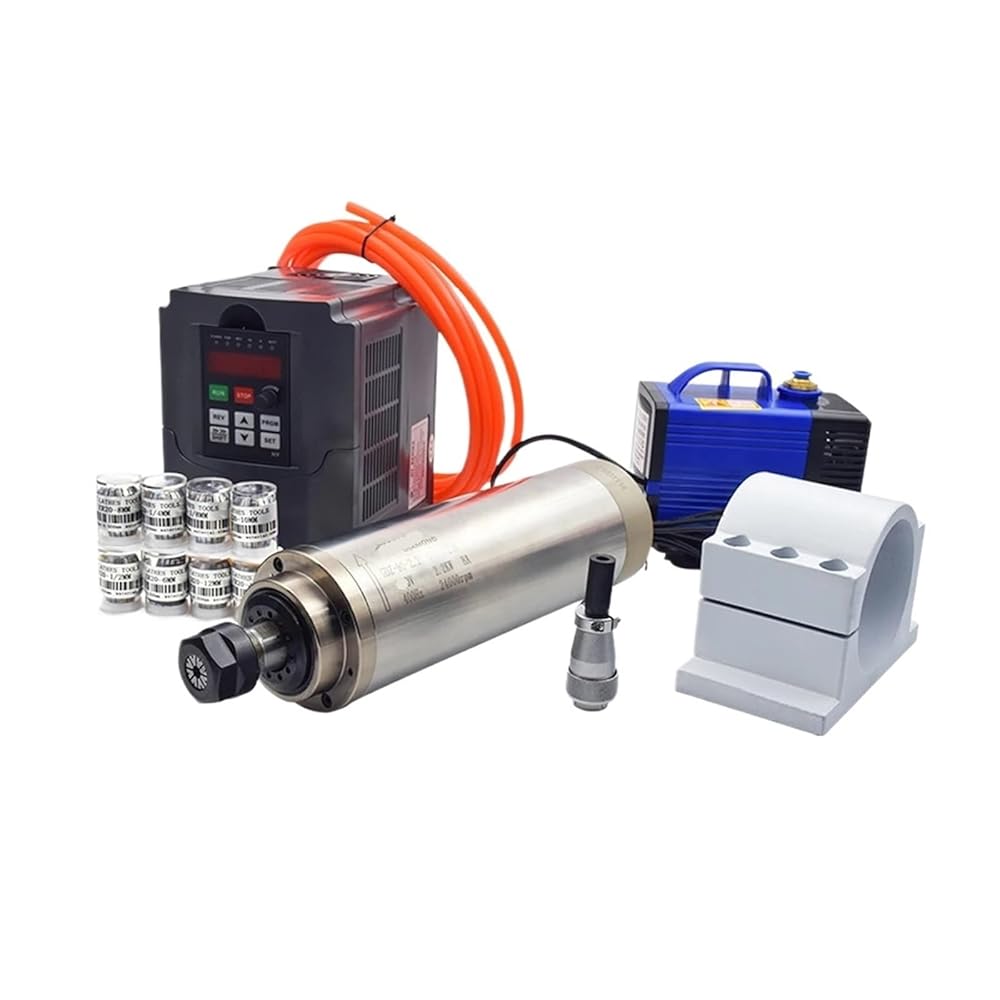

Package Included
1 x 2.2KW water-cooled spindle
1 x 2.2KW VDF Inverter
1 x 3.5M 80W water pump
1 x 5m water hose
1 x 80mm Spindle Clamp
8 x 0.008mm ER20 collet (3.175/4/6/6.35/8/10/12/12.7mm)
1 x Z-axis auto-check probe sensor
feature:
1. Water-cooled spindle motor
Size: 80*213mm (3 bearings), 80*238mm (4 bearings)
Power: 2200W
Voltage: 220V/380V
Frequency: 0-400Hz
Speed: 0-24000rpm
Water-cooled ER20 chuck
Runout: less than 0.005mm
2. Inverter:
Input voltage: 110V/0～220V (+/-15%)
Output voltage: 110V/220V AC
Input frequency: 48-63 Hz
Output frequency: 0-400Hz
Input phase: single phase or three phase
Output phase: 3 phases
3.8PCS ER20 chuck:
Clamping range: 8 x 0.008mm ER20 collets (3.175/4/6/6.35/8/10/12/12.7mm)
