Rotary Shafts
Speed regulation mode: The spindle speed can be changed by a three-phase output inverter and the frequency of the inverter can be adjusted.
The working environment temperature of the spindle is usually -10~40℃.
Origin: Mainland China
Drive mode: motor
Operating speed: 24000rpm

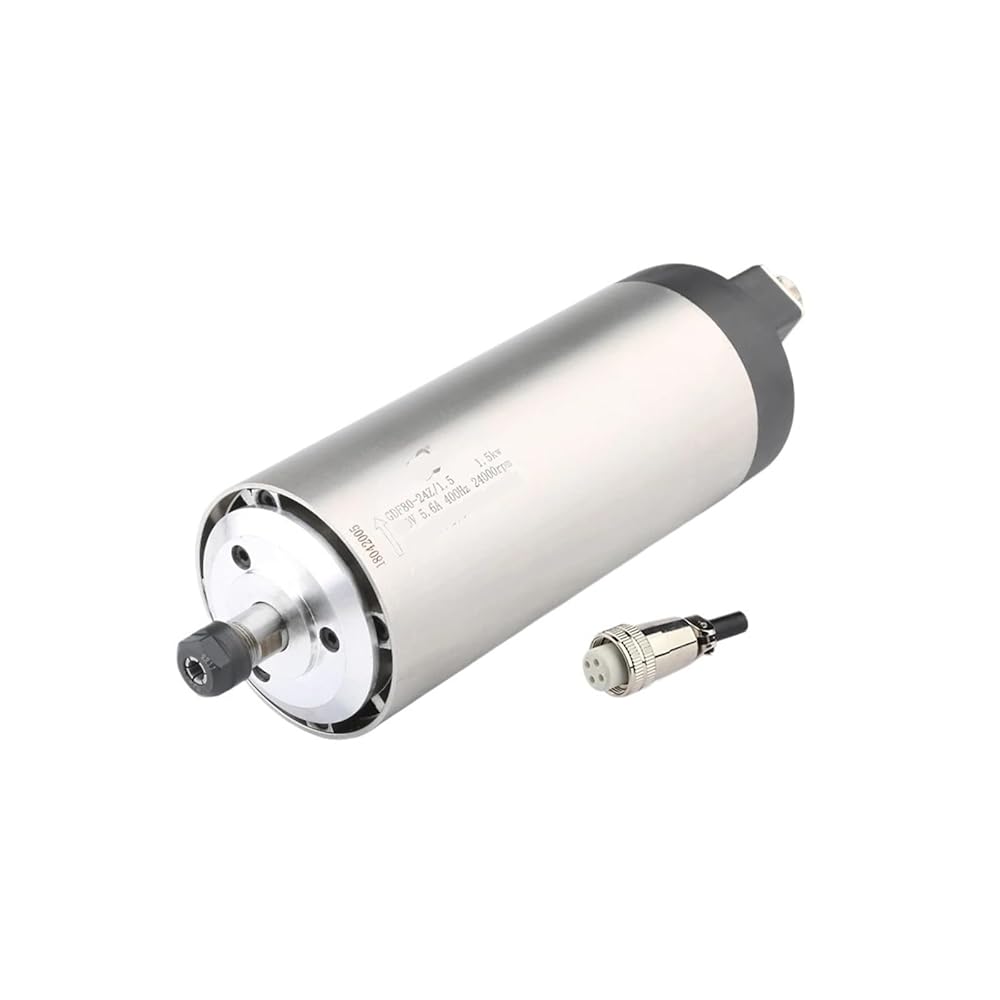

Model: GDF80-24Z/1.5
Power: 1.5KW
Current: 5.6A
Voltage: 220V/380V
Frequency: 400Hz
Diameter: 80 mm
Nut model: ER11
Taper hole runout: 2UM
Bearing: 2X7002C 2X70020
Material: stainless steel shell, copper coil
Power interface: Connect aviation plug 123 to Uvw
