Adjustable Digital Bridge Test Fixture, LCR/RCL Meter Test Fixture, Frequency Range DC-30MHz, High Precision, Multi-Meter for 0201-1812 SMD Component, Benchtop LCR Meters

SAR 813
– 1 +

Special Features

  • 【Precision SMD Component Analysis】: Engineered for impeccable accuracy, this digital bridge test fixture handles SMD components from 0201 to 1812 with ease. It delivers reliable results for tricky measurements like capacitors ≤ 3pF or inductors ≤ 1uH
  • 【Wide Ranging Frequency】: Tackle diverse testing needs with a sweeping DC to 30 MHz frequency range and ±42 V DC bias capability. This fixture ensures high precision across all your electronic projects, from educational labs to professional workshops
  • 【High Precision Performance】: Optimised for high-frequency small-capacitance or small-inductance SMD components, this fixture guarantees reliable and consistent data, catering to the stringent precision requirements of professional electronic engineers

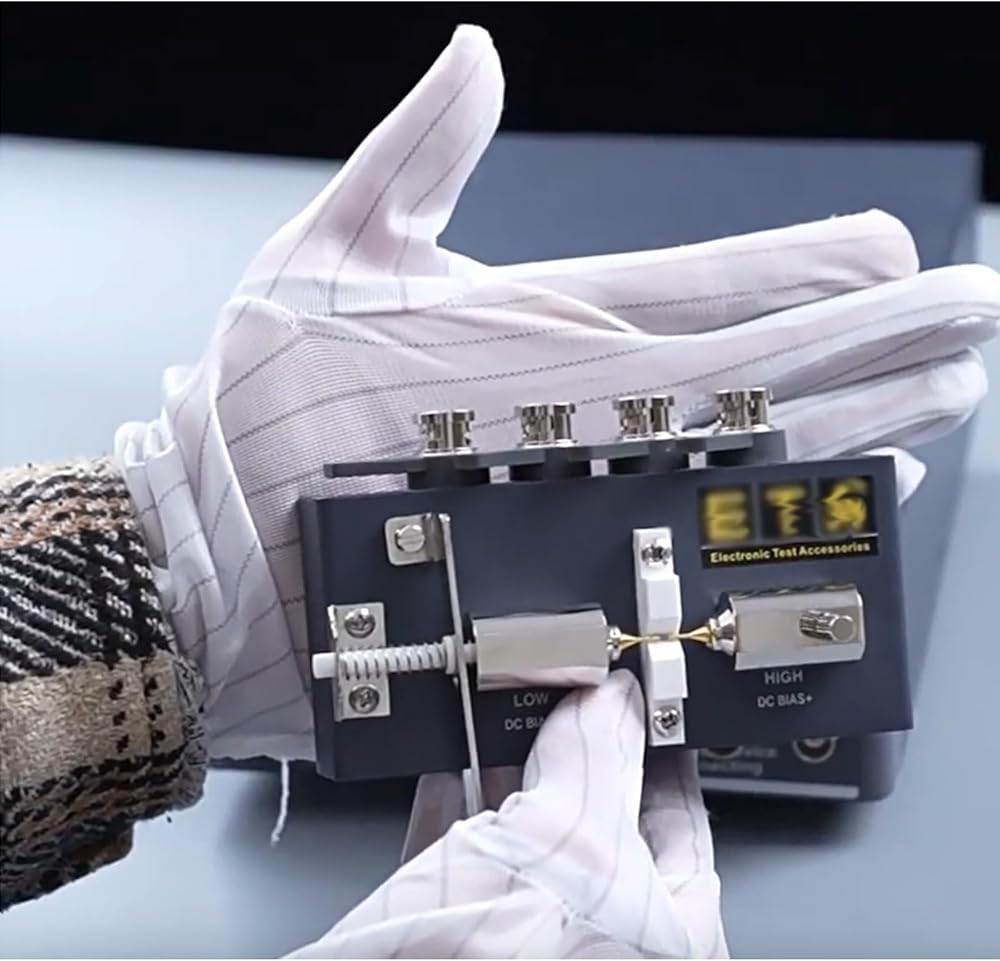

  • 【Compact & Companion】: Featuring a compact and lightweight design, this test fixture ensures exceptional mobility, allowing you to conduct accurate SMD component measurements effortlessly whether in a fixed laboratory environment or on-site field testing locations

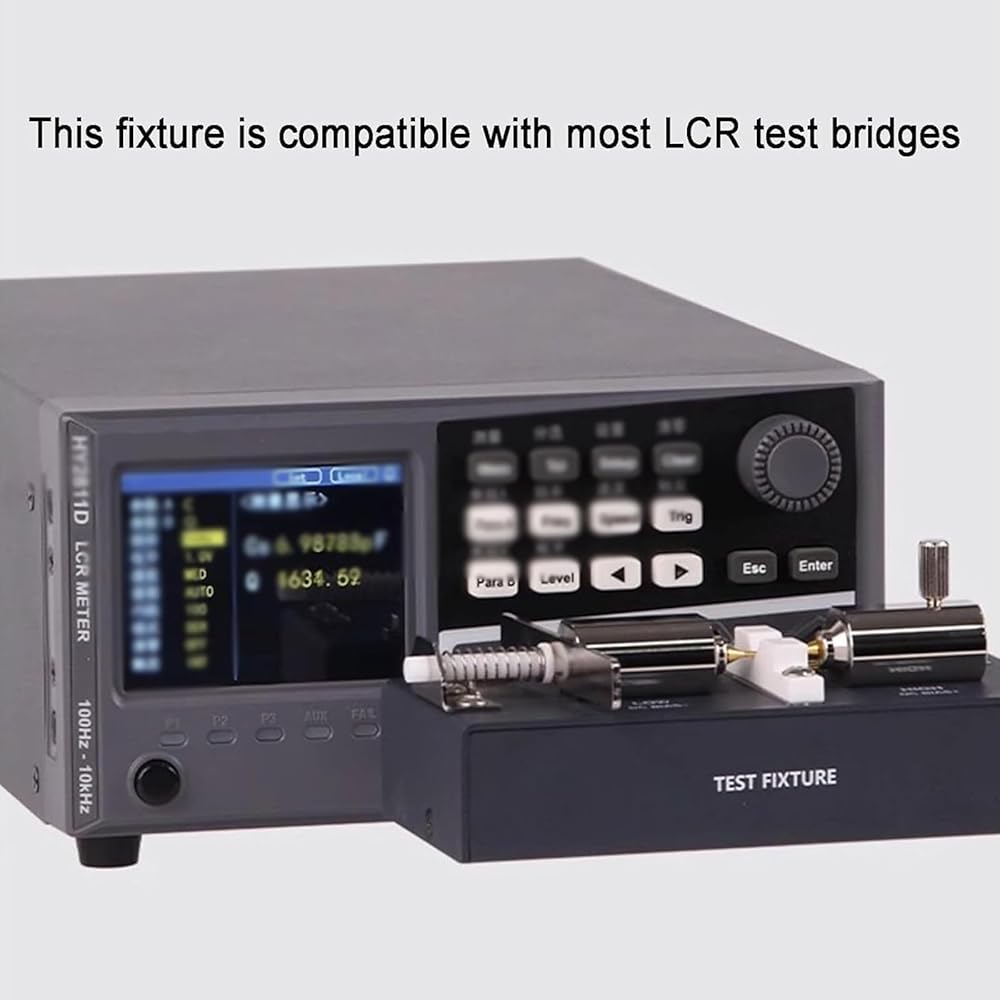

  • 【LCR Meter Compatibility】: Universally compatible with leading LCR bridge tester brands, it eliminates adapter headaches. Streamline workflows with plug-and-play operations for rapid SMD component validation, boosting productivity

Description

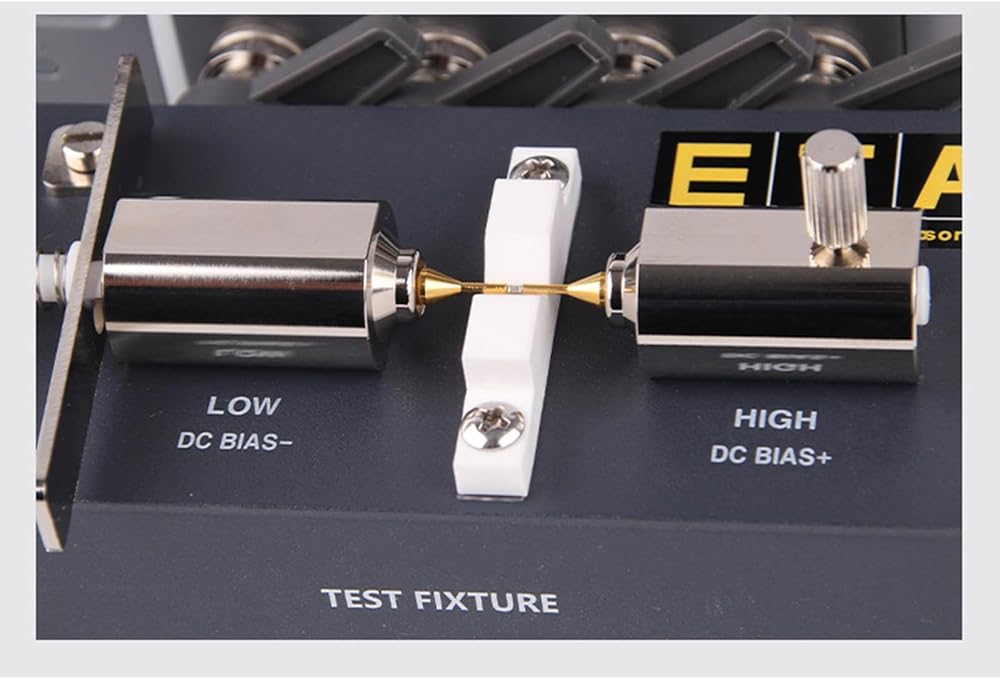

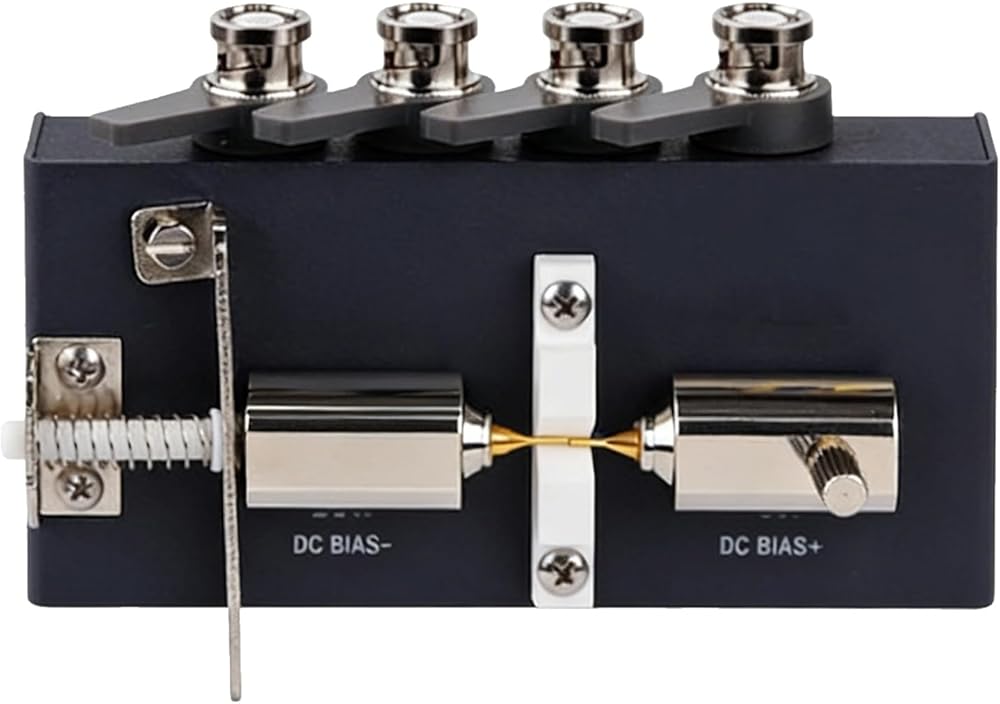

SMD Digital Bridge Test Fixture Used to Test SMD Chip Capacitors Chip Inductors, LCR/RCL Meter Test Fixture for Various Sizes , for SMD Component

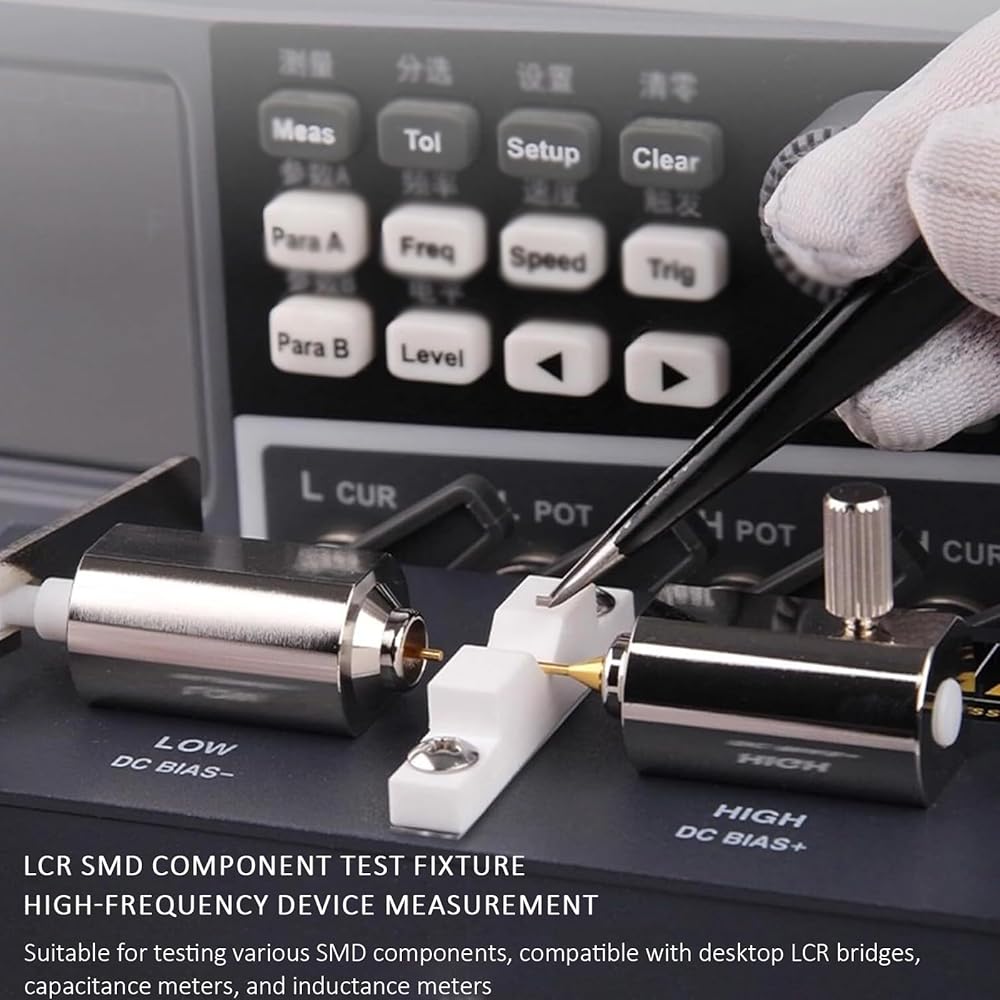

LCR SMD component test fixture, for high-frequency device measurement, suitable for testing various SMD components, compatible with desktop LCR bridges, capacitance meters, and inductance meters.

Specifications:
Name: SMD Digital Bridge Test Fixture
Frequency Range: DC-30MHz
Maximum DC Bias: DC ±24V
Product Use: SMD component test fixture, especially for high-frequency small capacitors or inductors. This type of SMD fixture is suitable when the test frequency is ≥100kHz, capacitance ≤3pF, or inductance ≤1uH.

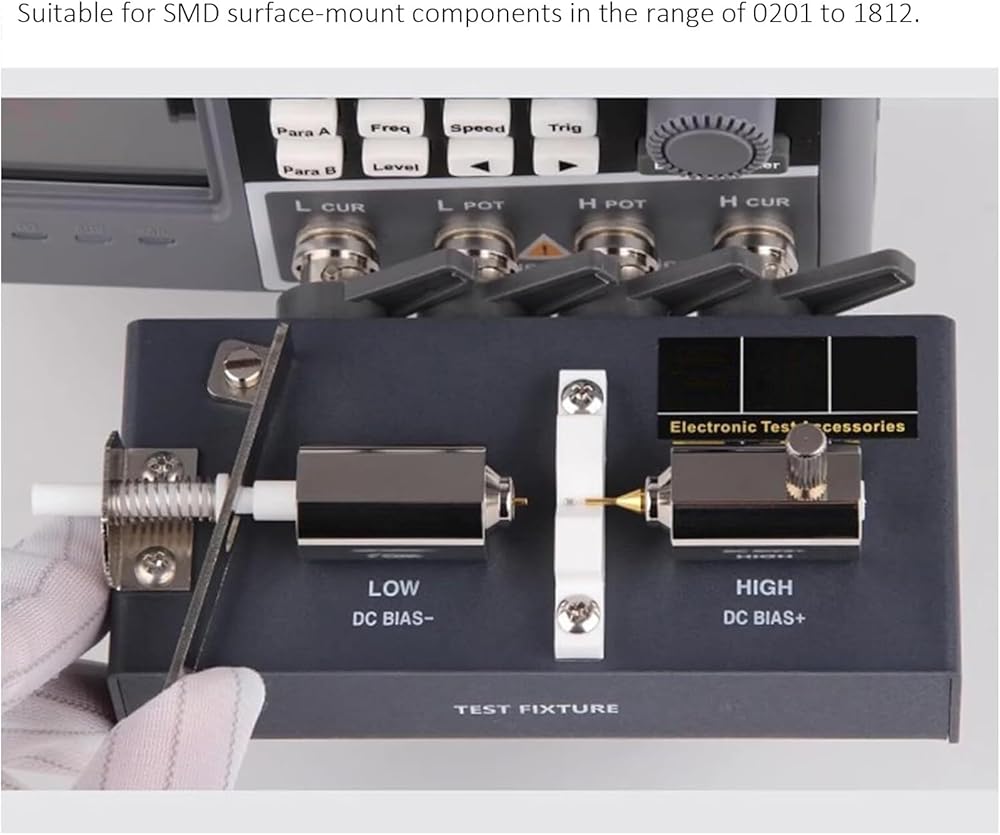

Applicable SMD Component Range: 0201-1812

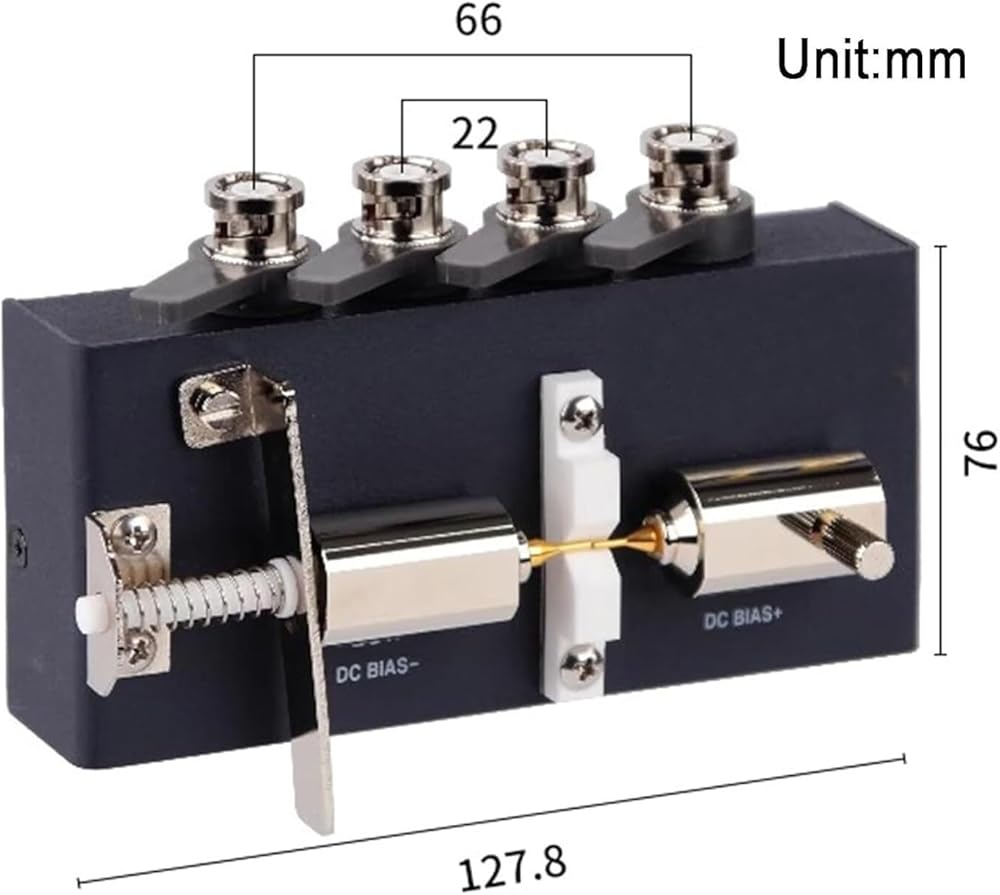

Product Dimensions: 127.8 × 76 mm (5 × 3 in)
Package Dimensions: 22 × 12 × 5.8 cm (8.7 × 4.7 × 2.3 in)
Gross Weight: 500g

Package List:
1 × SMD Digital Bridge Test Fixture

Notes:
1. Due to different manual measurements, please allow a 1-2cm difference in size.
2. After receiving the goods, if you find any problems, please contact us in time and we will help you solve it as soon as possible!
