Introduction

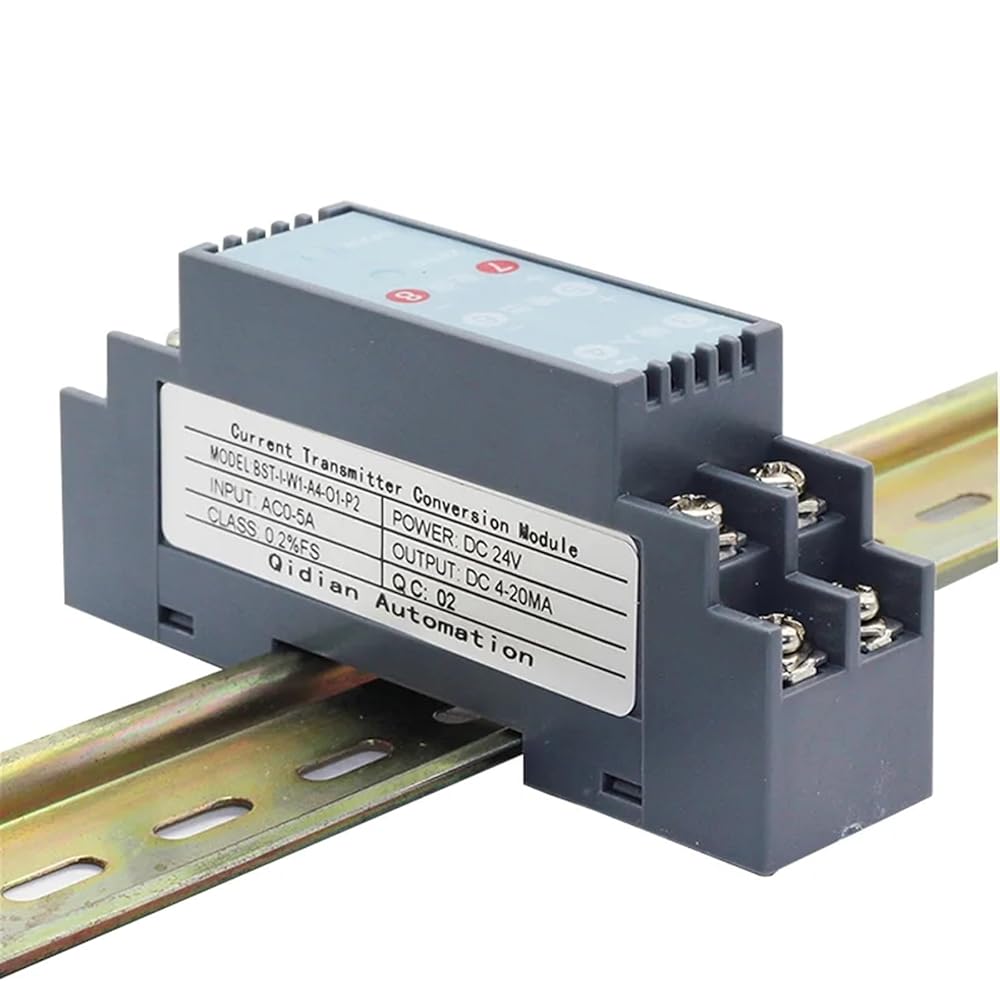

. BST-I AC current transmitter, it converts AC signals from AC into standard process signals.
. It is used for DCS to centrally monitor the motor,pump and heat supply network,monitor the power supply line and its current.
. Standard 35mm DIN rail independent mounting.Full channel configuration,Parameter customizable.
Product Dimensions
Input Current Range
AC 0-20A;
Frequency Range
40Hz-60Hz
Output Signal
4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;
Power Supply
DC24V,±10%
Accuracy
0.2%F.S.
Respond Time
400mS(0-90%) (TYP)
Temperature Drift
0.02%F.S./ (-20~+55)
Isolation Intensity
2000V AC/1min(between input-ouput-power)
Insulation Resistance
100M(between input-ouput-power)
Working Temperature & Humidity
2055
EMC
Complies with GBT 18268.1(IEC61326-1)
Mounting Type
35mm DIN rail mounting
Selection
Wiring:
==========
Dimensions : 108*47*25.4mm
Operating Temperature : -20-55C
Supply Voltage : DC24V DC12V
Accuracy Class : 0.2%
Model Number : BST-I
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Product name : BST-I AC current transmitter
Input current : AC0-10A
Output signal : 4-20mA,0-20mA,0-10V,0-5V
Power supply : DC12V DC24V
Installation : 35mm Din rail mounted
