ProductDescription

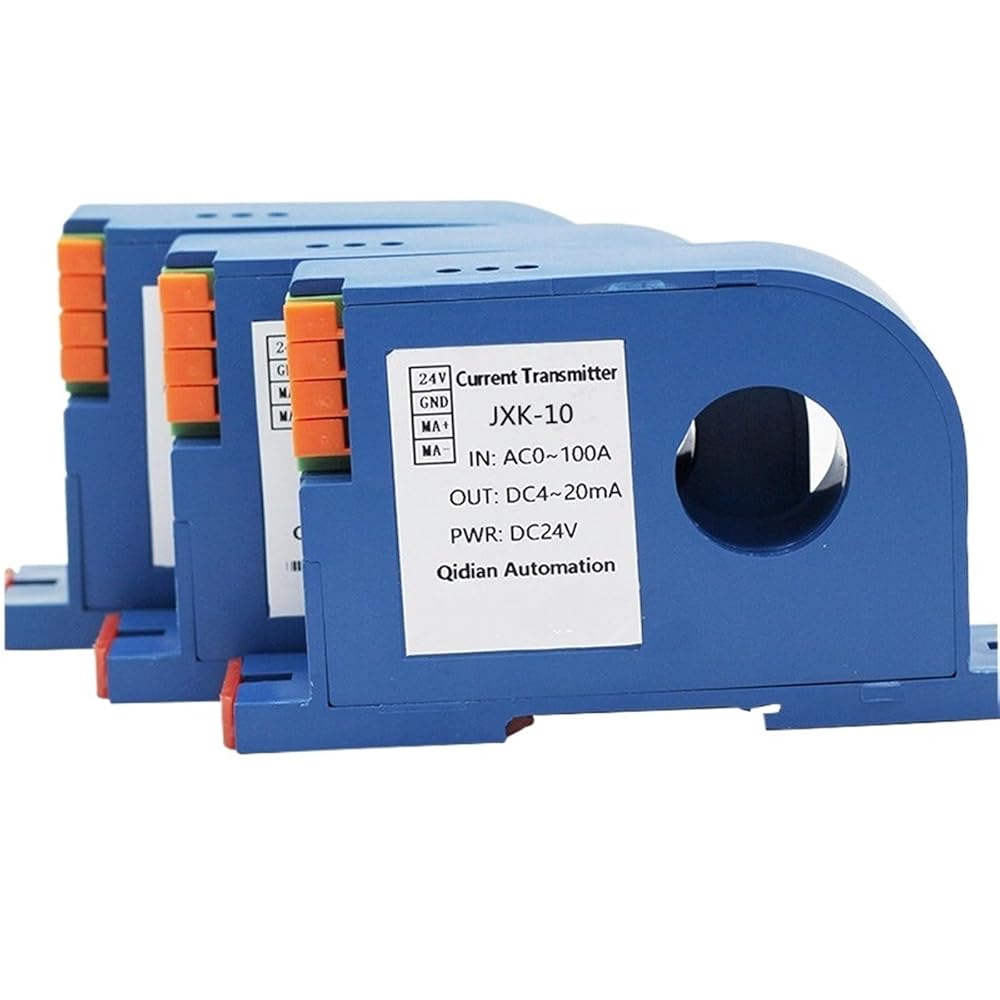

JXK-10AC/DCCurrenttransducer
Productuses:UsedformeasuringDC,AC,pulsecurrentandotherarbitrarywaveformcurrent.
Productadvantages:Bettercostperformance,lowpowerconsumption,smallvolume,lightweight,easyinstallation,perforationinputandnoinsertionloss.
Productapplication:Frequencyconversionspeedcontrolsystem,electricweldingmachine,electrochemistry,powersupplymonitoring,electriclocomotive,lowlevelstartingprotection.
Theinput,output,powerandoutershellareisolated,withstronganti-interferenceabilityandhighreliability.
Fullchannelconfiguration,Parametercustomizable.
roductParamenters
Installation
Planescrewfixation
OriginalSide
ratedcurrent
100A;200A;500A;800A;1000A;
OriginalSide
MeasuringRange
100A~1200A
RatedOutput
5V;DC0~20mA;DC4~20mA;
AuxiliaryPowerSupply
DC12V;DC24V;±12V;±15V
LoadCapacity
VoltageOutput:5mA;
CurrentOutput:6V
TemperatureDrift
500PPM/
ConsumptionCurrent
25mA
RespondTime
Isolation
PressureResistance
2.5kV/50Hz,1Min
QuiescentCurrent
ActionCurrent
FrequencyBandwidth
~20KHz
OffsetVoltage
20mvV
ZeroPointOutput
0.15mA
WorkingTemperature
-10~+70
StorageTemperature
-25~+85
Dimension
WirngDiagram
Workwith
==========
Operating Temperature : -20~55C
Supply Voltage : DC24V
Accuracy Class : 0.5% 1%
Model Number : jxk-10
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Certification : ,FCC,
Product name : JXK-10 current sensor
Input : AC or DC0-600A
Output : 4-20mA ,0-10V,0-5V
