Digital Surface Roughness Tester Profilometer for Heavy Industry, Aerospace, Surface Metrology Ra/Rz Measurement Model: Mextech SRT-6200 in Saudi Arabia Digital Surface Roughness Tester Profilometer for Heavy Industry, Aerospace, Surface Metrology Ra/Rz Measurement Model: Mextech SRT-6200 in Saudi Arabia Digital Surface Roughness Tester Profilometer for Heavy Industry, Aerospace, Surface Metrology Ra/Rz Measurement Model: Mextech SRT-6200 in Saudi Arabia Digital Surface Roughness Tester Profilometer for Heavy Industry, Aerospace, Surface Metrology Ra/Rz Measurement Model: Mextech SRT-6200 in Saudi Arabia Digital Surface Roughness Tester Profilometer for Heavy Industry, Aerospace, Surface Metrology Ra/Rz Measurement Model: Mextech SRT-6200 in Saudi Arabia

Digital Surface Roughness Tester Profilometer for Heavy Industry, Aerospace, Surface Metrology Ra/Rz Measurement | Surface Roughness Meter | Model: Mextech SRT-6200

SAR 3,362
Weight
0.6 kg
– 1 +

Special Features

  • Highly sophisticated inductance sensor | Measuring Parameters are Ra & Rz | Small in size, light in weight, and easy to use | Built-in lithium-ion rechargeable battery and control circuit with high capacity | Manual and Auto-off options | Tester can be switched off by pressing the Power key at any time. Auto power off after 5 minutes after the last key operation | Optional cable and software for RS232C interface to communicate with PC for statistics, printing, and analyzing.
  • Model No: SRT-6200 | Ra: 0.050 to 10um / 1.000 to 400.0uinch | Accuracy: Less than ±10% | Resolution: 0.001um (Reading<10um), 0.01um (<10umreading<100um), 0.1um (reading>100um).
  • Rz: 0.020 to 100um / 0.780 to 4000uinch | Accuracy: Less than ±10% | Resolution: 0.001um (Reading<10um), 0.01um (<10umreading<100um), 0.1um (reading>100um)
  • Operating Temperature: 32°F to 122°F / 0°C to 50°C | Operating Humidity: <80% | Display: 4 digits, 10 mm LCD, with blue backlight | Dimensions: 140 X 52 X 48 mm.

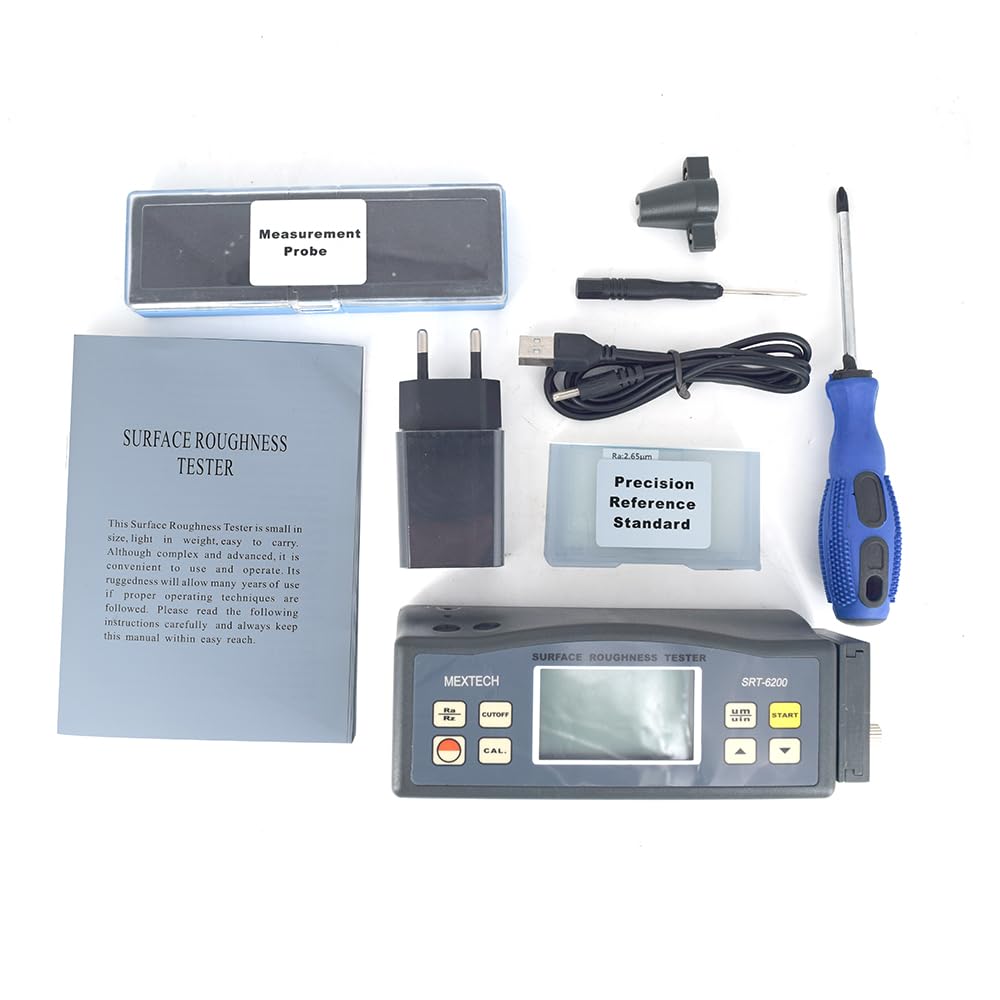

  • Supply Scope: 1 unit of Roughness Tester and Instruction Manual | Applications: Heavy industry, Aerospace, Surface metrology, manufacturing industries, etc.

Description

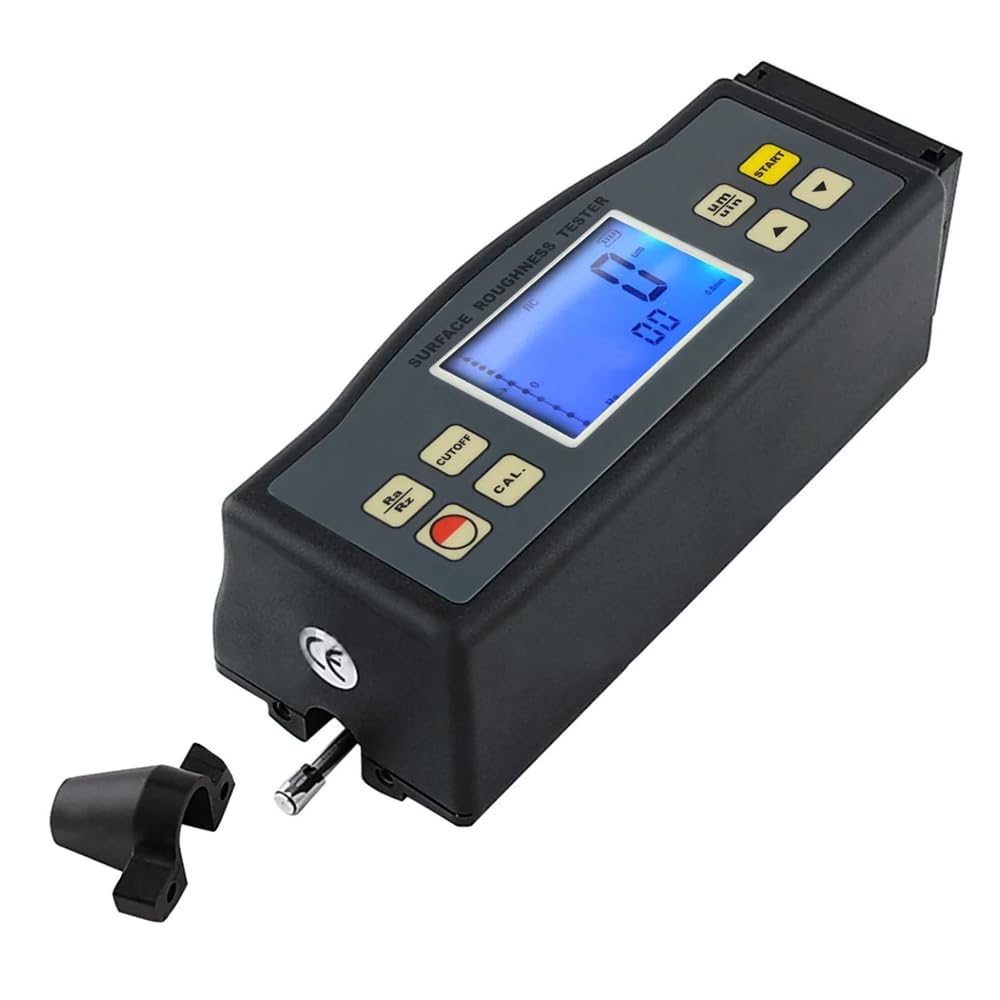

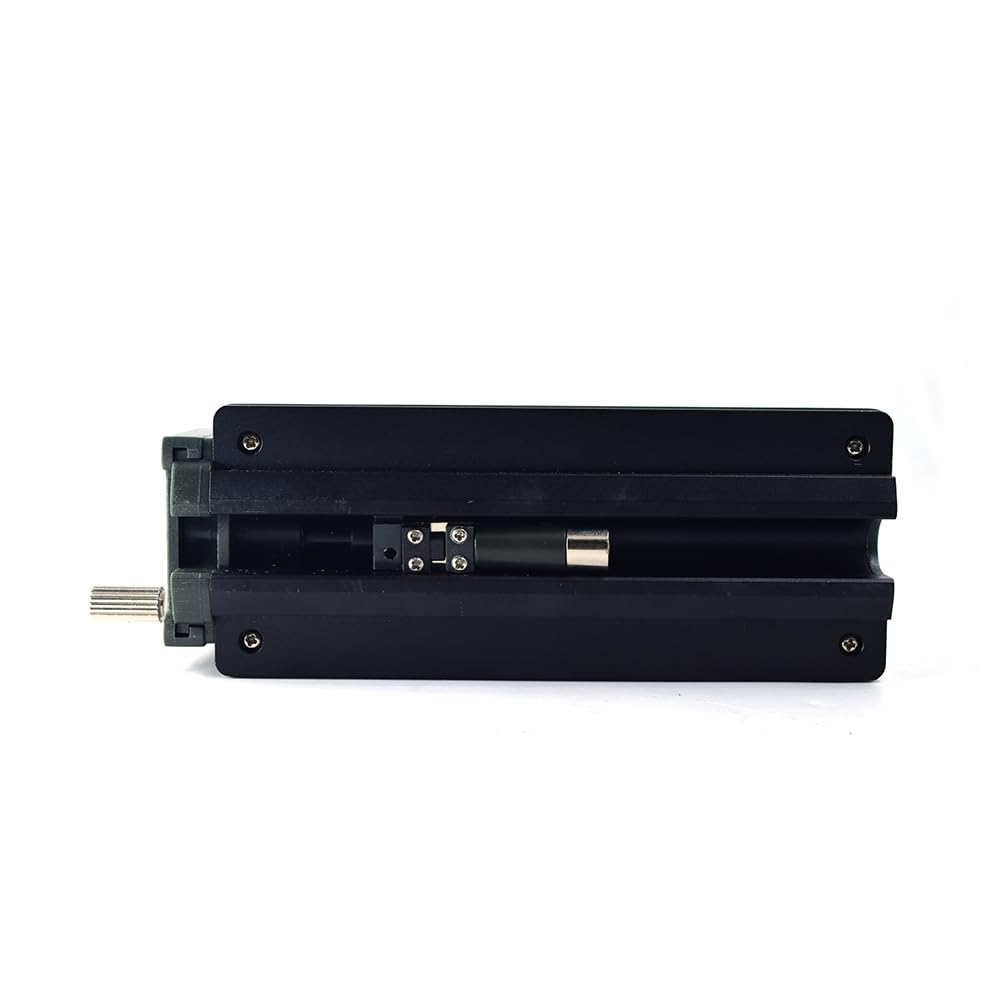

Mextech SRT-6200 Surface Roughness Tester is widely used to measures the roughness of a surface of various machinery processed parts in production sites. The sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The Roughness Tester sensor measures the surface roughness with a sharp built-in probe. The roughness causes movement of the probe which generates an analog signal due to a change in the inductive amount of the induction coil. The tester can calculate corresponding parameters according to the selected conditions. The exclusive DSP processes and data are displayed on the LCD. This Surface Roughness Tester can be used in various industrial applications and Educational Institutes for labs and research.
